Product Overview
The Rexroth 4WRPH10C3B50L-20/G24Z4/M (Material Number: 0811404058) is a high-response, pilot-operated proportional directional valve from the Bosch Rexroth WRPH series, engineered for precise, continuous control of flow direction and magnitude in demanding industrial hydraulic systems. Featuring a size 10 (NG10) nominal footprint, this valve utilizes a proportional solenoid on the pilot stage to position a main spool via hydraulic pilot pressure, delivering fast, repeatable response with minimal hysteresis. The “C3” spool design provides a specific flow metering characteristic suited to position, velocity, and force control loops, while the integrated spring-centered design ensures a defined fail-safe neutral position when de-energized. With a rated flow of 50 L/min at Δp = 10 bar per land and a G24 (24 V DC) solenoid with Z4 (central connector) electrical interface, this valve is a direct-fit solution for high-cycle industrial applications requiring accurate electro-hydraulic actuation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, High-Response) |
| Model Designation | 4WRPH10C3B50L-20/G24Z4/M / 0811404058 |
| Nominal Size | NG10 (Size 10) per ISO 4401 / DIN 24340 |
| Spool Type / Flow Characteristic | C3 – Progressive flow metering characteristic |
| Rated Flow | 50 L/min (per land at Δp = 10 bar) |
| Operating Pressure | Up to 315 bar (P, A, B ports); pilot pressure per Rexroth specification |
| Solenoid Voltage | G24 = 24 V DC proportional solenoid |
| Electrical Connection | Z4 = Central connector (DIN EN 175301-803 style) |
| Mounting & Connection | Subplate mounting, ISO 4401-05-04-0-05 / NG10 interface |
| Seal Material | NBR (standard); FKM available on request |
| Fluid Compatibility | Mineral oil based hydraulic fluids per DIN 51524 |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (pilot-operated, high-response) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 50 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a rated flow of 50 L/min at Δp = 10 bar per land and a G24 (24 V DC) solenoid with Z4 (central connector) electrical interface, this valve is a direct-fit solution for high-cycle industrial applications requiring accurate electro-hydraulic actuation.
PRODUCT IMAGES

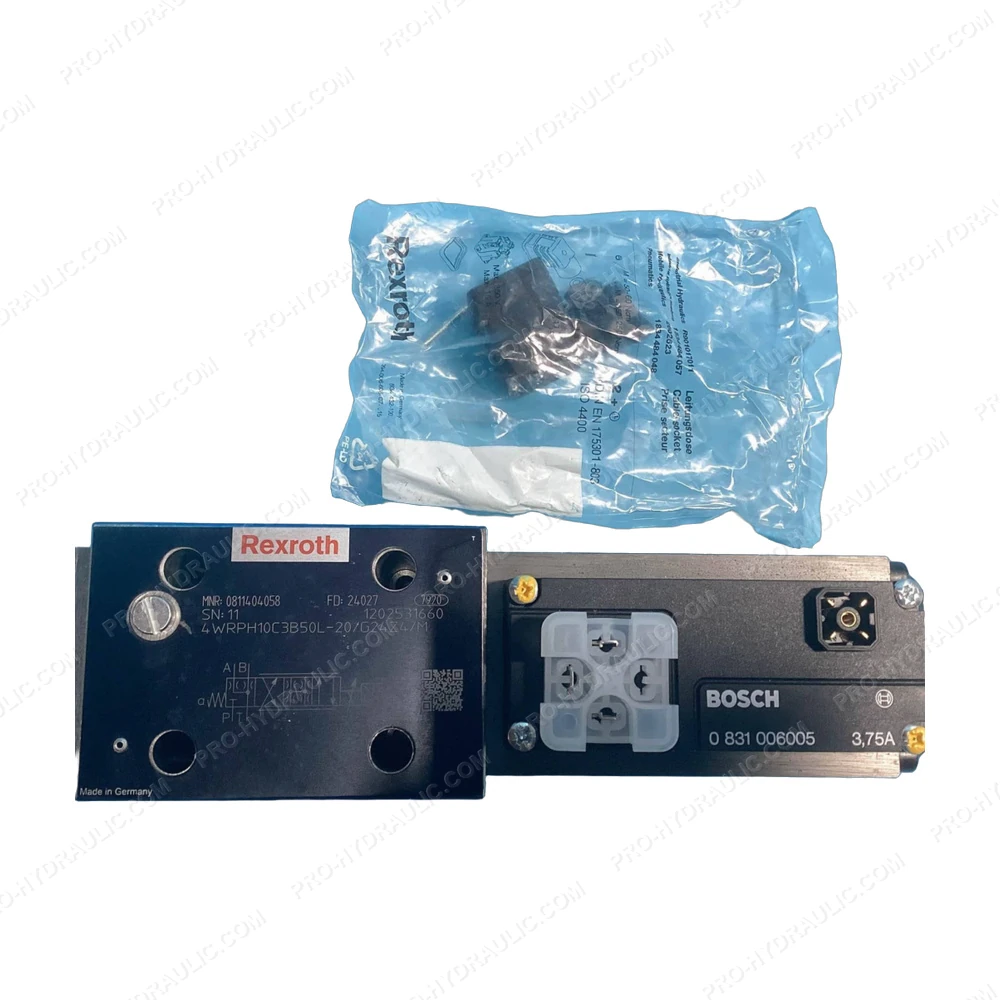

Rexroth 4WRPH10C3B50L-20/G24Z4/M / 0811404058 High-Response Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRPH10C3B50L-20/G24Z4/M / 0811404058 Solenoid Directional Control Valve. This Germany-made hydraulic component features a high-response pilot control, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
