Product Overview
The Rexroth 4WRPH6C3B40L-20/G24K0/M-750 (part number 0811404170) is a high-response, pilot-operated proportional directional valve from the Rexroth WRPH series, engineered for precise, continuous control of flow direction and magnitude in industrial hydraulic systems. Utilizing a proportional solenoid with integrated position feedback, this valve delivers infinitely variable spool positioning proportional to the electrical command signal, enabling smooth acceleration and deceleration of actuators without pressure spikes. The NG6 (CETOP 3 / ISO 4401-03) size valve is designed for demanding closed-loop and open-loop applications where accurate velocity and position control are critical. Its robust construction and high-resolution metering characteristics make it a preferred choice for injection molding, press control, and precision motion systems requiring repeatable, dynamic performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated) |
| Model Designation | 4WRPH6C3B40L-20/G24K0/M-750 / 0811404170 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Spool Type | C3 — Closed Center, Overlapping (Proportional) |
| Nominal Flow Rate | 40 L/min at Δp = 10 bar per land |
| Operating Pressure | Up to 315 bar (system); pilot pressure per Rexroth specification |
| Solenoid Voltage | 24 V DC (G24) |
| Electrical Interface | K0 — Standard DIN connector with integrated position feedback |
| Command Signal | ±10 V DC or 4–20 mA (via external amplifier card) |
| Mounting & Connection | Subplate mounting per ISO 4401-03 / CETOP 3 |
| Seal Material | NBR (standard); FKM available on request |
| Fluid Temperature Range | -20 °C to +80 °C (N |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (pilot-operated) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 40 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Its robust construction and high-resolution metering characteristics make it a preferred choice for injection molding, press control, and precision motion systems requiring repeatable, dynamic performance.
PRODUCT IMAGES

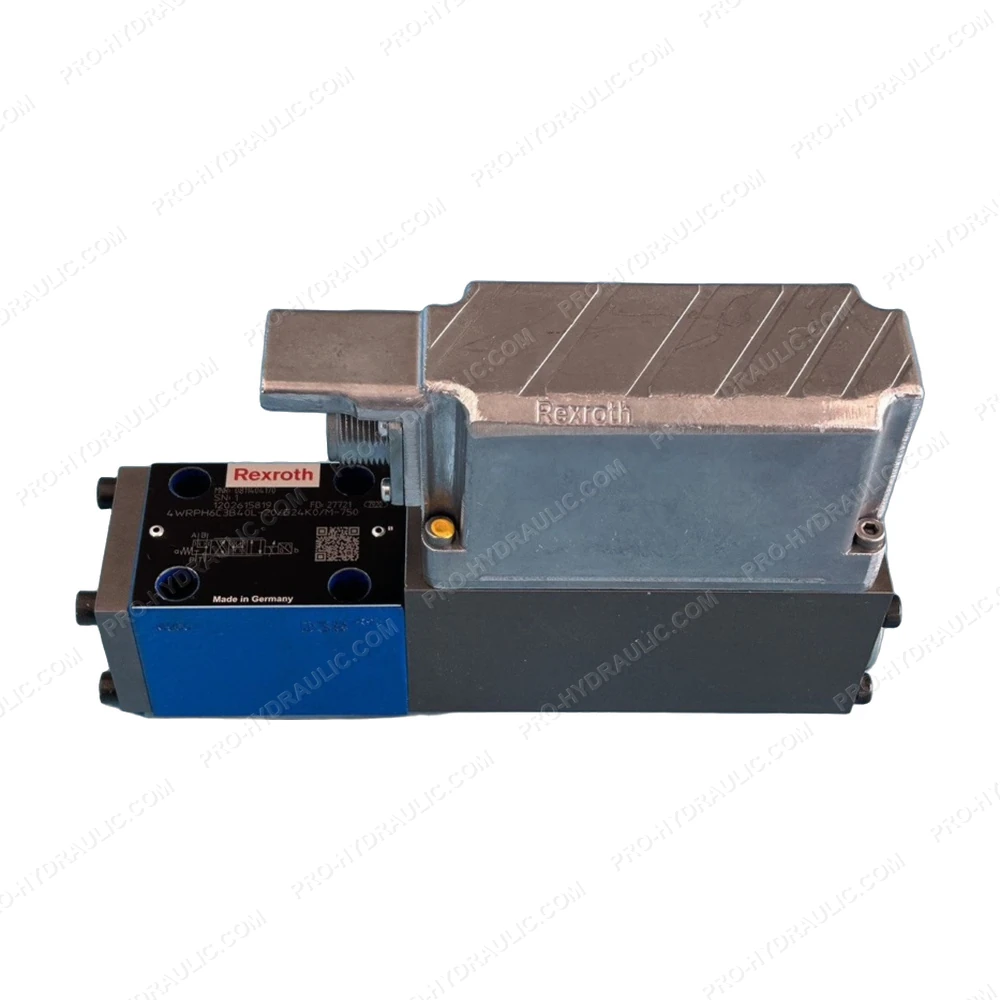

Rexroth 4WRPH6C3B40L-20/G24K0/M-750 / 0811404170 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRPH6C3B40L-20/G24K0/M-750 / 0811404170 Proportional Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way proportional design with position feedback, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
