Product Overview
The Rexroth 4WRSE 10V80-32/G24K0/A1V (Material Number: R900579286) is a high-performance, direct-operated proportional directional valve designed for precise control of flow direction and magnitude in industrial hydraulic systems. Featuring a size 10 (NG10) nominal footprint, this valve utilizes a robust proportional solenoid on one end and a spring return mechanism on the opposite end to achieve infinitely variable spool positioning. The “V80” designation indicates a nominal flow capacity of 80 L/min at a 10 bar (145 psi) pressure drop per metering edge, making it ideal for applications requiring smooth acceleration and deceleration profiles. The integrated “A1V” spool type provides a specific flow characteristic (typically progressive or linear) tailored for sensitive velocity control. As a critical component in modern electro-hydraulic control loops, this valve interfaces seamlessly with Rexroth proportional amplifiers and control electronics to deliver repeatable, high-resolution actuation for demanding motion control tasks.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Direct Operated) |
| Model Designation | 4WRSE 10V80-32/G24K0/A1V / R900579286 |
| Nominal Size | NG10 (Size 10) per ISO 4401 |
| Operating Pressure | Up to 315 bar (4570 psi) nominal working pressure |
| Nominal Flow Rate | 80 L/min (at Δp = 10 bar per metering edge) |
| Actuation Type | Proportional Solenoid (Single Solenoid with Spring Return) |
| Electrical Interface | 24 V DC (G24), K0 Connector (DIN EN 175301-803) |
| Spool Type | A1V (Progressive flow characteristic with overlap) |
| Mounting & Connection | Subplate mounting, ISO 4401-05-04-0-05 interface |
Engineering Features & Advantages
- Precision Proportional Control: The 4WRSE series provides infinitely variable control of flow volume and direction, enabling precise velocity and position control of hydraulic actuators without the need for complex servo valve electronics.
- Optimized Flow Characteristics: The A1V spool profile ensures stable, progressive flow gain, minimizing hydraulic shock during valve shifting and providing excellent resolution for low-command signal applications.
- Robust Solenoid Design: Equipped with a wet-pin DC proportional solenoid, the valve offers high magnetic force, low hysteresis, and exceptional durability against industrial contaminants and vibration.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The “V80” designation indicates a nominal flow capacity of 80 L/min at a 10 bar (145 psi) pressure drop per metering edge, making it ideal for applications requiring smooth acceleration and deceleration profiles.
PRODUCT IMAGES

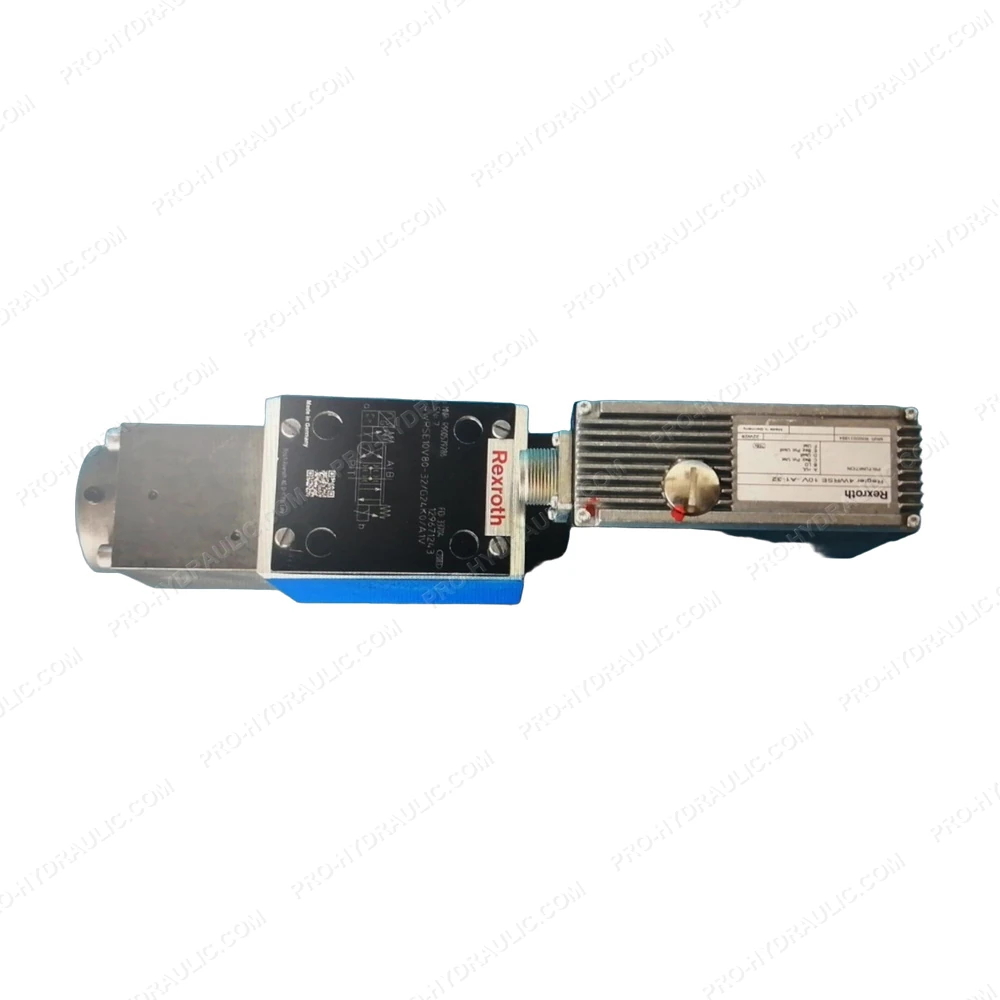

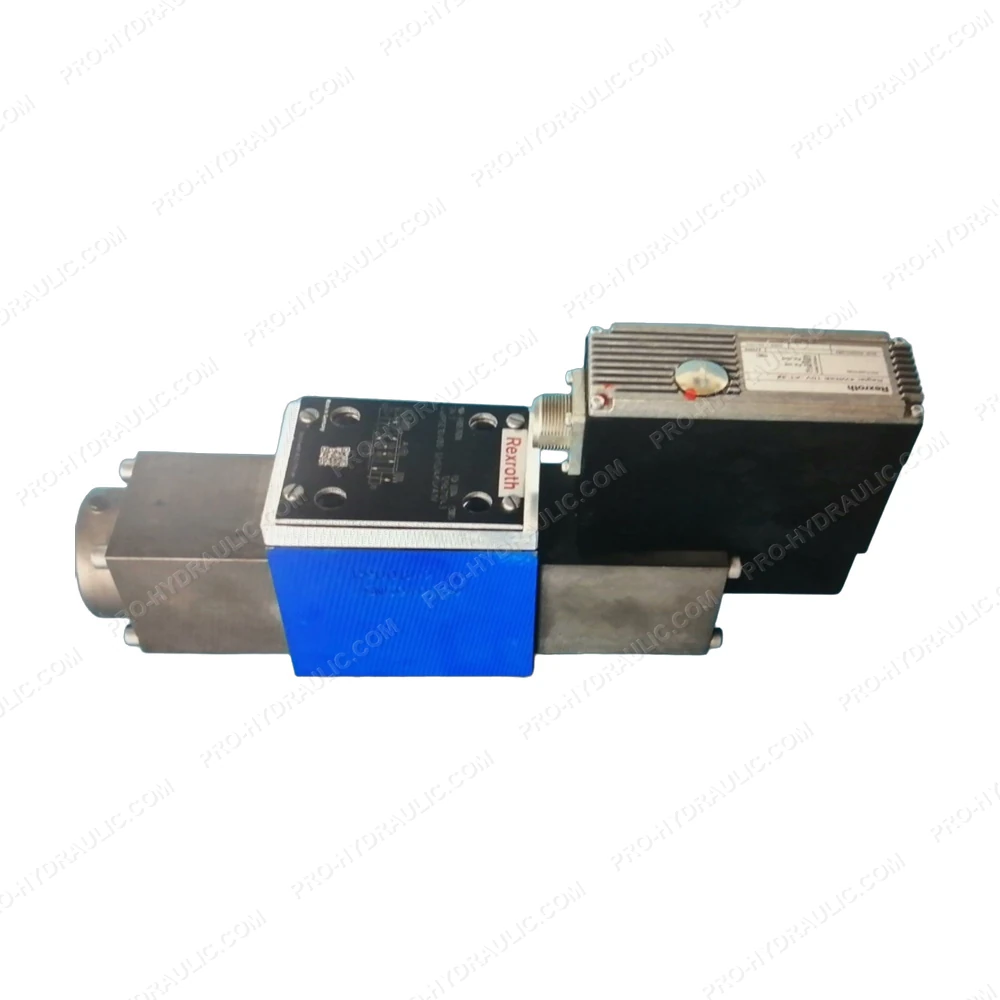

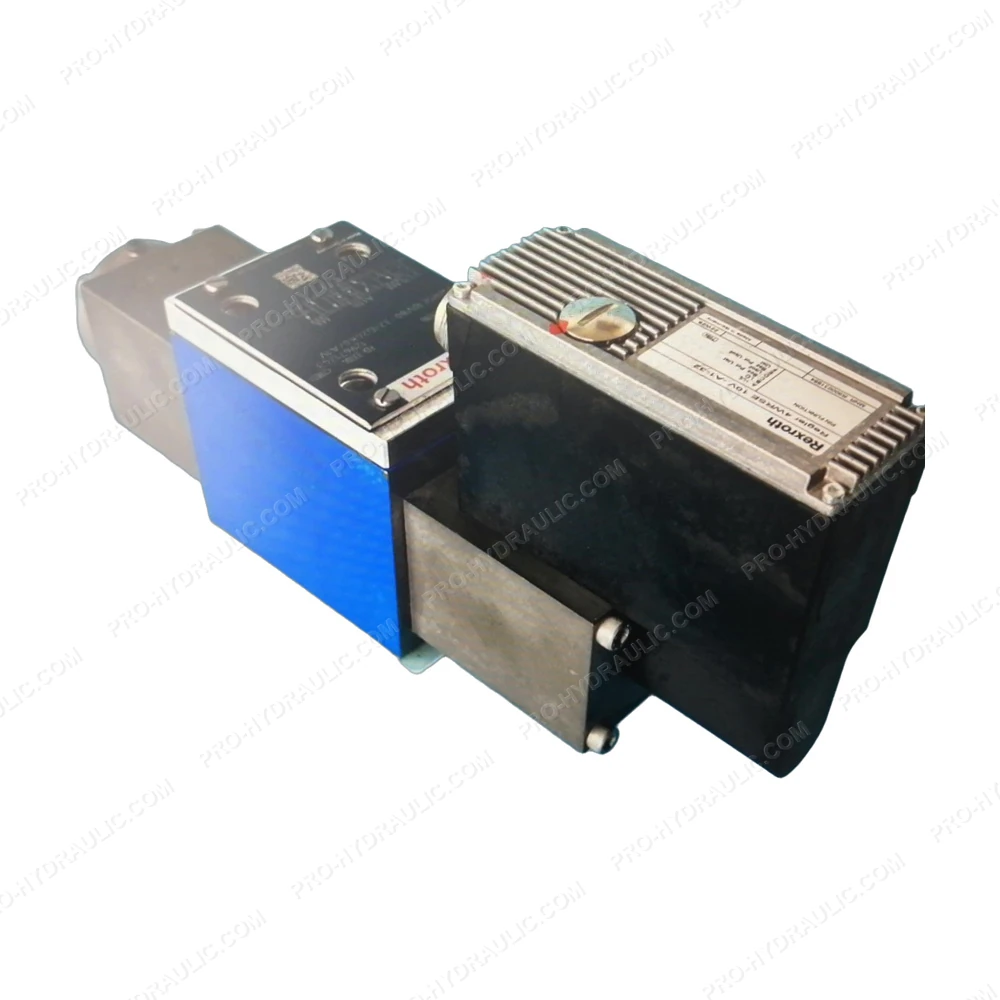

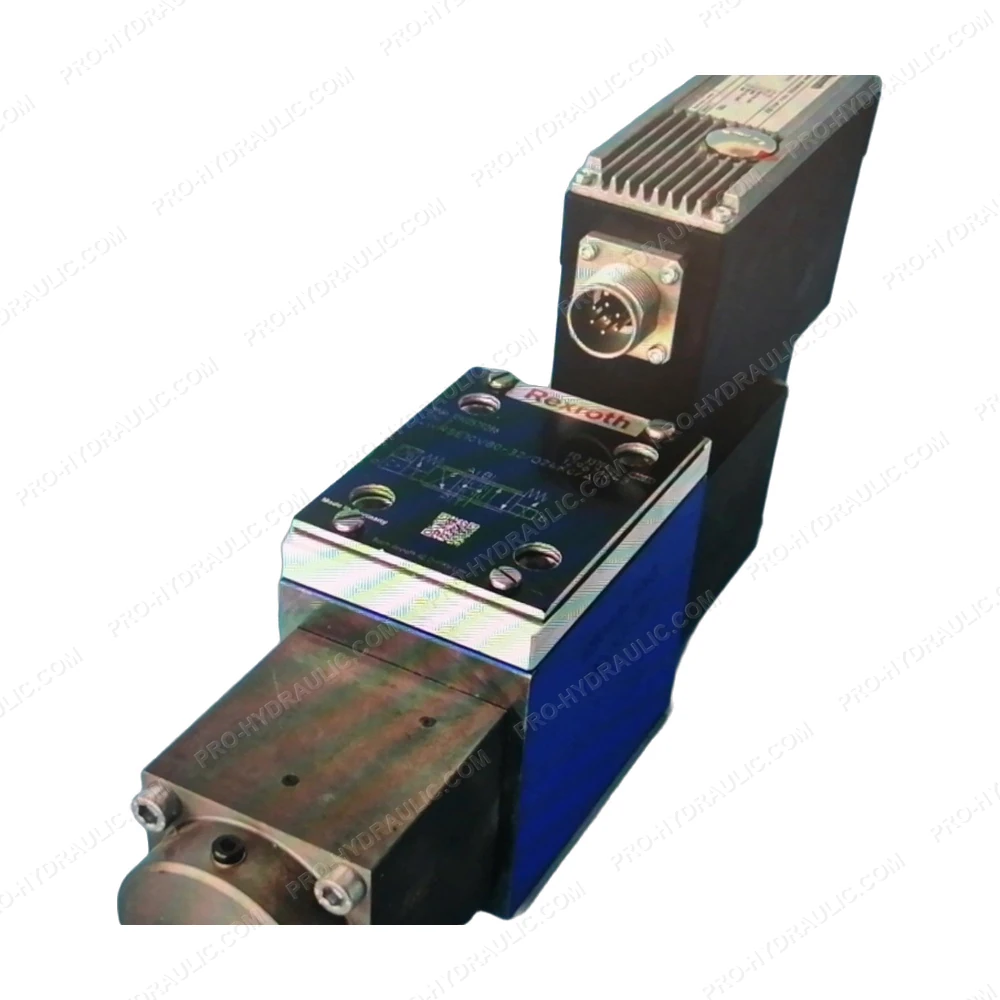

Rexroth 4WRSE 10V80-32/G24K0/A1V / R900579286 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth 4WRSE 10V80-32/G24K0/A1V / R900579286 Proportional Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
