Product Overview
The Rexroth 4WRTE 10 Q2-100P-42/6EG24EK31/A5M (Material Number: R900773306) is a high-response, pilot-operated proportional directional valve from the Rexroth 4WRTE series, designed for precise, continuous control of flow direction and magnitude in demanding industrial hydraulic systems. Featuring a four-way, three-position (4/3) spool configuration with integrated position feedback, this valve delivers exceptional dynamic response and repeatability. The “Q2” designation indicates a high-response variant with optimized spool geometry for fast, accurate positioning, while the “100P” rating reflects a nominal flow capacity of 100 L/min at a 10 bar pressure drop per land. The valve is actuated by a single proportional solenoid with 24 VDC (EG24) supply and features an integrated amplifier (EK31) with position transducer feedback, ensuring closed-loop control of the main spool. With a size 10 (NG10) interface per ISO 4401, this valve is engineered for seamless integration into high-performance hydraulic circuits requiring precise velocity and position control of actuators.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (4/3-way, pilot-operated, with position feedback) |
| Model Designation | 4WRTE 10 Q2-100P-42/6EG24EK31/A5M / R900773306 |
| Nominal Size | NG10 (Size 10) per ISO 4401-05 |
| Nominal Flow Rate | 100 L/min (at Δp = 10 bar per land) |
| Operating Pressure | Up to 315 bar (working ports); pilot pressure up to 315 bar |
| Spool Type | Q2 high-response spool, 4/3 configuration, closed-center in neutral |
| Actuation | Single proportional solenoid, 24 VDC (EG24), with integrated amplifier (EK31) |
| Control Interface | Analog command signal (0 to ±10 V or 4–20 mA), position transducer feedback |
| Mounting & Connection | Subplate mounting per ISO 4401-05-05-0-05; port connections P, T, A, B, X, Y |
| Seal Material | NBR (Buna-N) standard; FKM available on request |
Engineering Features & Advantages
- Precision Performance: The integrated single proportional solenoid, 24 VDC (EG24), with integrated amplifier (EK31) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 100 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The Rexroth 4WRTE 10 Q2-100P-42/6EG24EK31/A5M (Material Number: R900773306) is a high-response, pilot-operated proportional directional valve from the Rexroth 4WRTE series, designed for precise, continuous control of flow direction and magnitude in demanding industrial hydraulic systems.
PRODUCT IMAGES

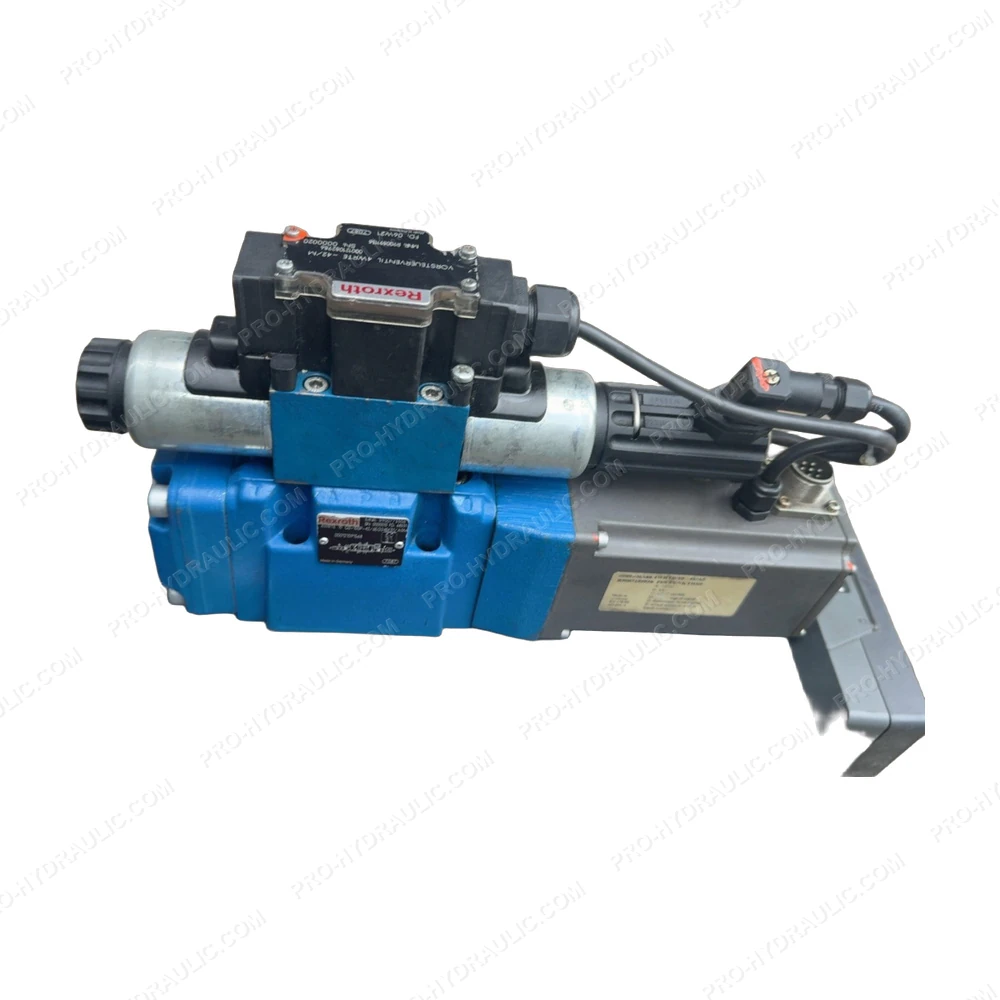

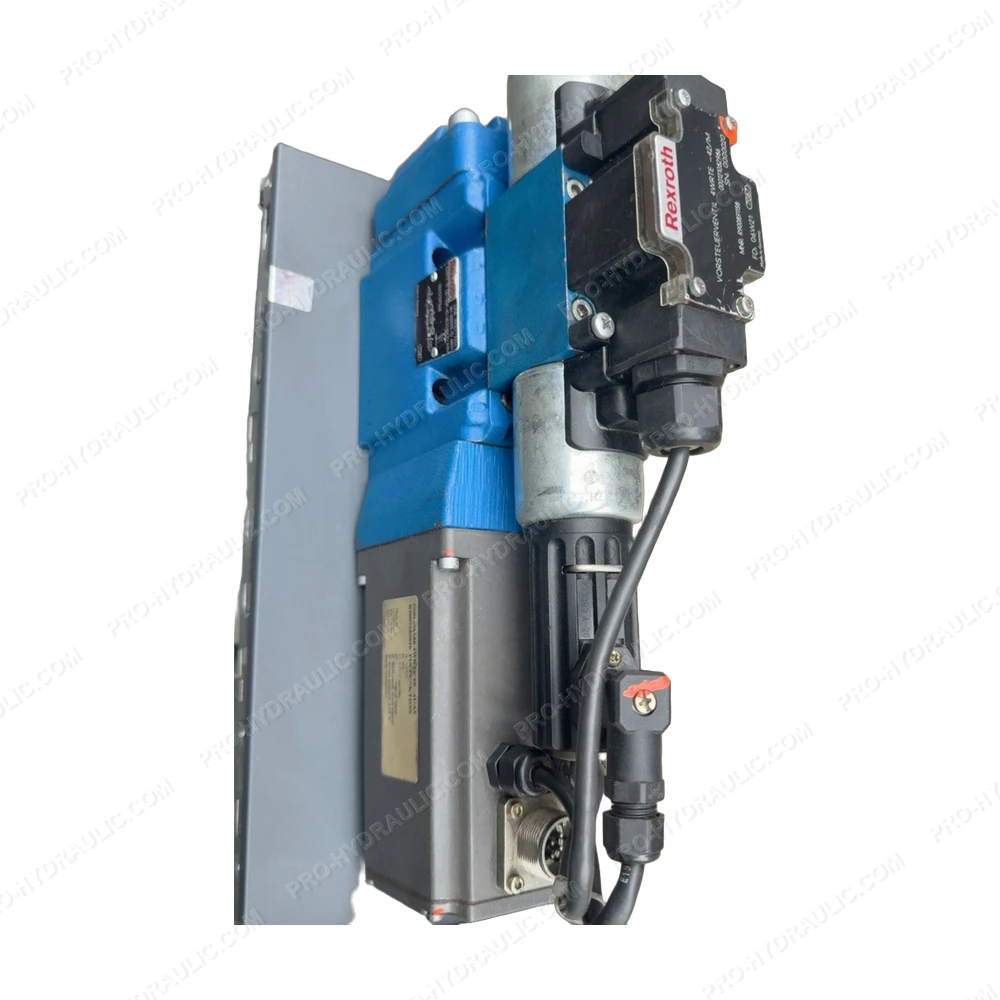

Rexroth 4WRTE 10 Q2-100P-42/6EG24EK31/A5M / R900773306 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRTE 10 Q2-100P-42/6EG24EK31/A5M / R900773306 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way, 3-position design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
