Product Overview
The Rexroth 4WRTE 10 (Material Number: R901325866) is a high-response, pilot-operated proportional directional valve designed for precise control of flow direction and magnitude in demanding industrial hydraulic systems. Part of the renowned Rexroth 4WRTE series, this valve utilizes a two-stage design with a pilot valve and a main spool, actuated by a high-performance proportional solenoid. It features integrated position feedback via an inductive displacement transducer, enabling exceptional dynamic response and high repeatability. This valve is engineered to seamlessly interface with modern proportional amplifier cards, providing accurate, infinitely variable control of actuator speed and direction in open-loop or closed-loop applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (High-Response, Pilot-Operated) |
| Model Designation | 4WRTE 10 / R901325866 |
| Operating Pressure | Up to 350 bar (P, A, B ports); 315 bar (T port) – Standard Industrial Grade |
| Nominal Flow Rate | Up to 100 L/min at Δp = 10 bar (per size 10 spool) |
| Mounting & Connection | ISO 4401-05 / CETOP 5 / NG10 Subplate Interface |
| Actuation Type | Proportional Solenoid with Integrated Position Feedback (Inductive Transducer) |
| Spool Configuration | Standard 4-way, 3-position, closed-center (other spool variants available) |
| Response Time | High-response design, typically < 20 ms for full stroke |
Engineering Features & Advantages
- Precision Performance: High-resolution inductive position feedback ensures accurate spool positioning, excellent repeatability, and minimal hysteresis, enabling precise velocity and position control of hydraulic actuators.
- High Dynamic Response: The pilot-operated design with optimized solenoid force and low-friction spool mounting delivers fast response times, making it ideal for high-cycle industrial applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction, contamination-resistant design, and proven Rexroth quality for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement for existing Rexroth 4WRTE series valves without modification.
- Flexible Control Integration: Compatible with Rexroth proportional amplifier cards and most standard industrial controllers, supporting both open-loop and closed-loop system architectures.
Typical Industrial Applications
This high-response proportional directional valve is widely used in demanding industrial scenarios requiring precise motion control, including: plastic injection molding machines (clamping, injection, and ejector circuits), metallurgical presses (forging, stamping, and extrusion), CNC machine tools (feed and positioning axes), and construction & marine
PRODUCT IMAGES

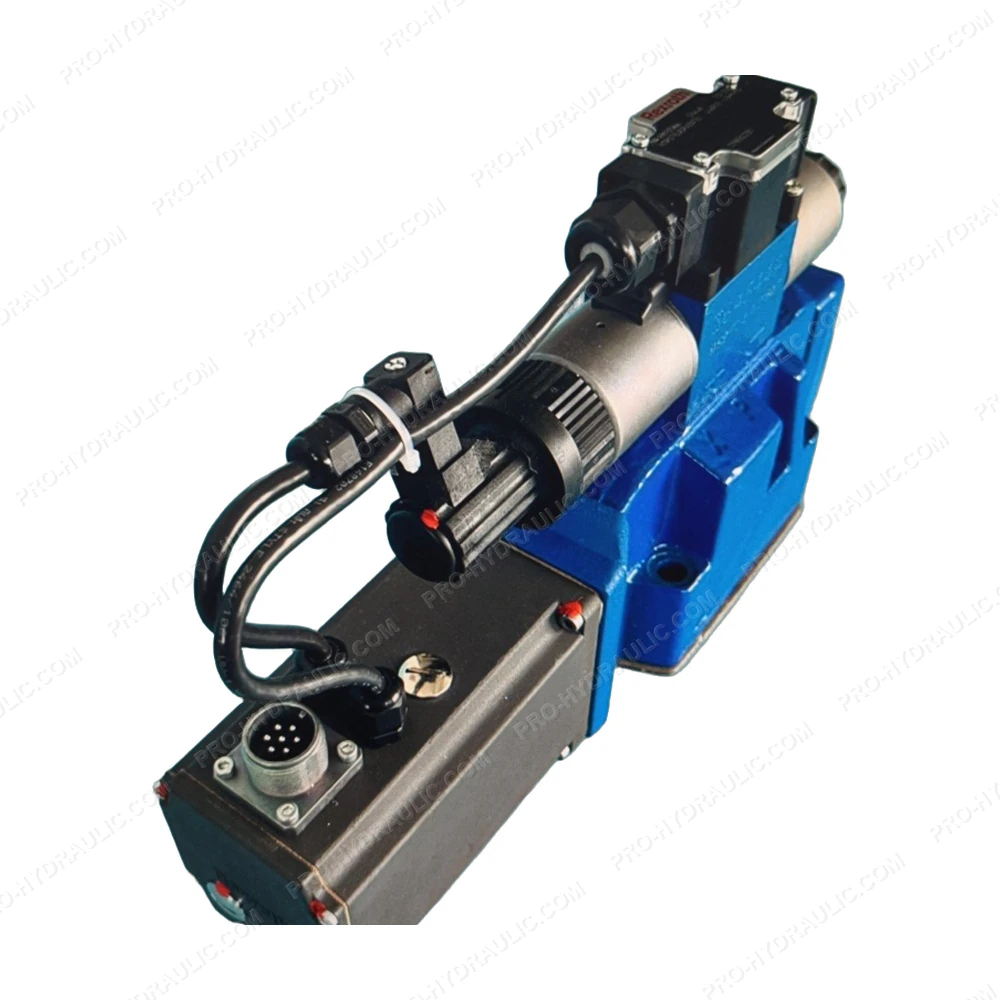

Rexroth 4WRTE 10 / R901325866 High-Response Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRTE 10 / R901325866 High-Response Directional Control Valve. This Germany-made hydraulic component features a high-response pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
