The REXROTH 4WRTE 16 E200L-46/6EG24EK31/F1M / R901052558 is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in high-pressure hydraulic systems. As part of the Rexroth 4WRTE series, it features a four-way, three-position design with integrated electronics (OBE) and position feedback for closed-loop operation, ensuring accurate response and repeatability in demanding applications.
REXROTH 4WRTE 16 E200L-46/6EG24EK31/F1M / R901052558 Technical Specifications
| Valve Type | Proportional Directional Valve, 4-way, 3-position |
| Size | NG16 (CETOP 16 / ISO 4401-07) |
| Nominal Flow | 200 L/min at Δp = 10 bar per land |
| Operating Pressure | Up to 350 bar (dynamic), 315 bar (static) |
| Control Spool | E200L-46 (progressive flow characteristic, closed center) |
| Actuation | Proportional solenoid with integrated electronics (OBE) and position feedback |
| Supply Voltage | 24 V DC (nominal) |
| Electrical Connection | Connector according to EN 175301-803 (DIN 43650) |
| Mounting Pattern | Subplate mounting, ISO 4401-07-04-0-94 |
| Seal Material | NBR (FKM optional) |
| Fluid Temperature Range | -20 °C to +80 °C |
| Viscosity Range | 10 to 800 mm²/s |
| Filtration | ISO 4406 (c) 18/16/13 or better |
| Weight | Approx. 12.5 kg |
Key Engineering Features
- Integrated digital electronics (OBE) with position feedback for closed-loop control of spool position
- High-resolution proportional solenoid with low hysteresis and excellent repeatability
- Robust cast iron housing and precision-machined spool for long service life under high pressure
- Spring-centered spool returns to neutral position in case of power failure or signal loss
- Compatible with mineral oil-based hydraulic fluids (HL, HLP, HVLP) according to DIN 51524
- Optional manual override for emergency operation
Industrial Applications
- Injection molding machines – precise control of injection, clamping, and ejection sequences
- Hydraulic presses – force and position control in metal forming and stamping
- Machine tools – feed and speed control in machining centers and lathes
- Steel and metallurgy – continuous casting, rolling mills, and furnace door actuation
- Test rigs and simulators – dynamic load simulation and motion control
- Offshore and marine – deck machinery and winch control systems
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WRTE 16 E200L-46/6EG24EK31/F1M / R901052558, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

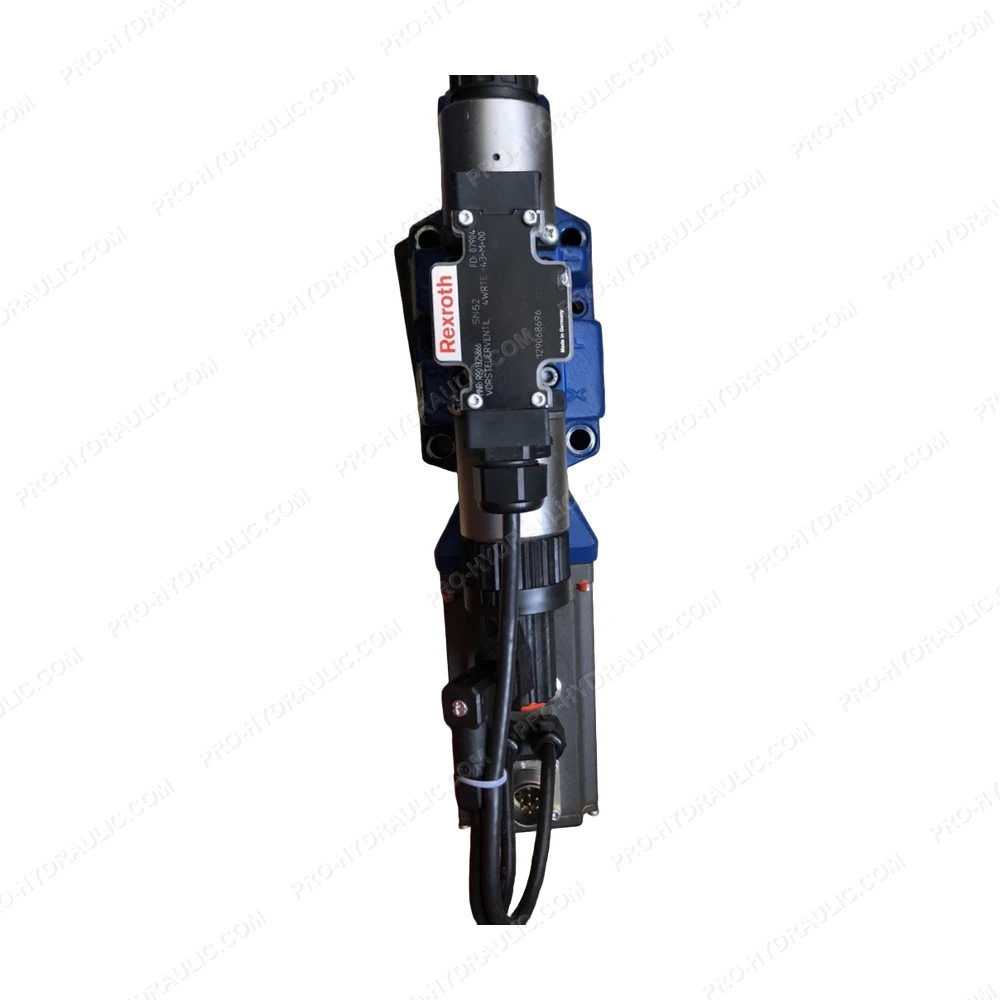

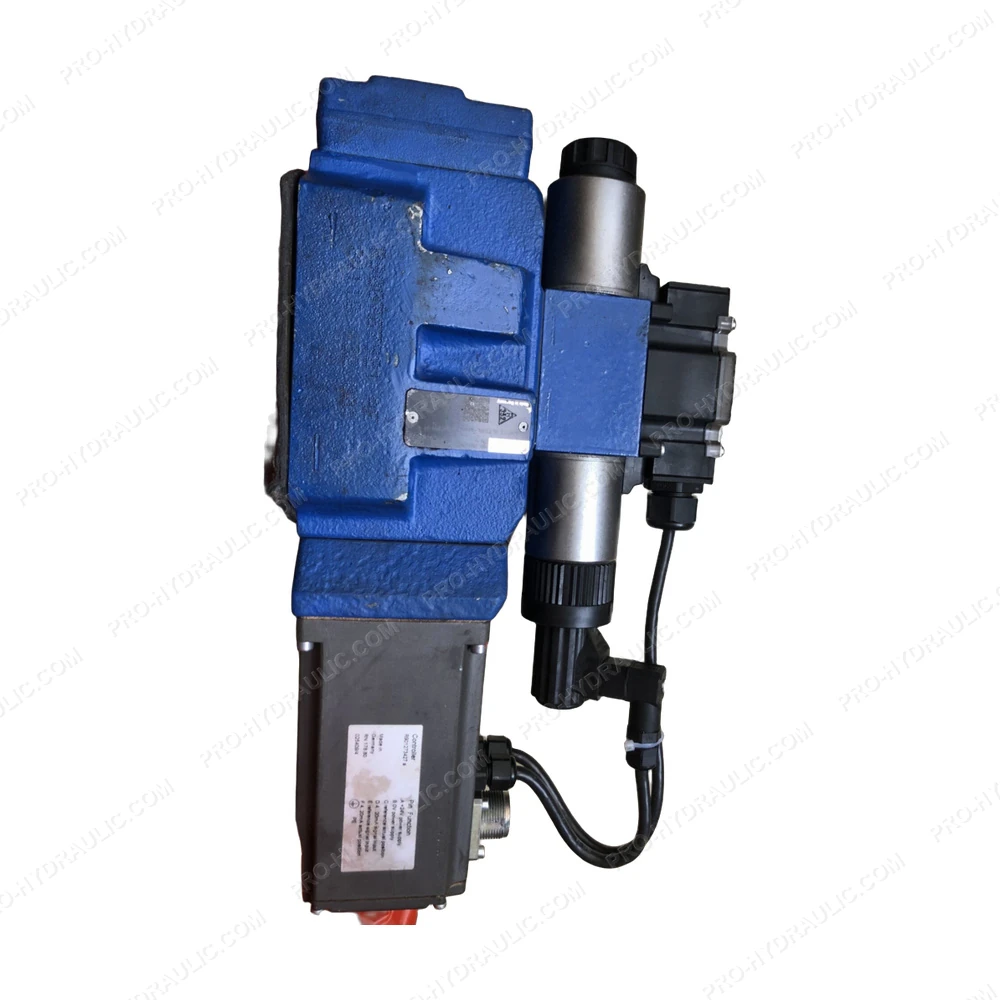

REXROTH 4WRTE 16 E200L-46/6EG24EK31/F1M Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 4WRTE 16 E200L-46/6EG24EK31/F1M / R901052558 Proportional Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
