Product Overview
The Rexroth 4WRZ16W6-150-74/6EG24N9K4/D3M (material number R900707161) is a pilot-operated, two-stage proportional directional valve from the renowned Rexroth 4WRZ series. Designed for continuous, high-dynamic control of flow direction and magnitude in industrial hydraulic systems, this valve utilizes a proportional solenoid pilot stage to actuate the main spool. The 4WRZ series is specifically engineered to provide precise, infinitely variable control of actuator speed and position, making it a critical component in demanding closed-loop and open-loop applications. With a nominal size of NG16 and a rated flow capacity of 150 L/min, this valve delivers robust performance and exceptional reliability in the most rigorous industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated) |
| Model Designation | 4WRZ16W6-150-74/6EG24N9K4/D3M |
| Material Number | R900707161 |
| Nominal Size | NG16 (Size 16) |
| Operating Pressure | Up to 350 bar (P, A, B ports); Pilot pressure up to 315 bar |
| Rated Flow | 150 L/min at Δp = 10 bar (per land) |
| Spool Type | W6 (Progressive flow characteristic, closed center) |
| Actuation | Proportional Solenoid, 24 V DC (EG24) |
| Electrical Connection | N9K4 (Component plug, 4-pole, without mating connector) |
| Seal Material | NBR (Nitrile Rubber) / Standard Industrial |
| Mounting & Connection | Subplate mounting, ISO 4401-07-04-0-05 (NG16) |
| Control Option | D3M (Integrated control electronics with position feedback) |
Engineering Features & Advantages
- Precision Performance: The integrated proportional Solenoid, 24 V DC (EG24) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a nominal size of NG16 and a rated flow capacity of 150 L/min, this valve delivers robust performance and exceptional reliability in the most rigorous industrial environments.
PRODUCT IMAGES

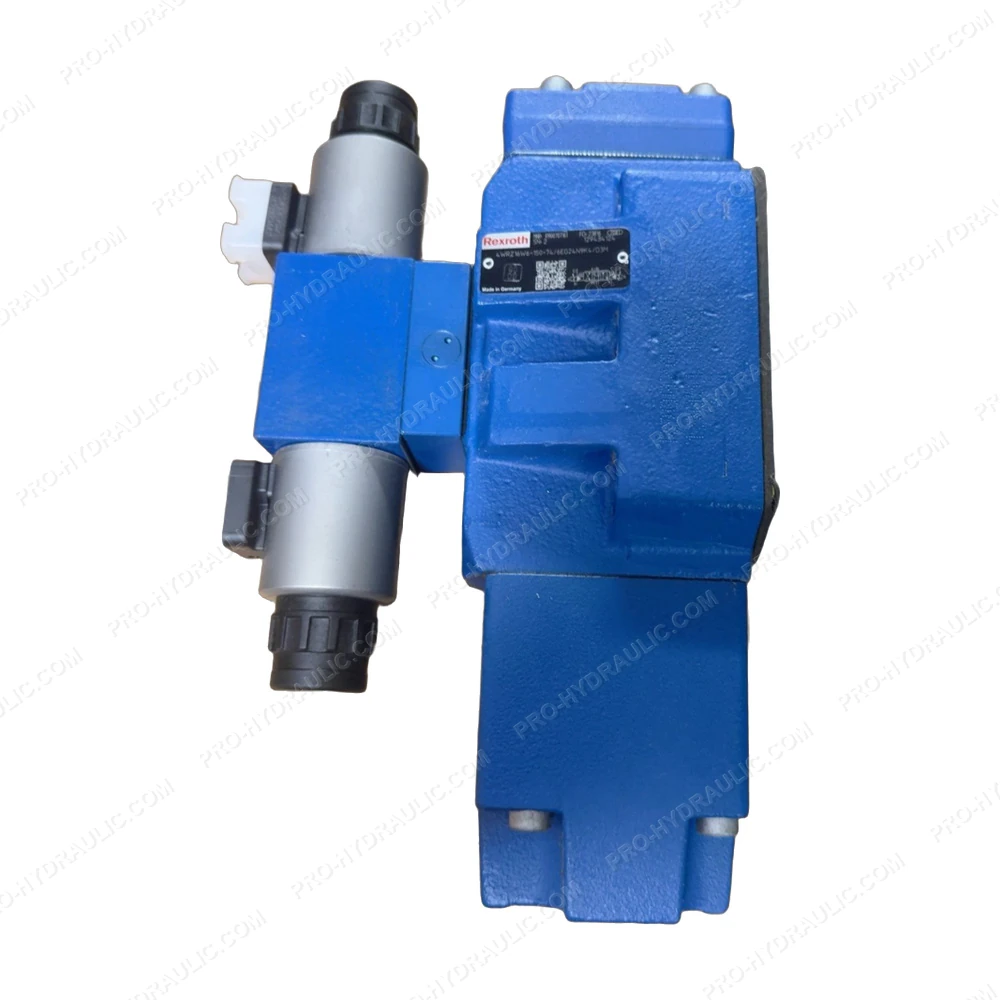

REXROTH 4WRZ16W6-150-74/6EG24N9K4/D3M / R900707161 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRZ16W6-150-74/6EG24N9K4/D3M / R900707161 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
