Product Overview
The Rexroth 4WRZE 16 W6-150-74/6EG24N9ETK31/A1D3M (Material Number: R900977490) is a high-performance, pilot-operated proportional directional valve designed for precise control of flow direction and magnitude in demanding industrial hydraulic systems. As part of the Rexroth 4WRZE series, this valve features a size 16 (NG16) nominal bore and a rated flow capacity of 150 L/min at a 10 bar pressure drop per land. It utilizes a proportional solenoid on one end and a spring return on the opposite end, enabling continuous, infinitely variable spool positioning proportional to the electrical input signal. The integrated onboard electronics (OBE) with a central electrical connector ensure optimized signal conditioning, reduced wiring complexity, and enhanced immunity to electromagnetic interference. This valve is engineered to serve as a critical control element in closed-loop and open-loop hydraulic circuits, delivering exceptional dynamic response and repeatability for high-precision motion control applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, Spool Type) |
| Model Designation | 4WRZE 16 W6-150-74/6EG24N9ETK31/A1D3M |
| Material Number | R900977490 |
| Nominal Size | NG16 (Size 16) |
| Spool Type / Flow Characteristic | W6 — Progressive flow characteristic, closed center |
| Rated Flow | 150 L/min (at Δp = 10 bar per land) |
| Operating Pressure | Up to 315 bar (working port); pilot pressure up to 315 bar |
| Actuation | Proportional solenoid (single), spring return |
| Solenoid Voltage | 24 V DC (EG24) |
| Electrical Interface | Central connector with integrated onboard electronics (OBE) |
| Seal Material | N9 — NBR (Buna-N) seals, suitable for mineral oil-based hydraulic fluids |
Engineering Features & Advantages
- Precision Performance: The integrated proportional solenoid (single), spring return ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 150 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is engineered to serve as a critical control element in closed-loop and open-loop hydraulic circuits, delivering exceptional dynamic response and repeatability for high-precision motion control applications.
PRODUCT IMAGES

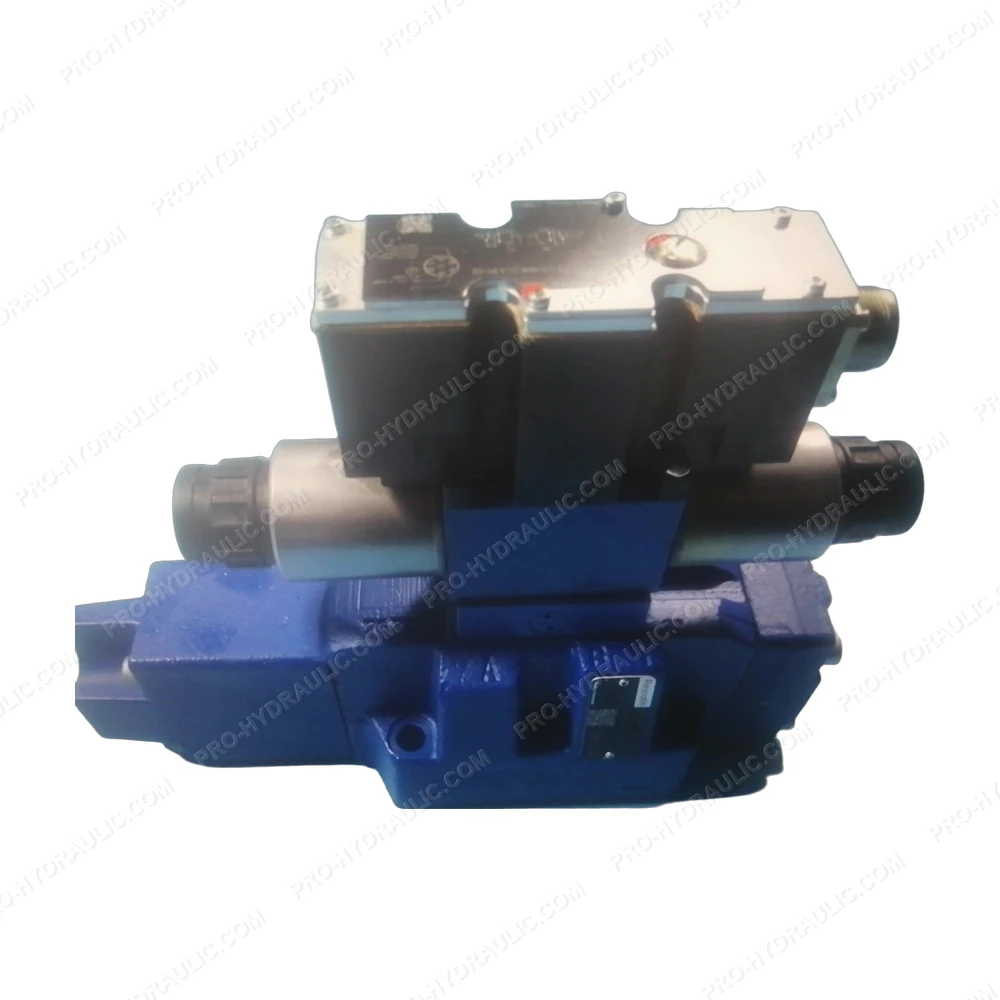

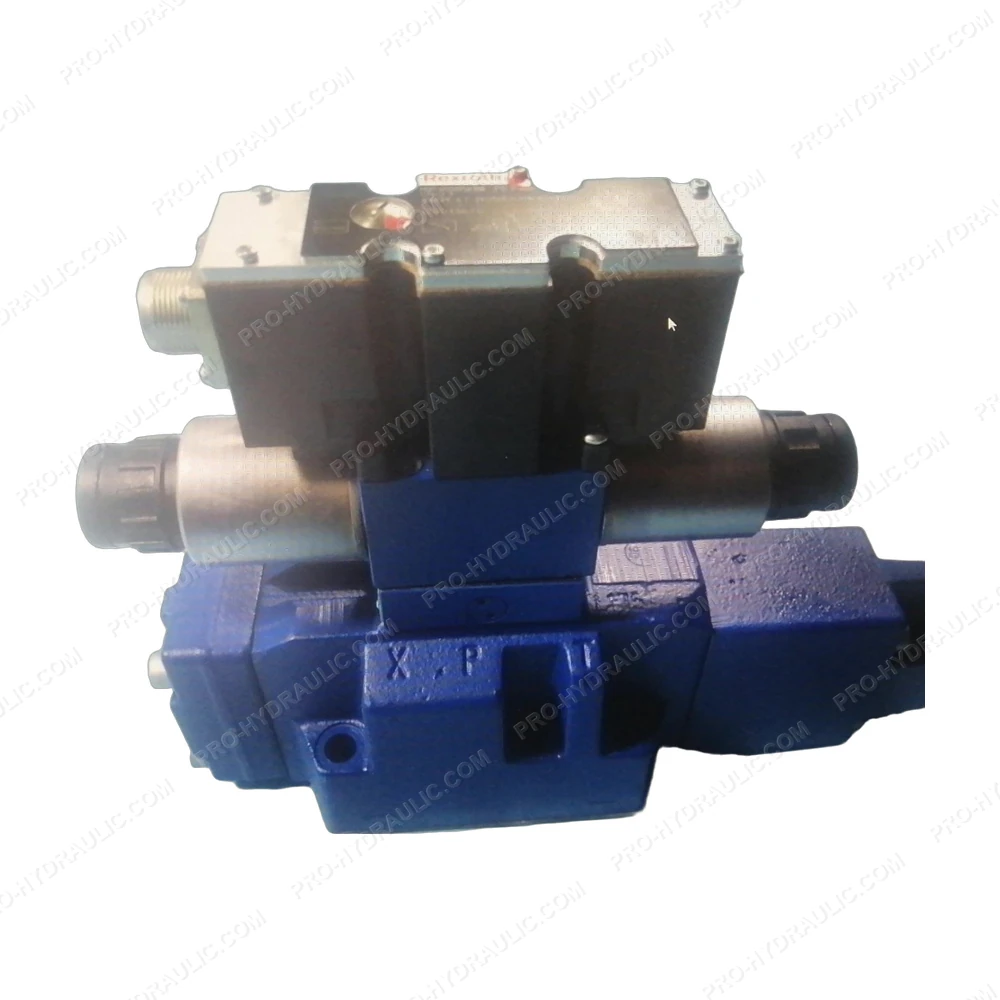

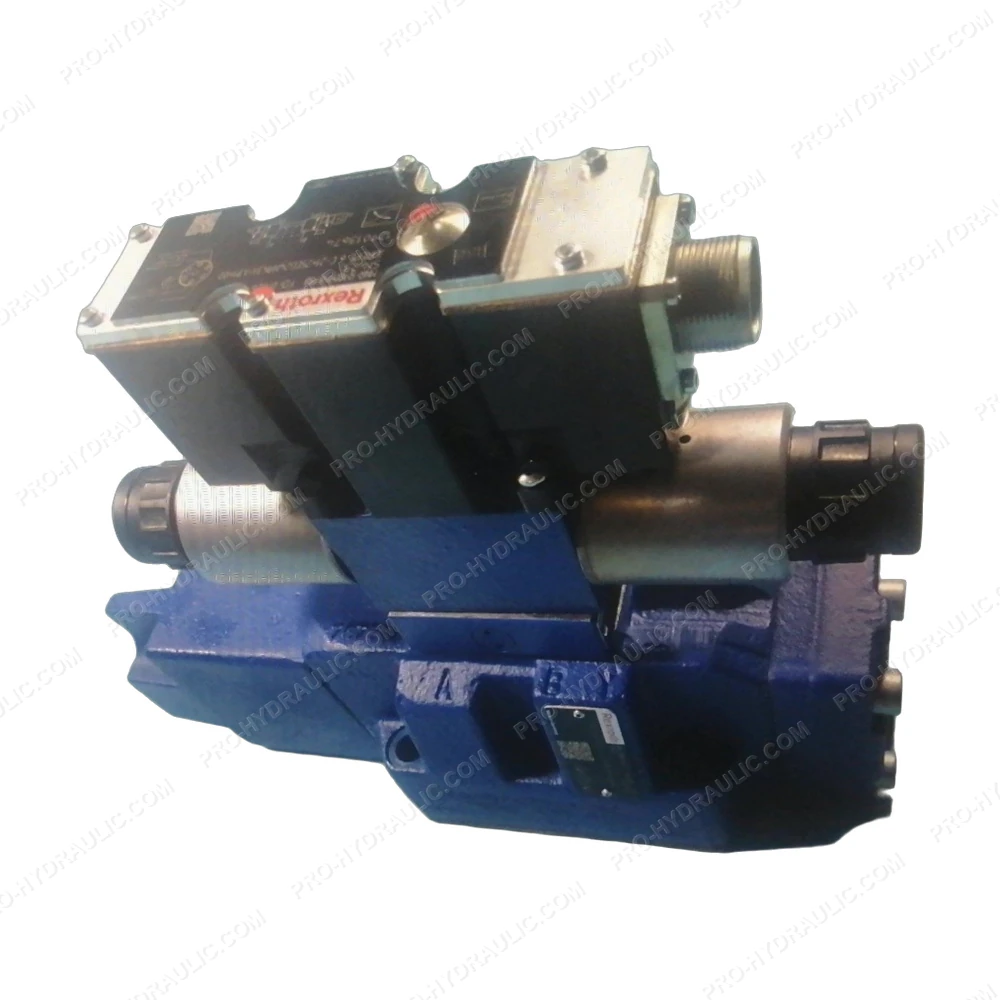

Rexroth 4WRZE 16 W6-150-74/6EG24N9ETK31/A1D3M / R900977490 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRZE 16 W6-150-74/6EG24N9ETK31/A1D3M / R900977490 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way proportional design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
