Product Overview
The Rexroth 4WRZE 16 W8-100-73/6EG24N9K31/F1D3M (material number R901051826) is a pilot-operated, two-stage proportional directional valve from the Rexroth 4WRZE series, designed for continuous, high-dynamic control of flow direction and flow magnitude in industrial hydraulic systems. The valve combines a size 16 main stage with a proportional pilot stage, actuated by a single proportional solenoid with central electrical connection and integrated position feedback, enabling precise, stepless spool positioning proportional to the electrical command signal. With a nominal flow capacity of approximately 100 L/min at a 10 bar (Δp) valve pressure drop per land and a maximum operating pressure of 350 bar, this valve is engineered for demanding closed-loop and open-loop applications where accurate velocity, force, and position control of hydraulic actuators is required. The 4WRZE design provides excellent repeatability, low hysteresis, and fast response, making it a direct-fit replacement for OEM Rexroth proportional valve installations.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (pilot-operated, two-stage) |
| Model Designation | 4WRZE 16 W8-100-73/6EG24N9K31/F1D3M |
| Material Number | R901051826 |
| Nominal Size | NG16 (size 16 main stage) |
| Spool Type / Flow Characteristic | W8 spool, progressive flow characteristic, closed-center |
| Nominal Flow Rate | 100 L/min per land at Δp = 10 bar |
| Operating Pressure | Up to 350 bar (main stage), pilot stage rated accordingly |
| Actuation | Proportional solenoid, 24 V DC (EG24), single solenoid with position feedback |
| Electrical Connection | Central connector, N9 design, K31 (with integrated electronics / position feedback) |
| Mounting & Connection | ISO 4401 / DIN 24340 NG16 subplate mounting, 4-way, 4-port |
| Seal / Fluid Compatibility | F1D3M seal variant, suitable for mineral oil based hydraulic fluids (HLP/HM) |
Engineering Features & Advantages
- Precision Performance: The integrated proportional solenoid, 24 V DC (EG24), single solenoid with position feedback ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 100 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal flow capacity of approximately 100 L/min at a 10 bar (Δp) valve pressure drop per land and a maximum operating pressure of 350 bar, this valve is engineered for demanding closed-loop and open-loop applications where accurate velocity, force, and position control of hydraulic actuators is required.
PRODUCT IMAGES

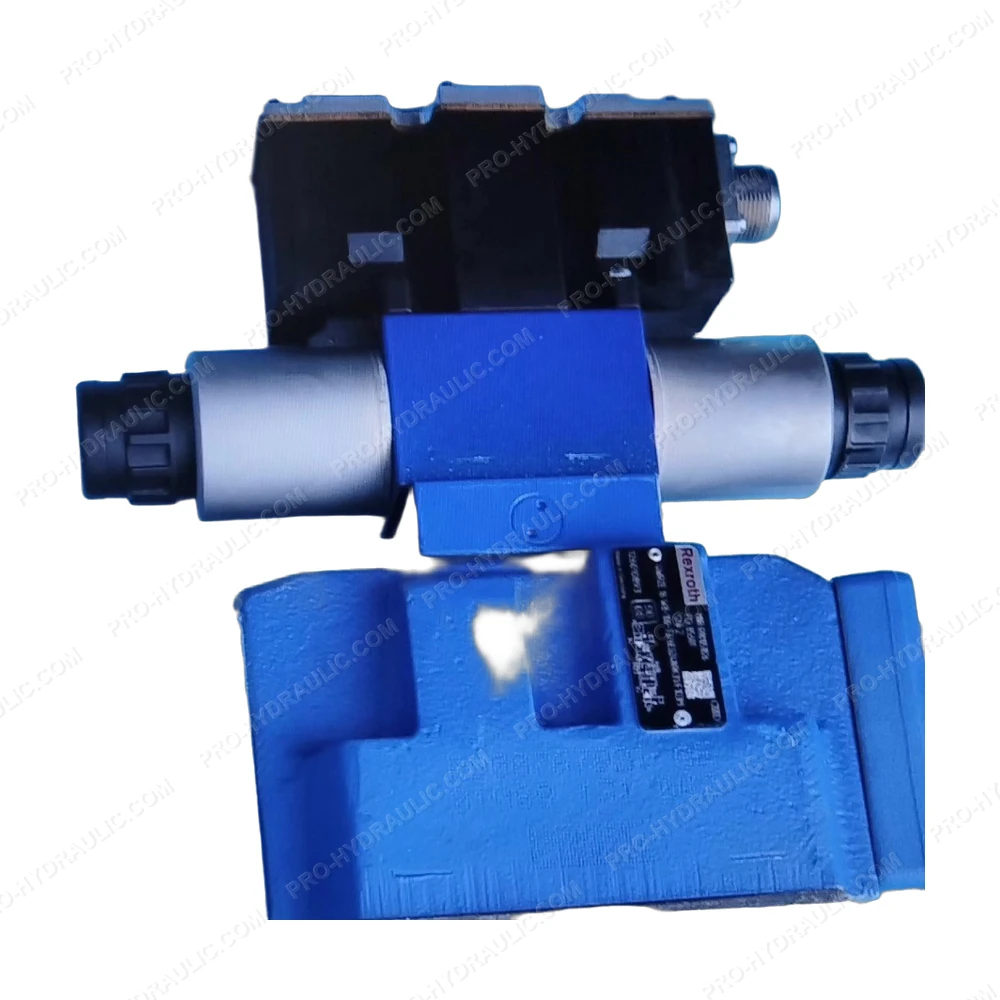

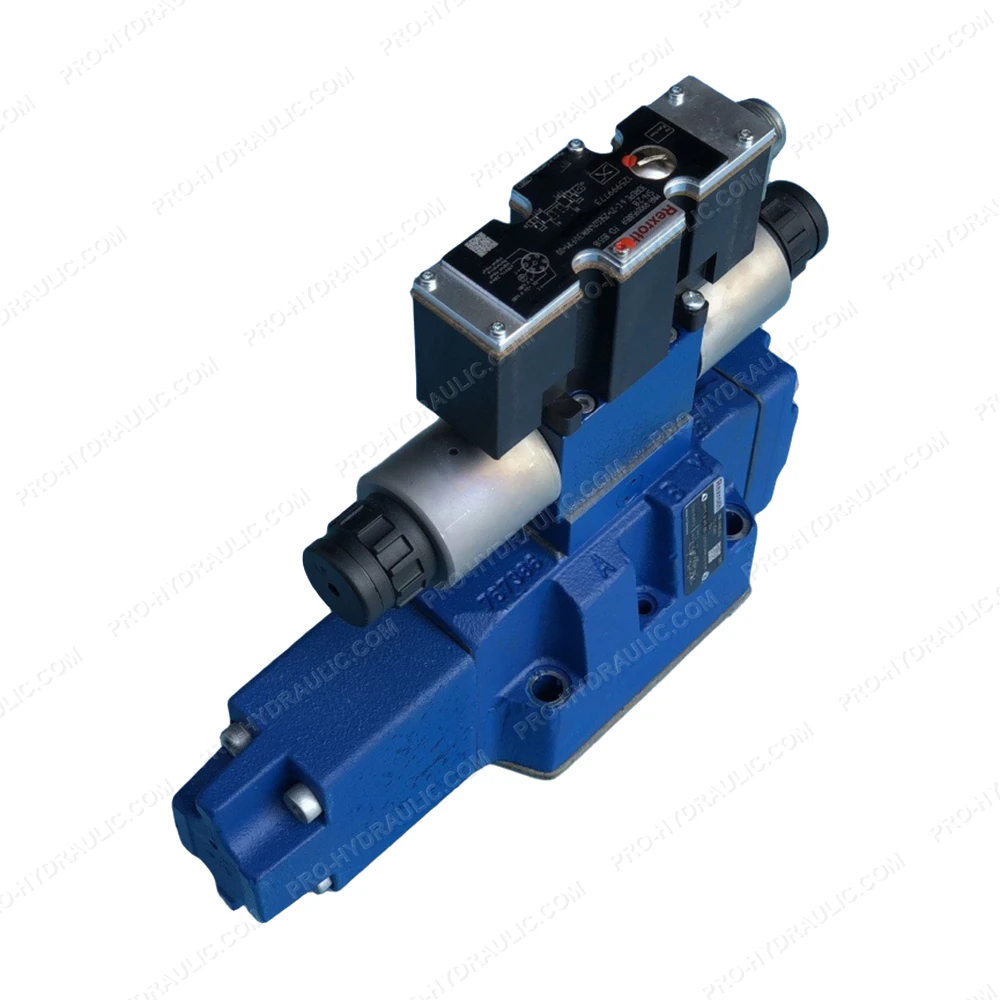

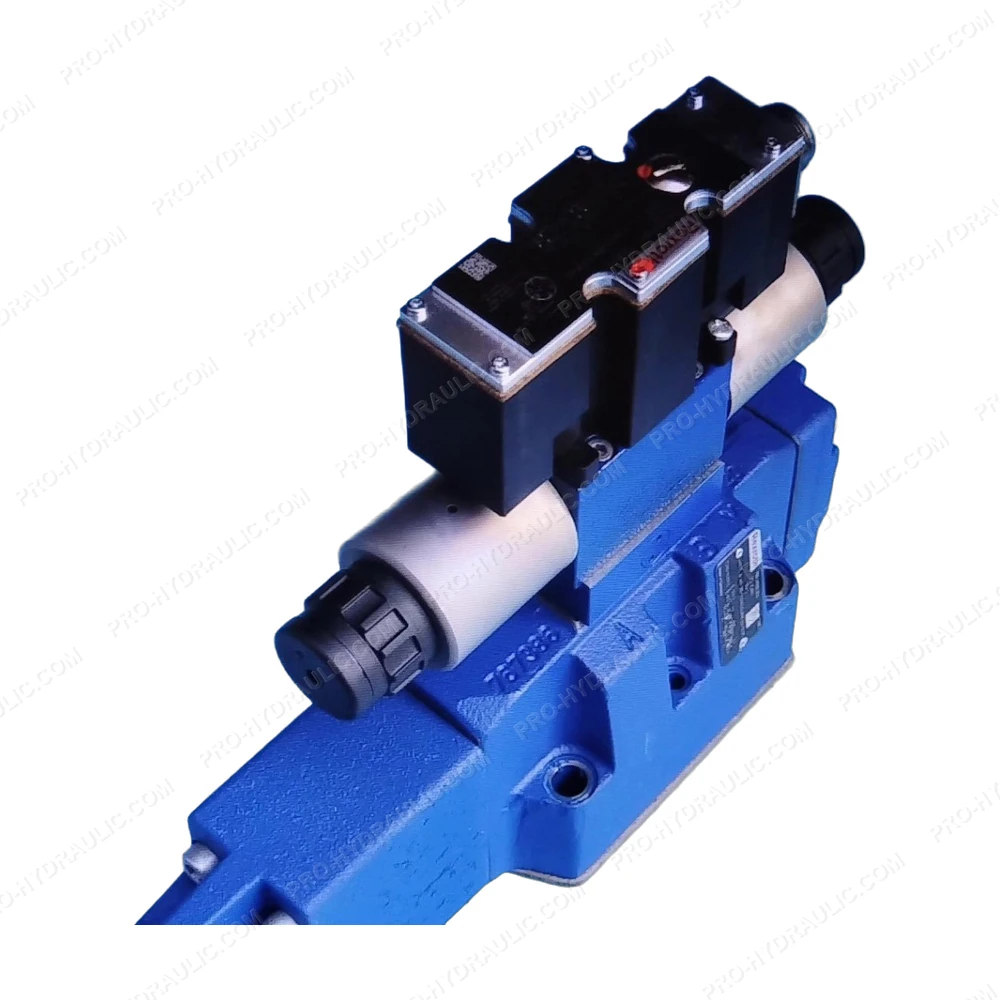

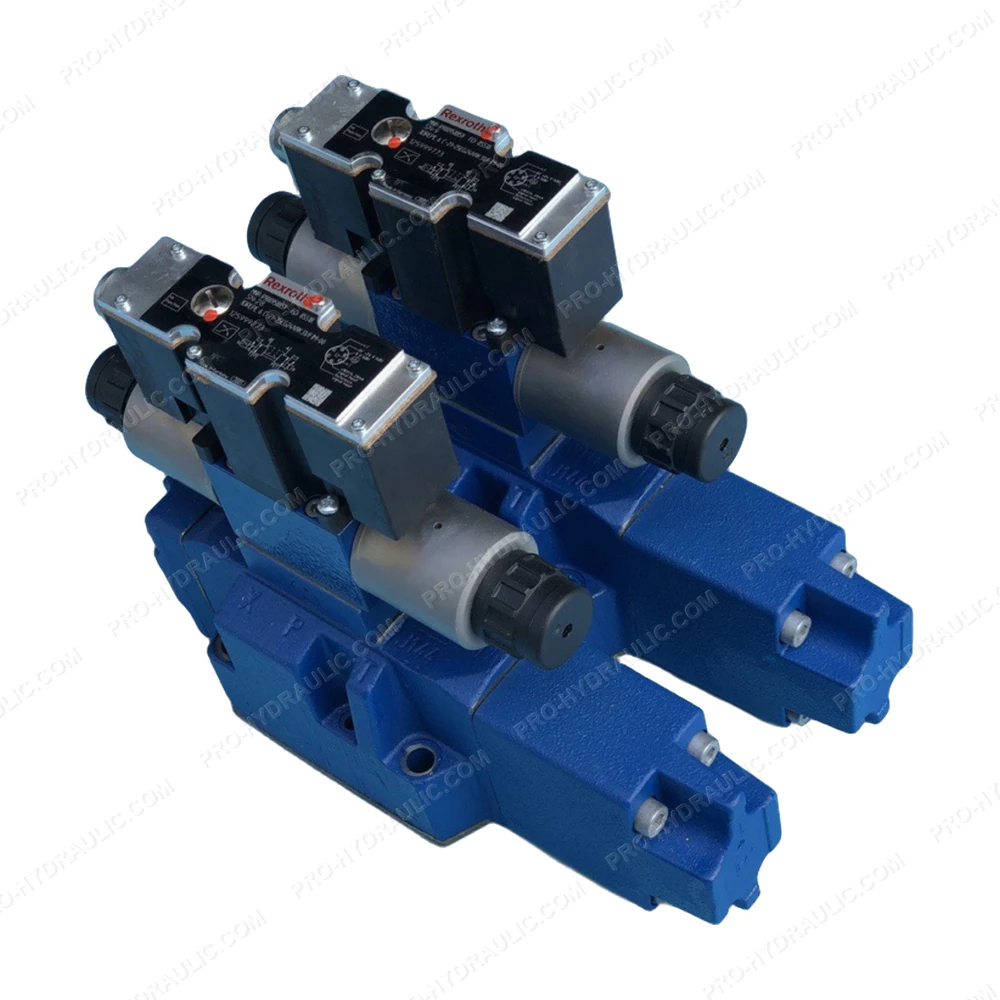

Rexroth 4WRZE 16 W8-100-73/6EG24N9K31/F1D3M / R901051826 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRZE 16 W8-100-73/6EG24N9K31/F1D3M / R901051826 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
