Product Overview
The Rexroth 4WRZE 16 W8-150-74/6EG24N9EK31/F1D3M (Material Number R900757605) is a high-response, pilot-operated proportional directional valve from the Rexroth 4WRZE series, size NG16 (nominal flow 150 L/min at Δp = 10 bar per land). It is designed to control both the direction and the magnitude of flow in industrial hydraulic systems by means of a proportional solenoid acting on a pilot spool, which in turn positions the main spool through hydraulic pilot pressure. The valve provides continuous, stepless control of actuator speed and direction, making it a core component in closed-loop and open-loop motion control architectures. The integrated on-board electronics (OBE) with the “F1D3M” configuration enable precise current-to-flow characteristics, while the spring-centered main spool ensures a defined fail-safe mid-position when de-energized. This valve is engineered for demanding industrial duty, offering high dynamic response, low hysteresis, and excellent repeatability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (pilot-operated, 4-way, 3-position) |
| Model Designation | 4WRZE 16 W8-150-74/6EG24N9EK31/F1D3M |
| Material Number | R900757605 |
| Nominal Size | NG16 (DIN 24340 / ISO 4401 size 16) |
| Nominal Flow | 150 L/min per land at Δp = 10 bar |
| Spool Type | W8 (progressive flow characteristic, overlapped) |
| Operating Pressure | Up to 315 bar (system); pilot pressure port P up to 315 bar |
| Pilot Pressure | Minimum 25 bar required for reliable main spool actuation |
| Solenoid Voltage | 24 V DC (EG24) |
| Electrical Interface | On-board electronics (OBE) with command value input, F1D3M configuration |
| Mounting & Connection | Subplate mounting per ISO 4401-16 / DIN 24340-A16, 4-bolt flange |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (pilot-operated, 4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 150 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is engineered for demanding industrial duty, offering high dynamic response, low hysteresis, and excellent repeatability.
PRODUCT IMAGES

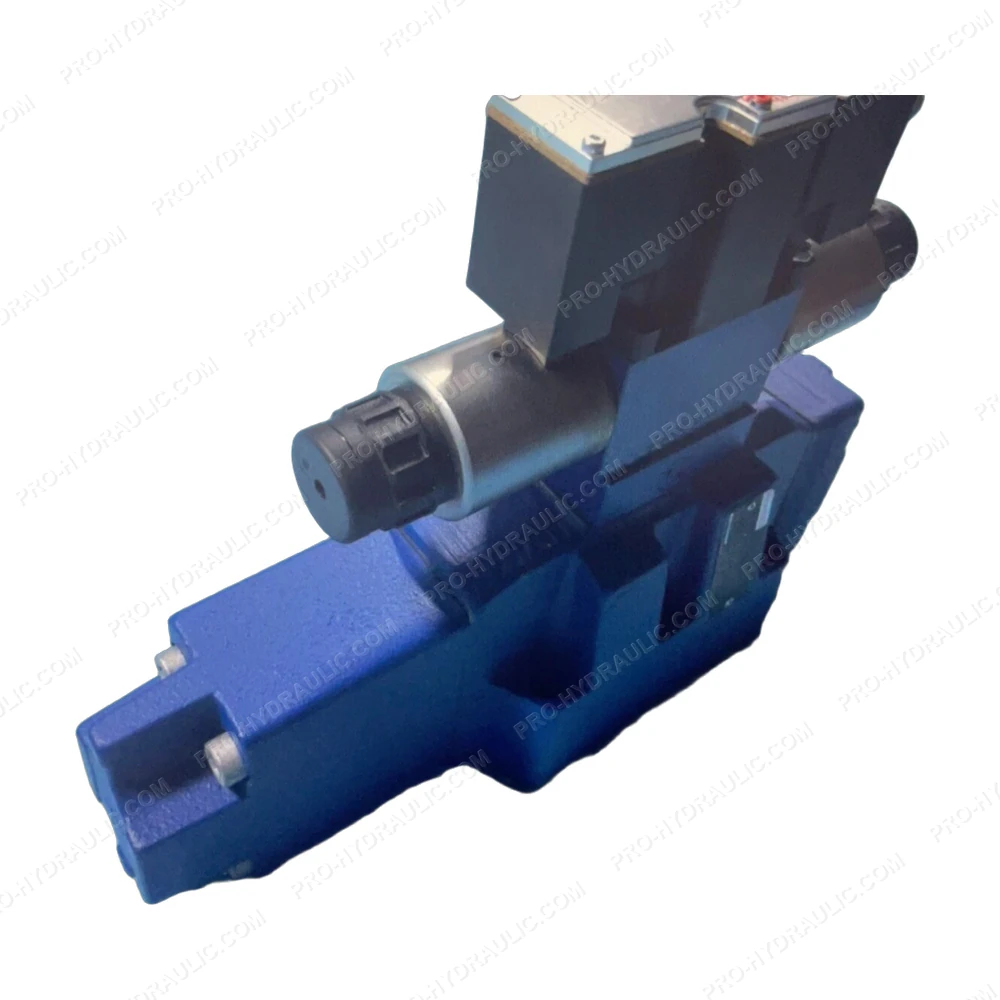

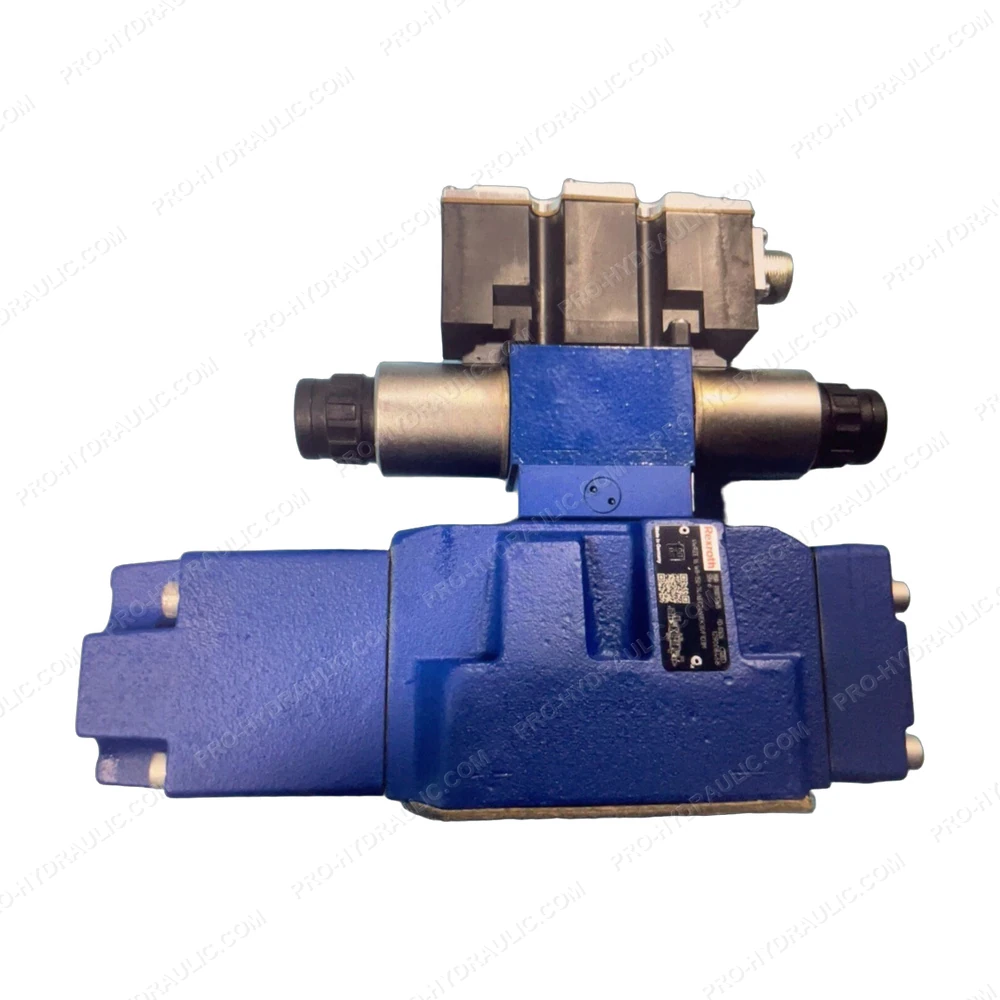

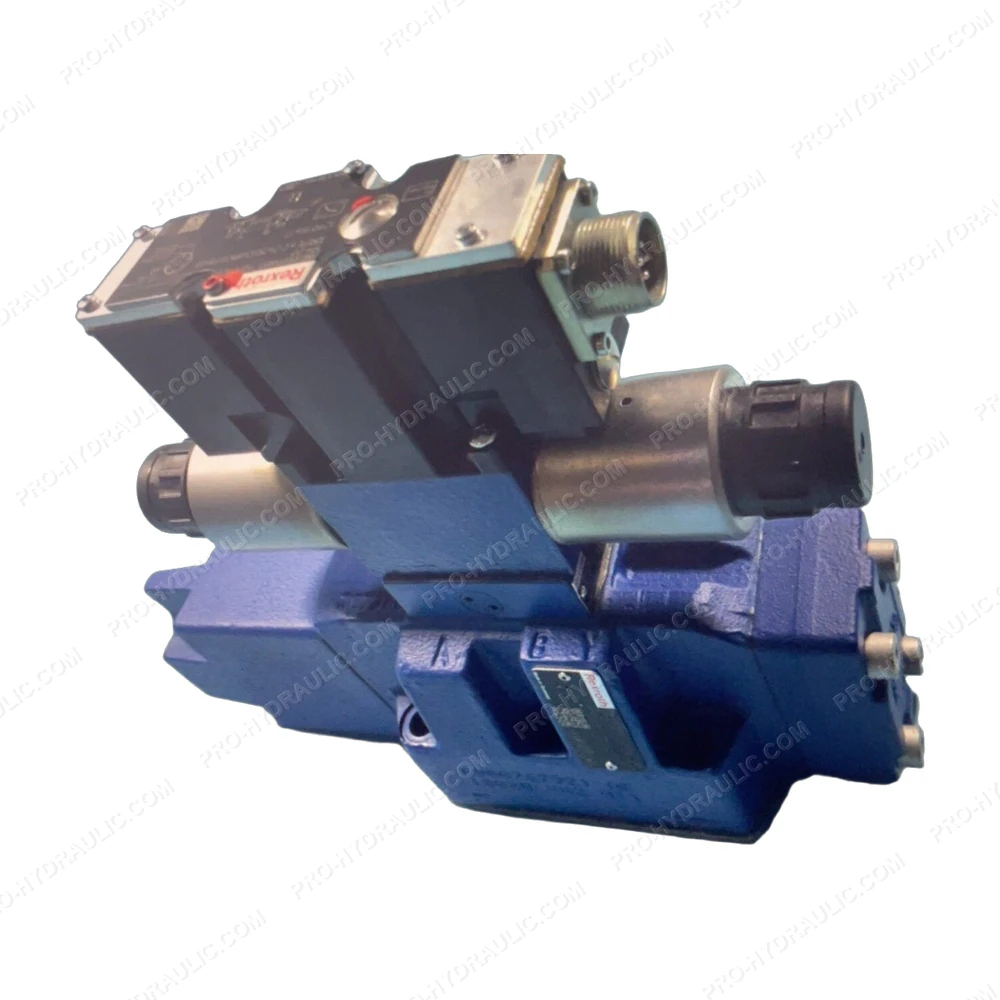

Rexroth 4WRZE 16 W8-150-74/6EG24N9EK31/F1D3M / R900757605 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRZE 16 W8-150-74/6EG24N9EK31/F1D3M / R900757605 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
