Product Overview
The Rexroth 4WRZE 16 W9-150-74/6EG24N9ETK31/F1D3M (material number R901268442) is a pilot-operated, two-stage proportional directional valve from the Rexroth 4WRZE series, designed for continuous, high-dynamic control of flow direction and flow magnitude in industrial hydraulic systems. The valve combines a pilot stage with a proportional solenoid and a spring-centered main spool, allowing stepless, infinitely variable positioning of the main spool in proportion to the electrical command signal. With a size 16 (NG16) main stage and a nominal flow rating of 150 L/min at a 10 bar (1 MPa) pressure differential per land, this valve is engineered for precise velocity and position control of actuators in demanding closed-loop and open-loop applications. The integrated on-board electronics (OBE) with the “F1D3M” configuration provide factory-set, calibrated amplifier characteristics, enabling direct connection to a PLC or controller via a standard analog command signal without external amplifier cards.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (pilot-operated, two-stage) |
| Model Designation | 4WRZE 16 W9-150-74/6EG24N9ETK31/F1D3M |
| Material Number | R901268442 |
| Valve Size | NG16 (size 16) |
| Nominal Flow | 150 L/min at Δp = 10 bar (1 MPa) per land |
| Spool Type / Function | W9 — proportional spool with progressive flow characteristic, closed-center (overlapping) design |
| Actuation | Proportional solenoid with spring-centered main spool and integrated on-board electronics |
| Operating Pressure | Up to 350 bar (35 MPa) working pressure (P, A, B ports); pilot pressure per Rexroth specification |
| Supply Voltage | 24 V DC (EG24) |
| Electrical Interface | Component plug per DIN EN 175301-803 / manufacturer standard, with command signal input |
| Command Signal | Analog ±10 V (factory-calibrated, F1D3M electronics configuration) |
Engineering Features & Advantages
- Precision Performance: The integrated proportional solenoid with spring-centered main spool and integrated on-board electronics ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 150 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a size 16 (NG16) main stage and a nominal flow rating of 150 L/min at a 10 bar (1 MPa) pressure differential per land, this valve is engineered for precise velocity and position control of actuators in demanding closed-loop and open-loop applications.
PRODUCT IMAGES

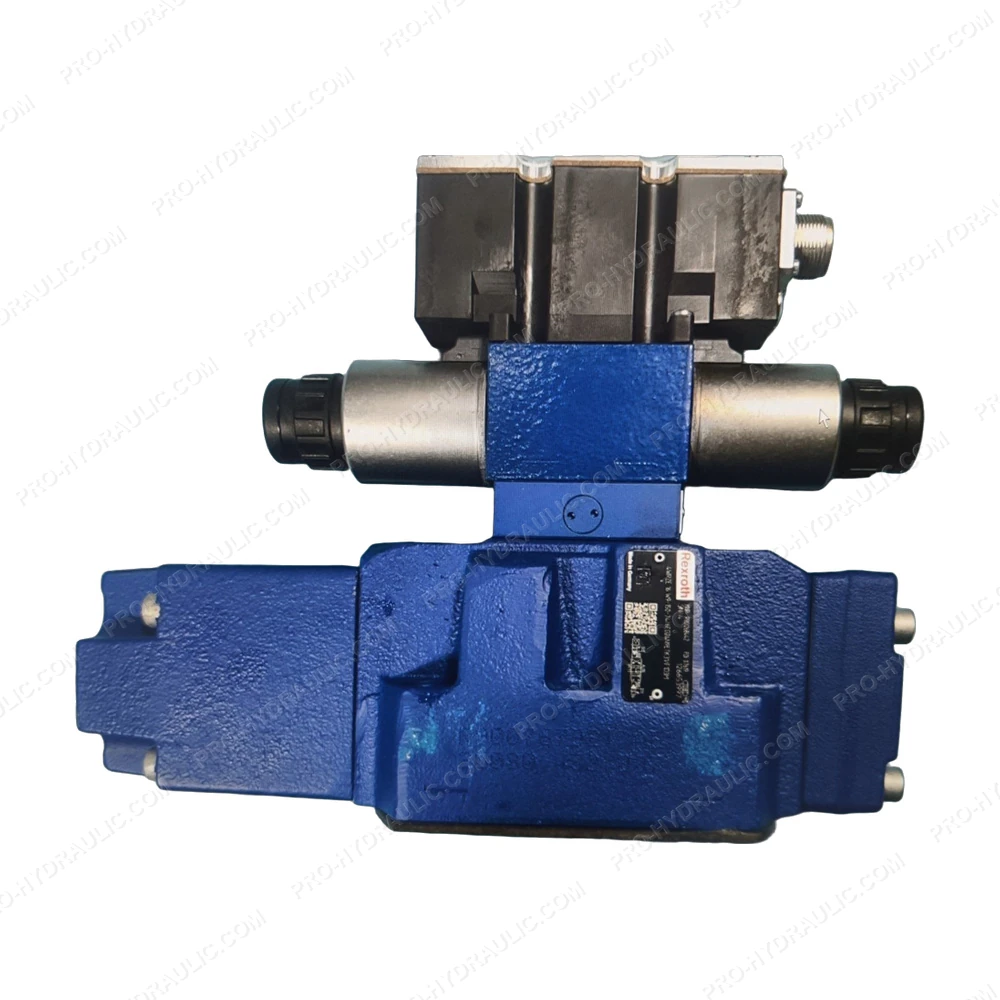

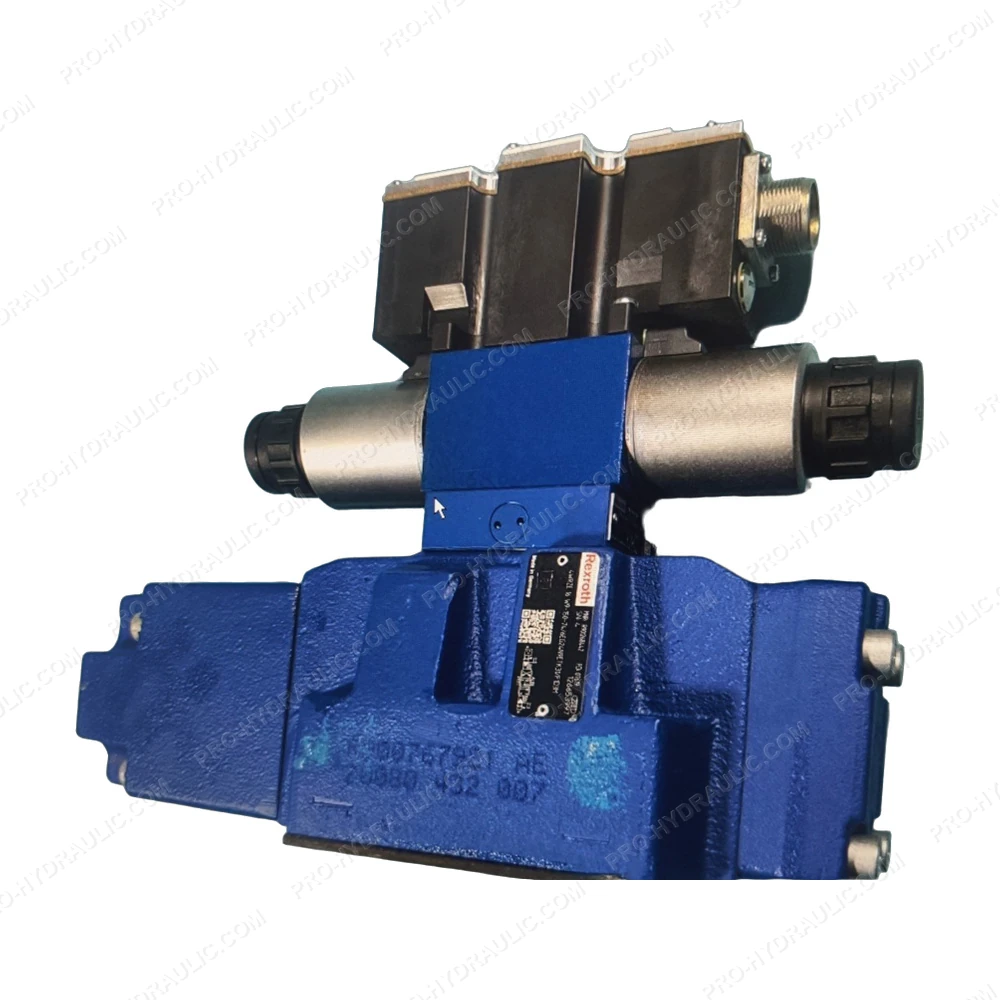

Rexroth 4WRZE 16 W9-150-74/6EG24N9ETK31/F1D3M / R901268442 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRZE 16 W9-150-74/6EG24N9ETK31/F1D3M / R901268442 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a high-response pilot control, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
