Product Overview
The Rexroth 4WRZE 25E3-220-71/6EG24N9ETK31/F1D3V (Material Number R901126880) is a high-response, pilot-operated proportional directional valve from the Rexroth 4WRZE series. It is designed to control the direction and magnitude of hydraulic flow in proportion to an electrical input signal, making it a core component in closed-loop and open-loop motion control systems. The valve utilizes a two-stage design in which a proportional pilot valve actuates the main spool of a high-flow directional stage, delivering precise, continuously variable flow control with minimal hysteresis and excellent repeatability. With an NG25 (size 25) main stage and a rated flow capacity of approximately 220 L/min at a 10 bar pressure drop per land, this valve is engineered for demanding industrial applications requiring accurate velocity, position, and force control of hydraulic actuators.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, Two-Stage) |
| Model Designation | 4WRZE 25E3-220-71/6EG24N9ETK31/F1D3V |
| Material Number | R901126880 |
| Valve Size | NG25 (Size 25) |
| Spool Type / Function | E3 — Proportional spool with progressive flow characteristics, closed-center position |
| Nominal Flow Rate | ≈ 220 L/min at Δp = 10 bar per metering land |
| Operating Pressure | Up to 315 bar (system pressure, P/A/B ports); pilot stage rated to 315 bar |
| Pilot Supply | Internal pilot oil supply (code “ET”), external pilot drain (code “TK”) |
| Electrical Actuation | Proportional solenoid, 24 V DC (code “EG24”), with integrated position feedback |
| Solenoid Connector | DIN EN 175301-803 (code “K31”), standard industrial plug connection |
| Seal Material | NBR (N9) — suitable for mineral oil-based hydraulic fluids |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (pilot-operated, two-stage) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 220 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With an NG25 (size 25) main stage and a rated flow capacity of approximately 220 L/min at a 10 bar pressure drop per land, this valve is engineered for demanding industrial applications requiring accurate velocity, position, and force control of hydraulic actuators.
PRODUCT IMAGES

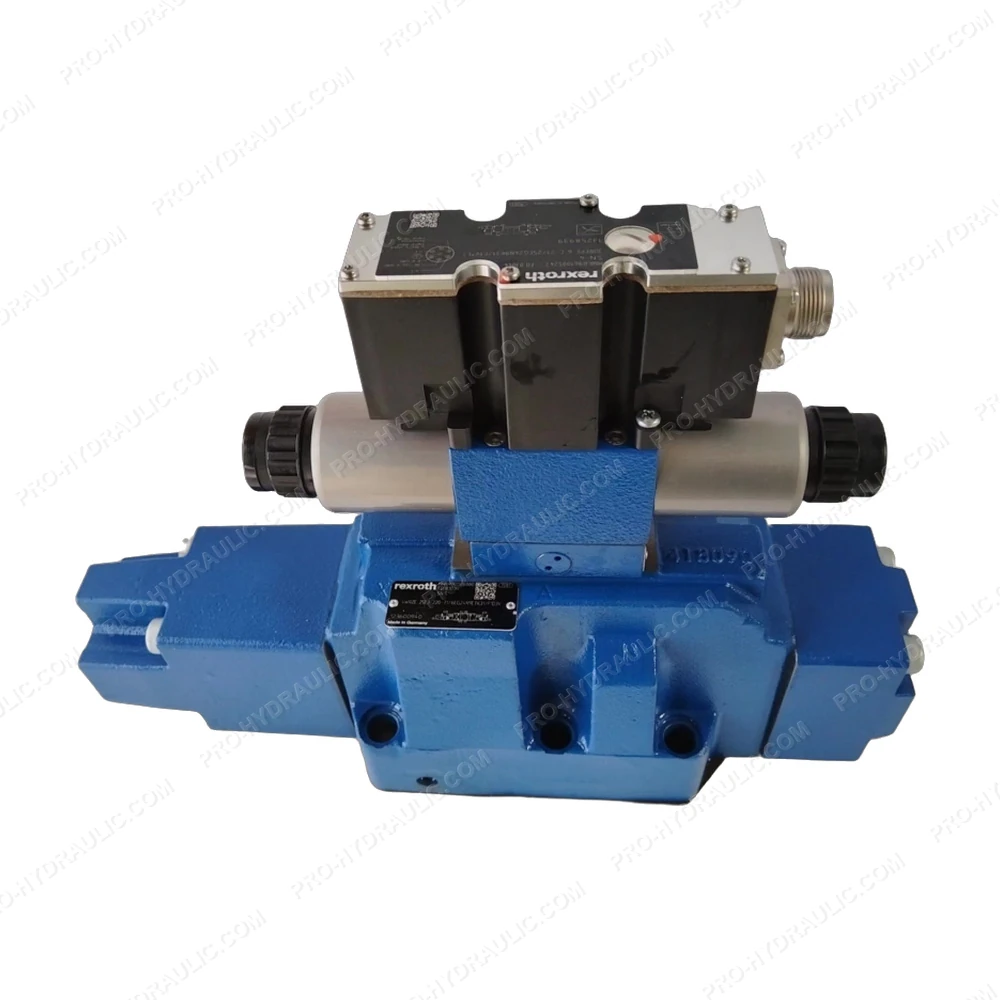

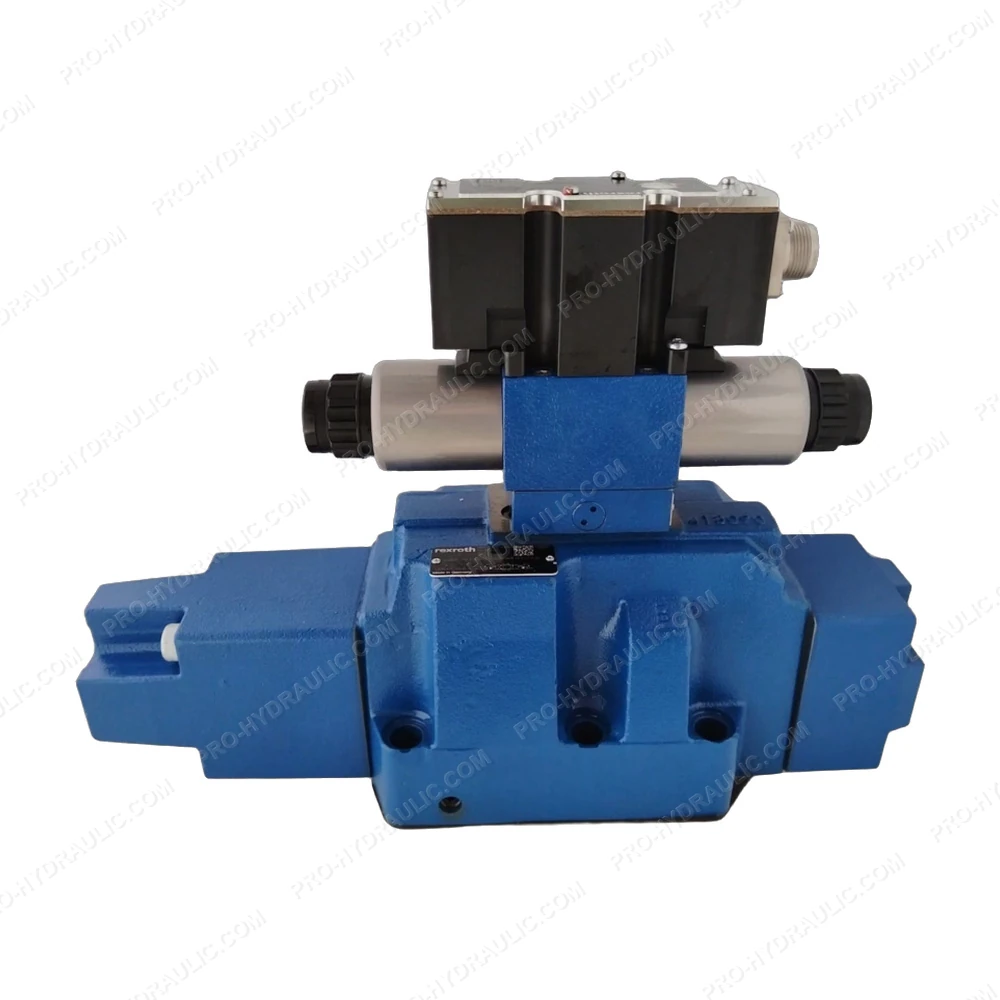

Rexroth 4WRZE 25E3-220-71/6EG24N9ETK31/F1D3V / R901126880 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRZE 25E3-220-71/6EG24N9ETK31/F1D3V / R901126880 High-Response Solenoid Directional Spool Valve. This Germany-made 220V hydraulic component features a high-response pilot control, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
