The REXROTH 4WRZE10E50-73/6EG24N9ETK31/F103V is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in hydraulic systems. This pilot-operated, two-stage valve features a 4-way design with a standard spool, providing high-resolution response for demanding motion control applications.
REXROTH 4WRZE10E50-73/6EG24N9ETK31/F103V Technical Specifications
| Valve Type | Proportional Directional Valve, Pilot-Operated |
| Size | NG10 (CETOP 5, ISO 4401) |
| Spool Type | E50 (Progressive flow characteristic) |
| Nominal Flow | 50 L/min at Δp = 10 bar per land |
| Maximum Operating Pressure | 350 bar (P, A, B ports); 210 bar (T port) |
| Pilot Pressure | Minimum 25 bar; Maximum 210 bar |
| Electrical Actuation | Proportional solenoid, 24 V DC, 1.5 A |
| Coil Type | Wet-pin, removable coil |
| Electrical Connection | Connector per EN 175301-803 (DIN 43650) |
| Seal Material | NBR (Nitrile) |
| Mounting Pattern | ISO 4401-05-04-0-05 |
| Weight | Approx. 6.5 kg |
| Part Number | R900945726 |
Key Engineering Features
- Pilot-operated two-stage design with integrated pilot valve for high flow capacity and precise control.
- Proportional solenoid with wet-pin armature ensures low hysteresis and high repeatability.
- Spool position feedback via inductive position transducer for closed-loop control when used with appropriate amplifier.
- Spring-centered spool returns to neutral position upon power loss for fail-safe operation.
- Removable coil allows for easy maintenance without disturbing hydraulic circuit.
- Designed for use with external control electronics (e.g., Rexroth VT series amplifiers).
Industrial Applications
- Plastic injection molding machines – precise injection and clamping control.
- Metal forming presses – force and position regulation.
- Machine tools – feed and spindle actuation.
- Test rigs and simulators – dynamic motion control.
- Material handling – smooth acceleration and deceleration of heavy loads.
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WRZE10E50-73/6EG24N9ETK31/F103V, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

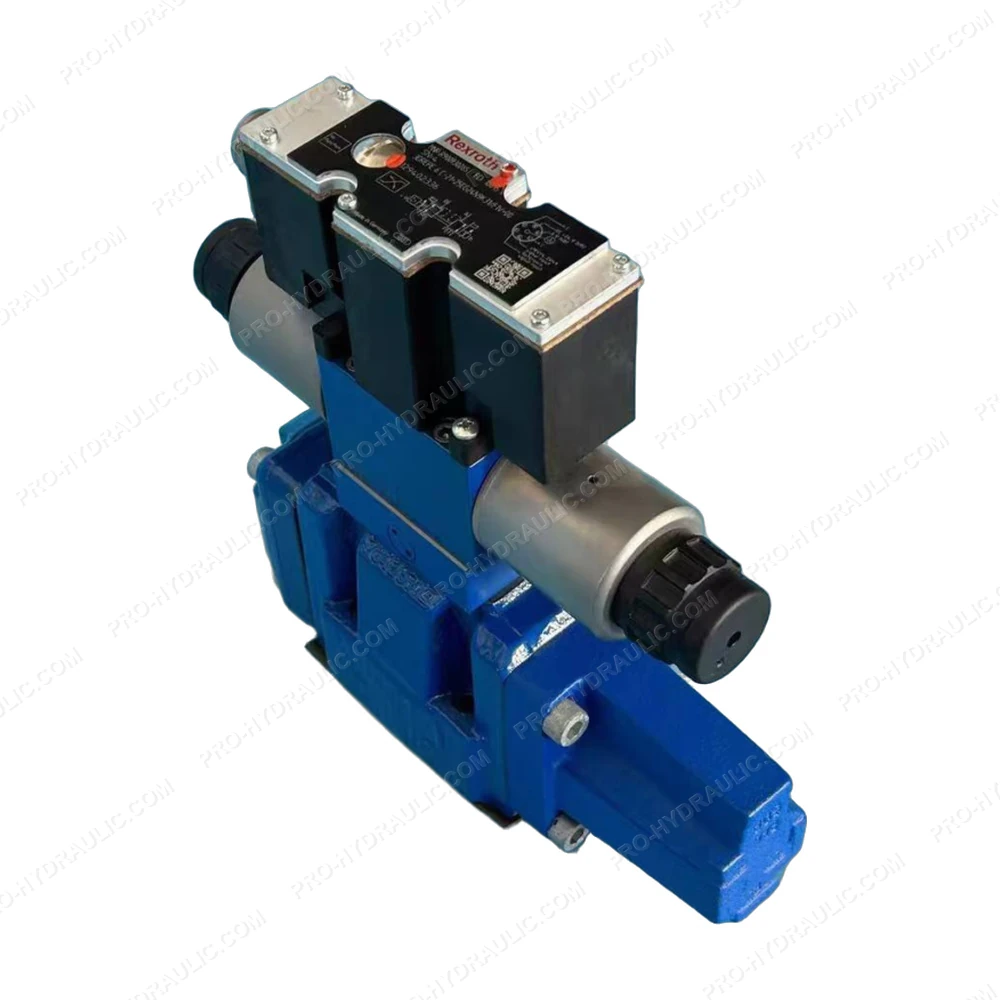

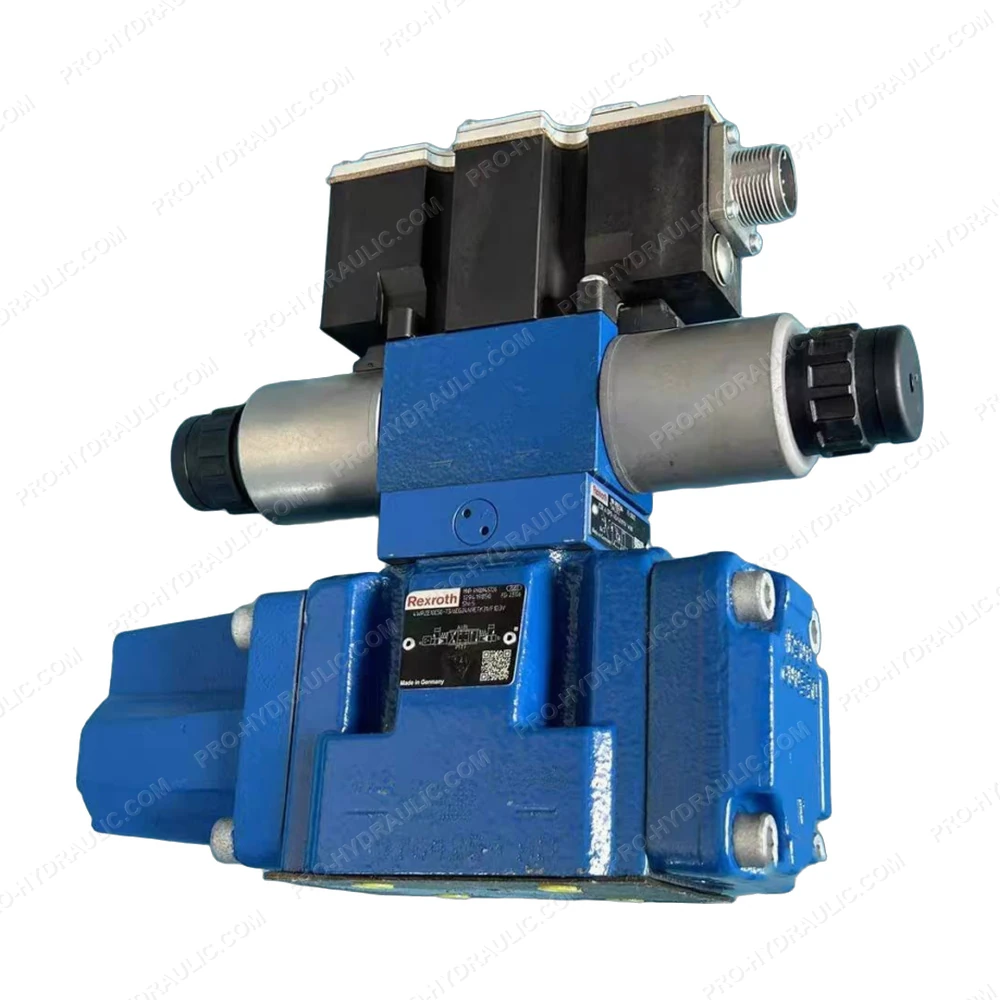

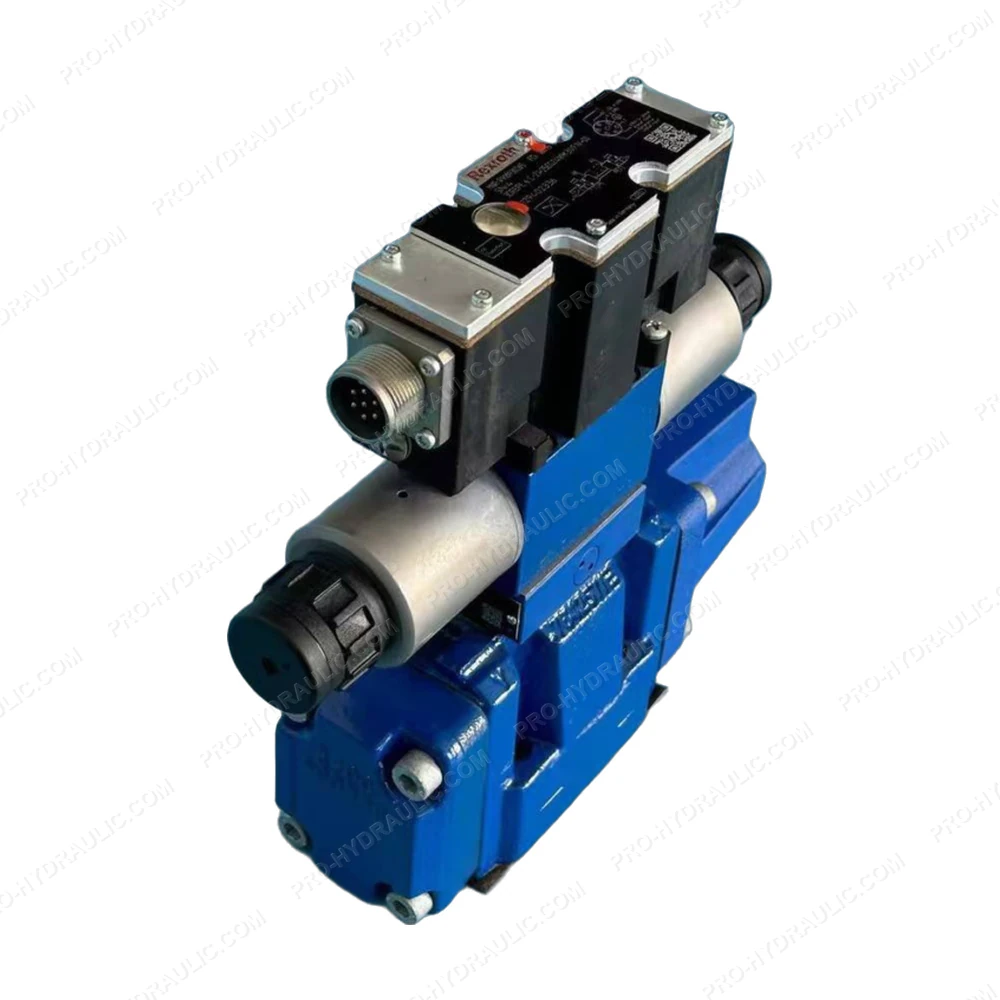

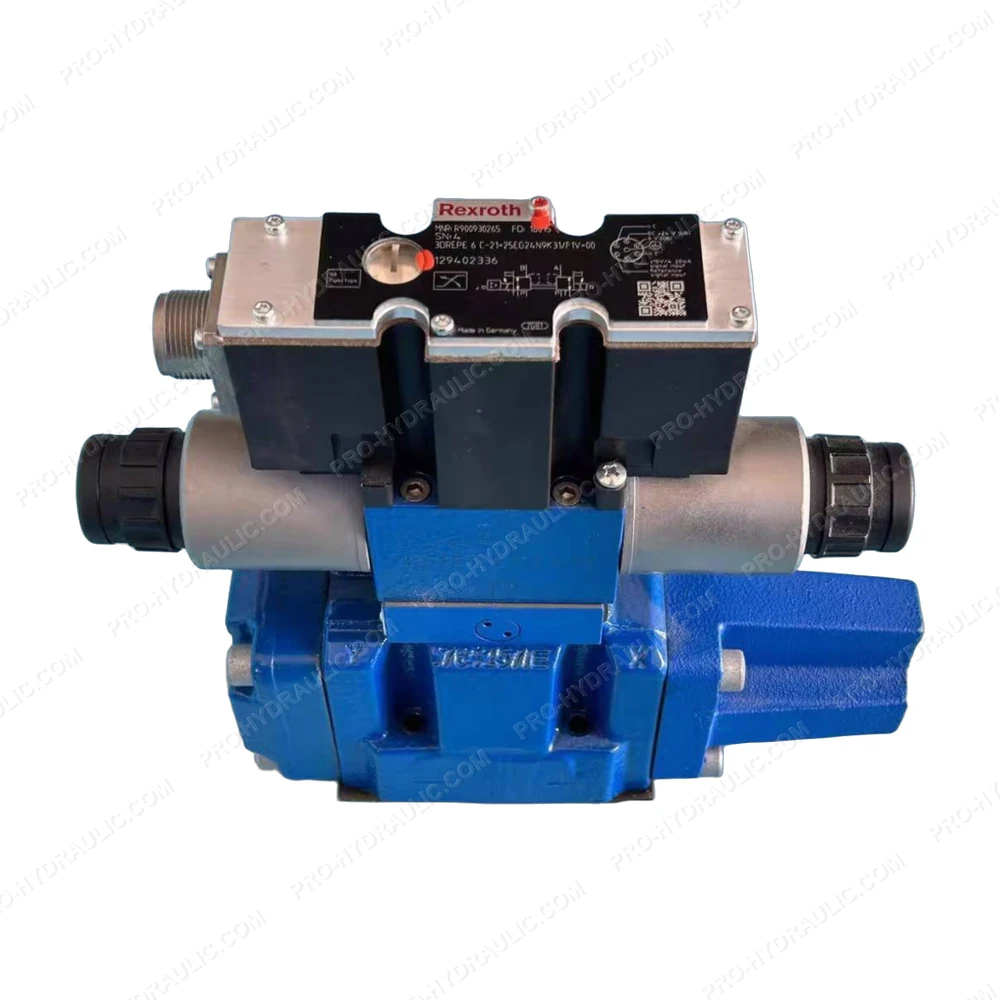

REXROTH 4WRZE10E50-73/6EG24N9ETK31/F103V Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 4WRZE10E50-73/6EG24N9ETK31/F103V Proportional Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
