Product Overview
The Rexroth 4WRZE16E100-74/6EG24ETK31/A1D3M (Material Number R900954657) is a high-response, pilot-operated proportional directional valve from the Bosch Rexroth 4WRZE series. Engineered with an integrated digital amplifier (OBE) and position feedback, this valve delivers precise, infinitely variable control of flow direction and magnitude in proportion to an electrical command signal. The size 16 (NG16) unit features a 100 L/min nominal flow rating at a 10 bar pressure differential per metering edge, making it a cornerstone component for demanding motion control loops in industrial hydraulic systems where accurate velocity, position, and force regulation are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, with Position Feedback) |
| Model Designation | 4WRZE16E100-74/6EG24ETK31/A1D3M |
| Material Number | R900954657 |
| Nominal Size | NG16 (Size 16) |
| Nominal Flow Rate | 100 L/min per metering edge at Δp = 10 bar |
| Spool Type / Configuration | E-Type (Progressive flow characteristic), 4-Way, 3-Position |
| Operating Pressure | Up to 350 bar (P, A, B ports); 315 bar (T port) |
| Pilot Pressure | Minimum 25 bar required for pilot stage operation |
| Actuation | Proportional Solenoid with Integrated Digital Amplifier (OBE) |
| Electrical Supply | 24 V DC (G24), Command Signal 0 to ±10 V or 4–20 mA |
| Feedback | Integrated spool position transducer with closed-loop control |
| Mounting & Connection | ISO 4401-07 / CETOP 7 Subplate Mounting; DIN 24 V DC connector |
Engineering Features & Advantages
- Precision Performance: The integrated integrated spool position transducer with closed-loop control ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 100 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The size 16 (NG16) unit features a 100 L/min nominal flow rating at a 10 bar pressure differential per metering edge, making it a cornerstone component for demanding motion control loops in industrial hydraulic systems where accurate velocity, position, and force regulation are essential.
PRODUCT IMAGES

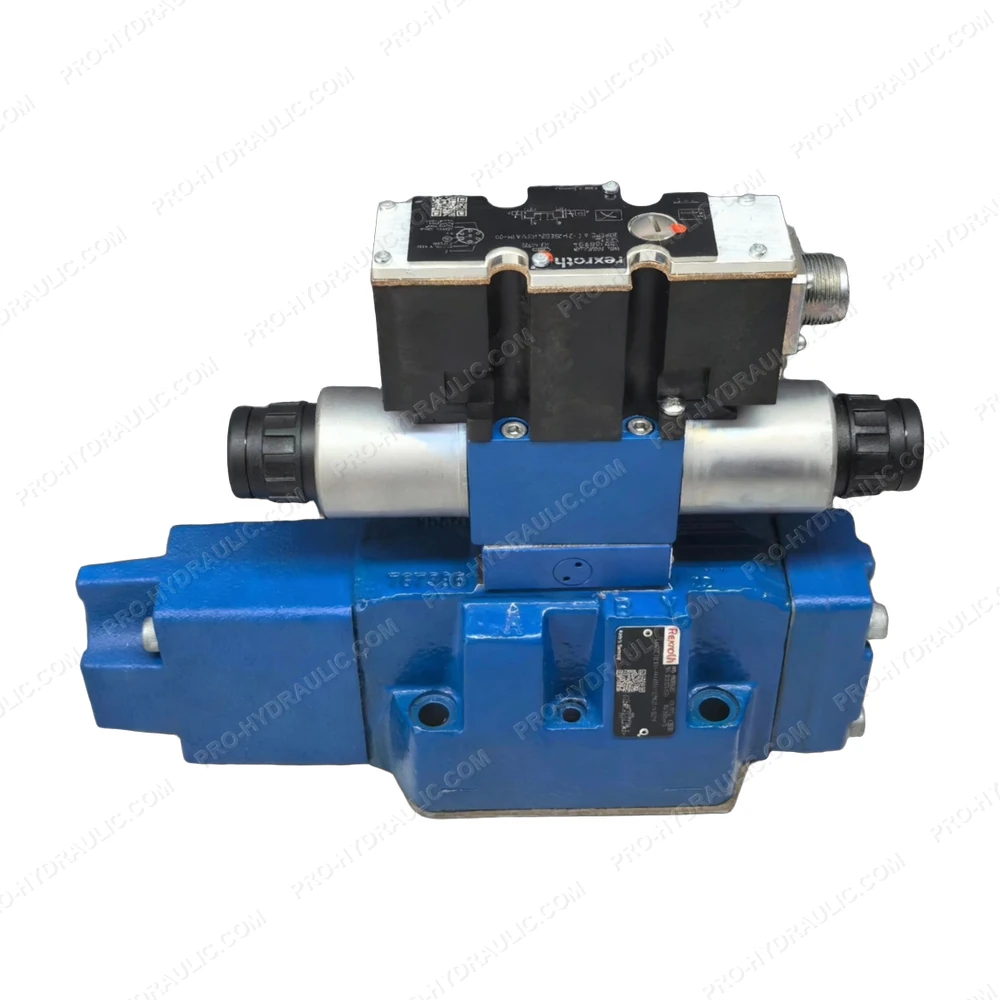

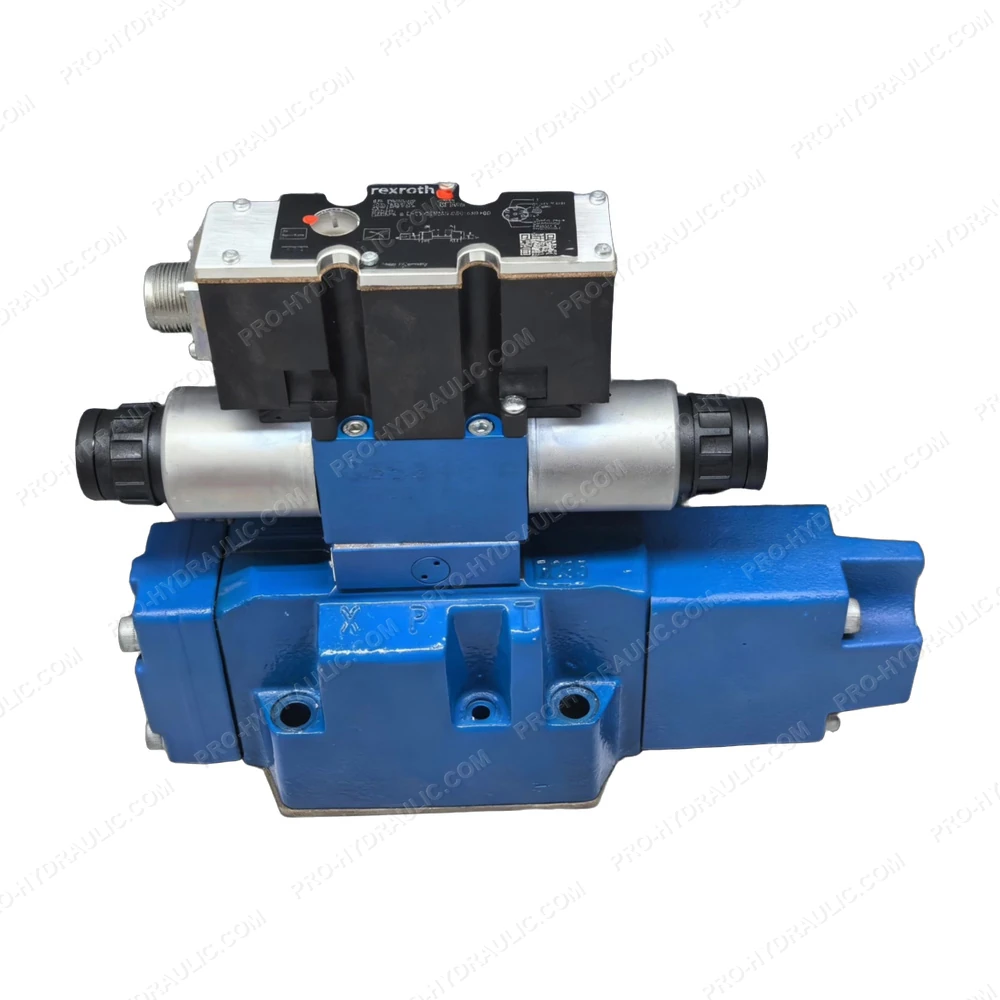

Rexroth 4WRZE16E100-74/6EG24ETK31/A1D3M / R900954657 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth 4WRZE16E100-74/6EG24ETK31/A1D3M / R900954657 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
