The REXROTH 4WRZE16E180-7X/6EG24N9EK31/A1D3M is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in high-pressure hydraulic systems. Featuring a size 16 (NG16) high-response design with integrated digital electronics (OBE), this valve delivers exceptional dynamic performance and repeatability for demanding motion control applications.
REXROTH 4WRZE16E180-7X/6EG24N9EK31/A1D3M Technical Specifications
| Valve Type | Proportional Directional Valve, 4-way, 3-position |
| Size | NG16 (CETOP 16 / ISO 4401-07) |
| Nominal Flow Rate | 180 L/min at Δp = 10 bar per land |
| Maximum Operating Pressure | 350 bar (P, A, B ports); 210 bar (T port) |
| Spool Type | E-type, progressive flow characteristic |
| Actuation | Proportional solenoid with integrated digital electronics (OBE) |
| Supply Voltage | 24 V DC (nominal) |
| Electrical Connection | Connector per EN 175301-803, 3-pole + PE |
| Command Signal | 0 to ±10 V, 0 to ±20 mA, or 4 to 20 mA (configurable) |
| Hysteresis | ≤ 0.5% of nominal stroke |
| Response Sensitivity | ≤ 0.2% of nominal stroke |
| Mounting Pattern | Subplate mounting per ISO 4401-07-04-0-94 |
| Seal Material | NBR (Buna-N), optional FKM (Viton) |
| Fluid Temperature Range | -20°C to +80°C |
| Viscosity Range | 10 to 100 mm²/s (cSt) recommended |
| Filtration | ISO 4406 (c) 18/16/13 or better |
| Weight | Approx. 12.5 kg |
Key Engineering Features
- Integrated digital electronics (OBE) with factory-calibrated spool position feedback for high repeatability and minimal hysteresis.
- High-response proportional solenoid with wet-pin armature design for precise force control and long service life.
- Progressive flow characteristic (E-type spool) enables smooth acceleration and deceleration of actuators.
- Rugged housing and precision-machined spool and sleeve assembly for minimal internal leakage and high contamination tolerance.
- Configurable command signal inputs (voltage or current) for direct interface with industrial PLC and motion controllers.
- Optional integrated pressure reducing valve and/or check valve functions available per model code.
- Compliant with ISO 4401-07 mounting interface for drop-in replacement in standard manifolds.
Industrial Applications
- Injection molding machines – clamp, injection, and ejector axis control.
- Hydraulic presses – force and position control in metal forming and stamping.
- Steel and aluminum rolling mills – roll gap and tension control.
- Marine and offshore – winch and crane motion control systems.
- Test rigs and simulators – high-dynamic servo-hydraulic actuation.
- Material handling – precise positioning of heavy loads in automated storage and retrieval systems.
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WRZE16E180-7X/6EG24N9EK31/A1D3M, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

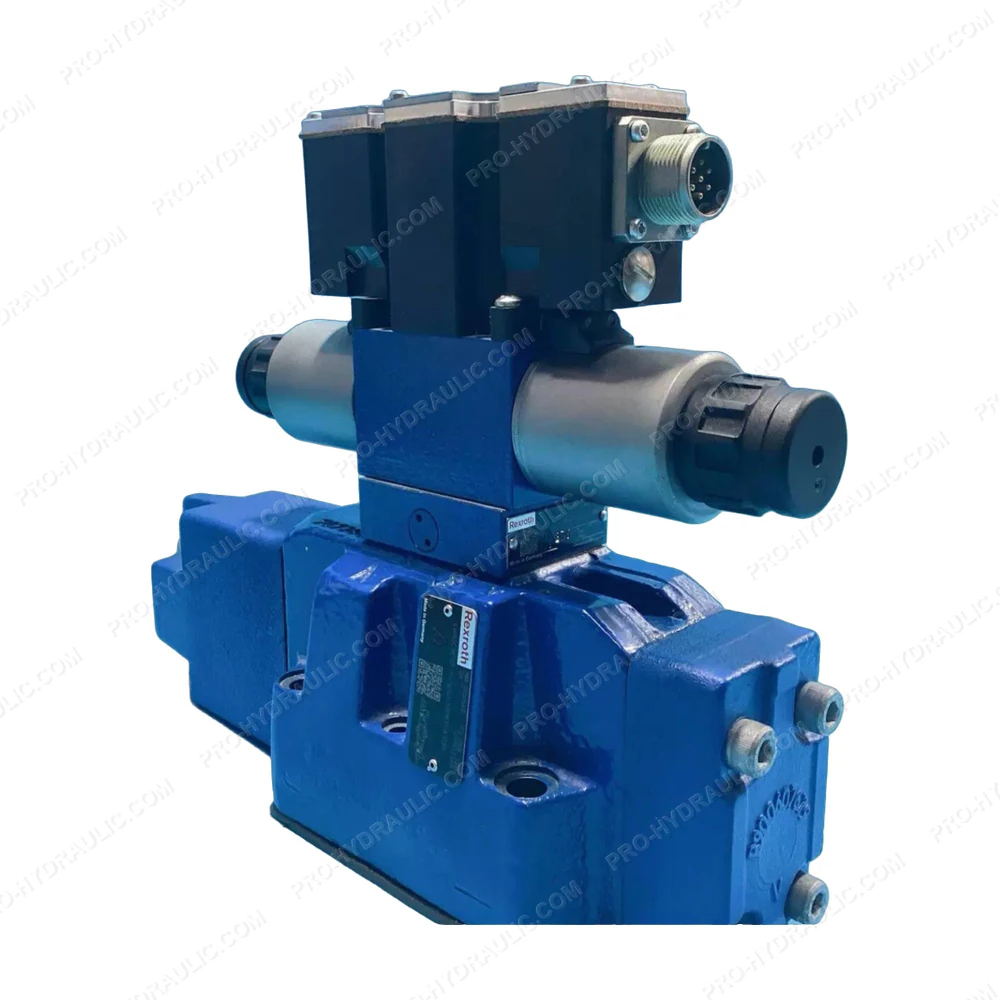

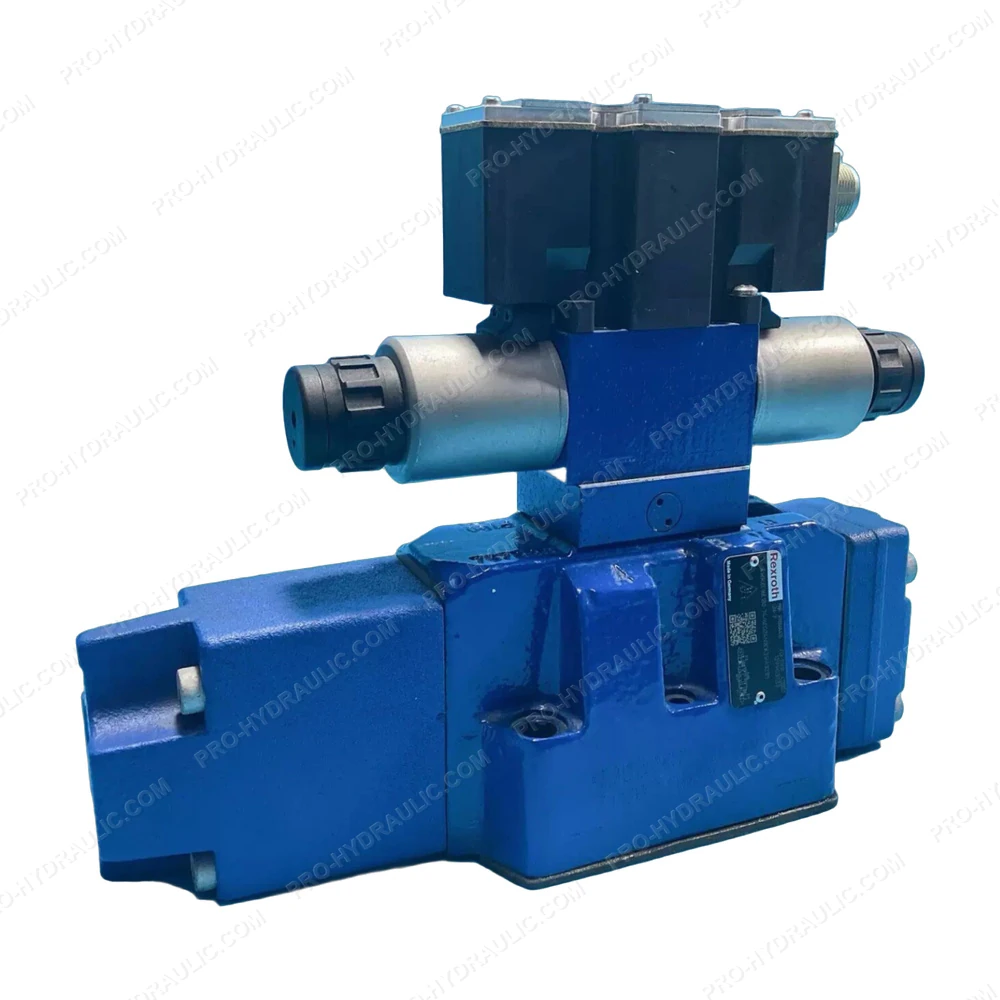

REXROTH 4WRZE16E180-7X/6EG24N9EK31/A1D3M Proportional Directional Valve
