The REXROTH 4WRZE16W6-100-74/6EG24N9ETK31/F1M is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in high-pressure hydraulic systems. As part of the Rexroth 4WRZE series, it utilizes a pilot-operated, two-stage design with integrated position feedback to deliver accurate spool positioning proportional to the electrical input signal.
REXROTH 4WRZE16W6-100-74/6EG24N9ETK31/F1M Technical Specifications
| Valve Type | Proportional Directional Valve, Pilot-Operated |
| Size | NG16 (CETOP 16 / ISO 4401-07) |
| Spool Type | W6 (progressive flow characteristic) |
| Nominal Flow | 100 L/min at Δp = 10 bar per land |
| Operating Pressure | Up to 350 bar (P, A, B ports) |
| Pilot Pressure | External or internal, 20–315 bar |
| Electrical Supply | 24 V DC, N9 coil with integrated electronics (OBE) |
| Command Signal | ±10 V, 4–20 mA, or 0–10 V (configurable) |
| Feedback | Integrated spool position transducer |
| Mounting Pattern | ISO 4401-07-07-0-94 (NG16) |
| Seal Material | NBR (standard), FKM optional |
| Weight | Approx. 12.5 kg |
Key Engineering Features
- Two-stage pilot-operated design with main spool position feedback for high accuracy and repeatability.
- Integrated on-board electronics (OBE) with factory-calibrated current controller for simplified commissioning.
- W6 spool profile provides progressive flow gain, ideal for smooth acceleration and deceleration control.
- Rugged cast iron housing and hardened spool for long service life in demanding industrial environments.
- Fail-safe spring return to center position on power loss or signal interruption.
- Compatible with Rexroth proportional amplifier modules and standard PLC analog outputs.
Industrial Applications
- Injection molding machines – clamp, injection, and ejector axis control.
- Hydraulic presses – force and position regulation.
- Steel and metal forming – roll gap and tension control.
- Marine and offshore – winch and crane drive systems.
- Test rigs and simulators – dynamic load and motion control.
- General industrial automation – high-cycle proportional actuation.
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WRZE16W6-100-74/6EG24N9ETK31/F1M, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

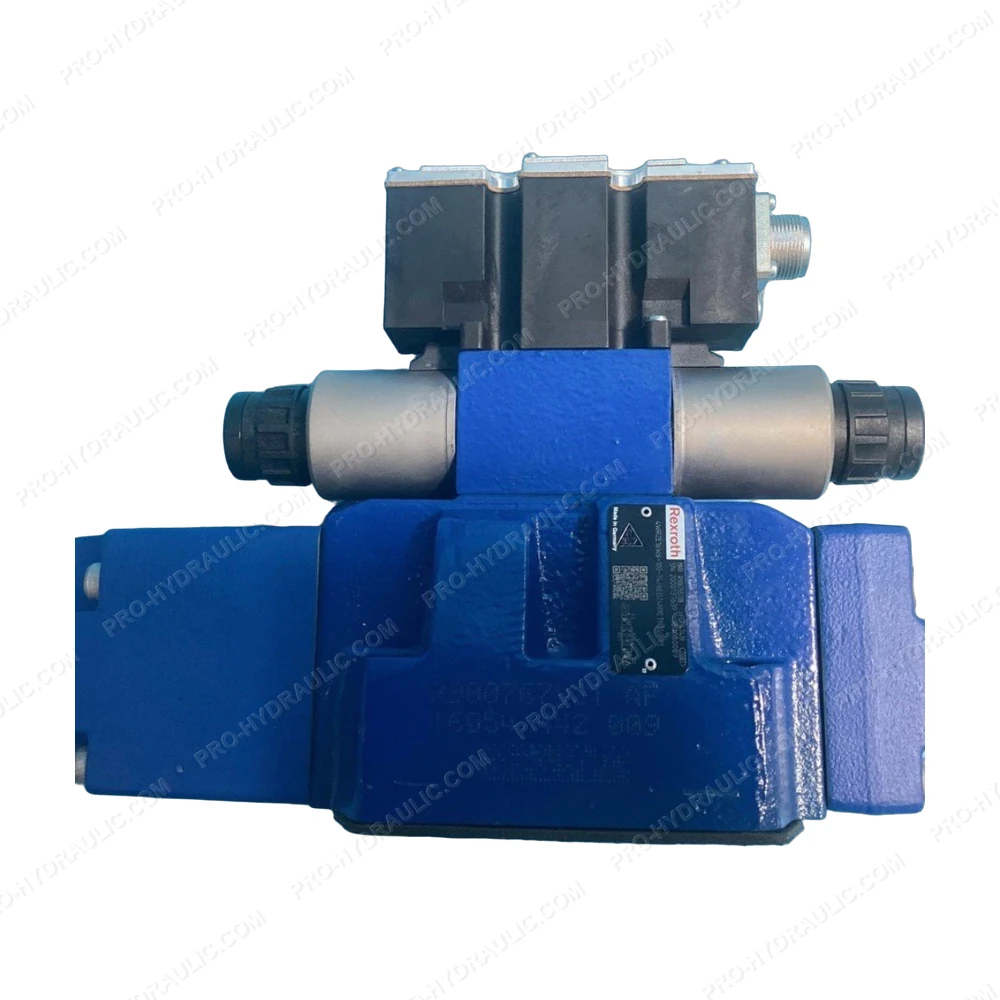

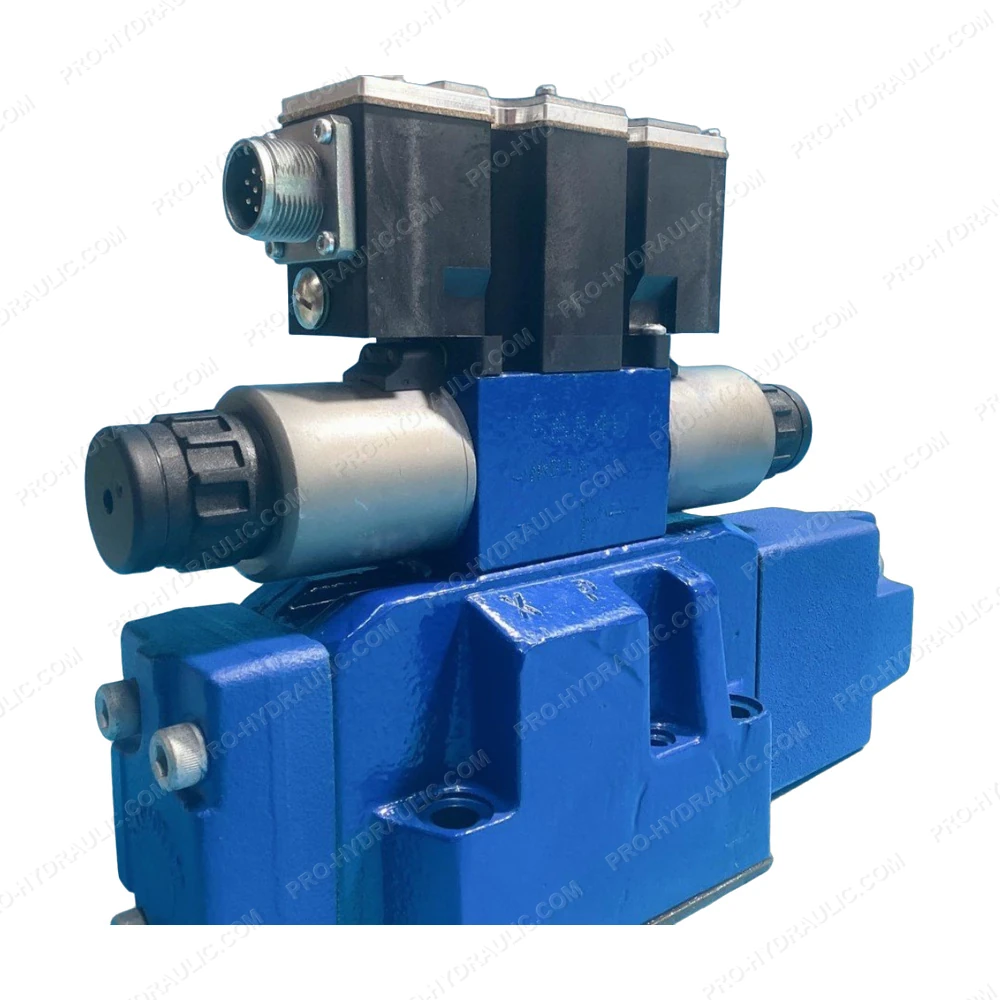

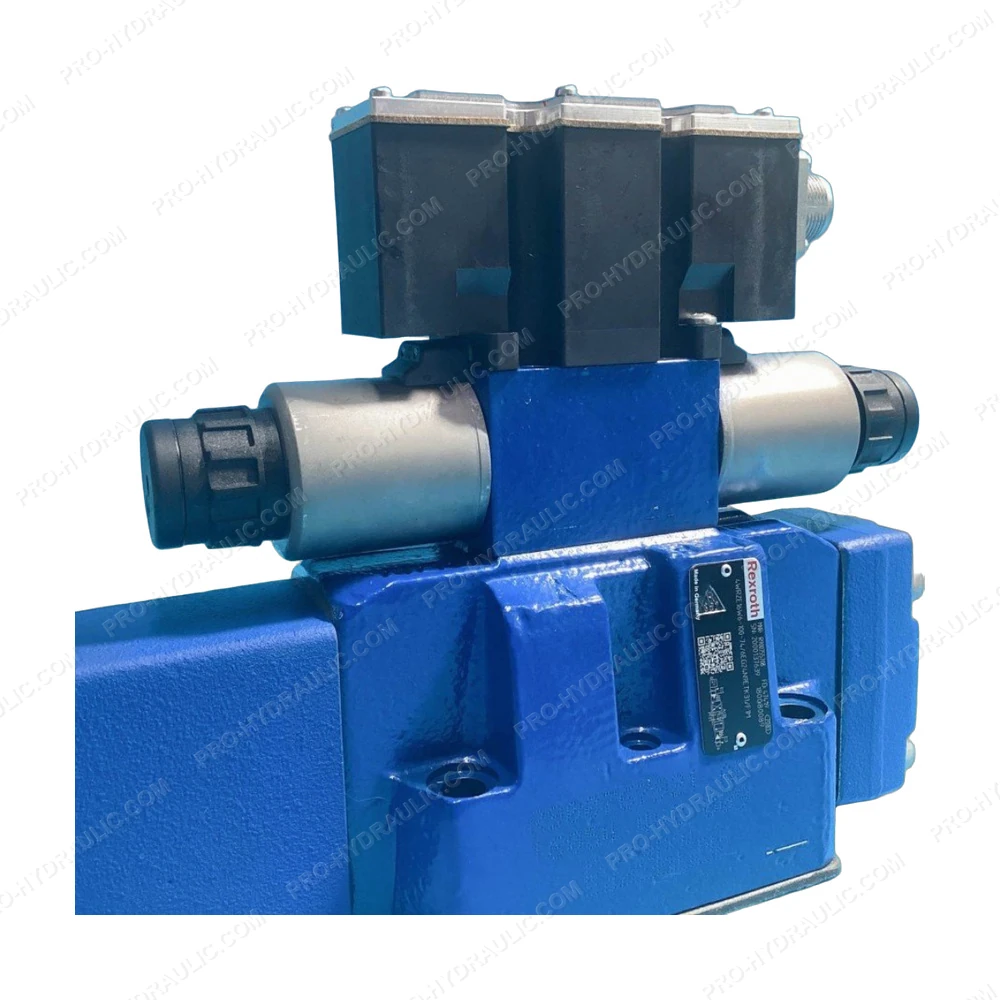

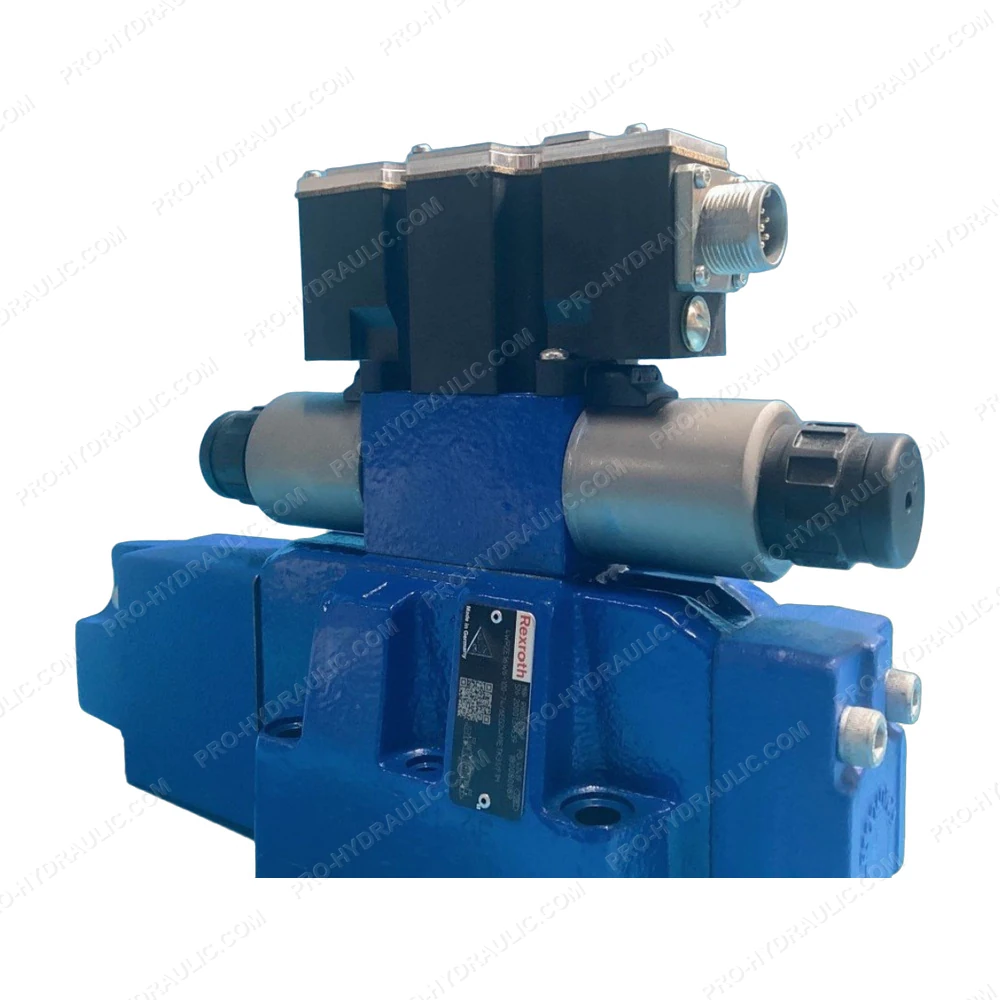

REXROTH 4WRZE16W6-100-74/6EG24N9ETK31/F1M Proportional Directional Valve
