Product Overview
The Rexroth 4WRZE25E325-73/6EG24N9ETK31/A1M (material number R901017352) is a high-performance pilot-operated proportional directional valve from the Rexroth WRZE series, designed for precise, continuous control of flow direction and magnitude in demanding industrial hydraulic systems. Featuring a size 25 (NG25) nominal flow path and a 4-way, 3-position spool configuration, this valve regulates actuator speed and direction proportionally to the electrical command signal applied to its integrated proportional solenoids. The “E325” spool designation indicates a specific progressive flow characteristic with defined metering geometry, while the “6EG24” solenoid code denotes 24 V DC wet-pin proportional solenoids with integrated position feedback for closed-loop control accuracy. The valve is equipped with a spring-centered spool return and a pilot stage that amplifies the control signal to drive the main spool with high dynamic response. As a core component in electro-hydraulic control loops, the 4WRZE25E325-73 is engineered for applications requiring smooth acceleration, deceleration, and position holding of hydraulic actuators under varying load conditions.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, 4-Way, 3-Position) |
| Model Designation | 4WRZE25E325-73/6EG24N9ETK31/A1M / R901017352 |
| Nominal Size | NG25 (Size 25) |
| Spool Type / Flow Characteristic | E325 — Progressive metering with defined flow curve |
| Solenoid Voltage | 24 V DC (6EG24 proportional solenoids) |
| Operating Pressure | Up to 315 bar (system pressure, pilot and main stage) |
| Nominal Flow Rate | Approx. 325 L/min at rated pressure differential (Δp = 10 bar per land) |
| Control Type | Proportional solenoid with position feedback (closed-loop capable) |
| Mounting & Connection | ISO 4401 / DIN 24340 NG25 subplate mounting; CETOP 8 interface |
| Seal Material | N9 (NBR) — suitable for mineral oil-based hydraulic fluids |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (pilot-operated, 4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 325 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
As a core component in electro-hydraulic control loops, the 4WRZE25E325-73 is engineered for applications requiring smooth acceleration, deceleration, and position holding of hydraulic actuators under varying load conditions.
PRODUCT IMAGES

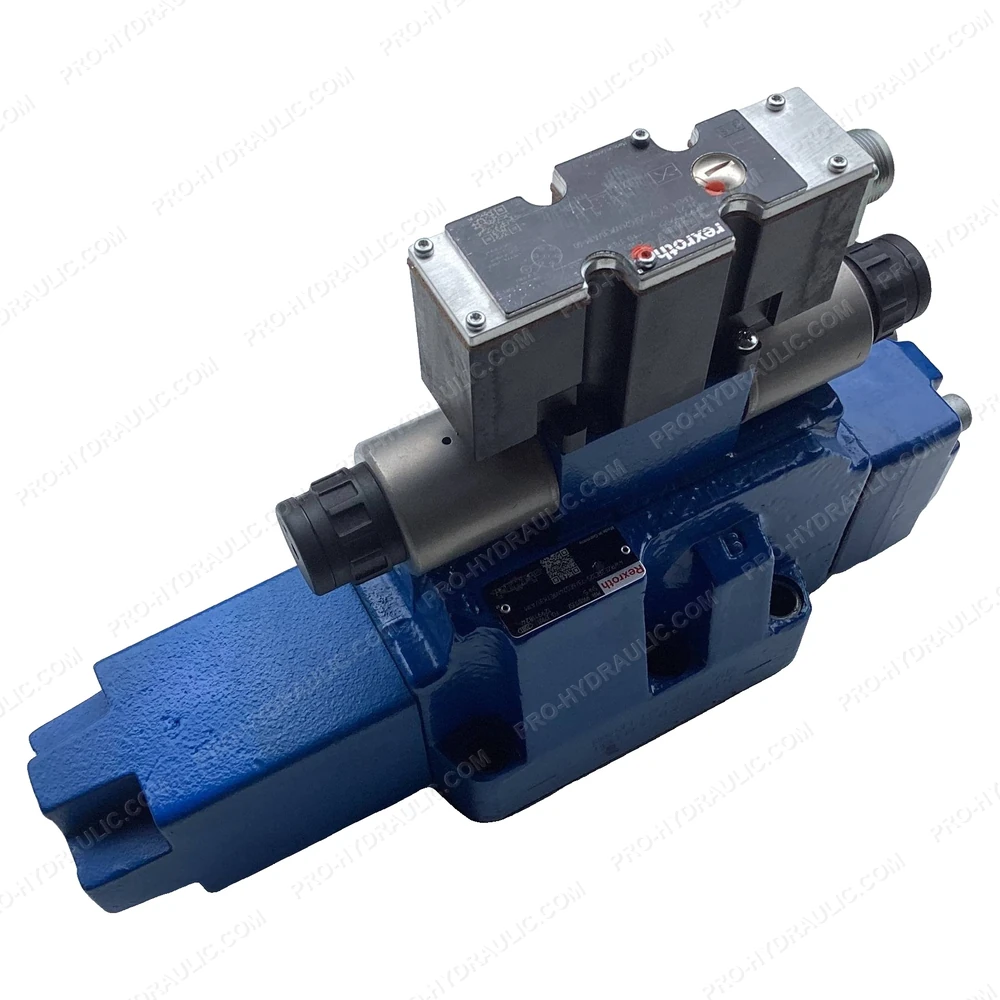

Rexroth 4WRZE25E325-73/6EG24N9ETK31/A1M / R901017352 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRZE25E325-73/6EG24N9ETK31/A1M / R901017352 High-Response Proportional Directional Control Valve. This German-made hydraulic component features a precise spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
