Product Overview
The Rexroth 4WRZE25W6-220-73/6EG24N9EK31/F1D3M (Material Number R901040909) is a high-performance, pilot-operated proportional directional valve from the Rexroth WRZE series. It is engineered to control both the direction and magnitude of hydraulic flow in proportion to an electrical input signal, enabling precise, infinitely variable speed and position control of actuators in demanding industrial systems. The valve features a size 25 (NG25) main stage with a nominal flow capacity of 220 L/min at a 10 bar (145 psi) pressure differential per land, and is actuated by a proportional solenoid with integrated position feedback for closed-loop accuracy. Designated by the “W6” spool code, it provides a specific metering characteristic suited to regulated flow applications. The “6EG24N9EK31” solenoid configuration denotes a 24 V DC proportional solenoid with a central electrical connector and an integrated enable function, while the “F1D3M” suffix indicates the specific seal and adjustment variant. This valve is a direct-fit, OEM-compatible component designed for integration into sophisticated electro-hydraulic control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve |
| Model Designation | 4WRZE25W6-220-73/6EG24N9EK31/F1D3M |
| Material Number | R901040909 |
| Valve Size | NG25 (Size 25) |
| Nominal Flow Rate | 220 L/min (at Δp = 10 bar per land) |
| Spool Type / Characteristic | W6 (Progressive flow characteristic) |
| Actuation | Proportional Solenoid with Position Feedback |
| Solenoid Voltage | 24 V DC |
| Electrical Connection | Central Connector (N9), with Enable Function (EK31) |
| Operating Pressure | Up to 350 bar (5075 psi) nominal |
| Mounting & Connection | ISO 4401-08-09-0-94 (NG25) Subplate Interface |
Engineering Features & Advantages
- Precision Performance: The integrated proportional Solenoid with Position Feedback ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 220 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is a direct-fit, OEM-compatible component designed for integration into sophisticated electro-hydraulic control systems.
PRODUCT IMAGES

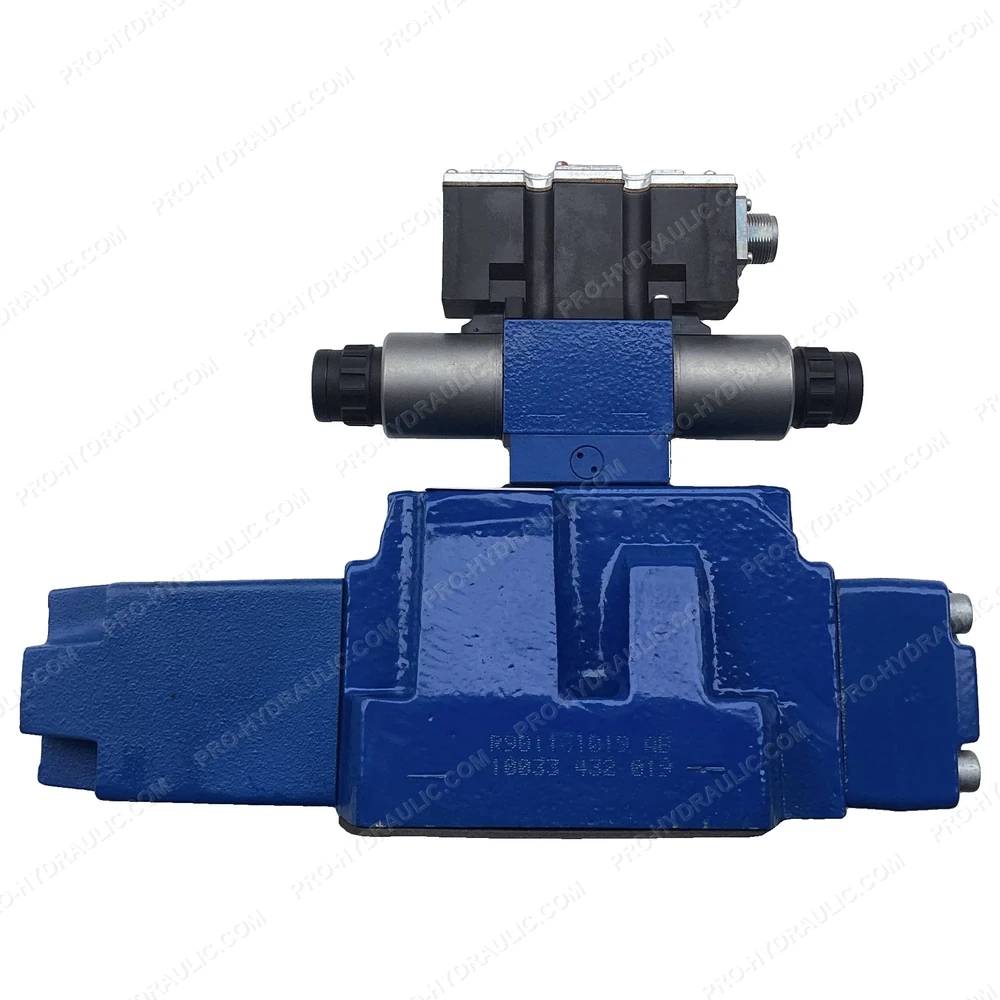

Rexroth 4WRZE25W6-220-73/6EG24N9EK31/F1D3M / R901040909 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRZE25W6-220-73/6EG24N9EK31/F1D3M / R901040909 High-Response Solenoid Directional Valve. This Germany-made 220V hydraulic component features a high-response pilot control, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
