Product Overview
The Rexroth 4WRZE25W8-220-73/6EG24N9K31/F1D3M (material number R901004329) is a high-response, pilot-operated proportional directional valve with integrated position feedback, designed for precise control of flow direction and magnitude in demanding industrial hydraulic systems. Part of the Rexroth 4WRZE series, this valve features a size 25 (NG25) main stage with a W8 spool type and a rated flow of 220 L/min at a 10 bar (Δp) pressure differential per land. The valve is actuated by a proportional solenoid on one end (EG24 = 24 V DC) with spring return on the opposite end, and includes an N9 design variant with a concealed manual override. The integrated position feedback (F1D3M) enables closed-loop control of the main spool position, delivering exceptional repeatability, fast response, and minimal hysteresis. This valve is engineered for electro-hydraulic closed-loop systems requiring high dynamic performance and precise directional control of actuators, cylinders, and motors.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, with Position Feedback) |
| Model Designation | 4WRZE25W8-220-73/6EG24N9K31/F1D3M |
| Material Number | R901004329 |
| Valve Size | NG25 (Size 25) |
| Spool Type | W8 (Progressive flow characteristic, closed-center) |
| Rated Flow | 220 L/min at Δp = 10 bar per land |
| Operating Pressure | Up to 315 bar (main stage); pilot pressure per Rexroth specification |
| Actuation | Proportional solenoid, 24 V DC (EG24), single-ended with spring return |
| Feedback | Integrated position feedback (F1D3M) for closed-loop spool control |
| Manual Override | N9 (Concealed manual override) |
| Mounting & Connection | Subplate mounting per ISO 4401 / DIN 24340 (NG25 interface) |
Engineering Features & Advantages
- Precision Performance: The integrated integrated position feedback (F1D3M) for closed-loop spool control ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 220 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is engineered for electro-hydraulic closed-loop systems requiring high dynamic performance and precise directional control of actuators, cylinders, and motors.
PRODUCT IMAGES

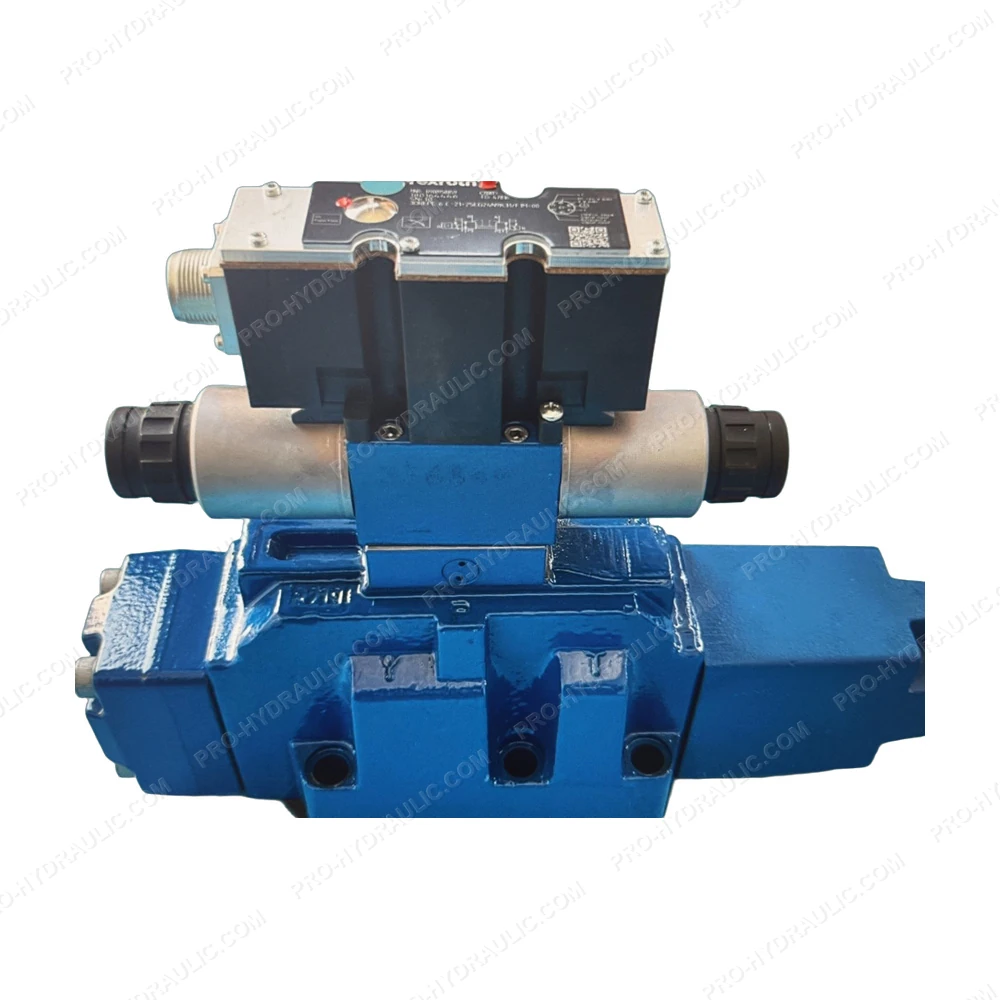

REXROTH 4WRZE25W8-220-73/6EG24N9K31/F1D3M / R901004329 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRZE25W8-220-73/6EG24N9K31/F1D3M / R901004329 High-Response Solenoid Directional Valve. This Germany-made 220V AC hydraulic component features a high-response pilot stage, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
