Product Overview
The Rexroth 4WSE2EM6-22/5B8ET315K17EV (Material Number: R900972861) is a high-response, two-stage directional servo valve engineered for precision electrohydraulic control in demanding industrial applications. Manufactured by Bosch Rexroth, this valve utilizes a torque-motor pilot stage driving a spool-type main stage, delivering exceptional dynamic response and precise flow metering proportional to the electrical input signal. The 4WSE2EM6-22 series is designed for closed-loop position, velocity, and force control systems where accuracy, repeatability, and fast response are critical. With a nominal size of 6 and a rated flow capacity of 5 L/min at 315 bar, this servo valve serves as a vital control element in high-performance hydraulic systems requiring micron-level actuation precision.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional & Servo Valve (Two-Stage Directional Servo Valve) |
| Model Designation | 4WSE2EM6-22/5B8ET315K17EV |
| Material Number | R900972861 |
| Nominal Size | NG6 (Size 6) |
| Rated Flow Rate | 5 L/min at Δp = 35 bar per land |
| Operating Pressure | Up to 315 bar (rated), 350 bar (peak) |
| Pilot Stage Type | Torque Motor with Mechanical Feedback |
| Main Stage Type | Spool-Type, 4-Way, 3-Position Directional |
| Actuation | Electrohydraulic (Analog Electrical Input) |
| Mounting & Connection | ISO 4401-03 / CETOP 3 Subplate Mounting |
| Seal Material | NBR (Nitrile) / FKM Optional |
| Hydraulic Fluid | Mineral Oil Based Hydraulic Fluid (HLP, HLP-D) |
Engineering Features & Advantages
- Precision Performance: The integrated electrohydraulic (Analog Electrical Input) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 5 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal size of 6 and a rated flow capacity of 5 L/min at 315 bar, this servo valve serves as a vital control element in high-performance hydraulic systems requiring micron-level actuation precision.
PRODUCT IMAGES

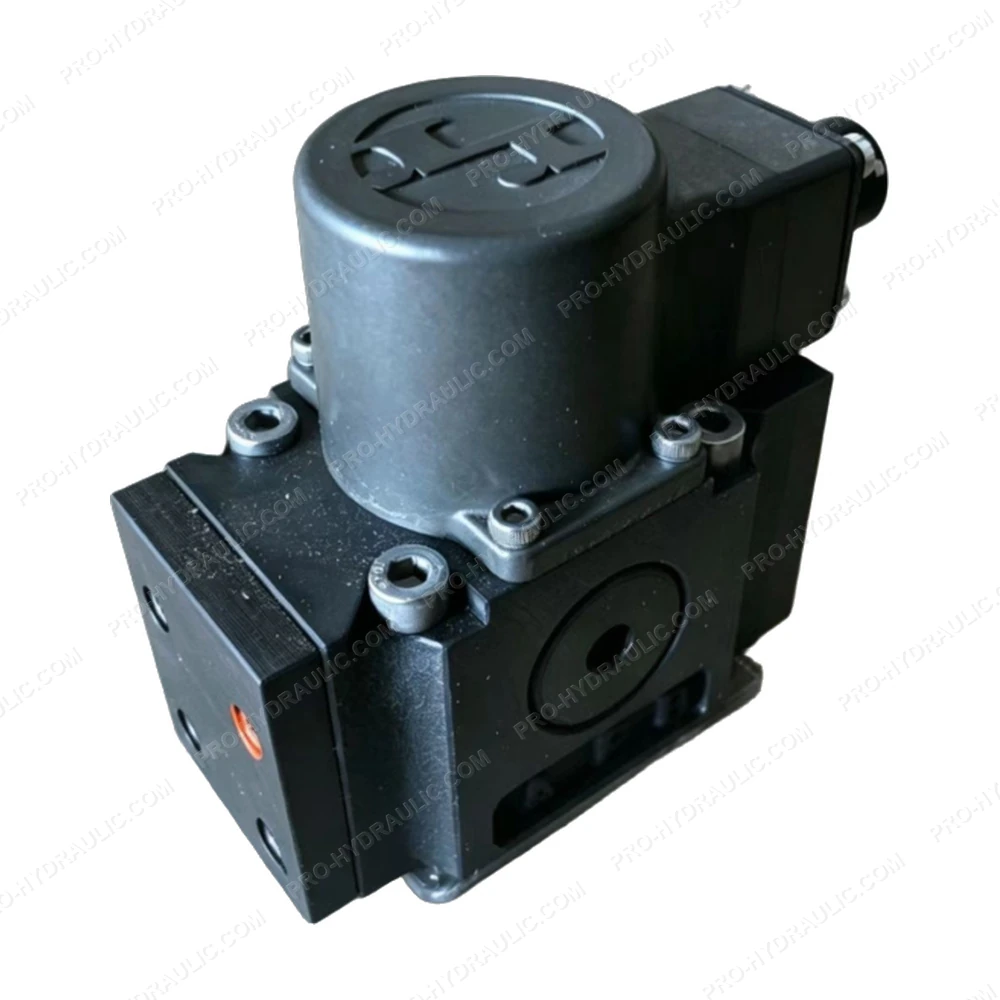

REXROTH 4WSE2EM6-22/5B8ET315K17EV / R900972861 Servo Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WSE2EM6-22/5B8ET315K17EV / R900972861 Solenoid Directional Valve. This Germany-made hydraulic component features a high-response pilot control, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
