Product Overview
The Rexroth 5-3WE10A50/OEG24N9K4OSABG24W/M (Material Number: R901350568) is a high-performance directional spool valve from the proven WE series, engineered for precise control of start, stop, and direction of hydraulic fluid flow in industrial systems. This direct-operated, solenoid-actuated directional control valve features a robust 5-chamber housing design with a 3-position, 4-way spool configuration (3WE10 size 10, NG10 / CETOP 5 interface). The valve utilizes wet-pin AC/DC solenoids with integrated manual override, ensuring reliable spool shifting and positive centering via return springs. With a nominal flow capacity of up to 120 L/min and a maximum operating pressure of 350 bar, this valve is a direct-fit replacement for OEM Rexroth installations, delivering exceptional switching reliability, low-pressure drop, and long service life in demanding industrial hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (Directional Control Valve) |
| Model Designation | 5-3WE10A50/OEG24N9K4OSABG24W/M / R901350568 |
| Series / Size | WE Series, Size 10 (NG10 / CETOP 5) |
| Spool Configuration | 3-Position, 4-Way (3WE), Spring-Centered |
| Spool Type | Type A (Open Center to Tank in Neutral) |
| Actuation | Dual Solenoid, Wet-Pin AC/DC, with Manual Override |
| Coil Voltage | 24 V DC (G24 / N9K4 Solenoid System) |
| Operating Pressure | Up to 350 bar (Ports P, A, B); 210 bar (Port T) |
| Nominal Flow Rate | Up to 120 L/min (dependent on spool type and pressure drop) |
| Mounting & Connection | Subplate Mounting, ISO 4401-05 / CETOP 5 / NFPA D05 Interface |
| Hydraulic Fluid | Mineral Oil (HL, HLP) per DIN 51524; Viscosity 10–800 mm²/s |
Engineering Features & Advantages
- Precision Performance: The integrated dual Solenoid, Wet-Pin AC/DC, with Manual Override ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 120 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal flow capacity of up to 120 L/min and a maximum operating pressure of 350 bar, this valve is a direct-fit replacement for OEM Rexroth installations, delivering exceptional switching reliability, low-pressure drop, and long service life in demanding industrial hydraulic circuits.
PRODUCT IMAGES

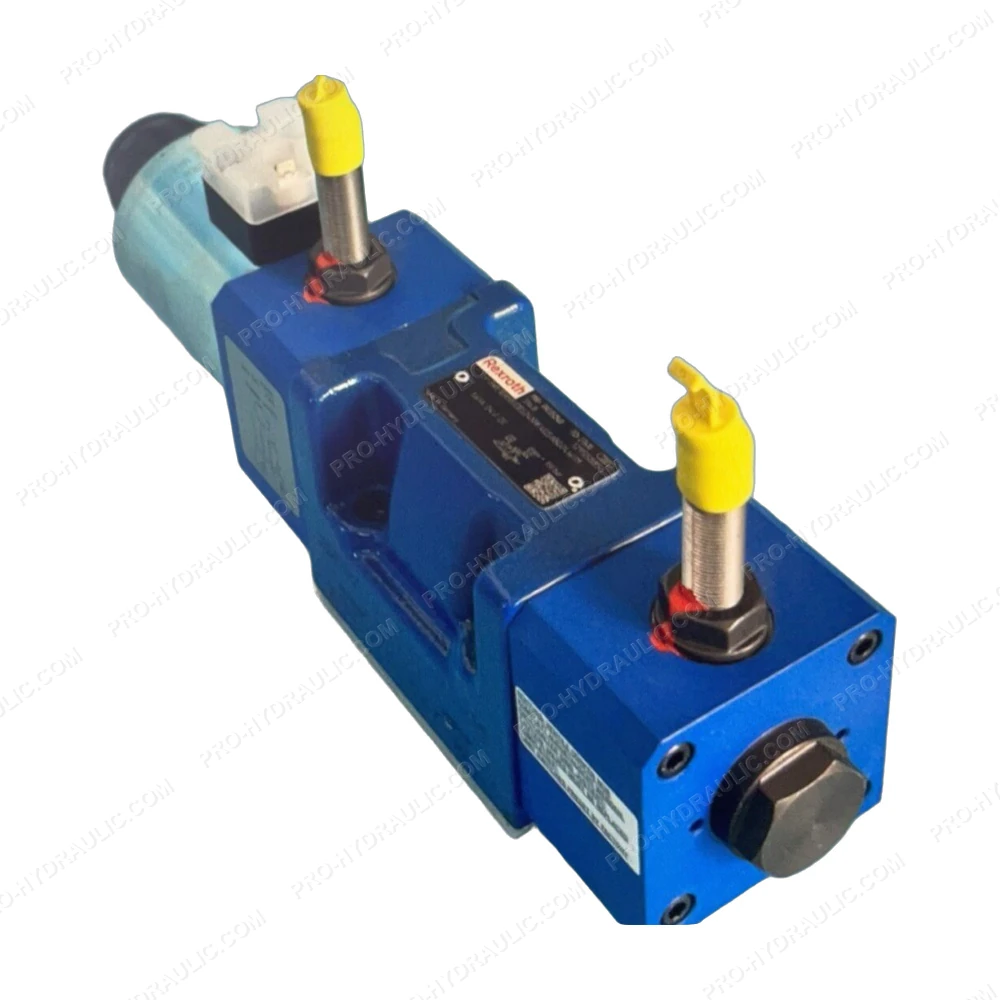

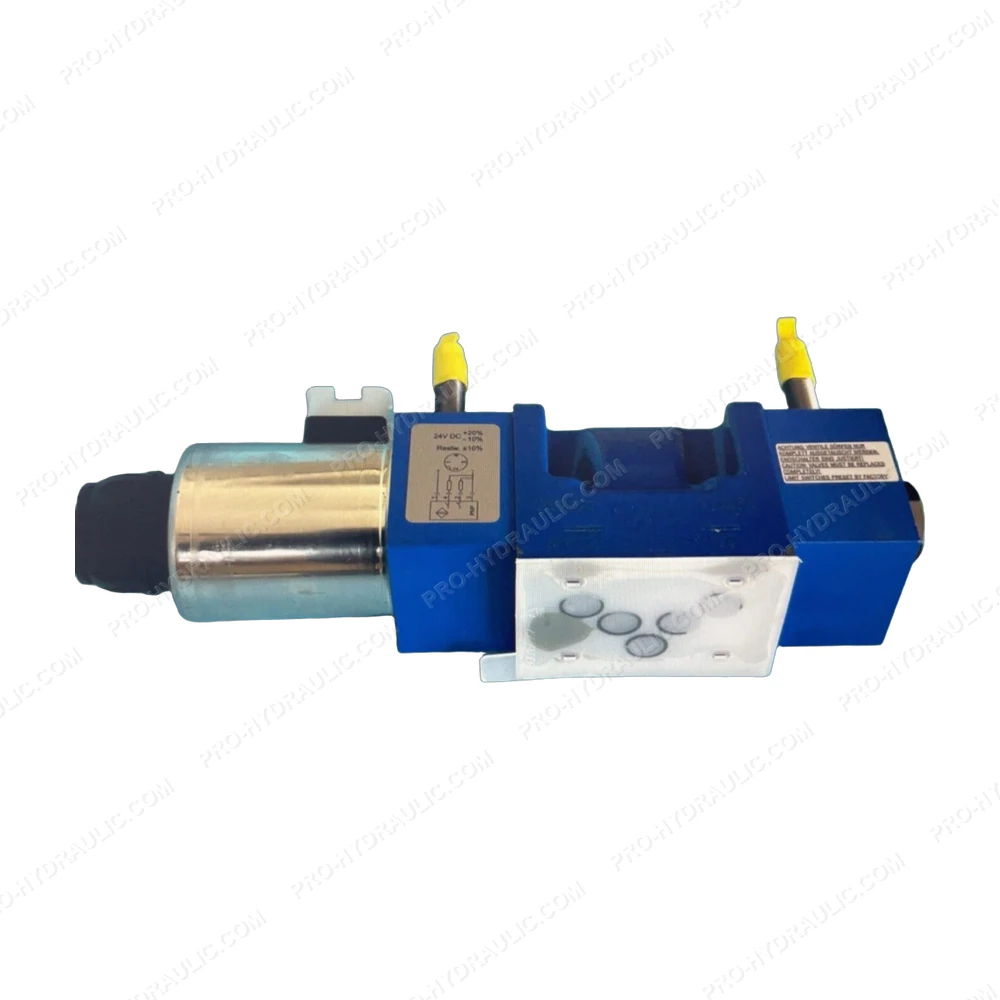

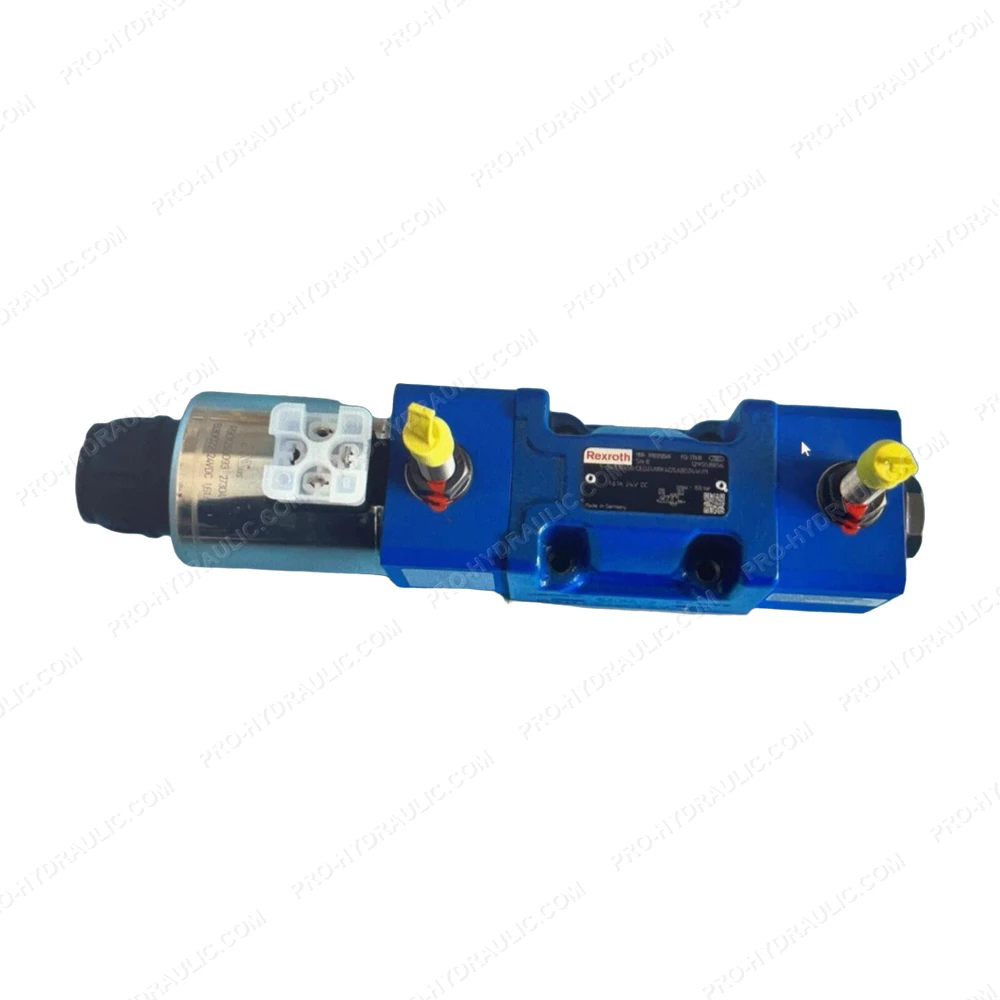

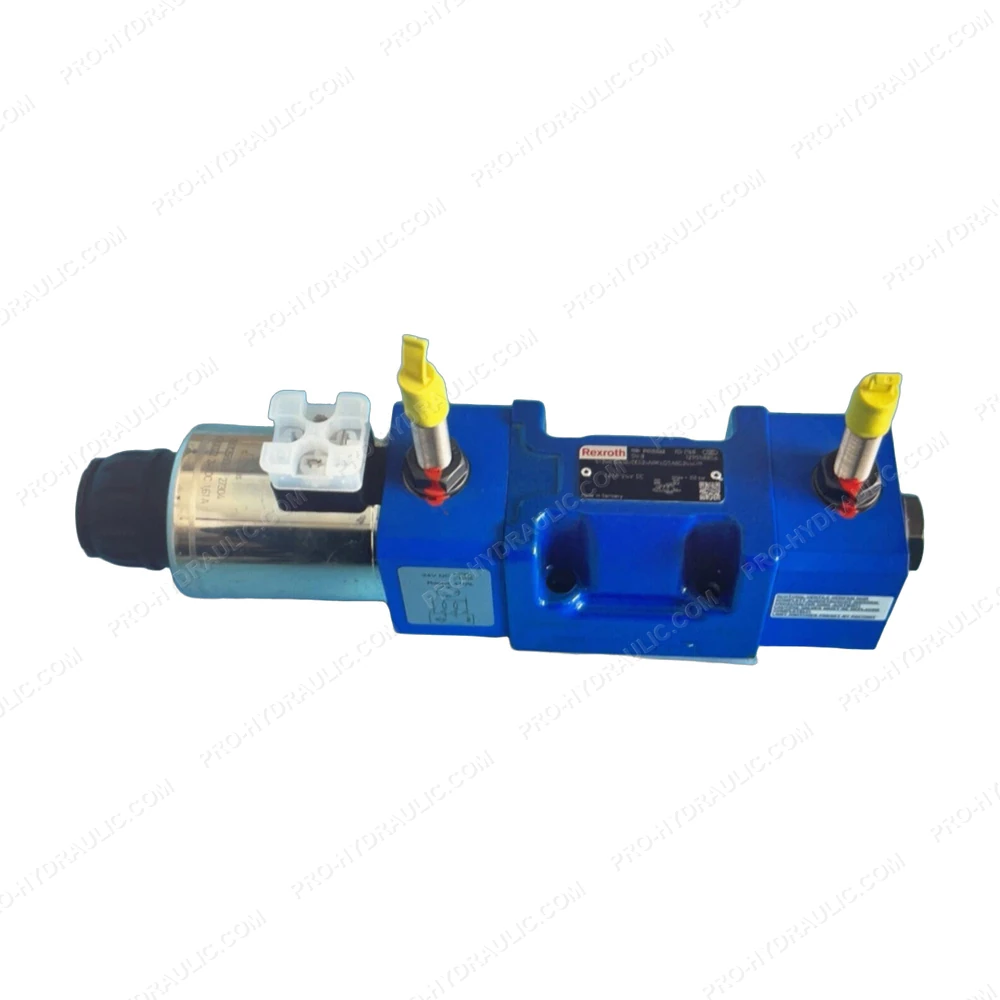

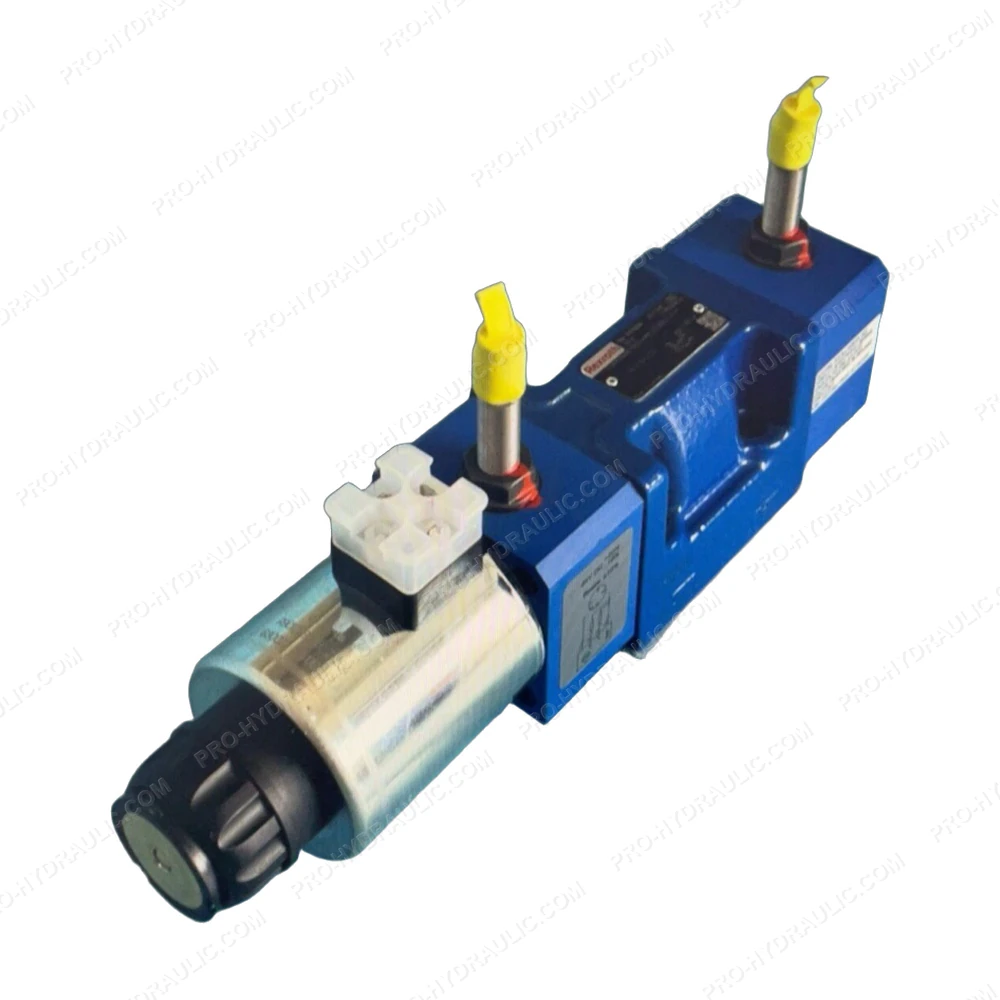

Rexroth 5-3WE10A50/OEG24N9K4OSABG24W/M / R901350568 Solenoid Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 5-3WE10A50/OEG24N9K4OSABG24W/M / R901350568 Solenoid Directional Valve. This Germany-made 24 VDC hydraulic component features a 3-position 4-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
