The REXROTH 5-4WE 10Y50/EG24K4QMAG24/V / R901049010 is a heavy-duty industrial directional control valve engineered for precise flow management in demanding hydraulic circuits. This solenoid-operated, 4-way, 3-position valve features a wet-pin armature design and is configured for CETOP 5 / ISO 4401-05 mounting patterns, ensuring compatibility with standard manifold interfaces.
REXROTH 5-4WE 10Y50/EG24K4QMAG24/V / R901049010 Technical Specifications
| Parameter | Specification |
|---|---|
| Valve Type | 4-way, 3-position directional control valve |
| Actuation | Solenoid operated, wet-pin armature |
| Spool Type | Y50 (tandem center, closed ports) |
| Coil Voltage | 24 V DC (EG24) |
| Mounting Standard | CETOP 5 / ISO 4401-05 / NFPA D05 |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 120 L/min (31.7 gpm) |
| Fluid Temperature Range | -20°C to +80°C |
| Seal Material | NBR (Buna-N) |
| Electrical Connection | DIN 43650 connector |
Key Engineering Features
- Wet-pin solenoid design with removable coil for simplified maintenance
- High-strength cast iron body for durability under high-pressure cycles
- Precision-ground spool and bore for minimal leakage and precise response
- Manual override option for emergency operation
- Compatible with mineral oil and synthetic hydraulic fluids
Industrial Applications
- Mobile hydraulic systems (construction, agriculture)
- Industrial presses and injection molding machines
- Material handling and lifting equipment
- Machine tool and automation circuits
- Marine and offshore hydraulic control systems
For technical inquiries, dimensional drawings, or replacement support for REXROTH 5-4WE 10Y50/EG24K4QMAG24/V / R901049010, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

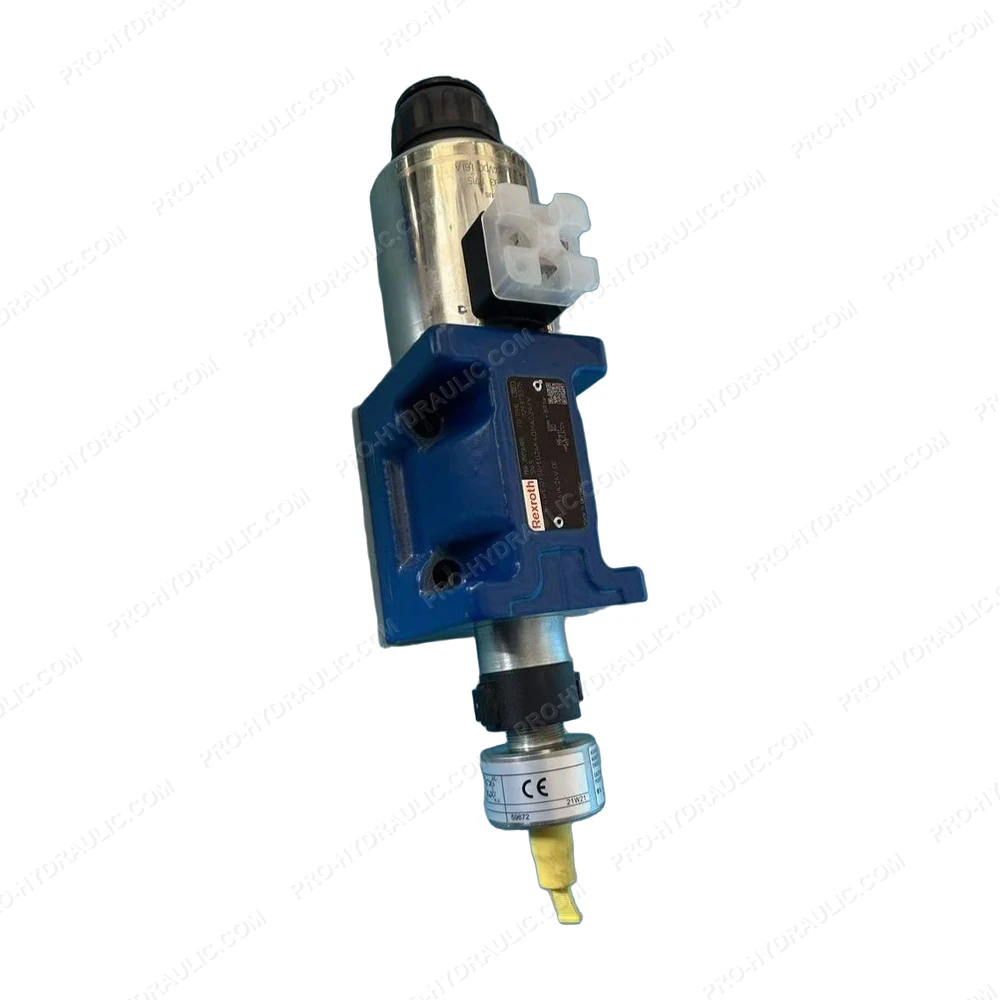

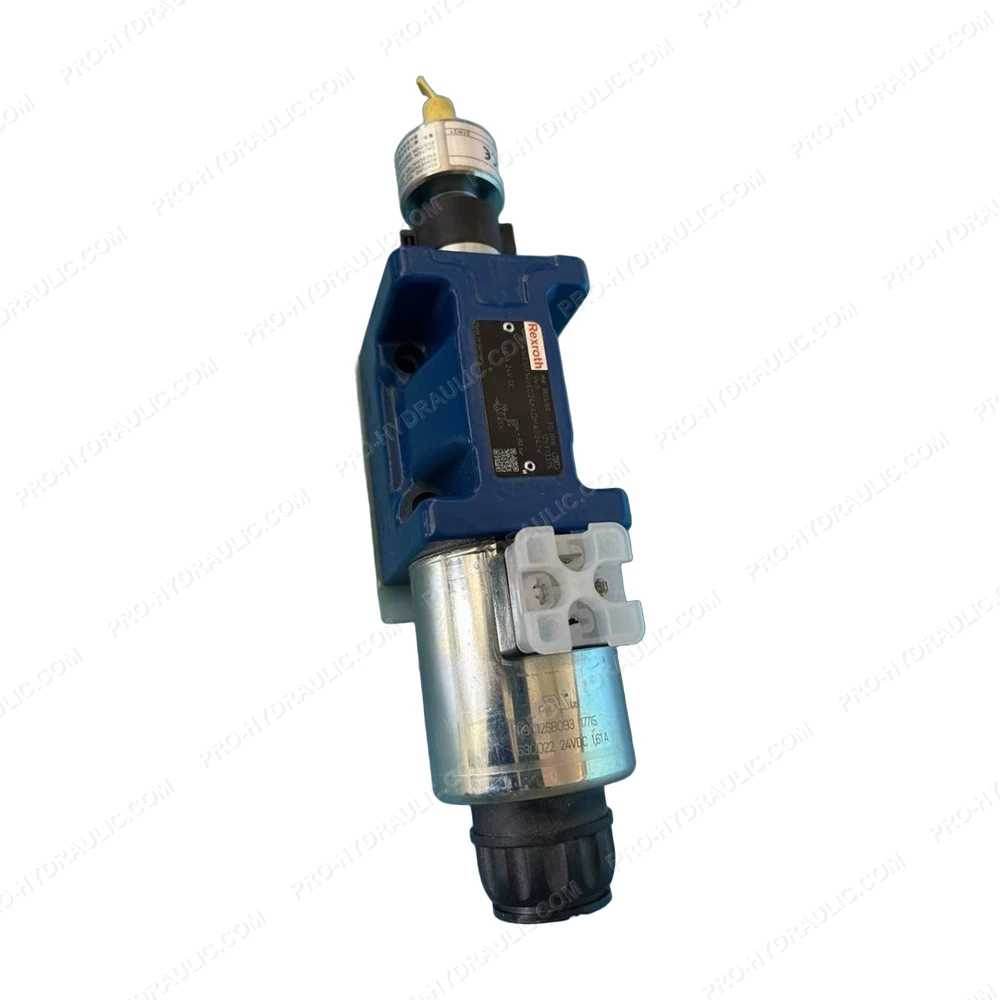

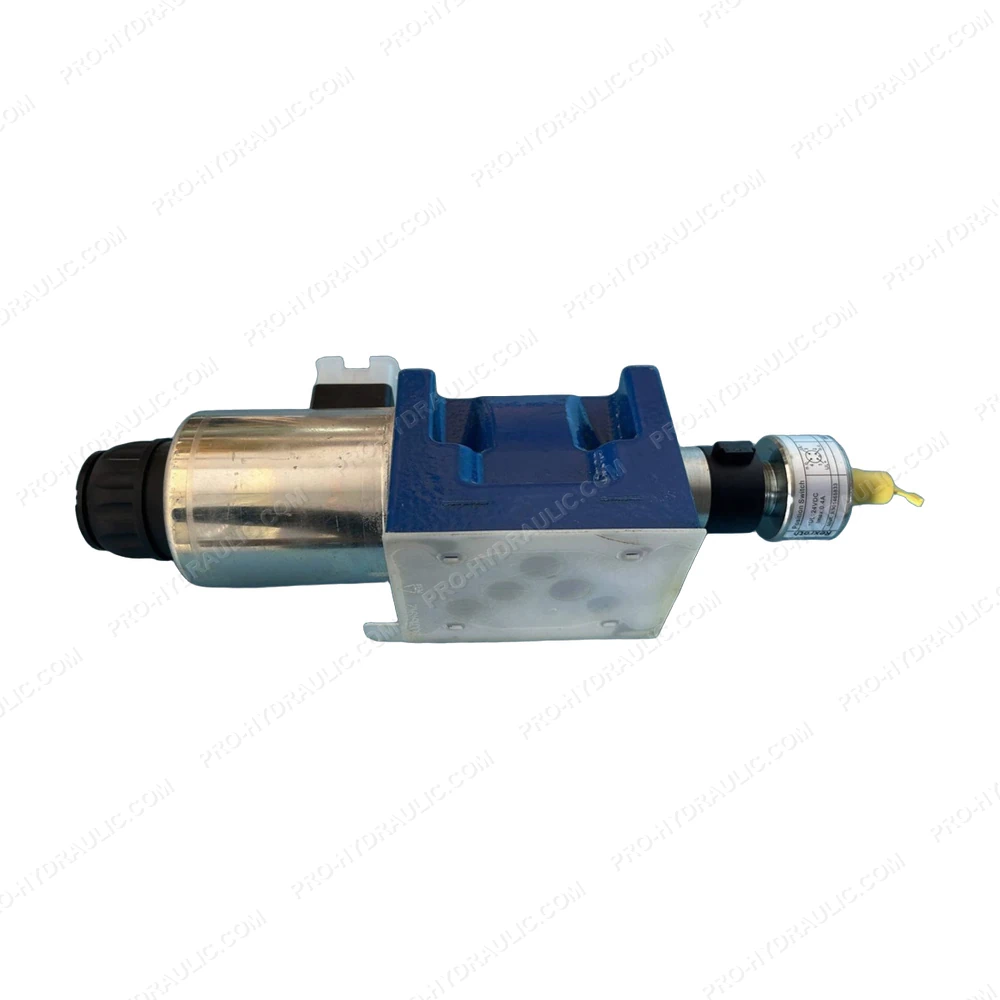

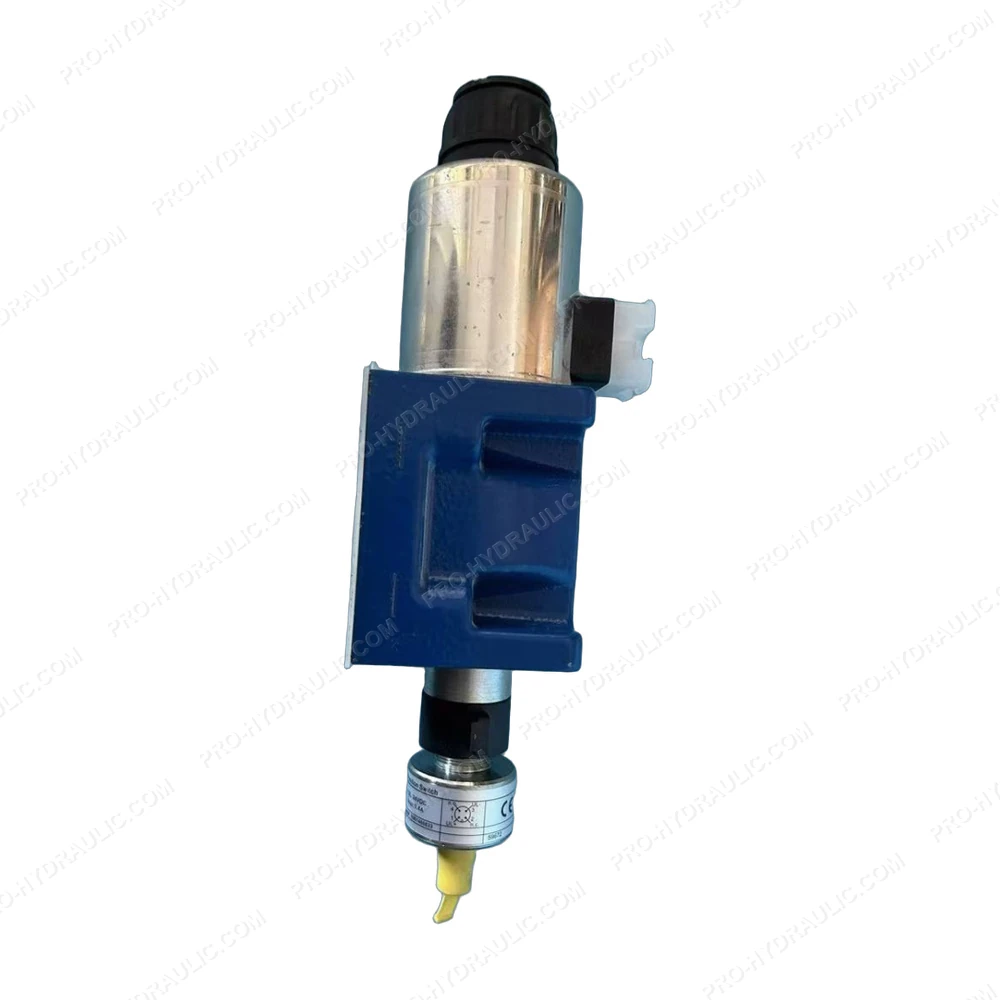

REXROTH 5-4WE 10Y50/EG24K4QMAG24/V Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 5-4WE 10Y50/EG24K4QMAG24/V / R901049010 Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
