Product Overview
The Rexroth 5-4WE10D5X/EG24K4QMBG24/M (Material Number R901336797) is a high-performance solenoid-operated directional control valve from the proven 4WE10 series. Engineered by Bosch Rexroth, this 4-way, 3-position (4/3) directional spool valve is designed to control the start, stop, and direction of hydraulic fluid flow in industrial hydraulic systems. The “D” spool configuration provides a closed-center (tandem) function, ensuring precise actuator positioning and reliable load holding. With a nominal size of NG10 (CETOP 5 / ISO 4401-05), this valve delivers robust performance in demanding applications requiring high flow capacity and fast, repeatable solenoid response. The EG24 designation indicates a 24 V DC high-performance solenoid with integrated manual override, while the K4QMBG24 electrical connection provides a secure, industry-standard plug-in interface. This valve is a direct-fit replacement for OEM Rexroth systems and is widely used in plastic injection molding, metallurgical, and general industrial hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Control Valve (4/3 Way) |
| Model Designation | 5-4WE10D5X/EG24K4QMBG24/M / R901336797 |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Spool Type | Type D (Closed Center / Tandem) |
| Operating Pressure | Up to 350 bar (Ports P, A, B); 210 bar (Port T) |
| Nominal Flow Rate | Up to 120 L/min (dependent on spool and pressure drop) |
| Solenoid Voltage | 24 V DC (EG24 high-performance solenoid) |
| Electrical Connection | K4QMBG24 – DIN EN 175301-803 (Plug-in connector with LED and rectifier) |
| Mounting & Connection | Subplate mounting per ISO 4401-05 / CETOP 5 |
| Manual Override | Integrated (standard, concealed or detent optional) |
Engineering Features & Advantages
- Precision Performance: The solenoid directional control valve (4/3 way) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 120 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is a direct-fit replacement for OEM Rexroth systems and is widely used in plastic injection molding, metallurgical, and general industrial hydraulic circuits.
PRODUCT IMAGES

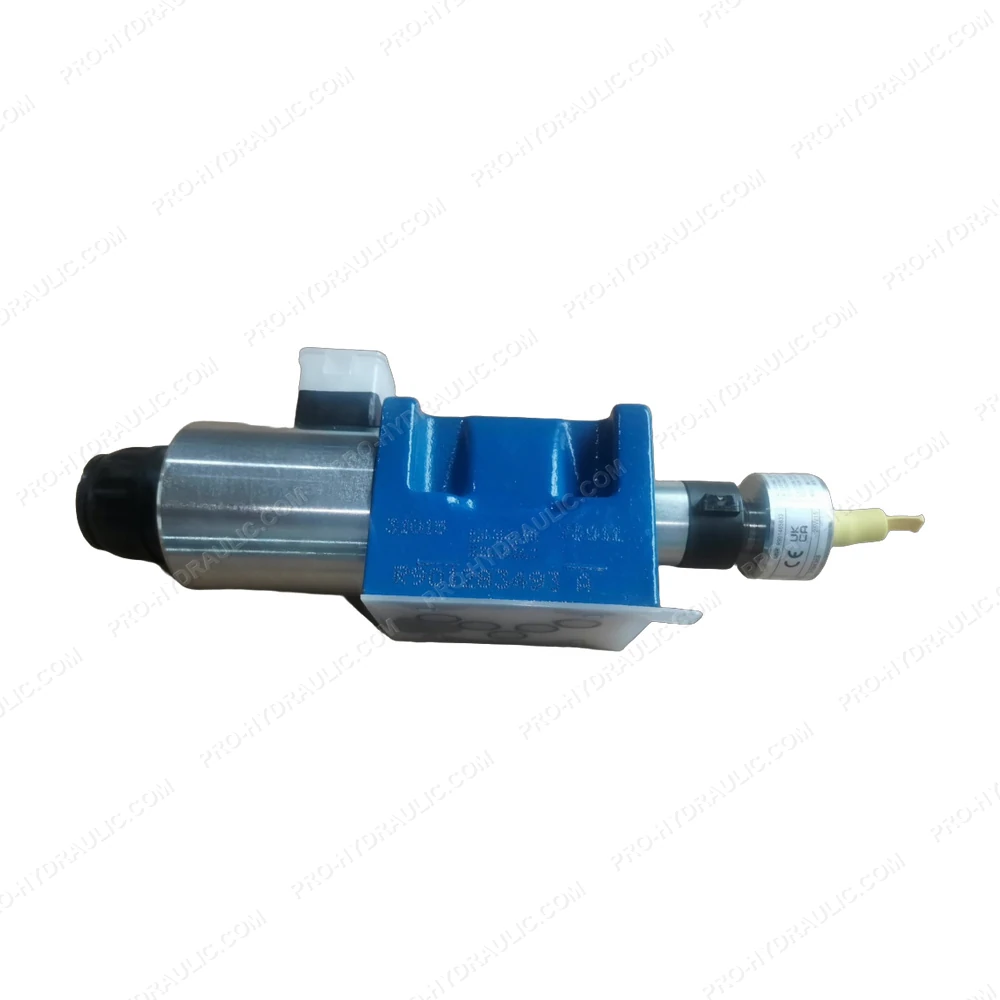

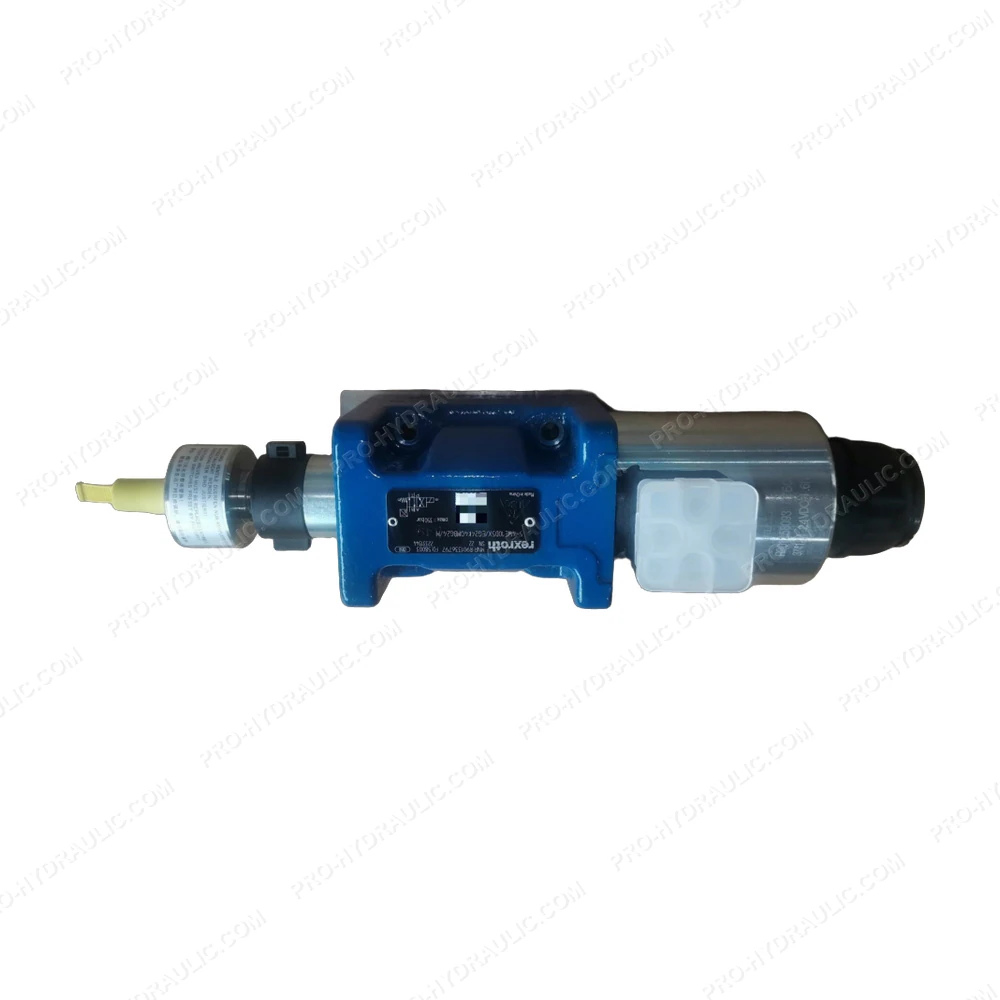

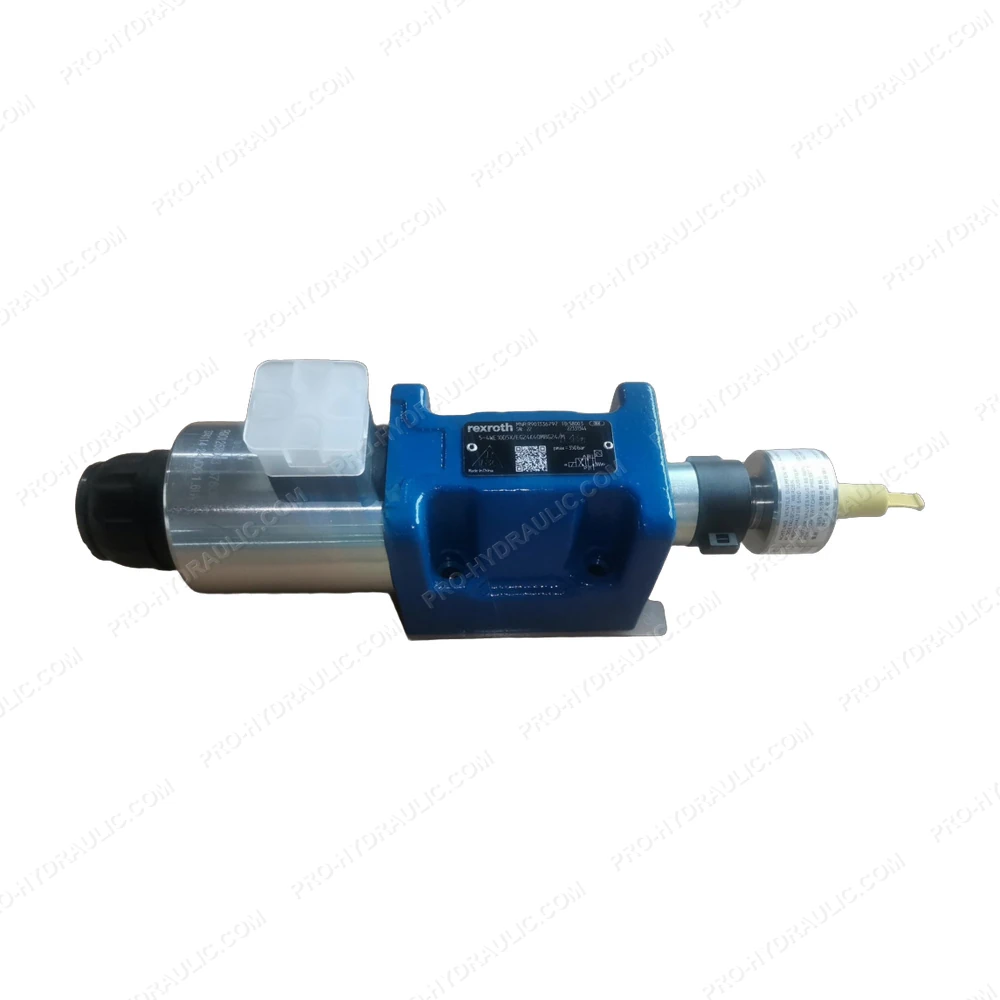

REXROTH 5-4WE10D5X/EG24K4QMBG24/M / R901336797 Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 5-4WE10D5X/EG24K4QMBG24/M / R901336797 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
