The REXROTH 5-4WE10EA50/EG24N9K4QM0G24/M is a heavy-duty industrial directional control valve engineered for precise flow direction and pressure control in demanding hydraulic circuits. This 4-way, 3-position solenoid-operated valve features a wet-pin AC/DC solenoid with a nominal voltage of 24 V DC and a high-performance spring return mechanism. The valve is designed for subplate mounting according to ISO 4401-05 and CETOP 5 standards, ensuring compatibility with a wide range of industrial manifolds.
REXROTH 5-4WE10EA50/EG24N9K4QM0G24/M Technical Specifications
| Model | 5-4WE10EA50/EG24N9K4QM0G24/M |
| Part Number | R901339863 |
| Valve Type | Directional Control Valve, 4-way, 3-position |
| Actuation | Solenoid operated, wet-pin armature |
| Nominal Voltage | 24 V DC |
| Spool Type | EA (open center, all ports open in neutral) |
| Mounting | Subplate, ISO 4401-05 / CETOP 5 |
| Max Operating Pressure | 350 bar (5075 psi) |
| Max Flow Rate | 120 L/min (31.7 gpm) |
| Fluid Temperature Range | -20 °C to +80 °C |
| Seal Material | NBR (Buna-N) |
Key Engineering Features
- Wet-pin solenoid design with high switching reliability and long service life
- Spring return and spring centering for fail-safe operation
- High flow capacity with minimal pressure drop
- Hardened spool and sleeve for precise control and wear resistance
- Electrical connection via DIN EN 175301-803 (plug-in connector)
- Optional manual override available
Industrial Applications
- Hydraulic presses and forming machines
- Injection molding and die-casting equipment
- Material handling and lifting systems
- Machine tools and automation lines
- Steel mills and heavy industrial machinery
For technical inquiries, dimensional drawings, or replacement support for REXROTH 5-4WE10EA50/EG24N9K4QM0G24/M, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

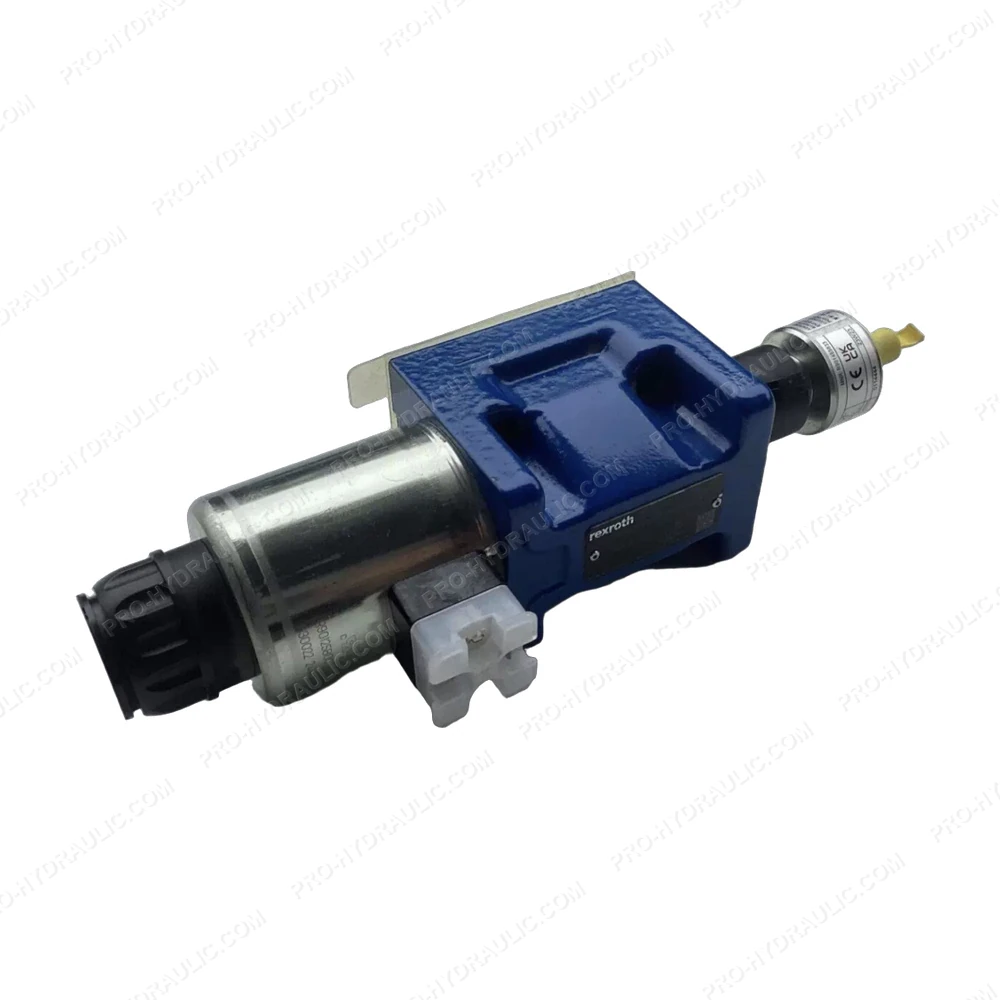

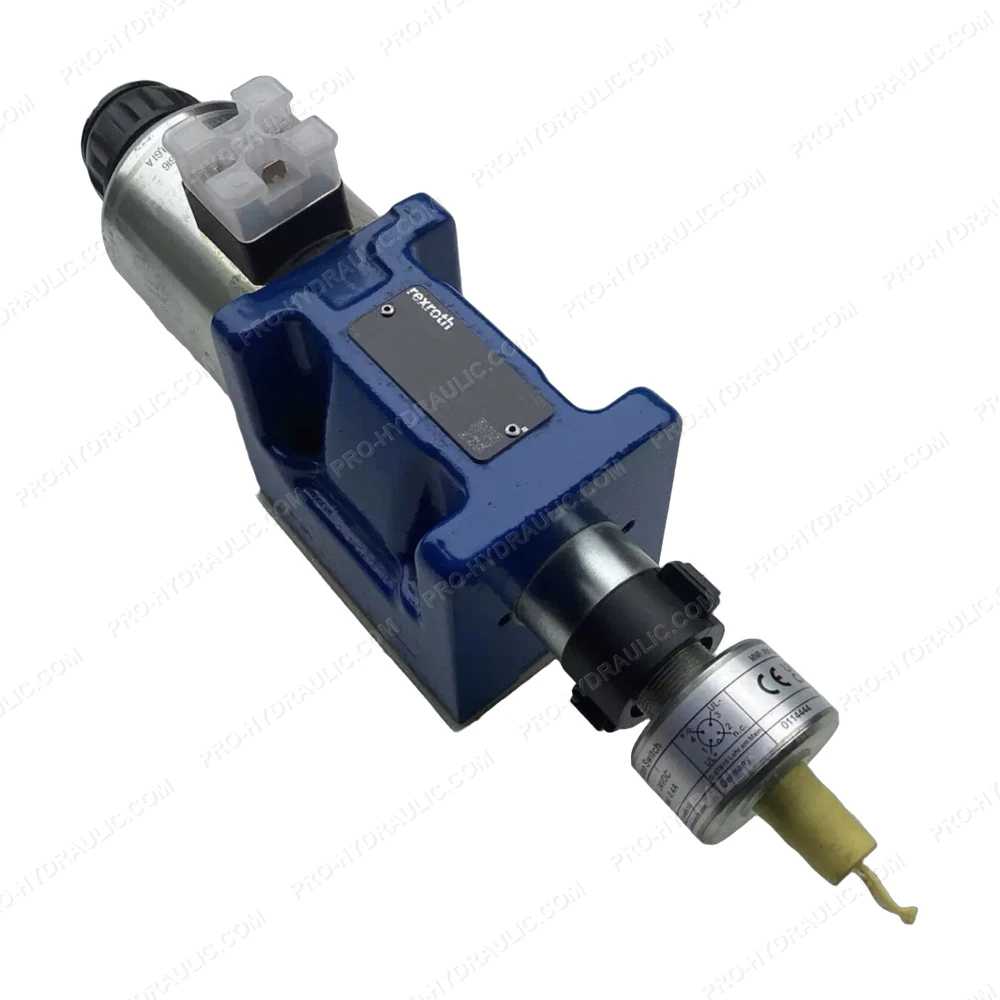

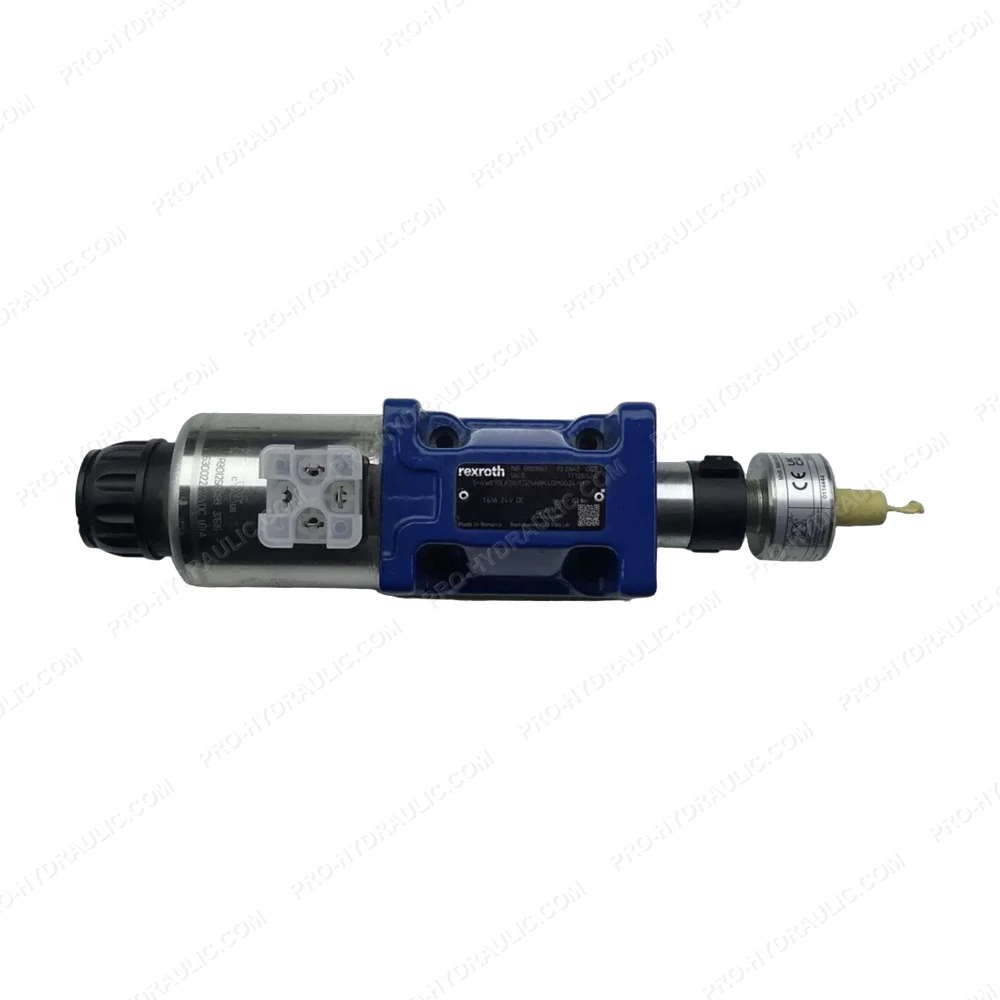

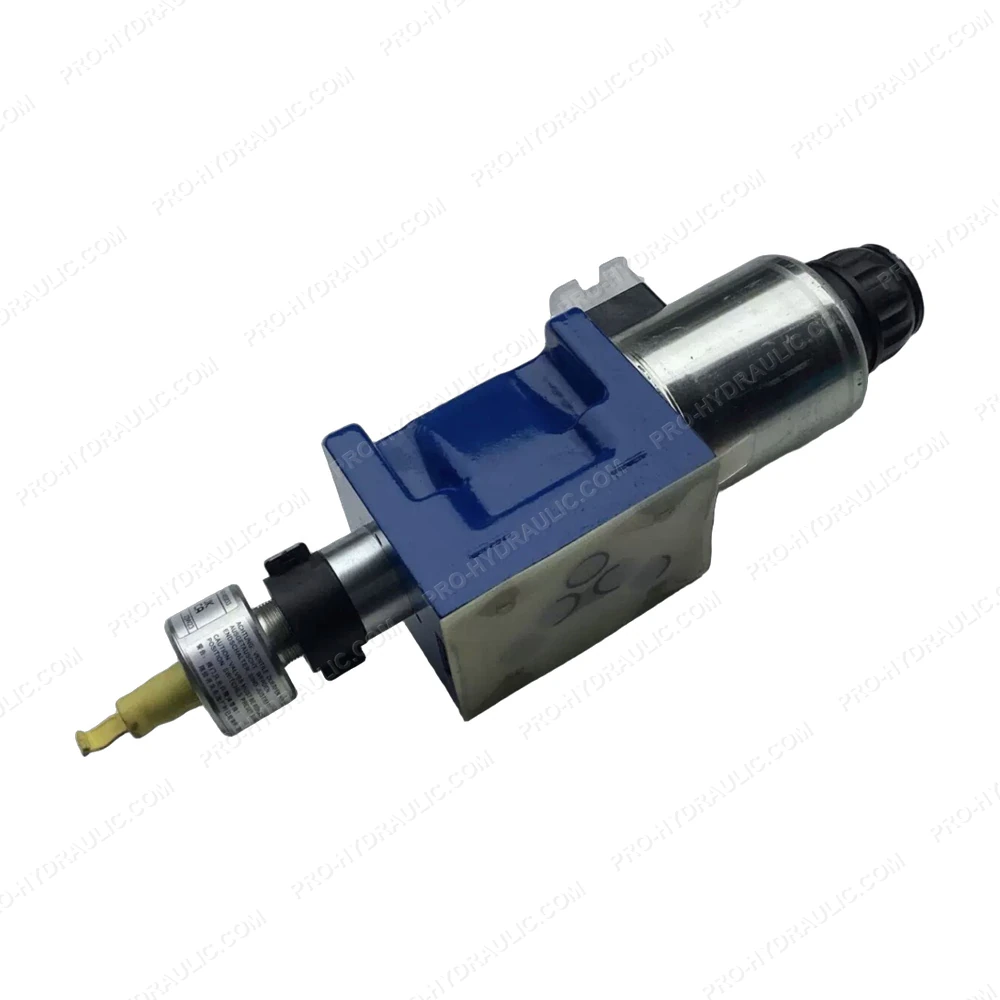

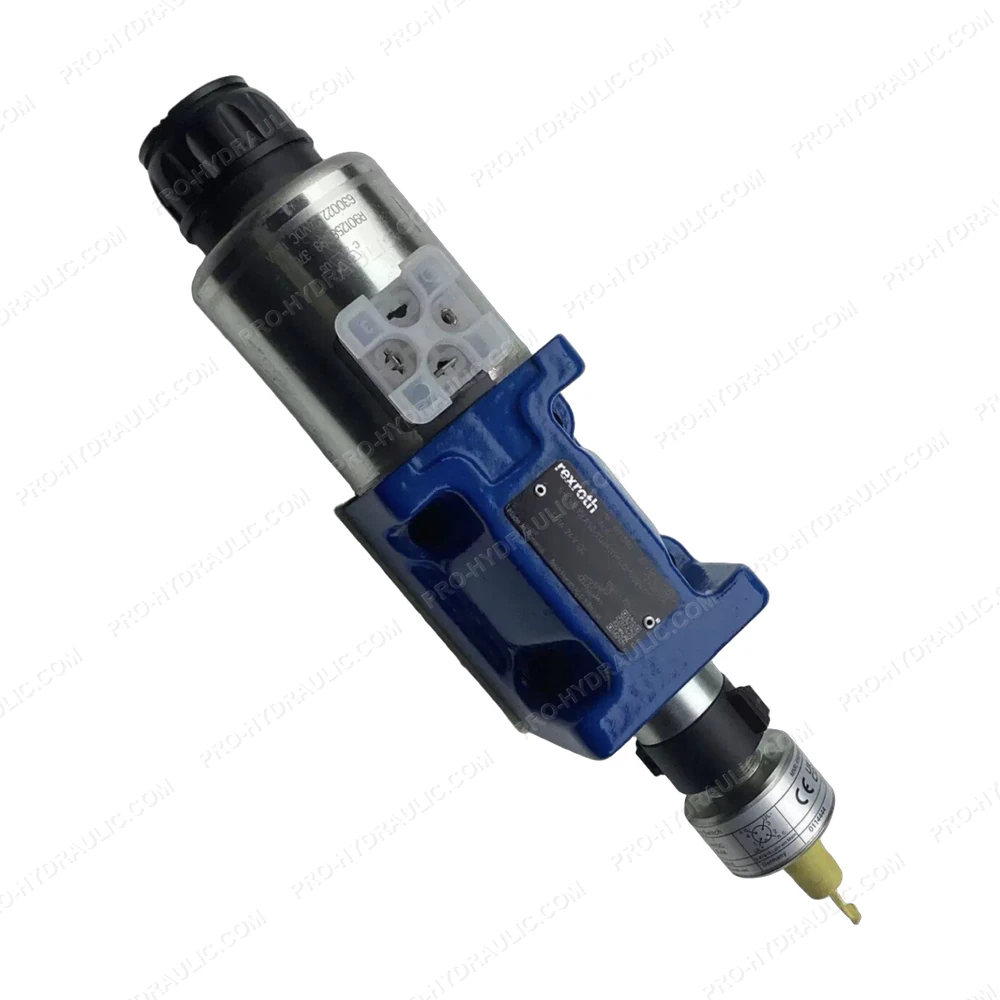

REXROTH 5-4WE10EA50/EG24N9K4QM0G24/M Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 5-4WE10EA50/EG24N9K4QM0G24/M Directional Control Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
