The REXROTH 5-4WE10JA50/EG24N9K4QM0G24/M is a heavy-duty industrial directional control valve engineered for precise start, stop, and direction control of hydraulic fluid flow in demanding high-pressure circuits. As part of the Rexroth 4WE10 series, this solenoid-operated valve features a robust wet-pin AC/DC solenoid design with a nominal flow capacity of up to 120 L/min and a maximum operating pressure of 350 bar. The model code 5-4WE10JA50/EG24N9K4QM0G24/M indicates a 4-way, 3-position spool configuration with a J-type spool, spring return, and 24 V DC solenoid coils with integrated manual override. The valve conforms to ISO 4401-05, CETOP 5, and NFPA D05 mounting standards, ensuring direct interchangeability with standard subplates and manifold systems. Its high-strength cast iron housing and precision-machined spool and sleeve assembly provide minimal internal leakage and long service life under continuous duty cycles.
REXROTH 5-4WE10JA50/EG24N9K4QM0G24/M Technical Specifications
| Valve Type | 4-way, 3-position directional control valve |
| Actuation | Solenoid operated, wet-pin armature |
| Spool Type | J-type (closed center, all ports blocked in neutral) |
| Nominal Flow Rate | Up to 120 L/min (31.7 gpm) |
| Maximum Operating Pressure | 350 bar (5075 psi) at ports P, A, B; 210 bar at T |
| Coil Voltage | 24 V DC (EG24) |
| Coil Connector | DIN EN 175301-803, 3-pole |
| Manual Override | Integrated push-button (N9) |
| Mounting Pattern | ISO 4401-05, CETOP 5, NFPA D05 |
| Hydraulic Fluid | Mineral oil based, HLP/HM per ISO 6743-4 |
| Fluid Temperature Range | -20 °C to +80 °C (-4 °F to +176 °F) |
| Viscosity Range | 2.8 to 500 mm²/s |
| Filtration | ISO 4406 class 20/18/15 or better |
| Weight | Approx. 6.5 kg (14.3 lb) |
Key Engineering Features
- Wet-pin solenoid design with removable coils for reduced wear and simplified maintenance
- High-strength cast iron body and hardened spool for extended cycle life
- Spring return and spring centering options for fail-safe operation
- Integrated manual override for emergency actuation and system diagnostics
- Low pressure drop and minimal internal leakage due to precision spool-to-sleeve fit
- Compatible with standard ISO 4401-05 subplates and manifold blocks
- Optional integrated check valve and throttle inserts for customized flow control
Industrial Applications
- Hydraulic presses and stamping machines
- Injection molding and die-casting equipment
- Mobile hydraulic systems for construction and agricultural machinery
- Industrial automation and material handling systems
- Steel mills and heavy manufacturing lines
- Marine and offshore hydraulic power units
For technical inquiries, dimensional drawings, or replacement support for REXROTH 5-4WE10JA50/EG24N9K4QM0G24/M, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

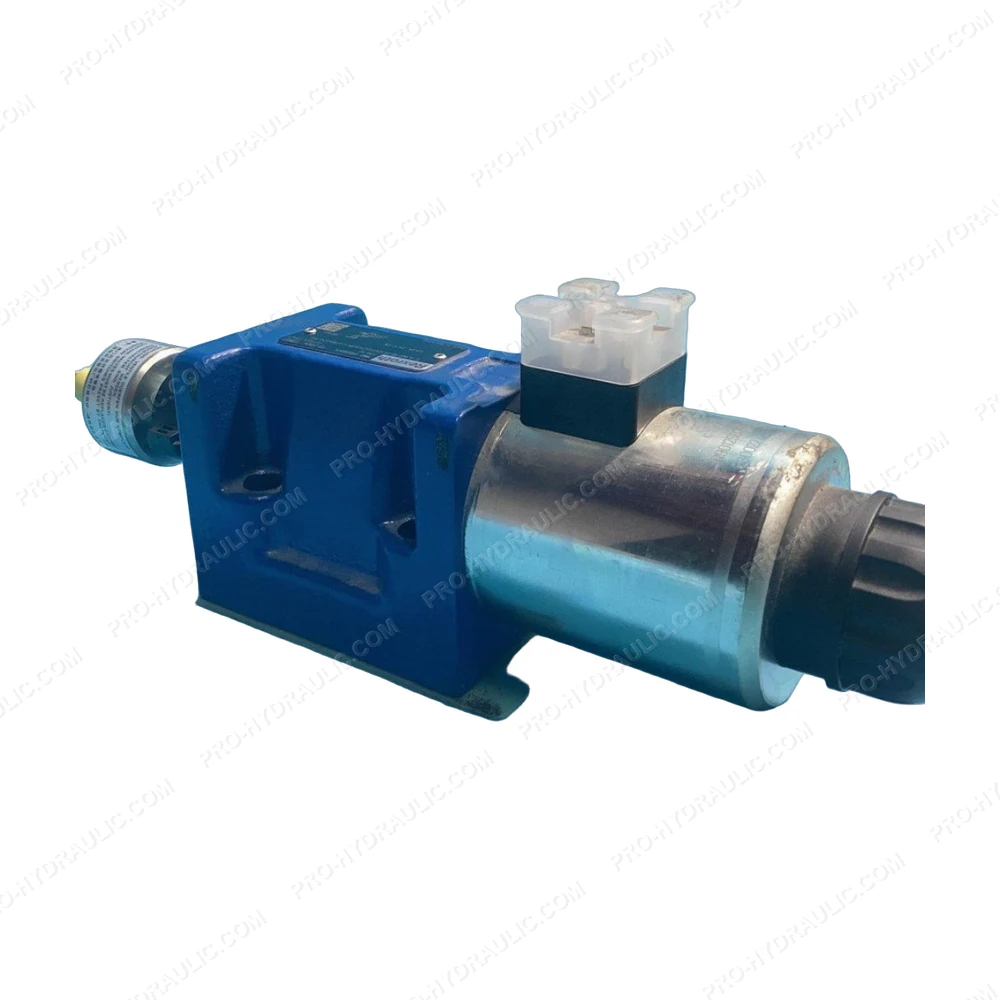

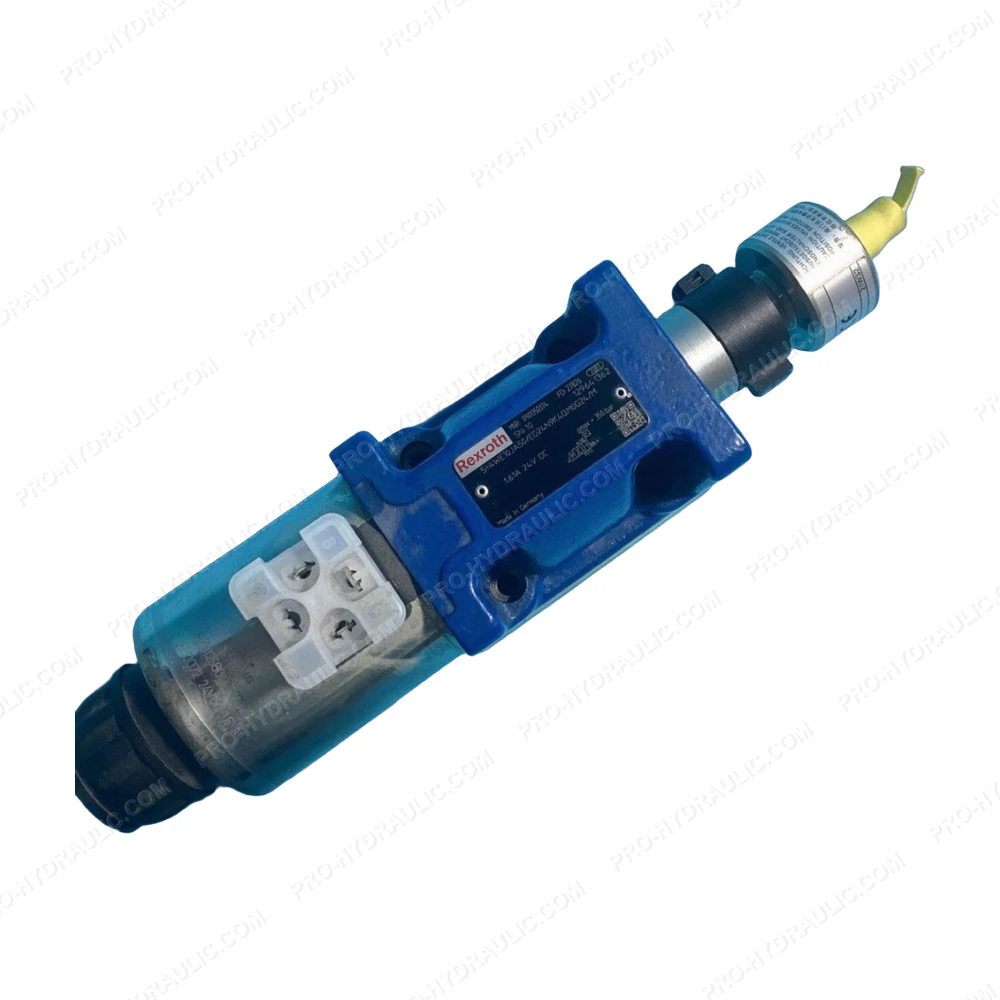

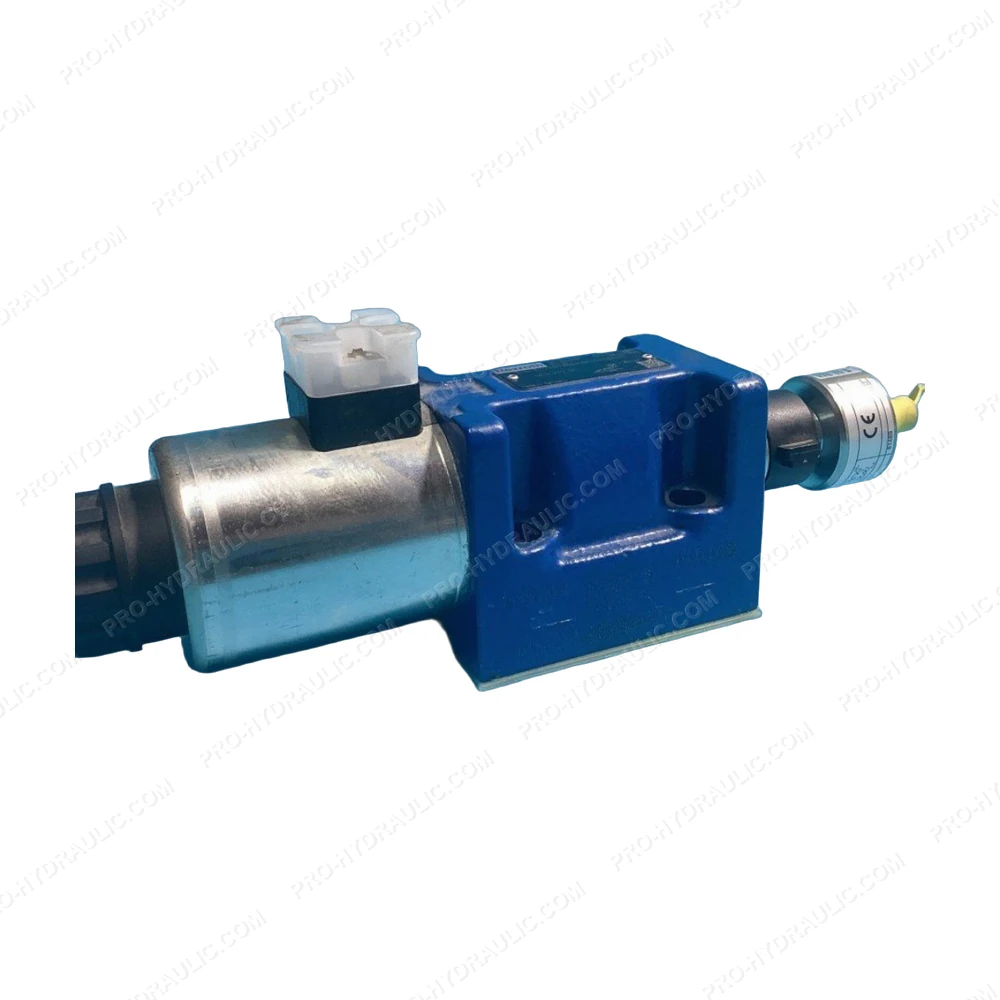

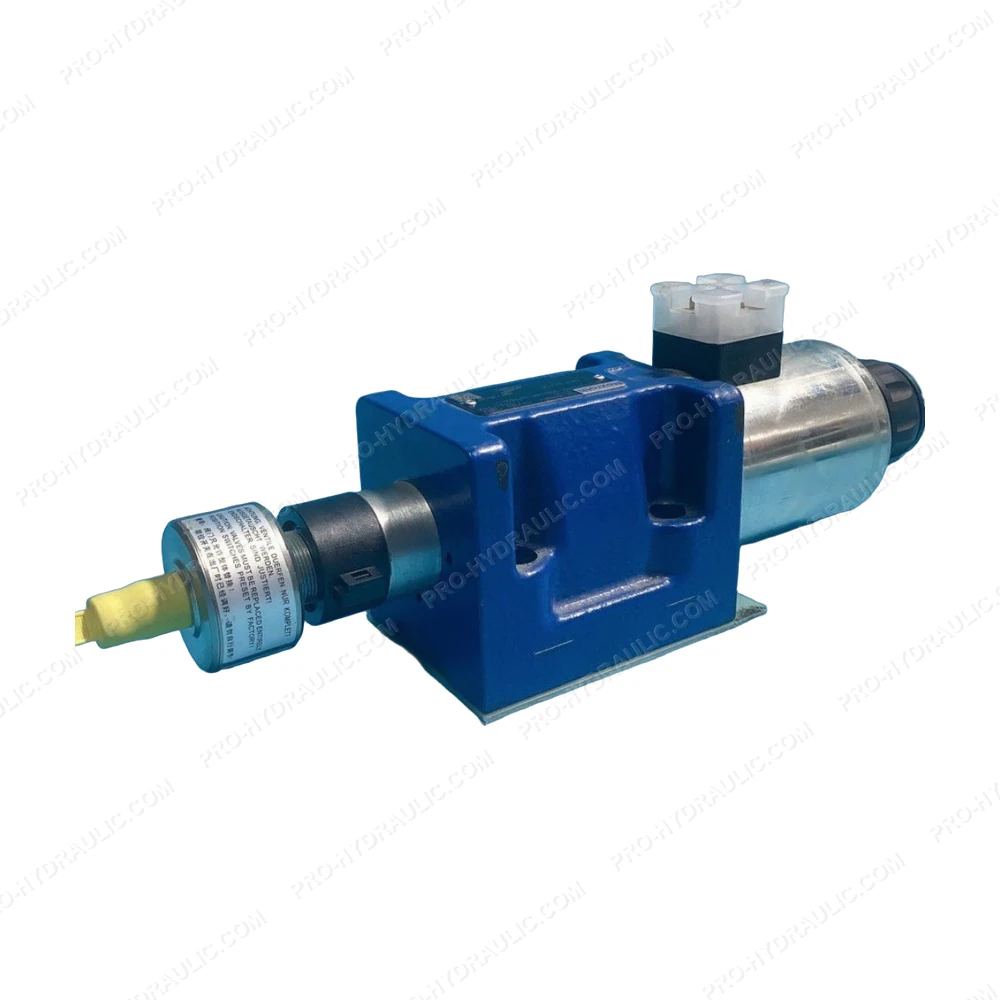

REXROTH 5-4WE10JA50/EG24N9K4QM0G24/M Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 5-4WE10JA50/EG24N9K4QM0G24/M Directional Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
