Product Overview
The Rexroth 5723522220 is a pneumatically actuated directional control valve engineered for precise switching, directional control, and reliable shut-off of compressed air and neutral gaseous media in industrial process circuits. As part of Rexroth’s modular valve program, this unit utilizes a balanced spool-and-sleeve design that delivers fast, repeatable actuation with minimal pressure drop across the working ports. The valve is designed for panel or manifold mounting and integrates seamlessly into centralized pneumatic control cabinets, valve islands, and automated process skids where consistent directional control and long service life are essential. Its robust housing and precision-machined internal components ensure stable operation under continuous duty cycles in demanding plant environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pneumatic Directional Control Valve (Process & Pneumatic Valve) |
| Model Designation | 5723522220 |
| Manufacturer | Rexroth |
| Actuation Type | Pneumatic pilot / air-actuated spool positioning |
| Operating Pressure | Standard Industrial Grade (typical pneumatic range up to 10 bar) |
| Media | Filtered, dried compressed air and neutral gases |
| Mounting & Connection | Standard ISO / Manufacturer Interface (subplate or manifold mounting) |
| Sealing | Precision elastomer seals for leak-tight spool operation |
Engineering Features & Advantages
- Precision Performance: Balanced spool-and-sleeve construction provides accurate directional switching, low internal leakage, and consistent response times across the full operating pressure range.
- Fast Pneumatic Actuation: Air-pilot operation enables rapid, repeatable valve positioning for high-cycle automated process sequences.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with wear-resistant internal components rated for millions of switching cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Modular Integration: Designed to interface with standard valve islands and centralized pneumatic control panels for simplified system expansion.
Typical Industrial Applications
The Rexroth 5723522220 pneumatic directional control valve is widely deployed in automated process and manufacturing environments, including plastic injection molding machines, packaging and assembly lines, CNC machine tool pneumatic circuits, and general factory automation valve islands. It is equally suited to metallurgical process skids, material handling systems, and centralized compressed-air control cabinets where dependable directional control, fast actuation, and long maintenance-free service life are critical to plant uptime.
PRODUCT IMAGES

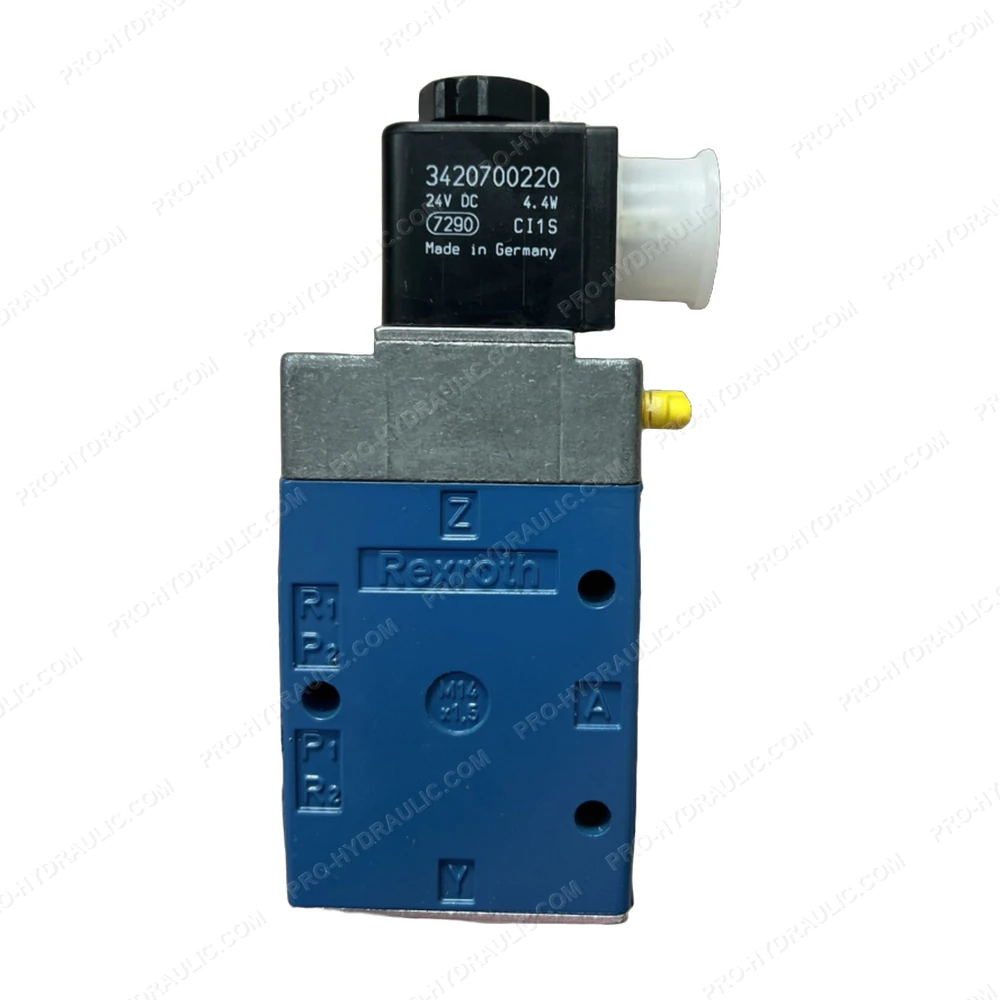

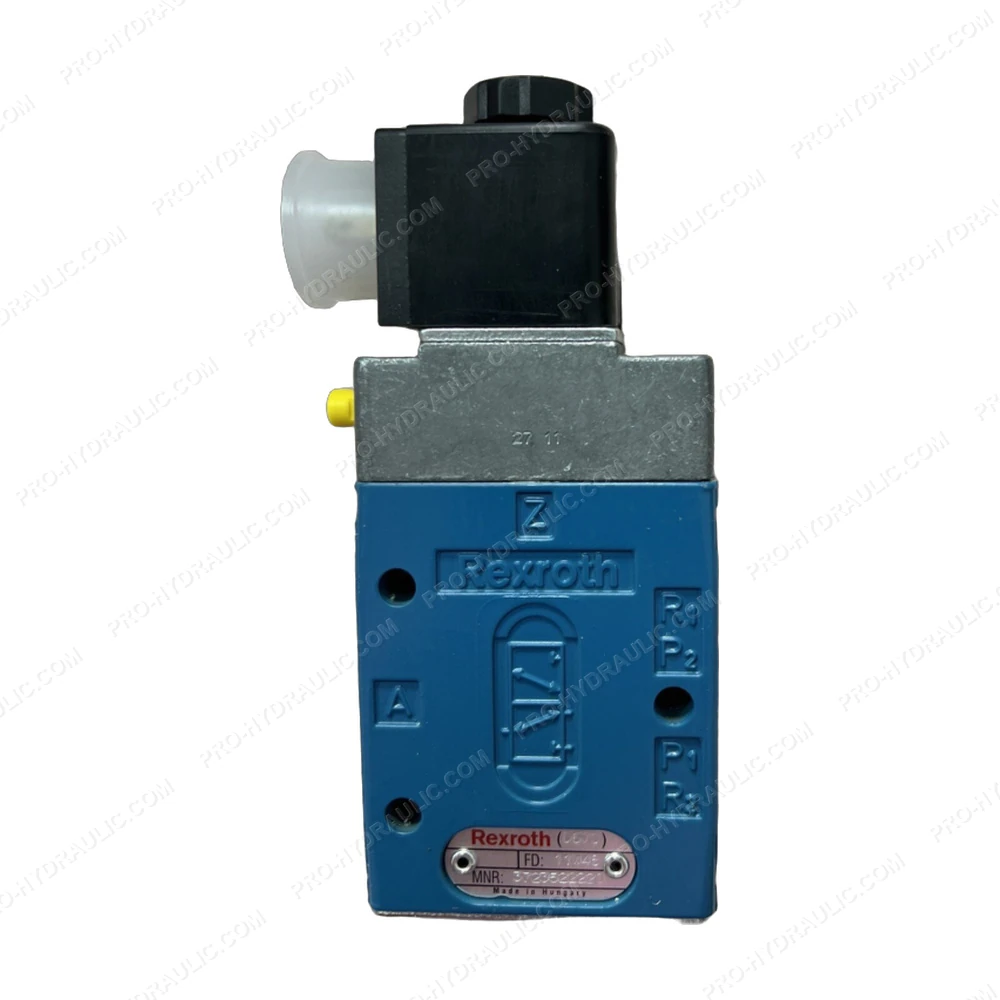

Rexroth 5723522220 Pneumatic Directional Control Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth 5723522220 Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4-way 3-position design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
