Product Overview
The Rexroth A10VSO 18 DFR1/31R-VSC12N00-S4823 (Material Number: R902577101) is a high-performance axial piston variable displacement pump engineered by Bosch Rexroth for open-circuit industrial hydraulic systems. Featuring a swashplate design with a nominal displacement of 18 cm³/rev, this pump delivers precise, load-sensing flow control through its DFR1 control configuration, which combines pressure and flow (load-sensing) regulation with a pressure cut-off function. The A10VSO series is globally recognized for its robust construction, high power density, and exceptional volumetric efficiency, making it the benchmark choice for demanding continuous-duty applications in plastics machinery, metallurgy, and industrial automation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Axial Piston Variable Pump (Swashplate Design) |
| Model Designation | A10VSO 18 DFR1/31R-VSC12N00-S4823 |
| Material Number | R902577101 |
| Nominal Displacement | 18 cm³/rev |
| Control Type | DFR1 — Pressure & Flow Control (Load Sensing) with Pressure Cut-Off |
| Series / Generation | 31 Series (Size 18) |
| Operating Pressure | Up to 280 bar continuous / 350 bar peak (standard industrial grade) |
| Mounting & Connection | SAE / ISO standard flange mounting, splined drive shaft, standard port connections |
| Direction of Rotation | Clockwise (viewed from drive shaft end) |
| Hydraulic Fluid | Mineral oil based hydraulic fluid (HLP / HLP-D per DIN 51524) |
Engineering Features & Advantages
- Precision Swashplate Performance: The axial piston swashplate design with DFR1 control delivers highly accurate pressure and flow regulation, enabling load-sensing operation that matches pump output to actual system demand for maximum energy efficiency.
- Integrated Pressure Cut-Off: The DFR1 control combines load-sensing flow control with an adjustable pressure cut-off, protecting the system from overpressure while maintaining precise flow control across the entire operating range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The A10VSO series is globally recognized for its robust construction, high power density, and exceptional volumetric efficiency, making it the benchmark choice for demanding continuous-duty applications in plastics machinery, metallurgy, and industrial automation.
PRODUCT IMAGES

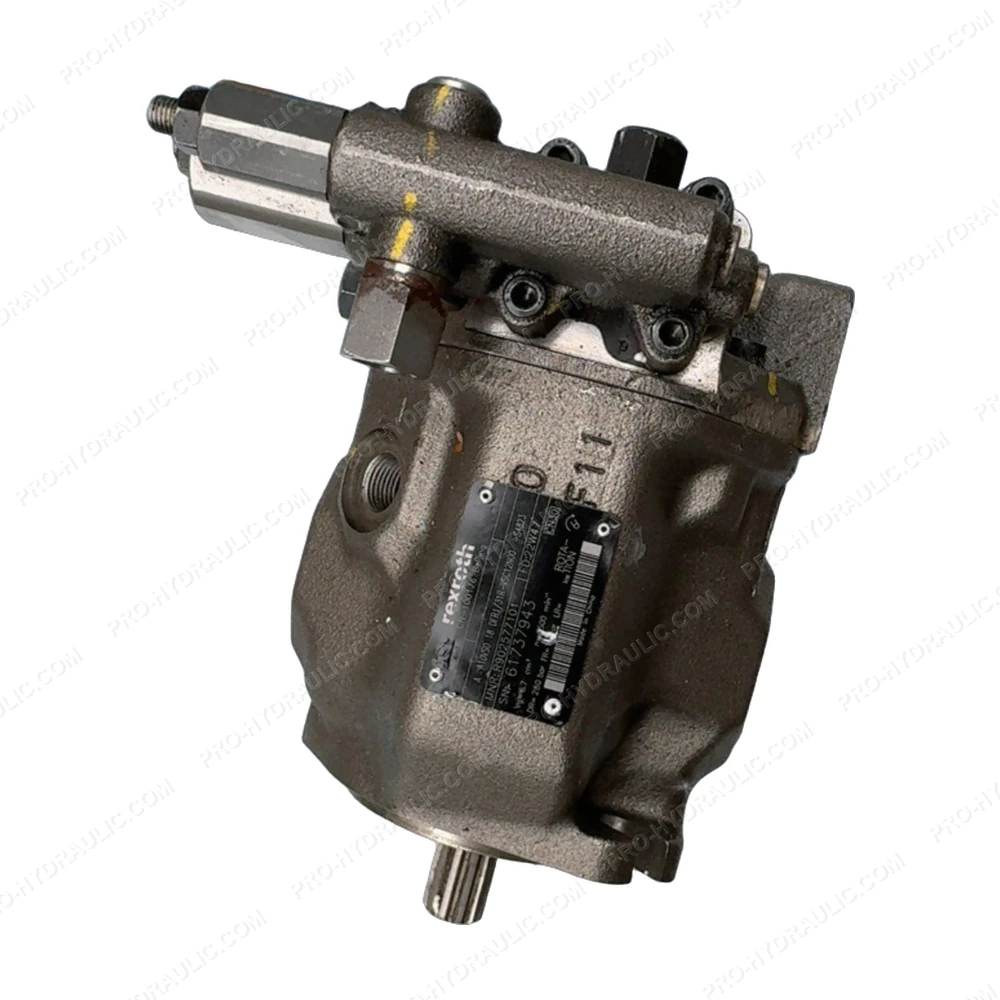

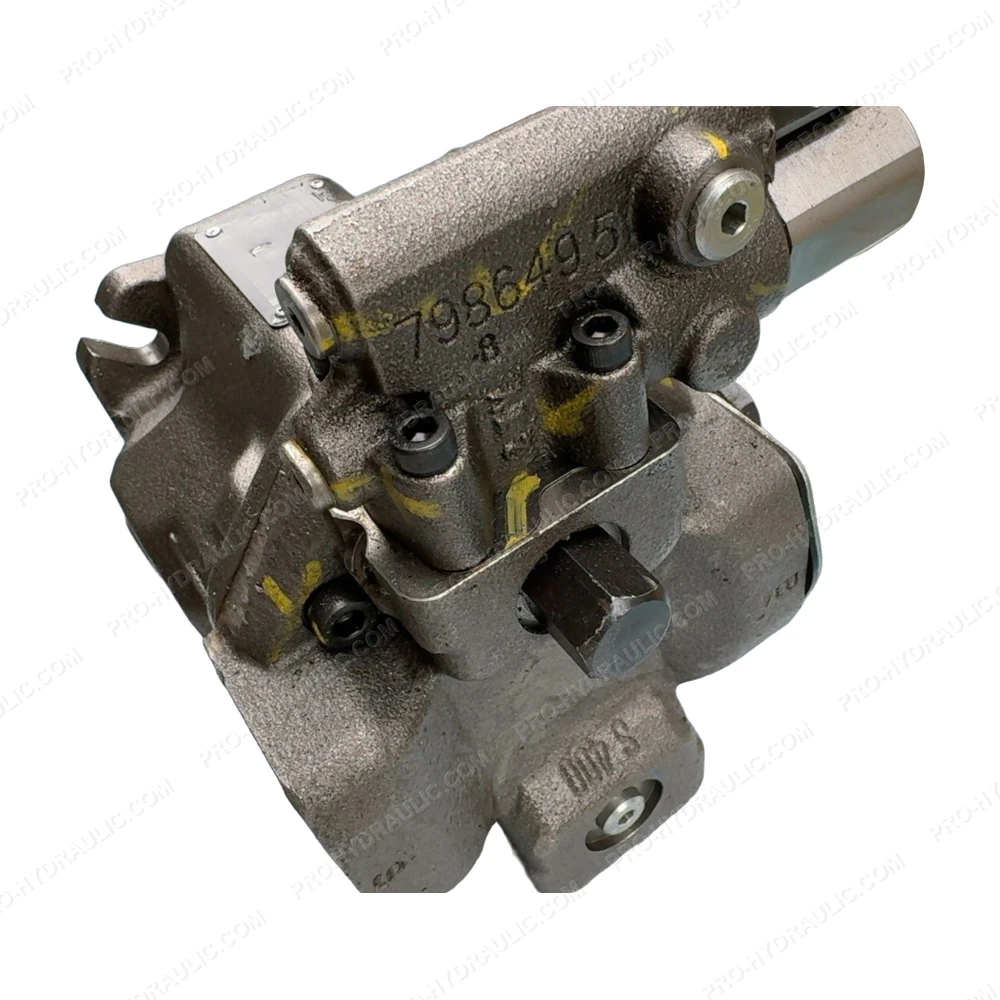

Rexroth A10VSO 18 DFR1/31R-VSC12N00-S4823 / R902577101 Axial Piston Variable Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth A10VSO 18 DFR1/31R-VSC12N00-S4823 / R902577101 Variable Displacement Pump. This Germany-made hydraulic component features a swashplate design with pressure and flow control, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
