Product Overview
The Rexroth A10VSO180 DRS/32R-VPB32U00E (Material Number: R902580249) is a high-performance axial piston variable displacement pump engineered by Bosch Rexroth for demanding industrial hydraulic systems. Operating on the proven swashplate principle, this pump features a size 180 displacement and belongs to the A10VSO series, renowned for its robust construction and exceptional volumetric efficiency. The DRS control variant provides precise pressure and flow regulation, allowing the pump to automatically adjust displacement based on system demand, thereby optimizing energy consumption and reducing heat generation. With a nominal pressure rating of 280 bar and a peak pressure capability of 350 bar, this pump is designed to deliver reliable, high-pressure hydraulic power in continuous-duty applications. Its through-drive capability enables tandem pump configurations, making it an ideal choice for complex hydraulic circuits requiring multiple pump stages from a single prime mover.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Axial Piston Variable Displacement Pump |
| Model Designation | A10VSO180 DRS/32R-VPB32U00E / R902580249 |
| Series | A10VSO (32 Series) |
| Displacement Size | 180 cm³/rev (Nominal) |
| Control Type | DRS – Pressure and Flow Control (Load Sensing with Pressure Cut-Off) |
| Operating Pressure | Nominal 280 bar / Peak 350 bar |
| Direction of Rotation | Clockwise (Viewed from drive shaft) |
| Mounting & Connection | SAE Flange / ISO 3019-2 Standard Mounting Flange |
| Through-Drive | Available for Tandem Pump Configurations |
| Hydraulic Fluid | Mineral Oil / HLP, HLVP per DIN 51524 |
Engineering Features & Advantages
- Precision Swashplate Performance: The axial piston swashplate design delivers high volumetric efficiency and smooth variable displacement control, ensuring precise flow matching to system demand across the full speed range.
- DRS Control Versatility: The integrated DRS (Pressure and Flow Control) valve enables load-sensing operation with pressure cut-off, significantly reducing energy losses and system heat generation compared to fixed-displacement solutions.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a nominal pressure rating of 280 bar and a peak pressure capability of 350 bar, this pump is designed to deliver reliable, high-pressure hydraulic power in continuous-duty applications.
PRODUCT IMAGES

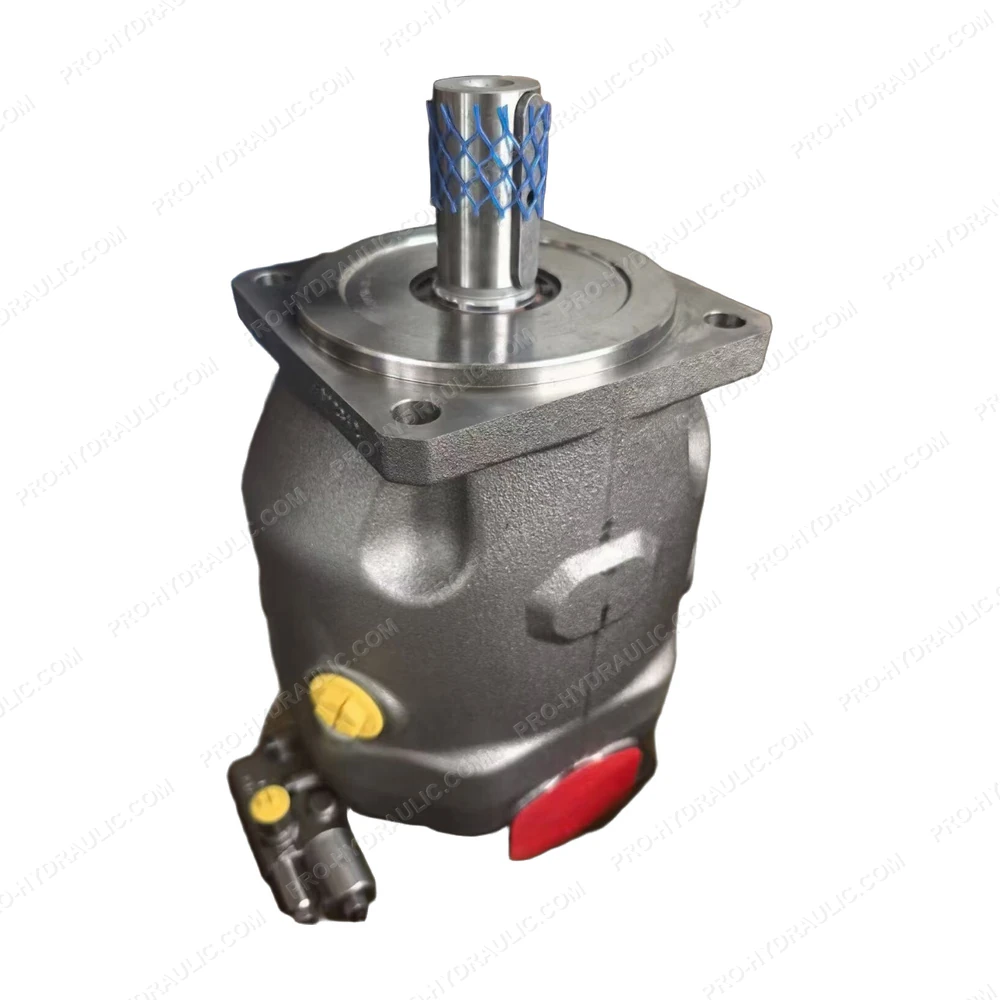

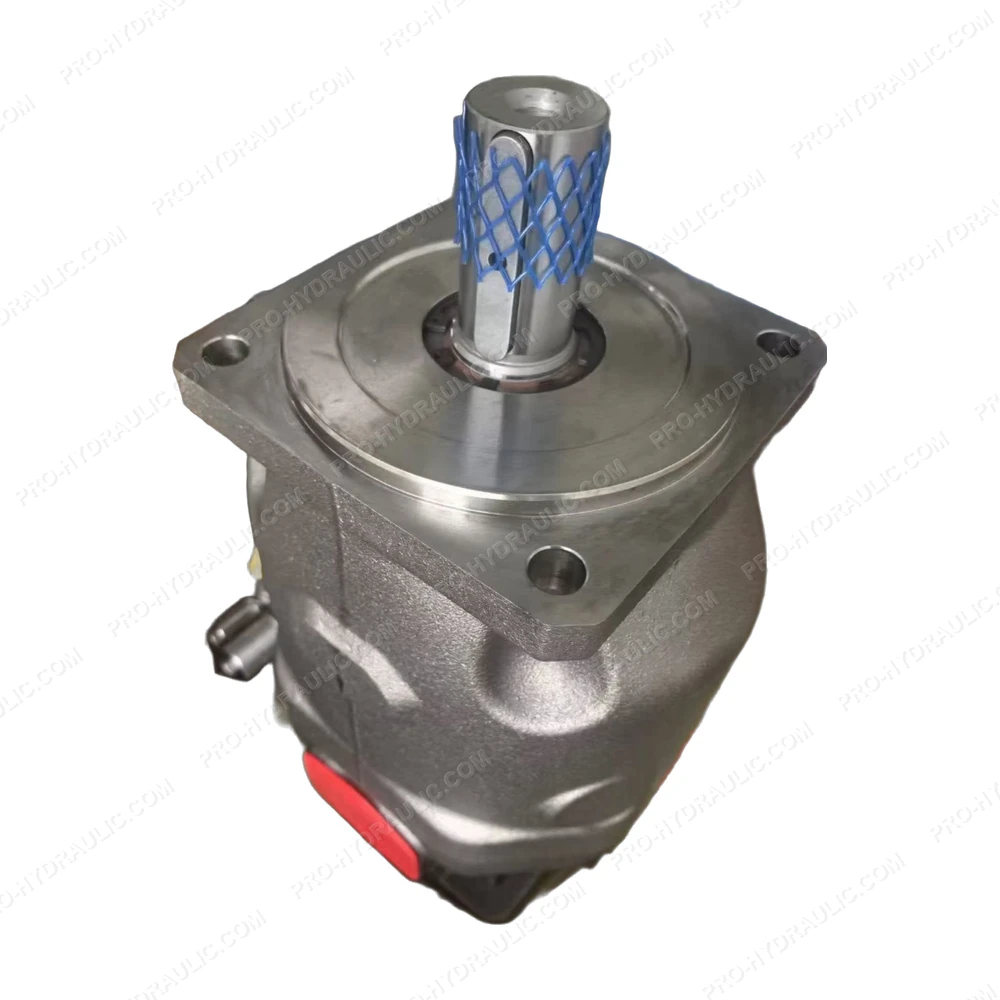

REXROTH A10VSO180 DRS /32R-VPB32U00E / R902580249 Axial Piston Variable Displacement Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH A10VSO180 DRS /32R-VPB32U00E / R902580249 Axial Piston Variable Displacement Pump. This German-made hydraulic pump features a pressure-controlled design, delivering reliable, high-efficiency fluid power for heavy-duty industrial systems.
