The REXROTH A15VSO280LRDRE6AHV/10MR-VE4B41EU0000-0 is a heavy-duty industrial axial piston pump engineered for high-pressure open-circuit hydraulic systems. With a displacement of 280 cm³/rev and a nominal pressure rating of 350 bar, this variable-displacement unit utilizes a swashplate design with an LRDR control (load sensing, pressure cut-off, and remote pressure control) to deliver precise flow matching and energy-efficient operation. The through-drive capability and SAE mounting flange ensure direct integration into demanding mobile and industrial power packs.
REXROTH A15VSO280LRDRE6AHV/10MR-VE4B41EU0000-0 Technical Specifications
| Parameter | Value |
|---|---|
| Displacement | 280 cm³/rev |
| Nominal Pressure | 350 bar |
| Peak Pressure | 400 bar |
| Control Type | LRDR (Load Sensing, Pressure Cut-off, Remote Control) |
| Mounting Flange | SAE 4-bolt, ISO 3019/2 |
| Drive Shaft | Spline, SAE C |
| Port Connections | SAE flange, 1-1/2 in |
| Through-Drive | Available (VE4B41EU0000-0 configuration) |
| Weight | Approx. 145 kg |
Key Engineering Features
- Swashplate axial piston design with high power density and compact footprint.
- LRDR control combines load sensing, pressure cut-off, and remote pressure adjustment for optimized system efficiency.
- Bearing and shaft design rated for continuous operation at 350 bar nominal pressure.
- Through-drive option enables tandem pump configurations without additional coupling.
- Low noise emission and minimal pressure ripple due to precision valve plate and timing.
- Compatible with mineral oil and HFC/HFD fluids upon request.
Industrial Applications
- Mobile hydraulics: excavators, cranes, and wheel loaders.
- Industrial presses and injection molding machines.
- Marine and offshore winch and deck machinery.
- Heavy-duty test stands and hydraulic power units.
- Metallurgical and steel mill equipment.
For technical inquiries, dimensional drawings, or replacement support for REXROTH A15VSO280LRDRE6AHV/10MR-VE4B41EU0000-0, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

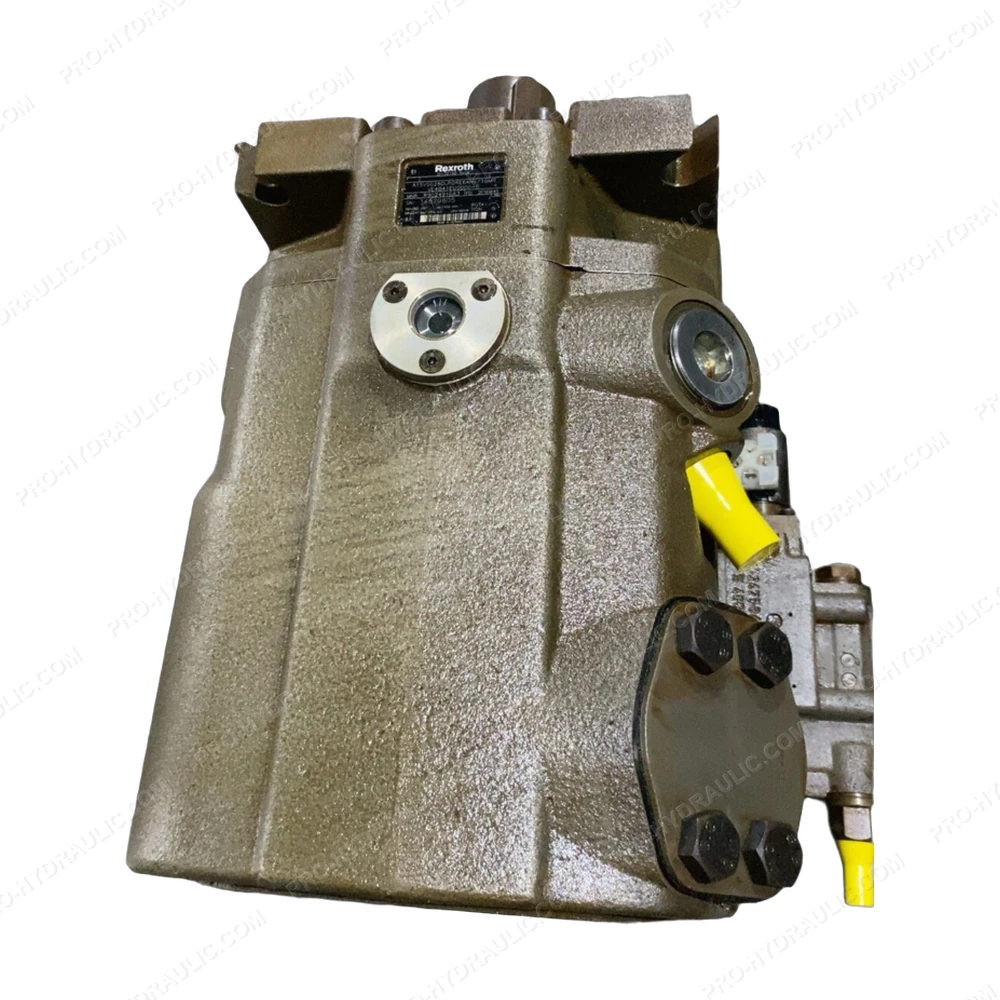

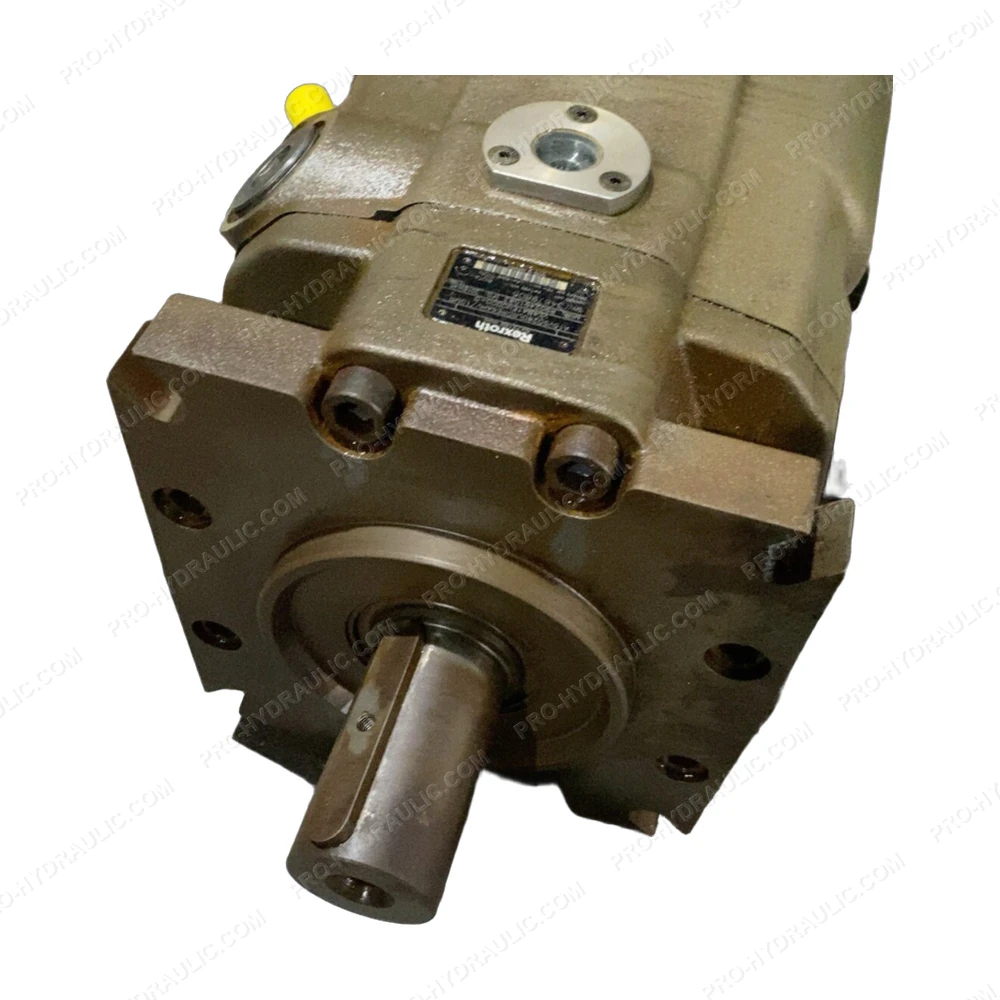

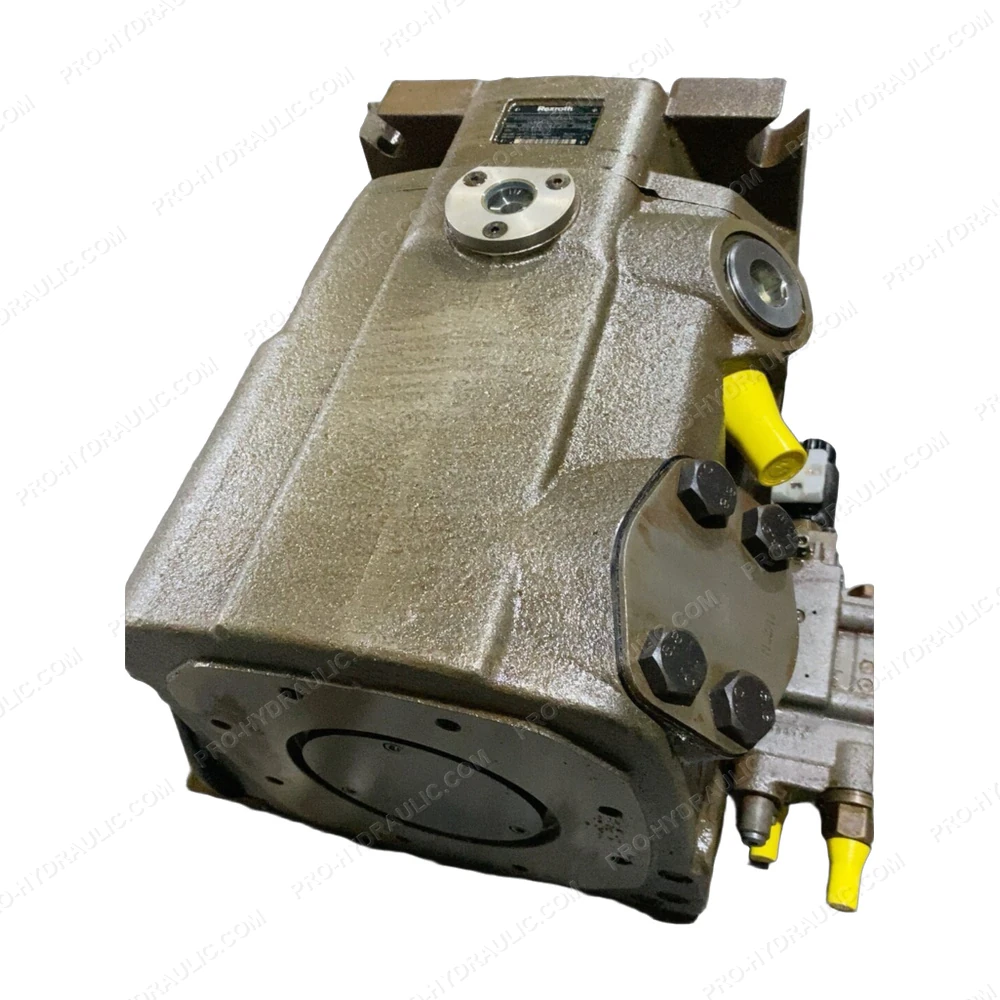

REXROTH A15VSO280LRDRE6AHV/10MR-VE4B41EU0000-0 Axial Piston Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH A15VSO280LRDRE6AHV/10MR-VE4B41EU0000-0 Axial Piston Pump. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
