Product Overview
The Rexroth A2FE56/61W-VZL027-S is a high-performance axial piston fixed displacement motor from the renowned Bosch Rexroth A2FE series, engineered for demanding industrial and mobile hydraulic applications. Utilizing a bent-axis rotary group design, this motor converts hydraulic pressure into reliable rotational mechanical power with exceptional efficiency and torque density. The A2FE56/61W-VZL027-S features a nominal displacement of 56 cm³/rev and is configured for fixed displacement operation, delivering consistent output speed proportional to input flow. The “W” designation indicates a through-drive (tandem) capability, allowing multiple units to be combined in series for multi-circuit systems. With its robust construction, high pressure rating, and compact design, this motor is ideally suited for integration into closed-loop and open-loop hydraulic systems requiring precise, dependable rotary actuation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Axial Piston Fixed Displacement Motor |
| Model Designation | A2FE56/61W-VZL027-S |
| Series | Rexroth A2FE (Bent-Axis Design) |
| Nominal Displacement | 56 cm³/rev |
| Displacement Type | Fixed |
| Operating Pressure | Up to 400 bar (peak); 350 bar continuous (standard industrial grade) |
| Mounting & Connection | Standard ISO / SAE flange interface; through-drive (W) configuration |
| Direction of Rotation | Bi-directional (reversible) |
| Shaft Type | Spline / Keyed (per model code VZL027) |
Engineering Features & Advantages
- Precision Performance: Bent-axis axial piston design delivers high volumetric and mechanical efficiency, ensuring accurate speed control and consistent torque output across the operating range.
- High Torque Density: Compact footprint with high power-to-weight ratio, ideal for space-constrained installations without sacrificing performance.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened piston/cylinder interfaces and robust bearing systems for long service life.
- Through-Drive Capability: The “W” configuration enables tandem mounting, allowing multiple motors or pumps to be driven from a single prime mover for multi-circuit hydraulic systems.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification.
Typical Industrial Applications
This axial piston fixed displacement motor is widely deployed in heavy industrial and mobile hydraulic systems, including plastic injection molding machines,
PRODUCT IMAGES

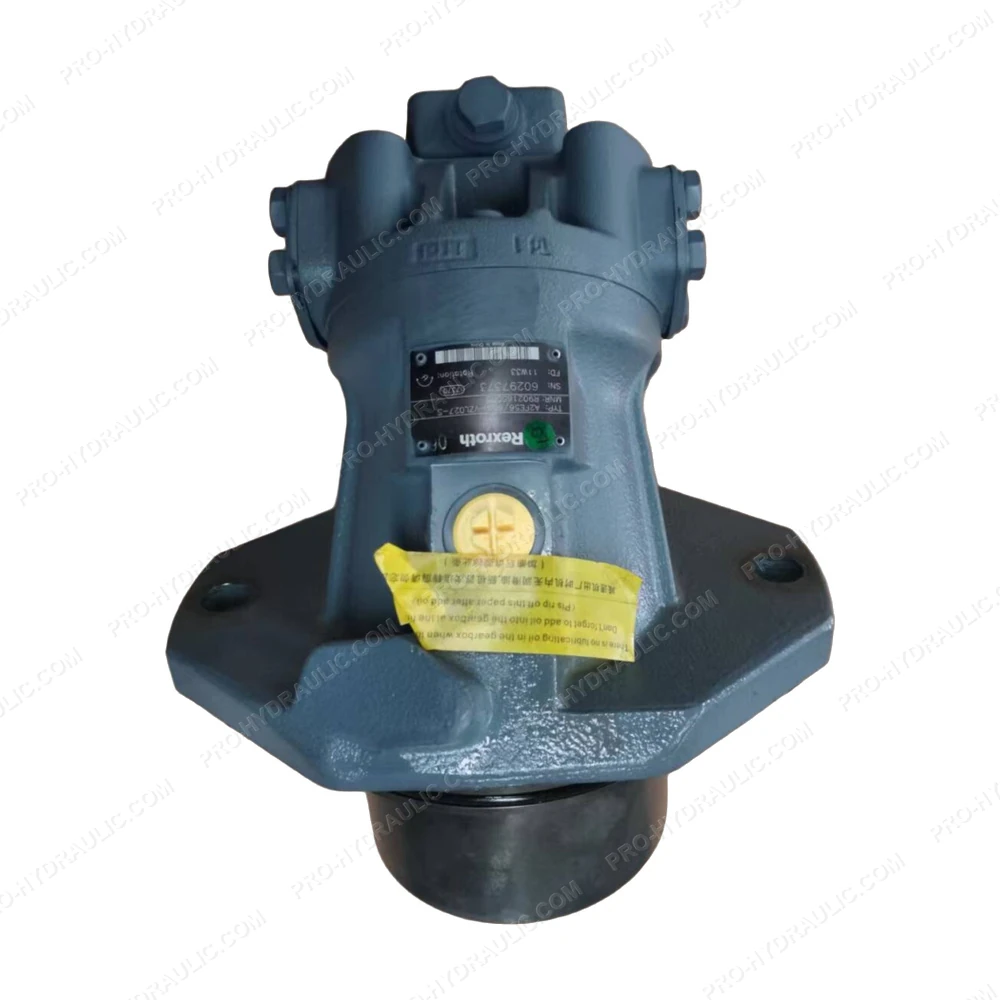

Rexroth A2FE56/61W-VZL027-S Axial Piston Fixed Displacement Motor
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH A2FE56/61W-VZL027-S Axial Piston Fixed Displacement Pump. This German-made hydraulic pump features a robust bent-axis design, delivering high-pressure, reliable fluid power for heavy-duty industrial systems.
