Product Overview
The Rexroth A6VM200EP2D/63W-VAB0200PB (Material Number: 2155685) is a high-performance axial piston variable displacement motor from the renowned Rexroth A6VM series, engineered for demanding industrial and mobile hydraulic applications. This bent-axis design motor features a nominal displacement of 200 cm³/rev and is equipped with the EP2D control variant, providing electric proportional displacement control with integrated pressure cut-off for precise torque and speed regulation. The A6VM series is widely recognized for its robust swashplate-free bent-axis technology, delivering exceptional starting efficiency, high pressure capability, and reliable operation in both open and closed-loop hydraulic circuits. As a critical component in heavy-duty drive systems, this motor converts hydraulic energy into mechanical rotary motion with variable output, making it ideal for applications requiring precise speed control, high torque density, and superior dynamic response.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Axial Piston Variable Displacement Motor (Bent-Axis Design) |
| Model Designation | A6VM200EP2D/63W-VAB0200PB |
| Material Number | 2155685 |
| Nominal Displacement | 200 cm³/rev |
| Control Type | EP2D — Electric Proportional Control with Pressure Cut-Off |
| Operating Pressure | Up to 400 bar (nominal), 450 bar (peak) |
| Maximum Speed | Up to 3,600 rpm (dependent on circuit configuration) |
| Mounting & Connection | Standard SAE / ISO Flange Interface |
| Direction of Rotation | Bi-directional (reversible) |
| Shaft Type | Spline Shaft (Standard Rexroth Interface) |
Engineering Features & Advantages
- Precision Variable Displacement: The EP2D electric proportional control enables infinitely variable displacement adjustment, allowing precise torque and speed regulation in response to electrical command signals for optimized system performance.
- High Torque Density: The bent-axis axial piston design delivers exceptional torque output relative to size, ensuring powerful performance in compact installation spaces.
- Integrated Pressure Cut-Off: Built-in pressure cut-off protection prevents system overloading and enhances operational safety by automatically reducing displacement at preset pressure limits.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
As a critical component in heavy-duty drive systems, this motor converts hydraulic energy into mechanical rotary motion with variable output, making it ideal for applications requiring precise speed control, high torque density, and superior dynamic response.
PRODUCT IMAGES

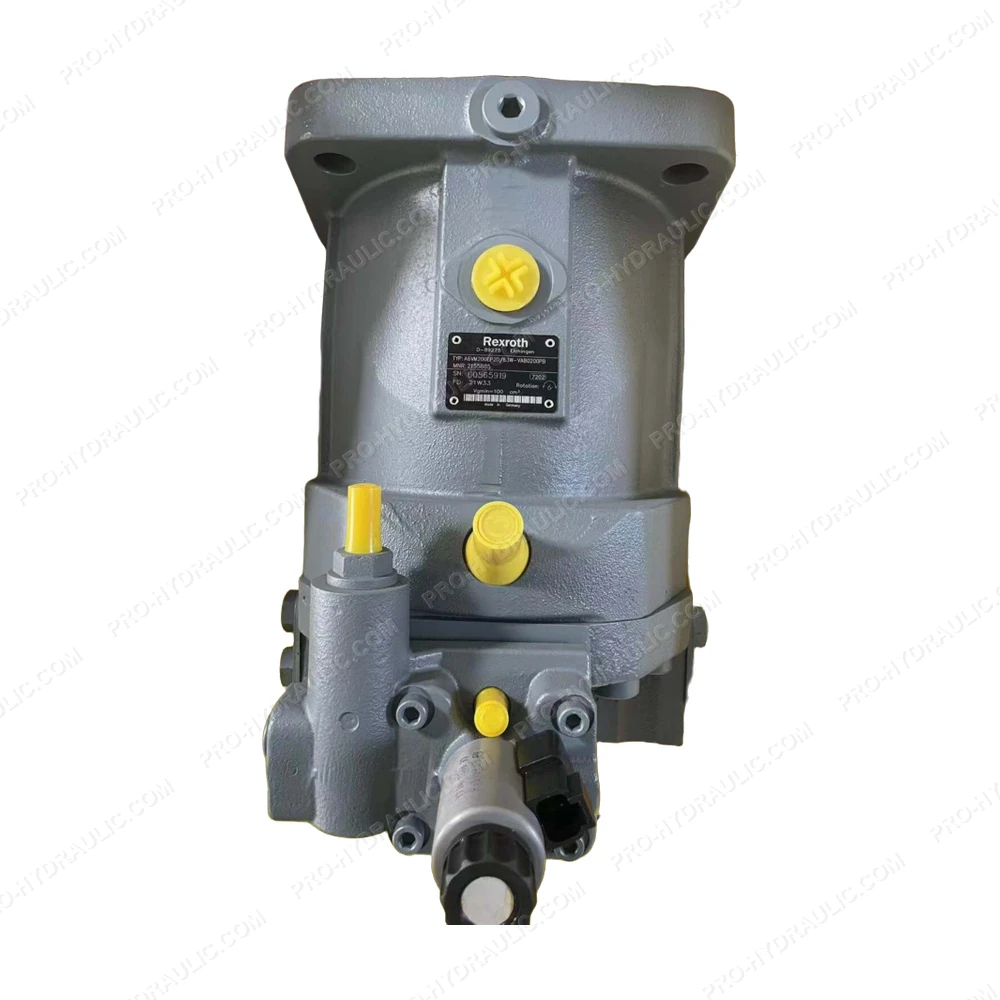

REXROTH A6VM200EP2D/63W-VAB0200PB / 2155685 Axial Piston Variable Displacement Motor
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH A6VM200EP2D/63W-VAB0200PB / 2155685 Axial Piston Variable Displacement Motor. This German-made hydraulic motor features a swashplate design, delivering reliable, high-torque fluid power for heavy-duty industrial systems.
