Product Overview
The Rexroth AP2D18LV1RS7-920-2-35 (also referenced as EC123S9201-2) is a variable displacement axial piston pump engineered for mobile and industrial hydraulic systems requiring compact, high-pressure power delivery. Operating on the proven swashplate principle, this pump features an 18 cm³/rev nominal displacement and a load-sensing (LS) control with pressure compensation, allowing it to modulate output flow in direct response to system demand. This results in significant energy savings, reduced heat generation, and precise actuator control. The AP2D series is widely recognized for its robust rotating group, integrated auxiliary pump option, and suitability for closed-center hydraulic circuits in mobile machinery and compact industrial power packs.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Piston Pump (Variable Displacement, Axial Swashplate Design) |
| Model Designation | AP2D18LV1RS7-920-2-35 / EC123S9201-2 |
| Nominal Displacement | 18 cm³/rev (per AP2D18 designation) |
| Control Type | Load-Sensing (LS) with Pressure Compensation |
| Operating Pressure | Up to 280 bar continuous / 315 bar peak (standard AP2D18 rating) |
| Speed Range | Up to 3,000 rpm (self-priming limits apply) |
| Mounting & Connection | SAE flange mounting; splined drive shaft; SAE split-flange ports |
| Direction of Rotation | Clockwise (viewed from shaft end) — verify suffix code |
Engineering Features & Advantages
- Precision Performance: The axial piston rotating group with hardened swashplate and precision-ground pistons delivers high volumetric efficiency and stable flow across the entire pressure range, minimizing internal leakage and maintaining consistent actuator speed.
- Load-Sensing Efficiency: The LS control matches pump output to actual system demand, reducing throttling losses, lowering oil temperature, and cutting fuel or electrical power consumption in variable-load applications.
- Compact High-Power Density: The AP2D18 frame size provides substantial pressure capability in a small envelope, ideal for space-constrained mobile equipment and compact power units.
- Industrial Reliability: Built for continuous operation under severe industrial conditions with robust bearings, durable valve plate, and contamination-tolerant design consistent with Rexroth’s mobile hydraulics standards.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Rexroth AP2D18 specifications, ensuring drop-in replacement without modification to mounting, shaft, or port interfaces.
Typical Industrial Applications
This pump is commonly specified in mobile hydraulic systems such as mini and compact excavators, skid-steer loaders, and agricultural machinery
PRODUCT IMAGES

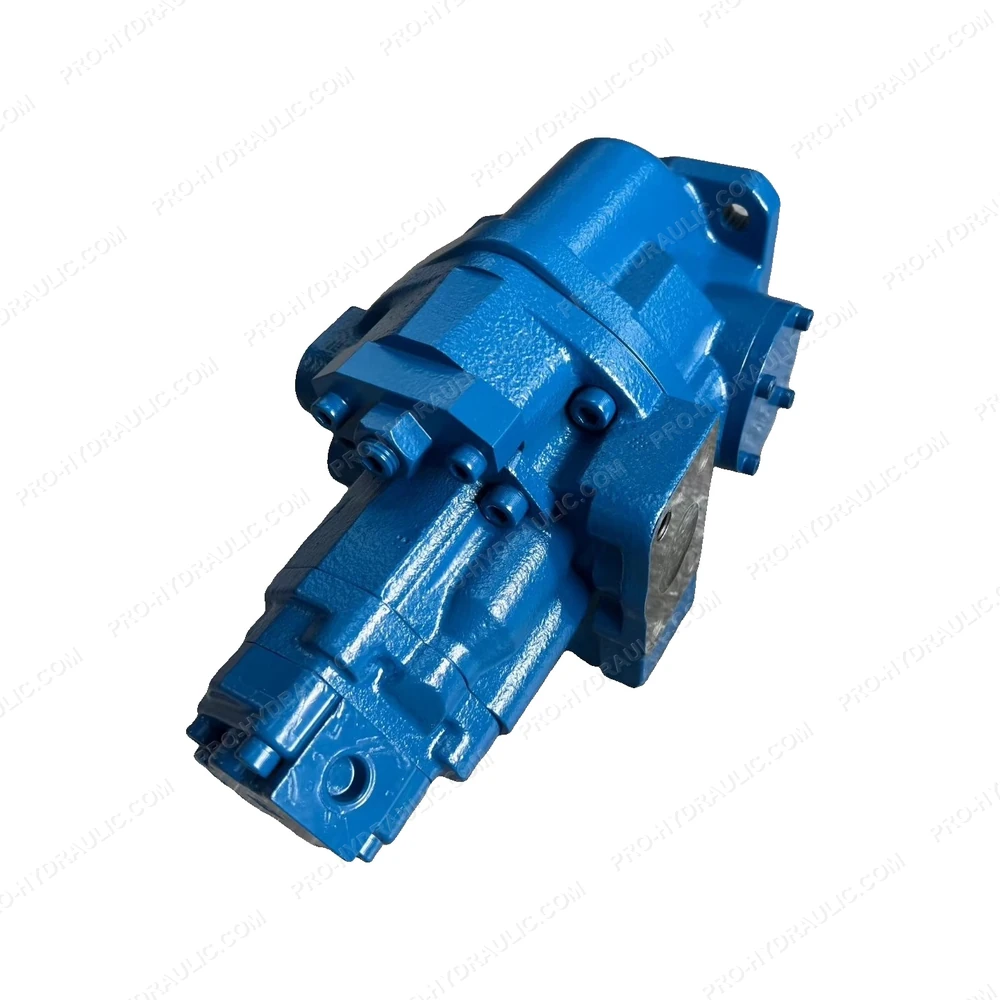

REXROTH AP2D18LV1RS7-920-2-35 / EC123S9201-2 Axial Piston Pump
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH AP2D18LV1RS7-920-2-35 / EC123S9201-2 Solenoid Directional Control Valve. This Germany-made hydraulic component features a robust spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
