Product Overview
The Rexroth AZPF is a high-performance external gear pump engineered by Bosch Rexroth for demanding industrial hydraulic systems. As a fixed-displacement rotary pump, the AZPF operates on the external gear principle: two precision-meshing gears rotate within a durable casing, trapping and displacing hydraulic fluid from the suction port to the pressure port with consistent volumetric efficiency. The AZPF series is widely recognized for its compact footprint, robust construction, and reliable performance in continuous-duty applications. It serves as a primary pressure source in open-circuit hydraulic systems, delivering stable flow for actuation, lubrication, and power transmission across a broad range of industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Gear Pump (External Gear Design) |
| Model Designation | Rexroth AZPF |
| Operating Pressure | Standard Industrial Grade (Up to 250 bar continuous, 280 bar peak) |
| Mounting & Connection | Standard ISO 4-bolt flange / SAE or DIN port connections |
| Displacement Range | 4 to 40 cm³/rev (model-dependent) |
| Speed Range | Up to 3,000 rpm (application-dependent) |
| Body Material | High-strength cast iron / aluminum alloy casing |
Engineering Features & Advantages
- Precision Gear Geometry: Hardened, ground gear teeth ensure minimal internal leakage, high volumetric efficiency, and smooth, low-pulsation flow delivery.
- Robust Casing Construction: Durable housing withstands high continuous pressure and mechanical shock, extending service life in harsh industrial environments.
- Compact & Lightweight: Space-saving design simplifies integration into tight machine envelopes without sacrificing performance.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with excellent resistance to contamination and temperature fluctuations.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Rexroth AZPF standards for drop-in servicing.
Typical Industrial Applications
The Rexroth AZPF external gear pump is widely deployed in plastic injection molding machines, metallurgical presses, construction and marine hydraulic systems, CNC machine tools, and general industrial power units. Its dependable fixed-displacement output makes it ideal for lubrication circuits, clamping systems, and auxiliary hydraulic functions requiring consistent flow and pressure.
PRODUCT IMAGES

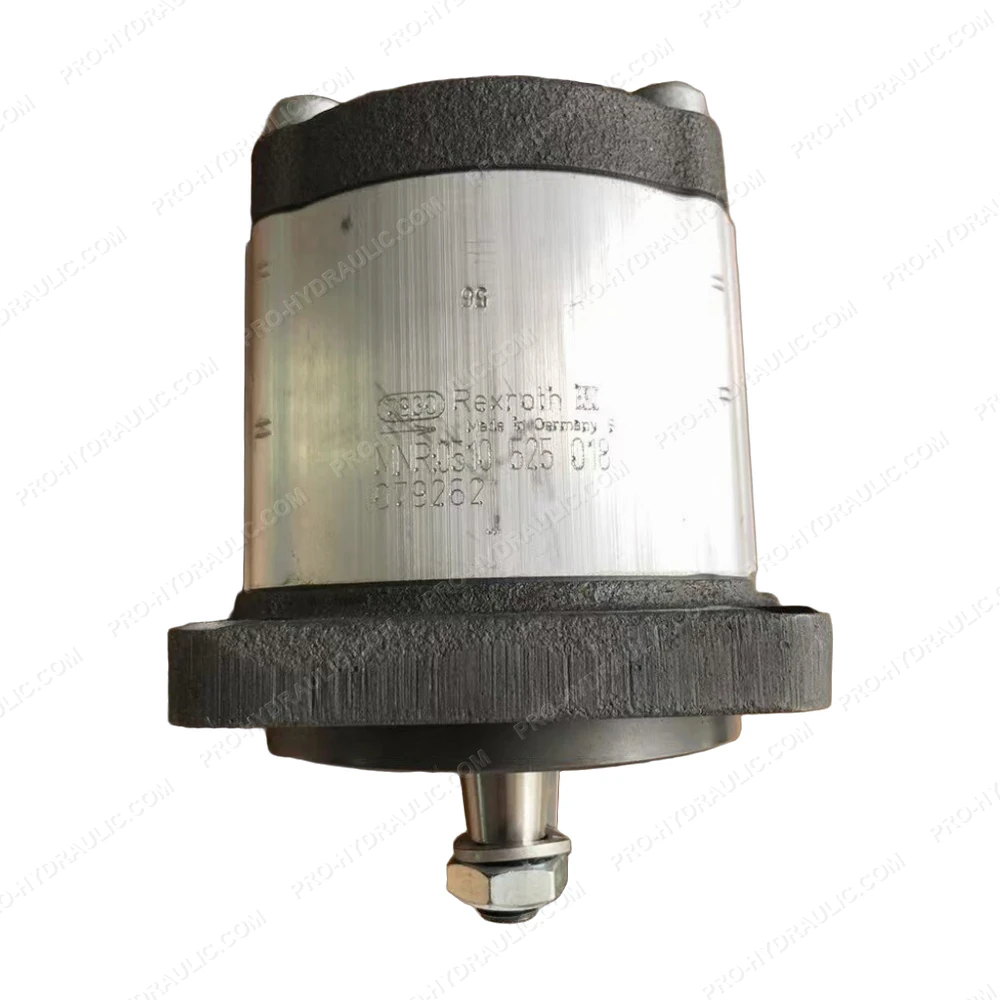

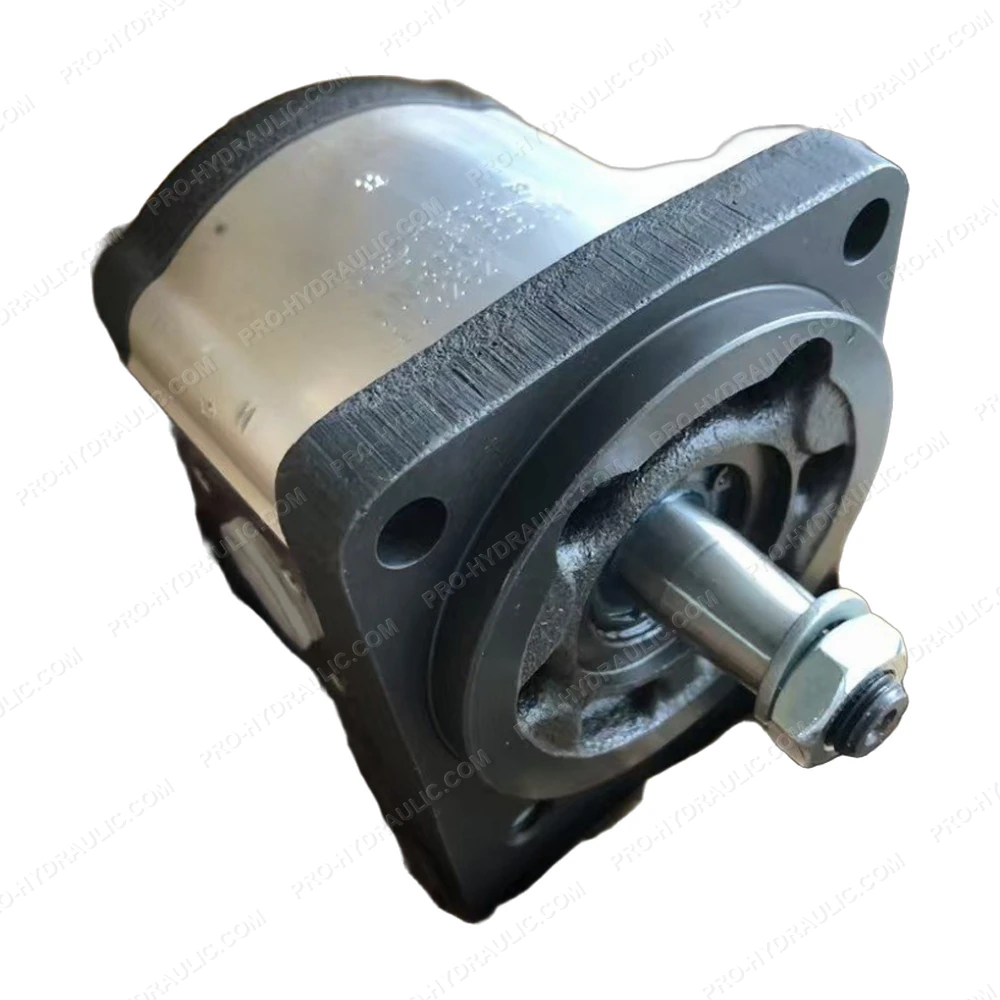

Rexroth AZPF External Gear Pump
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH AZPF External Gear Pump. This Germany-made high-pressure hydraulic component features a robust external gear design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
