Product Overview
The Rexroth DA 6 VA2A5X/100FSM (Material No. R901224217) is a direct-operated pressure unloading valve belonging to the proven DA series of pressure control valves. Engineered by Bosch Rexroth, this valve is designed to automatically unload a hydraulic system to tank when a preset pressure threshold is reached, thereby reducing power consumption, limiting heat generation, and protecting downstream components from sustained overpressure. The “100” designation indicates a nominal pressure setting of 100 bar, while the “FSM” suffix denotes the specific adjustment and sealing configuration. With a compact 6-size (NG6 / CETOP 3) subplate mounting interface, the DA 6 VA2A5X is a direct fit for standard industrial manifolds and is widely deployed in accumulator charging circuits, high-low pump systems, and pressure-holding applications requiring reliable, repeatable unloading behavior.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Pressure Control Valve — Pressure Unloading Valve (Direct-Operated) |
| Model Designation | DA 6 VA2A5X/100FSM |
| Material Number | R901224217 |
| Nominal Pressure Setting | 100 bar (as indicated by /100) |
| Size / Interface | NG6 (CETOP 3 / ISO 4401-03) Subplate Mounting |
| Operating Pressure | Standard Industrial Grade (Up to rated 100 bar set pressure) |
| Adjustment Type | FSM Configuration — Mechanical Adjustment with Locking |
| Mounting & Connection | Standard ISO / Manufacturer Interface (NG6 Subplate) |
| Hydraulic Fluid | Mineral Oil Based Hydraulic Fluids (HLP, HLP-D per DIN 51524) |
Engineering Features & Advantages
- Precision Performance: Direct-operated spool/poppet design delivers fast, repeatable unloading response with minimal pressure override, ensuring accurate system pressure control and reduced energy loss.
- Energy-Efficient Unloading: Automatically vents pump flow to tank once the set pressure is achieved, cutting power consumption and minimizing thermal load in continuous-duty hydraulic circuits.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened internal components and robust sealing for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, including the NG6 subplate interface and Rexroth DA series footprint.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a compact 6-size (NG6 / CETOP 3) subplate mounting interface, the DA 6 VA2A5X is a direct fit for standard industrial manifolds and is widely deployed in accumulator charging circuits, high-low pump systems, and pressure-holding applications requiring reliable, repeatable unloading behavior.
PRODUCT IMAGES

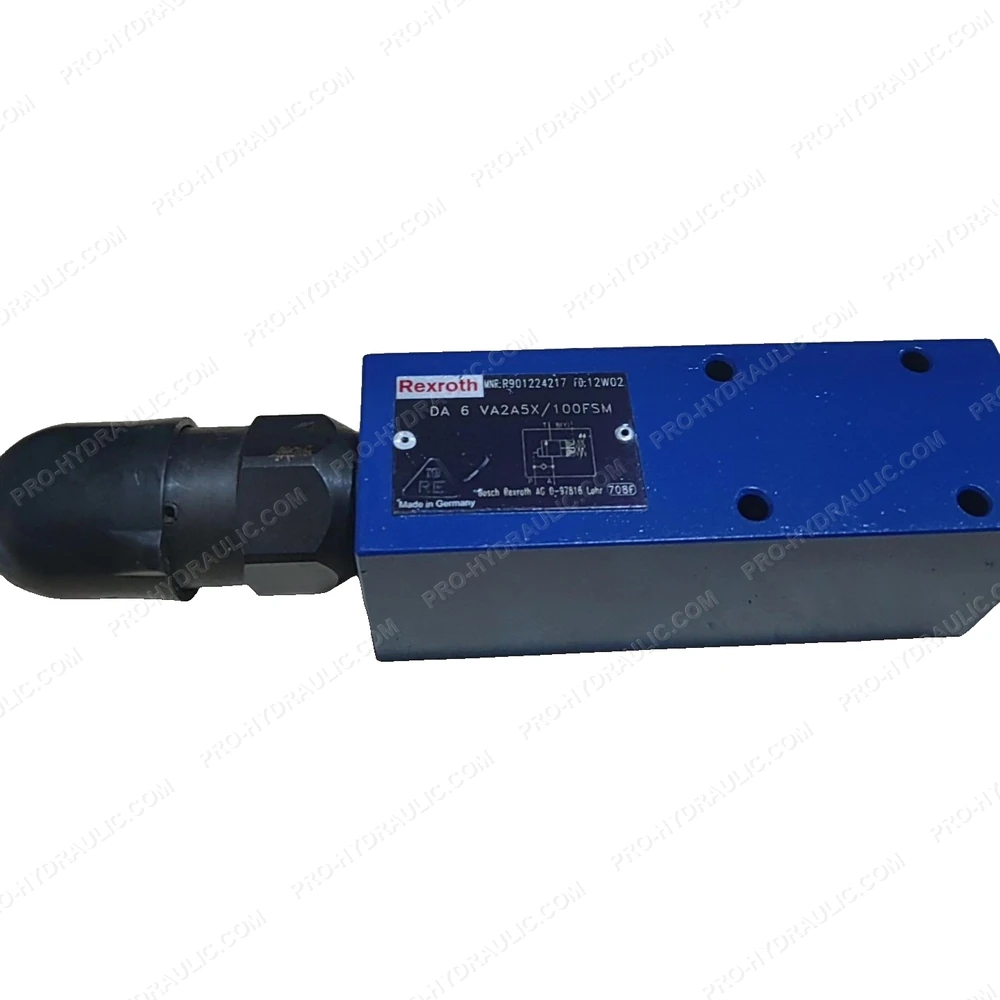

REXROTH DA 6 VA2A5X/100FSM / R901224217 Pressure Unloading Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DA 6 VA2A5X/100FSM / R901224217 Pressure Relief Valve. This German-made hydraulic component features a direct-acting poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
