Product Overview
The Rexroth DB 10 K2-4X/315YV is a direct-operated pressure relief valve from the proven DB series, designed for precise system pressure limitation and overload protection in industrial hydraulic circuits. Manufactured by Bosch Rexroth, this valve operates on a spring-loaded poppet principle: when system pressure exceeds the set value, the poppet lifts off its seat, diverting excess flow to the tank port and thereby maintaining the working pressure at a constant, pre-set level. The “315” designation indicates a pressure rating of up to 315 bar, making this valve suitable for high-pressure industrial applications. The “YV” suffix denotes a specific adjustment and connection variant within the DB 10 K2-4X family. As a pressure control valve, it serves as a critical safety and regulation element in hydraulic power units, ensuring that pumps, actuators, and downstream components are protected against pressure spikes and sustained overpressure conditions.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Pressure Control Valve (Pressure Relief Valve) |
| Model Designation | DB 10 K2-4X/315YV |
| Manufacturer | Bosch Rexroth |
| Nominal Size | NG10 (Size 10) |
| Operating Pressure | Up to 315 bar (pressure rating per model code) |
| Actuation Type | Direct-operated, spring-loaded poppet |
| Mounting & Connection | Subplate mounting, ISO 4401 / DIN 24340 standard interface |
| Adjustment | Manual adjustment via set screw with locknut (YV variant) |
Engineering Features & Advantages
- Precision Pressure Limiting: Direct-operated poppet design delivers fast, accurate response to pressure changes, maintaining stable system pressure and protecting downstream components from damaging overpressure events.
- High-Pressure Capability: Rated for up to 315 bar, suitable for demanding high-pressure industrial hydraulic circuits where reliable pressure control is essential.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened and precision-machined internal components ensuring long service life and consistent performance.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth DB 10 K2-4X series valves, ensuring drop-in replacement without modification to existing manifolds or piping.
- Stable Pressure Regulation: Spring-loaded poppet mechanism provides smooth, chatter-free operation across the full pressure range, minimizing pressure fluctuations in the hydraulic system.
Typical Industrial Applications
This pressure relief valve is widely deployed in hydraulic power units, plastic injection molding machines, metallurgical presses, CNC machine tools, and general industrial hydraulic systems where precise system pressure limitation and overload protection are required. It is equally suited for use in construction machinery
PRODUCT IMAGES

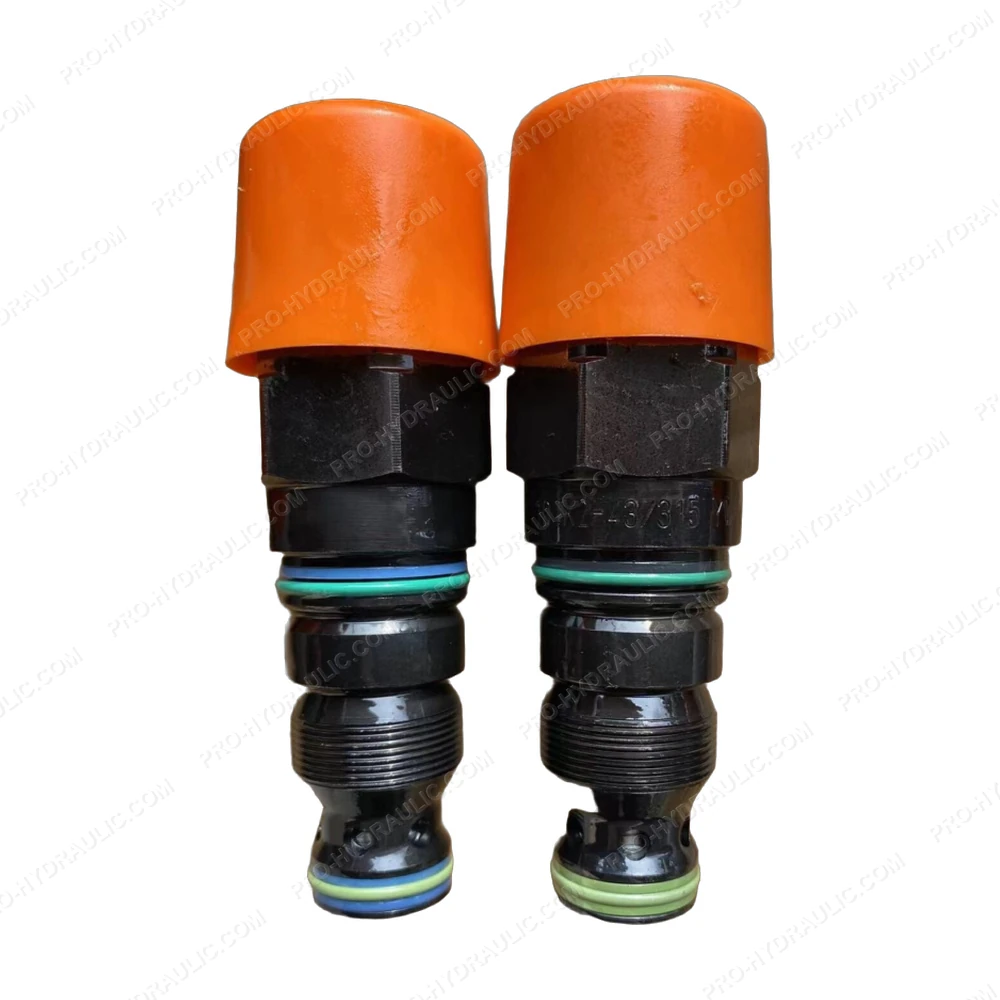

REXROTH DB 10 K2-4X/315YV Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DB 10 K2-4X/315YV Pressure Relief Valve. This Germany-made hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
