Product Overview
The Rexroth DBDS20 P 1X/25 (Material No. R900430311) is a direct operated pressure relief valve from the proven DBDS series, designed to limit and safeguard system pressure in industrial hydraulic circuits. As a direct acting poppet-type valve, it responds immediately to pressure surges without pilot-stage delay, making it ideal for protecting individual actuators, sub-circuits, or complete hydraulic power units. The valve is set to a nominal cracking pressure of 25 bar and features a threaded adjustment element for precise, repeatable pressure setting. Its robust housing and hardened internal components ensure stable operation, minimal internal leakage, and long service life in demanding industrial environments.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Direct Operated Pressure Relief Valve (Pressure Control Valve) |
| Model Designation | DBDS20 P 1X/25 |
| Material Number | R900430311 |
| Nominal Pressure Setting | 25 bar (cracking pressure) |
| Operating Pressure | Standard Industrial Grade (up to rated bar per DBDS series) |
| Actuation Type | Direct acting, spring-loaded poppet with threaded adjustment |
| Mounting & Connection | Standard ISO / Manufacturer Interface (threaded cartridge or subplate mounting) |
| Adjustment | Manual adjustment via set screw with locknut |
Engineering Features & Advantages
- Precision Performance: Direct acting poppet design delivers fast response to pressure peaks with minimal hysteresis and stable pressure regulation across the operating range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with hardened seat and poppet for wear resistance and consistent reseating.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring drop-in replacement for Rexroth DBDS20 series valves.
- Low Internal Leakage: Precision-machined sealing surfaces minimize leakage, improving system efficiency and reducing heat generation.
- Simple Adjustment: Threaded set screw with locknut allows accurate, repeatable pressure setting and secure locking against vibration.
Typical Industrial Applications
This valve is widely used in plastic injection molding machines, metallurgical presses, CNC machine tools, and general hydraulic power units where reliable overpressure protection and precise pressure limiting are required. It is also suitable for construction and marine hydraulic systems, test stands, and any application demanding a compact, direct acting pressure relief valve with a 25 bar setting.
PRODUCT IMAGES

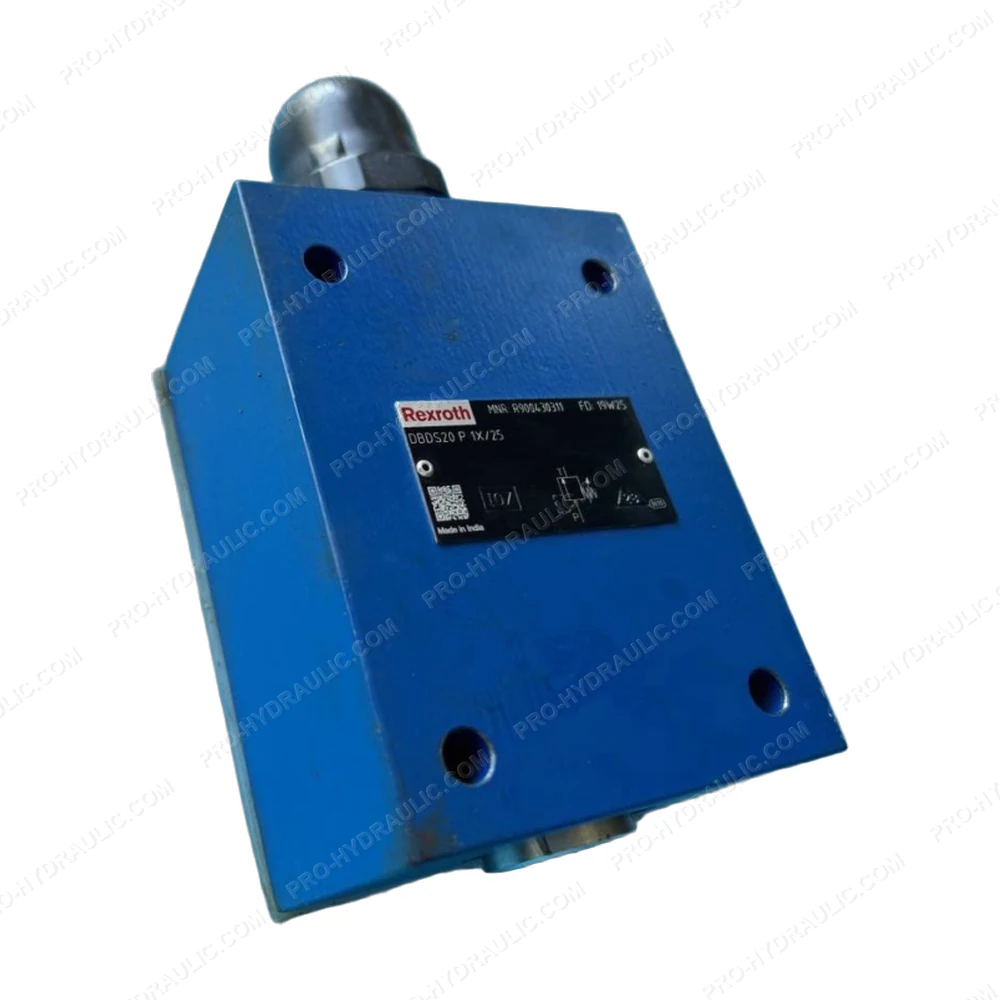

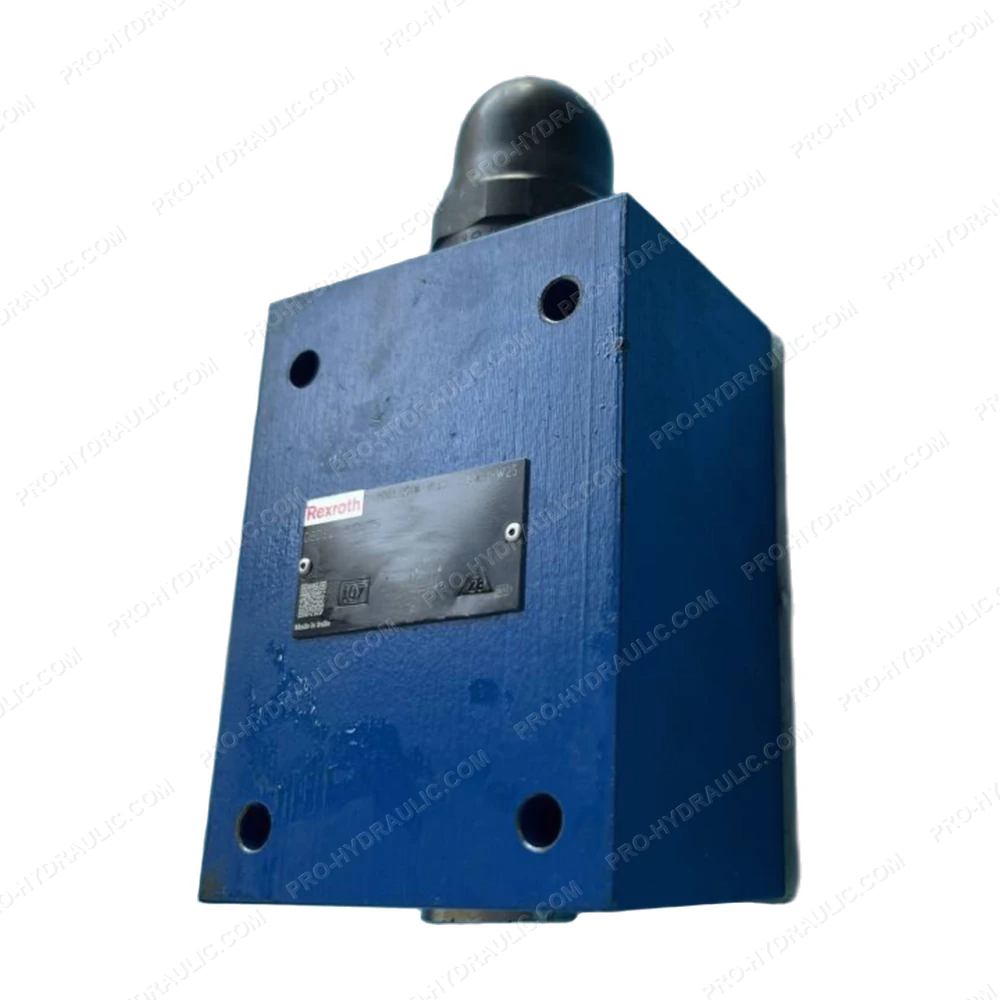

Rexroth DBDS20 P 1X/25 / R900430311 Direct Operated Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth DBDS20 P 1X/25 / R900430311 Pressure Relief Valve. This Germany-made hydraulic component features a direct-operated poppet design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
