Product Overview
The Rexroth DBEE6-21/200G24K31F1M (Material Number: R901350548) is a high-performance proportional pressure relief valve from the Bosch Rexroth DBEE series, designed for precise, infinitely variable electro-proportional pressure control in demanding industrial hydraulic systems. Unlike fixed pressure relief valves, this pilot-operated proportional valve modulates system pressure in direct proportion to the electrical command signal applied to its integrated proportional solenoid, enabling continuous pressure regulation rather than simple on/off limiting. The valve features a 6-size (NG6 / CETOP 3) subplate mounting interface and is rated for a maximum pressure setting of 200 bar, with the “G24” designation indicating a 24 V DC proportional solenoid actuator. The “K31” control variant provides a specific solenoid and amplifier characteristic curve, while the “F1M” suffix denotes the electrical connection and manual override configuration. As a core component in modern electro-hydraulic control loops, the DBEE6-21 is widely deployed wherever programmable, repeatable pressure profiles are required — from force-controlled pressing operations to closed-loop torque regulation in injection molding. Its proportional spool and pressure-compensated pilot stage deliver smooth, hysteresis-minimized response across the full command range, making it an ideal interface between digital machine controllers and high-pressure hydraulic power circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Pilot-Operated, Electro-Proportional) |
| Model Designation | DBEE6-21/200G24K31F1M / R901350548 |
| Manufacturer | Bosch Rexroth |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Maximum Pressure Setting | 200 bar (as designated by model code “200”) |
| Actuation | Proportional Solenoid, 24 V DC (“G24”) |
| Control Variant | K31 characteristic (solenoid/amplifier matched) |
| Electrical Connection | F1M — DIN valve connector with integrated manual override |
| Mounting & Connection | Subplate mounting, ISO 4401-03 / CETOP 3 interface |
| Operating Pressure | Standard Industrial Grade (up to rated 200 bar) |
Engineering Features & Advantages
- Precision Performance: The integrated proportional Solenoid, 24 V DC (“G24”) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings of 200 bar (as designated by model code “200”), supporting stable operation across the full working range.
Typical Industrial Applications
As a core component in modern electro-hydraulic control loops, the DBEE6-21 is widely deployed wherever programmable, repeatable pressure profiles are required — from force-controlled pressing operations to closed-loop torque regulation in injection molding.
PRODUCT IMAGES

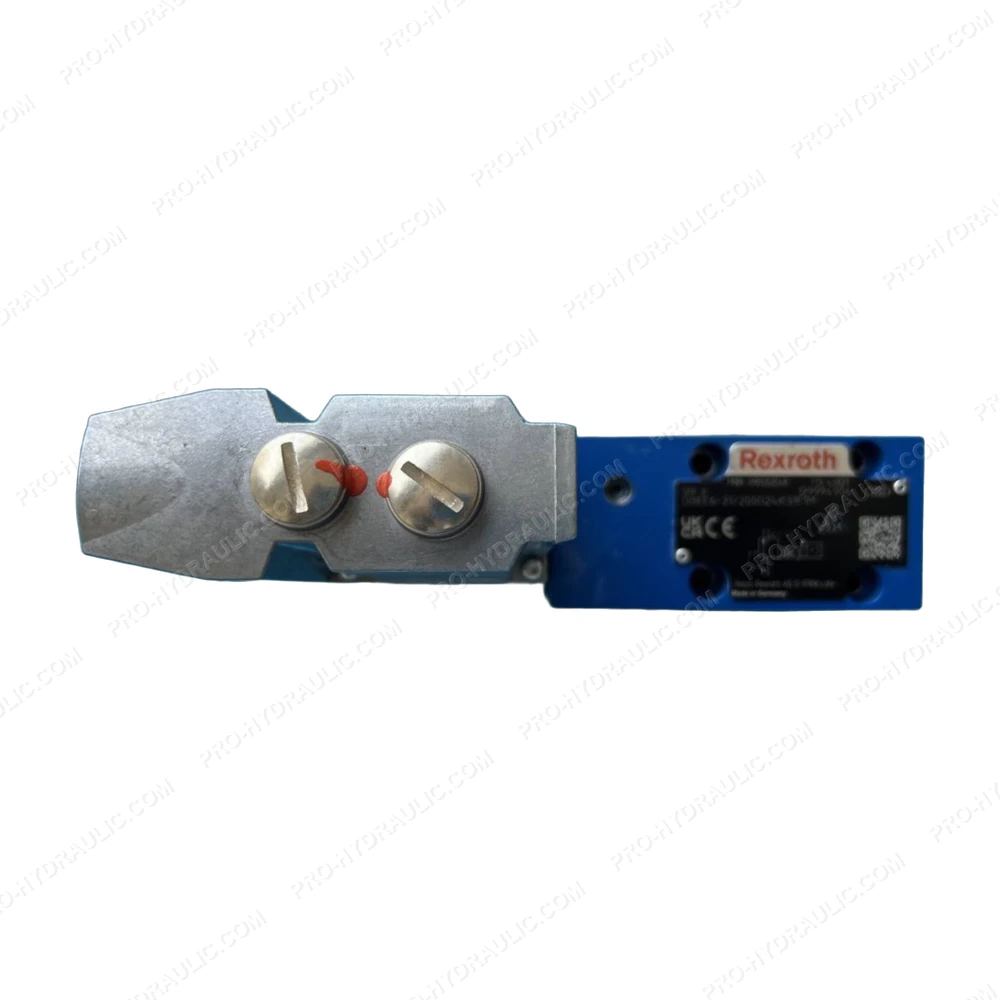

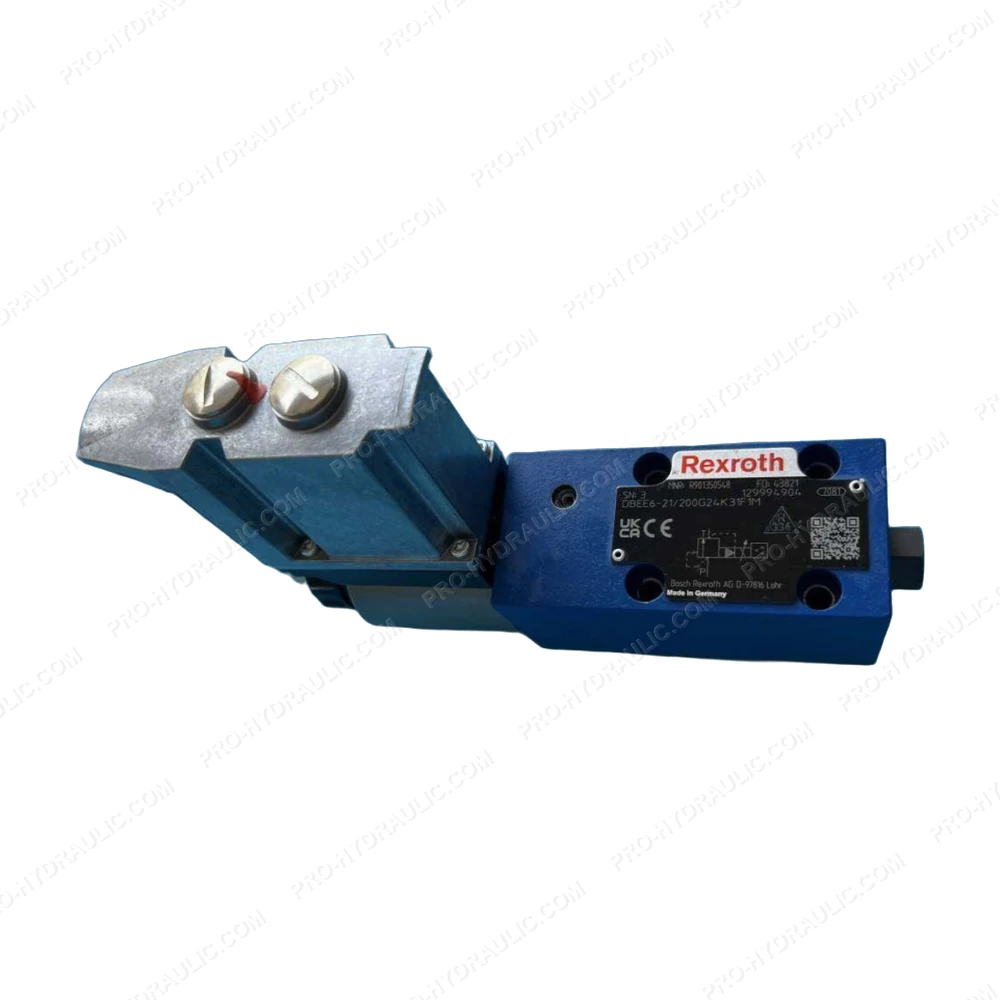

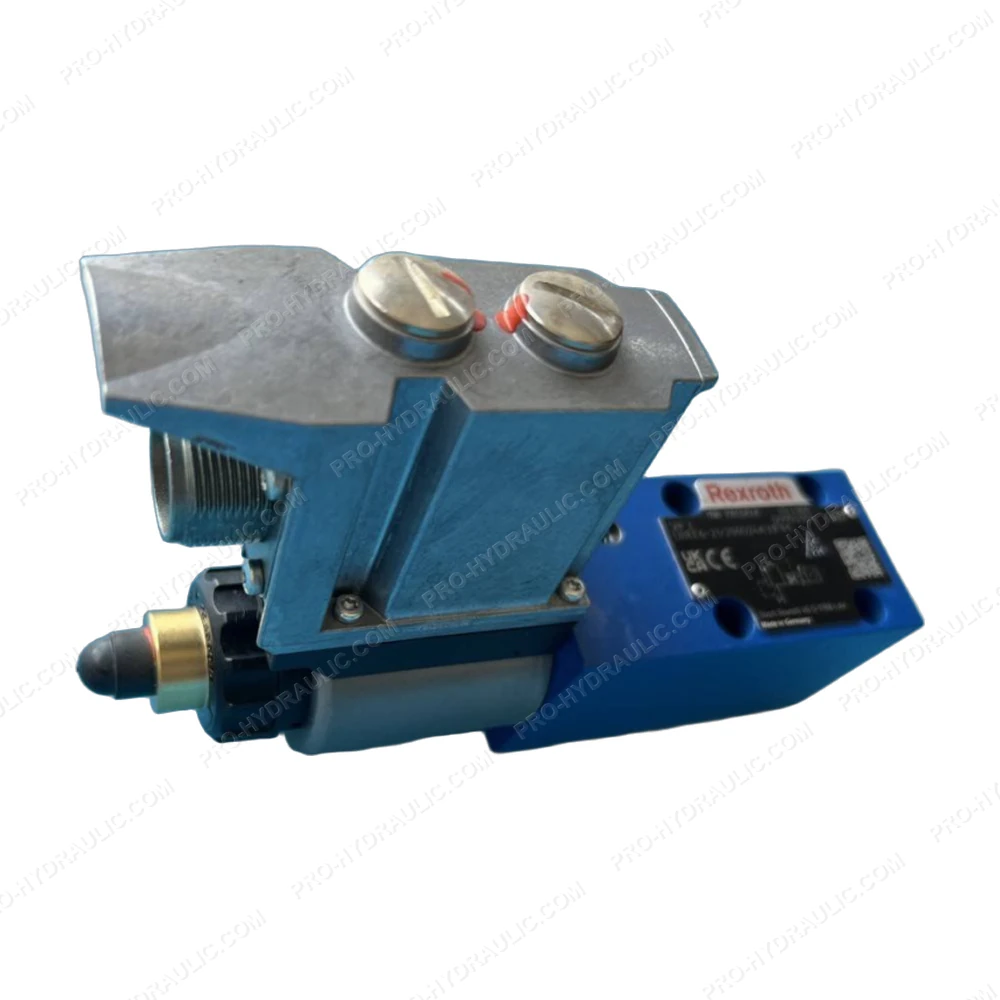

Rexroth DBEE6-21/200G24K31F1M / R901350548 Proportional Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth DBEE6-21/200G24K31F1M / R901350548 Proportional Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a piloted design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
