Product Overview
The Rexroth DBEM20-71/200YG24K4M (Material Number: R901353036) is a high-performance proportional pressure relief valve from the renowned Bosch Rexroth DBEM series. This pilot-operated valve is designed to provide infinitely variable pressure control in hydraulic systems, converting an electrical input signal into a proportional hydraulic pressure output. Unlike simple on/off relief valves, the DBEM20-71/200YG24K4M allows for precise, dynamic pressure regulation and remote control capabilities, making it an essential component for advanced industrial automation, load sensing, and pressure-limiting circuits. It features an integrated proportional solenoid (identified by the “YG24” code, indicating a 24V DC supply) and is engineered for high-resolution response and excellent repeatability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Pilot Operated) |
| Model Designation | DBEM20-71/200YG24K4M / R901353036 |
| Operating Pressure | Up to 200 bar (Pressure Adjustment Range) |
| Mounting & Connection | Subplate Mounting (ISO 6264 / DIN 24340), NG20 Interface |
| Actuation Type | Proportional Solenoid (24V DC) |
| Nominal Flow Rate | Up to 200 L/min (dependent on system configuration) |
Engineering Features & Advantages
- Precision Proportional Control: The valve spool position and resulting system pressure are directly proportional to the electrical command signal, enabling smooth, stepless pressure adjustment and precise ramp functions.
- Integrated Electronics (K4M): Features an integrated control amplifier (identified by the “K4M” suffix) which ensures optimized solenoid current control, reducing hysteresis and improving dynamic response for closed-loop pressure control systems.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that withstands high pressure and demanding duty cycles.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM standards, ensuring seamless integration into existing Rexroth hydraulic power units and manifolds.
Typical Industrial Applications
This proportional pressure relief valve is widely utilized in heavy industrial scenarios requiring precise force or torque control, including plastic injection molding machines (for clamping and injection pressure control), metallurgical presses, hydraulic test stands, and CNC machine tools. It is also commonly found in marine and offshore hydraulic systems where remote pressure adjustment and safety relief functions are critical.
PRODUCT IMAGES

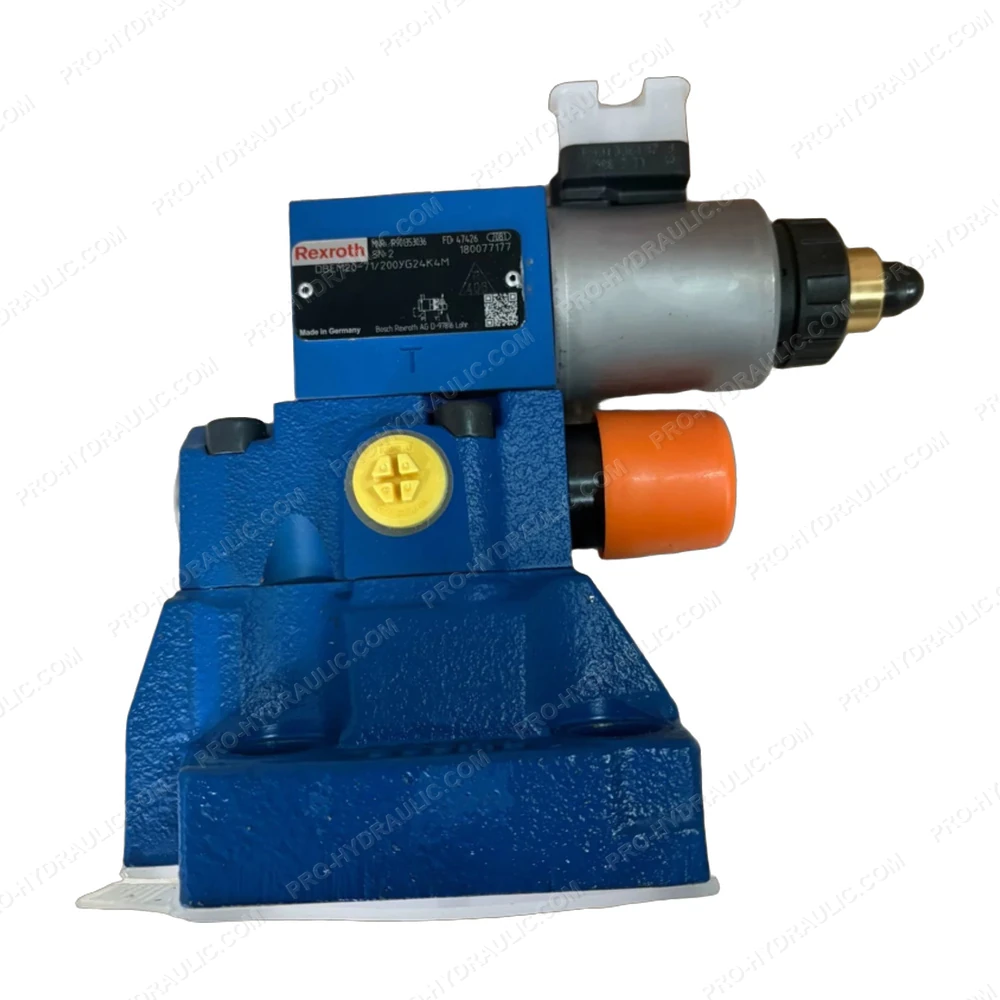

Rexroth DBEM20-71/200YG24K4M / R901353036 Proportional Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth DBEM20-71/200YG24K4M / R901353036 Proportional Pressure Relief Valve. This Germany-made 24 VDC hydraulic component features a piloted design with proportional solenoid, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
