Product Overview
The Rexroth DBEME 20-71/315YG24K31A1M (Material Number: R901353070) is a pilot-operated proportional pressure relief valve with integrated electronics, part of the Bosch Rexroth DBEME series. This valve functions as a continuously adjustable pressure control element, converting an electrical command signal into a proportional hydraulic pressure limit. The integrated control electronics (OBE) are mounted directly on the valve, eliminating the need for a separate amplifier card and simplifying system wiring. The DBEME series is designed for precise pressure regulation in demanding industrial hydraulic circuits, offering excellent repeatability, low hysteresis, and fast response to dynamic pressure commands. With a nominal size of NG20 and a maximum pressure rating of 315 bar, this valve is engineered for high-pressure applications requiring accurate, electro-proportional pressure control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve with Integrated Electronics |
| Model Designation | DBEME 20-71/315YG24K31A1M / R901353070 |
| Nominal Size | NG20 (DIN 24340 / ISO 4401) |
| Maximum Operating Pressure | 315 bar (adjustable pressure range) |
| Actuation Type | Proportional solenoid with integrated control electronics (OBE) |
| Supply Voltage | 24 V DC (nominal) |
| Command Signal | 0 to 10 V / 4 to 20 mA (standard analog input) |
| Mounting & Connection | Subplate mounting per ISO 4401 / DIN 24340, NG20 interface |
| Hydraulic Fluid | Mineral oil based hydraulic fluid per DIN 51524 (HLP, HLVP) |
| Seal Material | NBR (standard); FKM available on request |
Engineering Features & Advantages
- Integrated Electronics (OBE): The on-board amplifier eliminates external control cards, reducing wiring complexity, cabinet space, and potential electromagnetic interference in the signal path.
- Precise Proportional Pressure Control: The valve provides stepless pressure adjustment proportional to the electrical command signal, with low hysteresis and excellent repeatability for closed-loop pressure regulation.
- Pilot-Operated Design: The two-stage pilot-operated configuration ensures stable pressure control even at high flow rates and high system pressures up to 315 bar.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
With a nominal size of NG20 and a maximum pressure rating of 315 bar, this valve is engineered for high-pressure applications requiring accurate, electro-proportional pressure control.
PRODUCT IMAGES

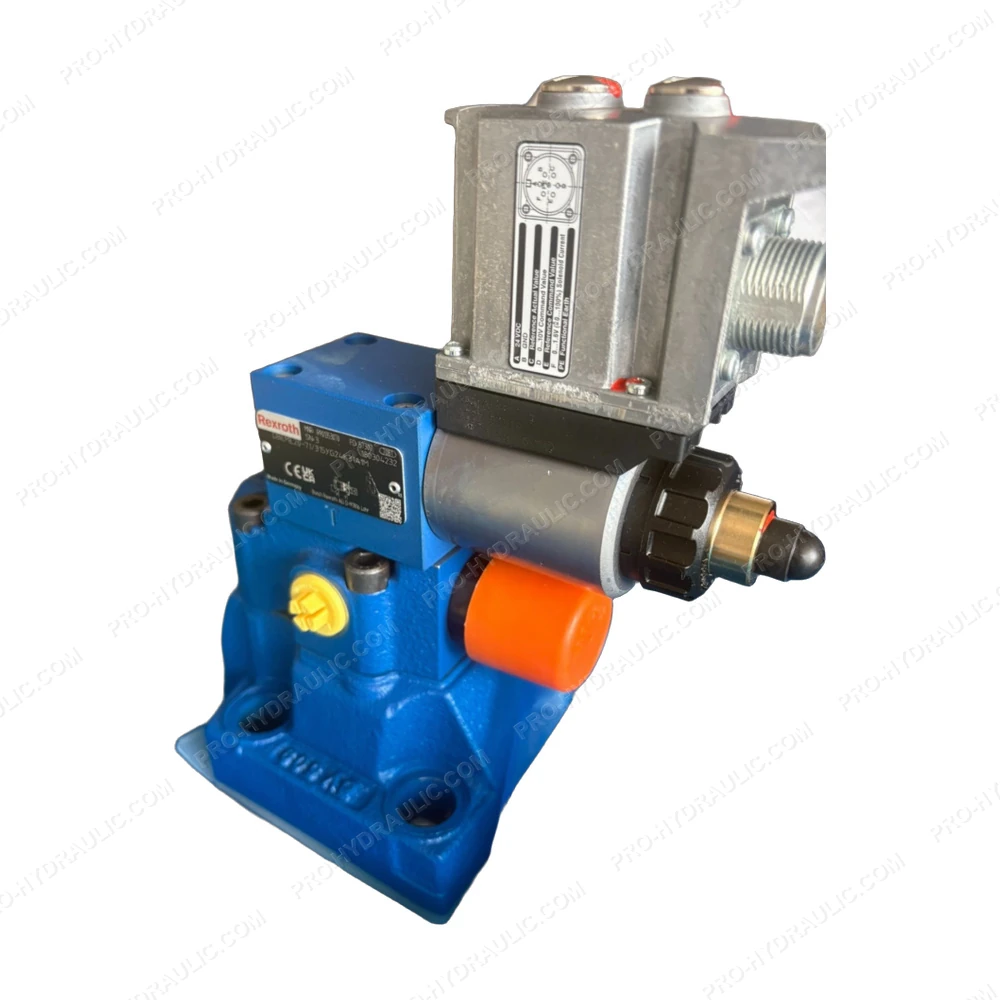

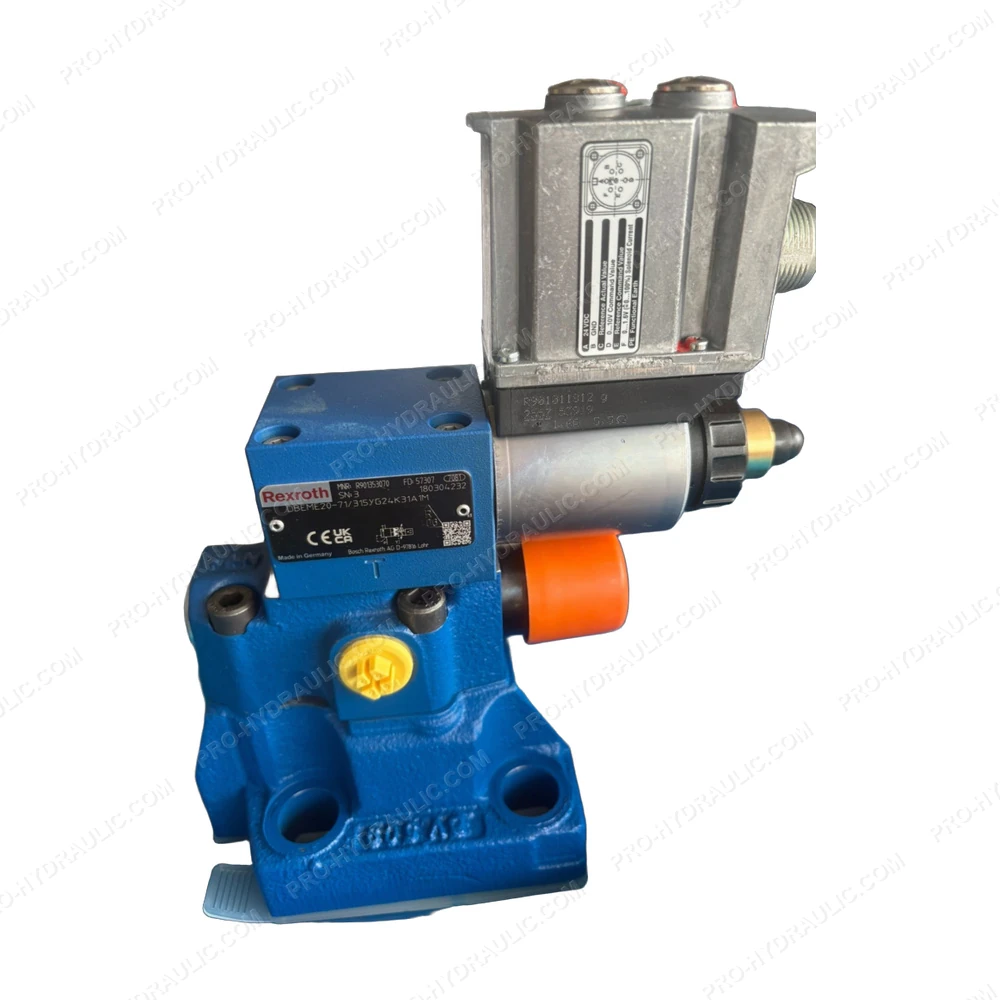

REXROTH DBEME 20-71/315YG24K31A1M / R901353070 Proportional Pressure Relief Valve with Integrated Electronics
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBEME 20-71/315YG24K31A1M Solenoid Operated Pressure Relief Valve. This German-made 24V DC hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
