Product Overview
The Rexroth DBETE-6X/100G24K31F1V (Material No. R901045242) is a direct-operated, proportional pressure relief valve from the proven DBETE series, designed for continuous electro-hydraulic pressure control in industrial hydraulic systems. As a proportional valve, it converts an analog electrical command signal into an infinitely variable pressure setting, allowing stepless adjustment of system pressure rather than fixed, stepped control. The valve limits system pressure by diverting excess flow to the return line once the command value is reached, functioning as both a safety relief element and a dynamic pressure-regulating device. Its compact 6X (NG6 / CETOP 3) size, high-response proportional solenoid, and integrated control electronics make it a preferred choice for applications requiring precise, repeatable pressure modulation with fast response and low hysteresis.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Direct-Operated) |
| Model Designation | DBETE-6X/100G24K31F1V |
| Material / Order Number | R901045242 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Pressure Setting Range | Up to 100 bar (adjustable, proportional control) |
| Actuation | Proportional solenoid with integrated control electronics |
| Electrical Supply | 24 V DC nominal command signal |
| Operating Pressure | Standard Industrial Grade (up to rated bar per pressure stage) |
| Mounting & Connection | Subplate mounting, ISO 4401-03 / CETOP 3 interface |
| Hydraulic Fluid | Mineral oil based hydraulic fluids (HL, HLP per DIN 51524) |
Engineering Features & Advantages
- Precision Proportional Control: The proportional solenoid and integrated electronics deliver stepless, infinitely variable pressure adjustment with low hysteresis and excellent repeatability, enabling accurate pressure profiling in closed-loop industrial systems.
- Fast Dynamic Response: Direct-operated spool/poppet design provides rapid reaction to command signal changes, ideal for cyclic pressure loading and unloading sequences.
- Integrated Control Electronics: The K31F1V configuration includes onboard amplifier electronics, simplifying wiring, reducing external components, and improving signal stability and noise immunity.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
Its compact 6X (NG6 / CETOP 3) size, high-response proportional solenoid, and integrated control electronics make it a preferred choice for applications requiring precise, repeatable pressure modulation with fast response and low hysteresis.
PRODUCT IMAGES

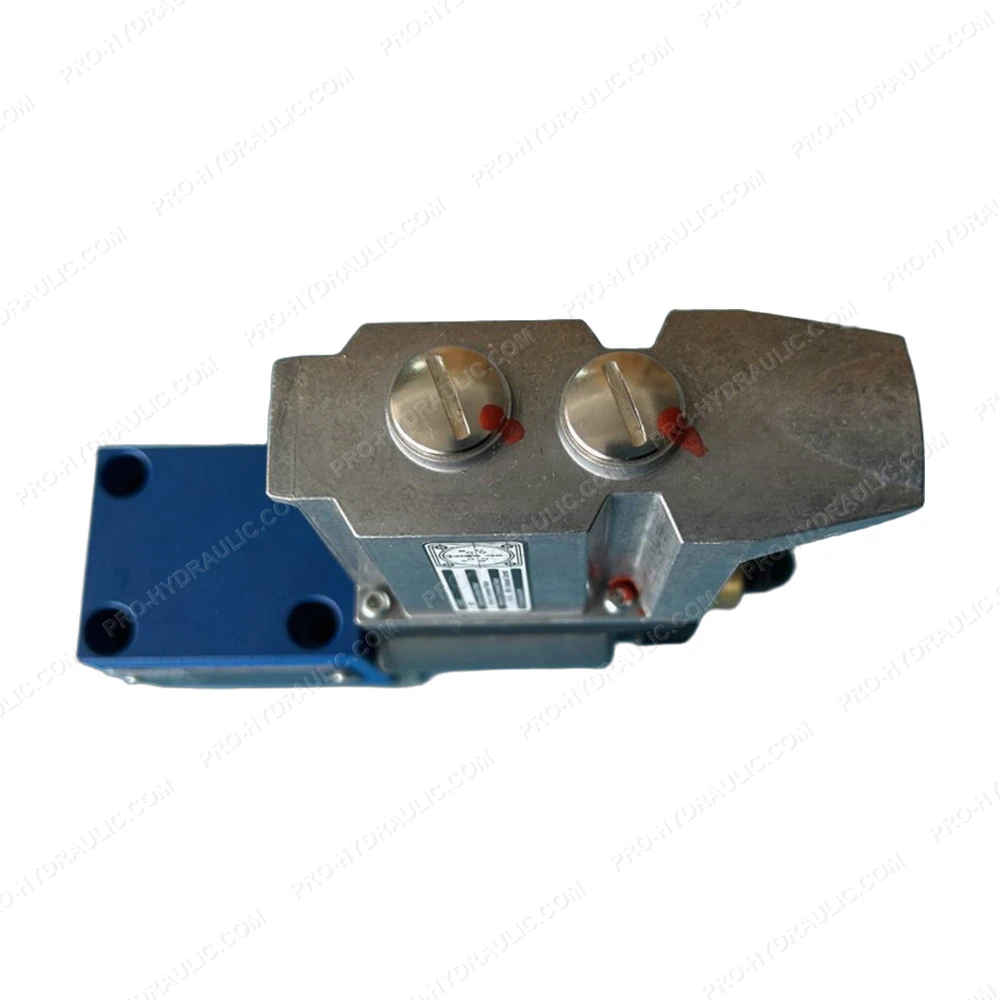

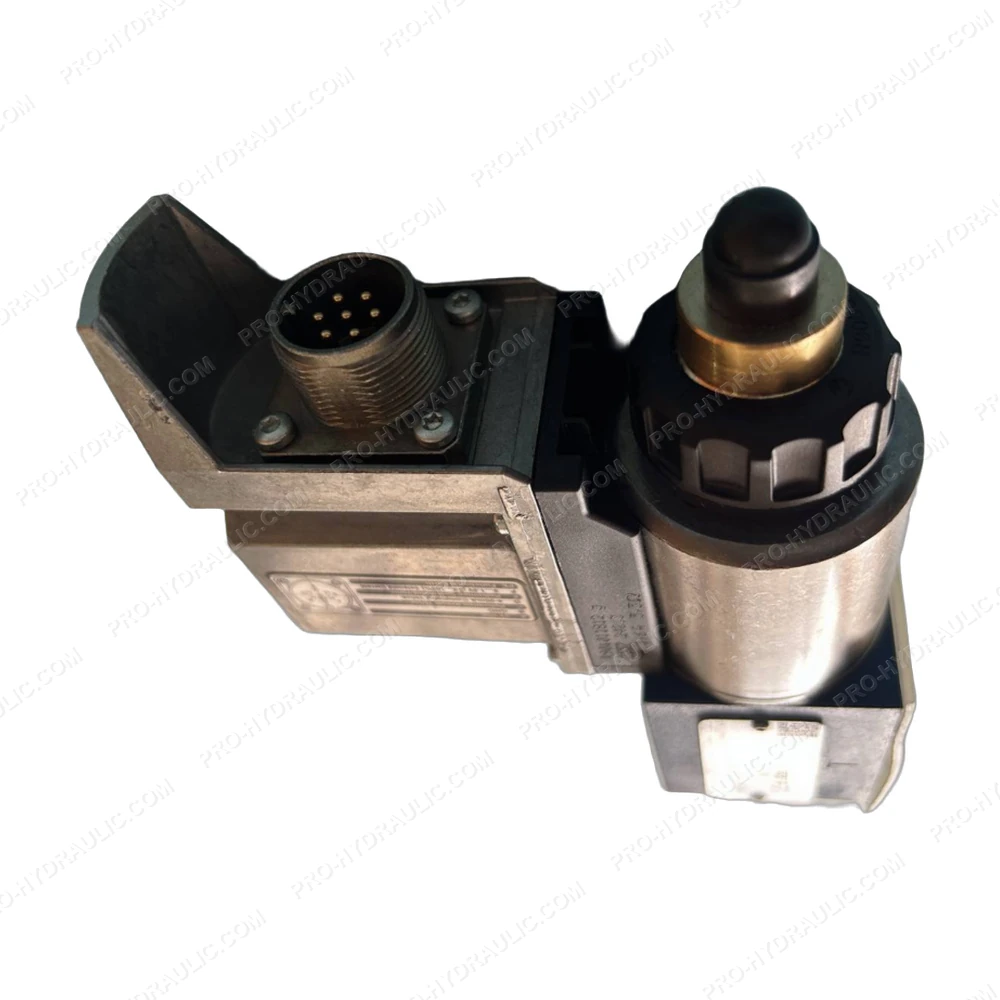

Rexroth DBETE-6X/100G24K31F1V / R901045242 Proportional Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth DBETE-6X/100G24K31F1V / R901045242 Proportional Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a piloted design with proportional solenoid, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
