Product Overview
The Rexroth DBETR-10/315G24K4M (Material Number: R900485944) is a high-performance, direct-operated proportional pressure relief valve designed for precise electro-hydraulic pressure control in demanding industrial systems. Part of the renowned Rexroth DBETR series, this valve functions as a pilot-operated or direct-acting proportional pressure limiting valve, converting an electrical current input into a continuously variable pressure setting. Unlike standard on-off valves, the DBETR-10/315G24K4M provides infinitely variable pressure regulation, allowing for smooth ramping, load holding, and system unloading without pressure spikes. With a nominal size of 10 (NG10) and a maximum pressure rating of 315 bar, this valve is engineered for applications requiring high-resolution pressure modulation, fast response times, and exceptional repeatability. The integrated 24V DC proportional solenoid (G24K4M) ensures compatibility with modern industrial control amplifiers, making it a critical component in closed-loop pressure control circuits, injection molding machines, and hydraulic test stands.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Hydraulic Valve) |
| Model Designation | DBETR-10/315G24K4M / R900485944 |
| Nominal Size | NG10 (Size 10) |
| Maximum Operating Pressure | 315 bar (315G) |
| Solenoid Voltage | 24V DC (G24) |
| Actuation Type | Proportional Solenoid with Position Feedback (K4M) |
| Mounting & Connection | Subplate Mounting (ISO 4401 / DIN 24340 Standard Interface) |
| Control Signal | Analog Current (Proportional to Pressure Setting) |
| Fluid Compatibility | Mineral Oil (HL, HLP) per DIN 51524; Phosphate Esters on Request |
Engineering Features & Advantages
- Precision Pressure Modulation: The proportional solenoid and integrated position feedback (K4M) enable highly accurate, infinitely variable pressure control with minimal hysteresis and excellent repeatability, ensuring precise force control in closed-loop systems.
- High-Pressure Capability: Rated for continuous operation up to 315 bar, making it suitable for high-pressure industrial circuits without compromising on valve life or stability.
- Fast Dynamic Response: Optimized spool and spring design allows for rapid pressure changes, reducing cycle times and improving system efficiency in high-frequency applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that resists contamination and thermal drift.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
The integrated 24V DC proportional solenoid (G24K4M) ensures compatibility with modern industrial control amplifiers, making it a critical component in closed-loop pressure control circuits, injection molding machines, and hydraulic test stands.
PRODUCT IMAGES

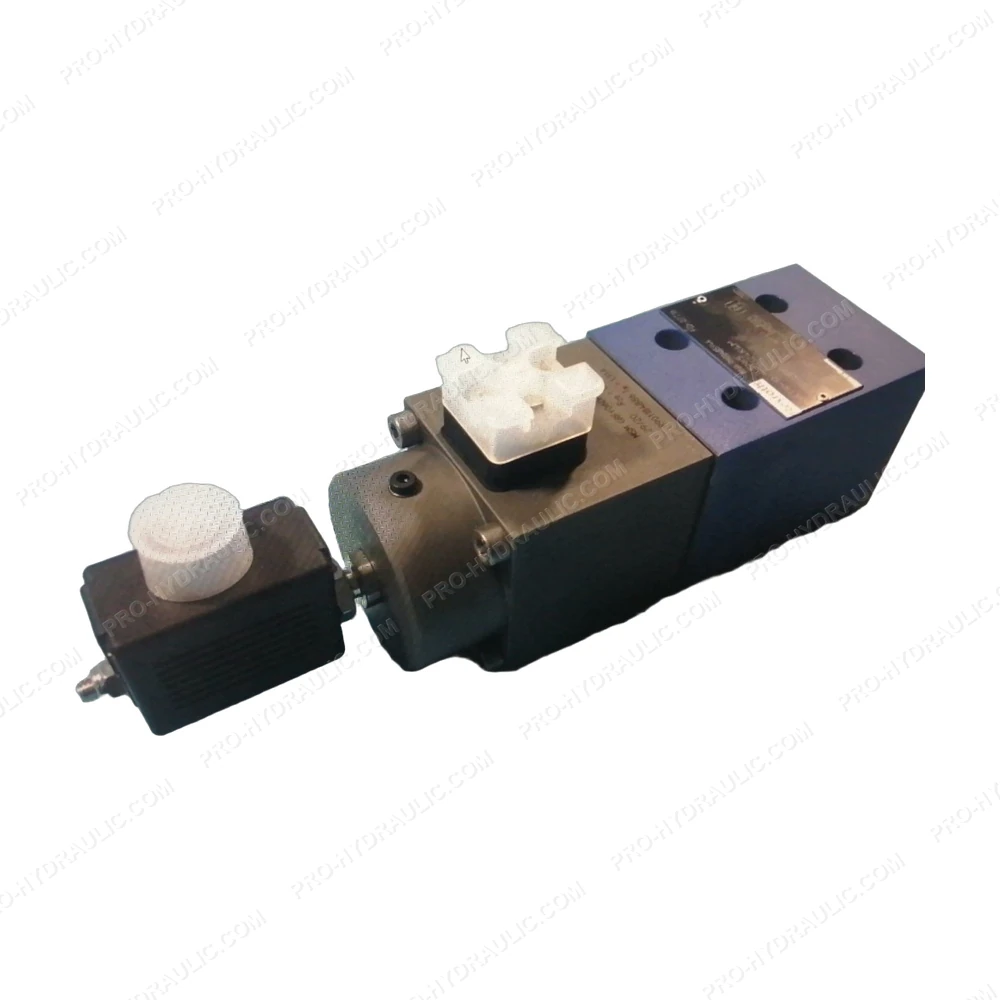

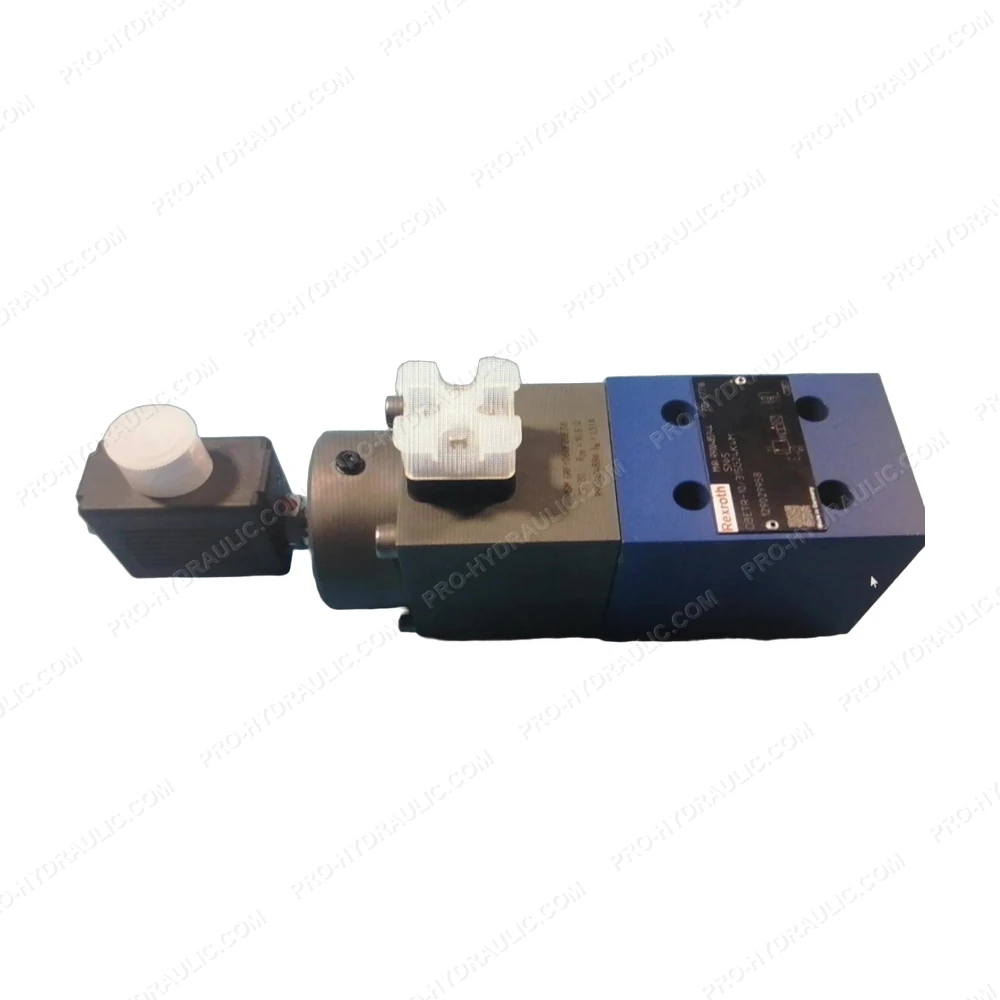

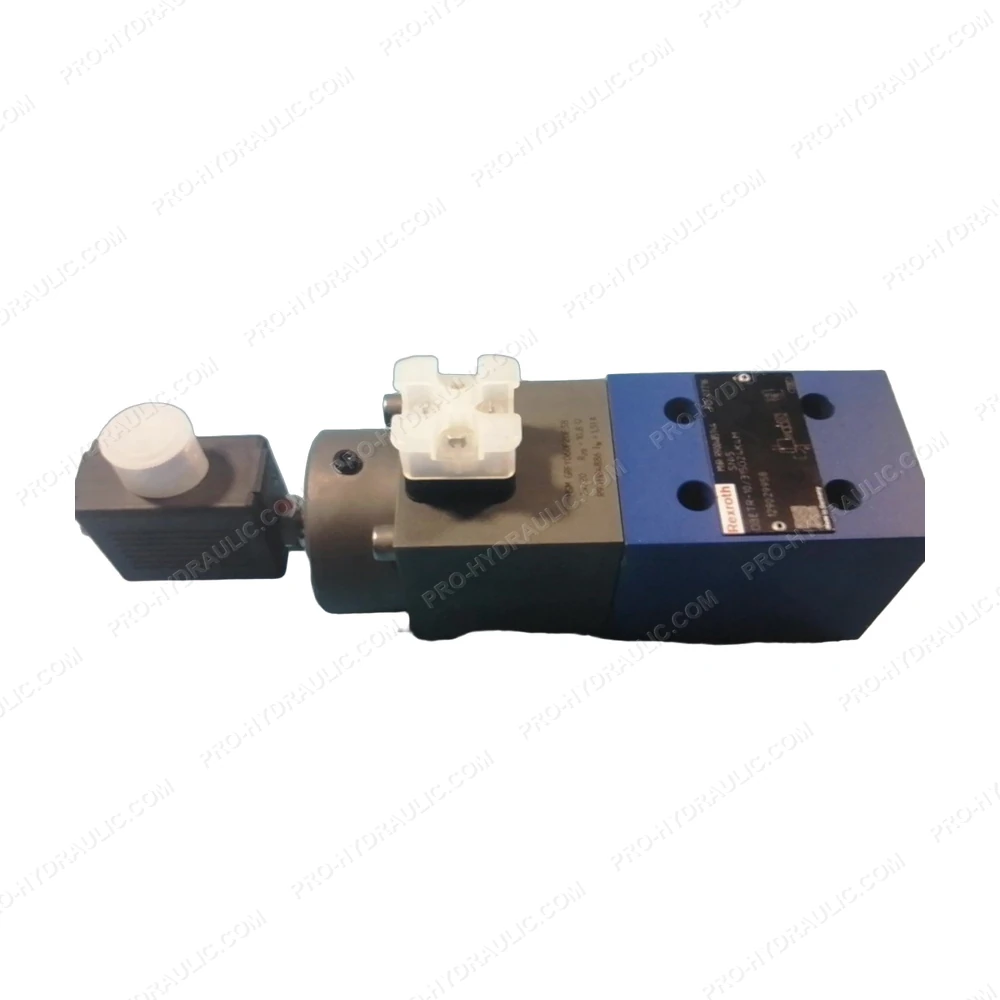

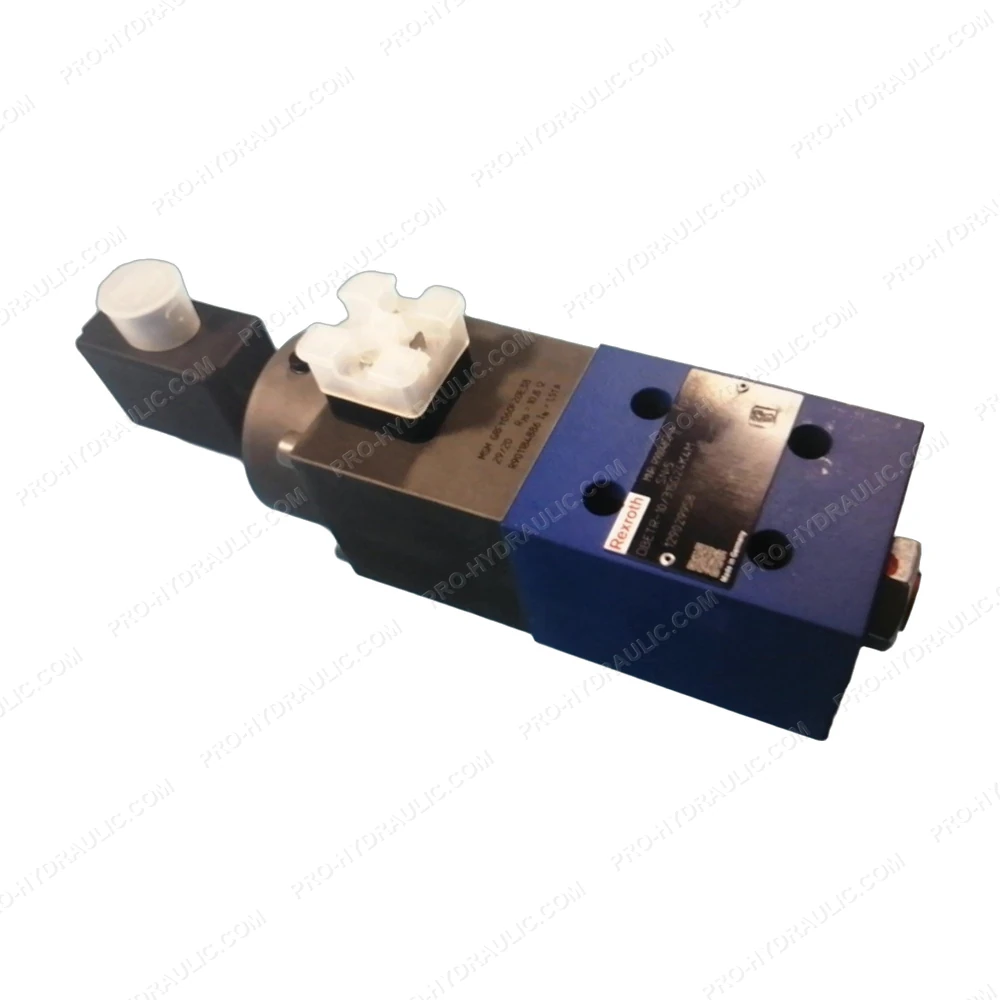

REXROTH DBETR-10/315G24K4M / R900485944 Proportional Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBETR-10/315G24K4M / R900485944 Proportional Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a piloted design with proportional solenoid, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
