Product Overview
The Rexroth DBETX-10/180G24-25NZ4M (Material Number: 0811402031) is a high-performance pilot-operated proportional pressure relief valve designed for precise, infinitely variable pressure control in demanding industrial hydraulic systems. Part of the Rexroth DBETX series, this valve combines a proportional solenoid actuator with a robust pilot-operated relief cartridge to deliver smooth, stepless pressure adjustment proportional to the electrical input signal. Unlike fixed-setting relief valves, the DBETX-10/180G24-25NZ4M enables dynamic pressure regulation, making it ideal for applications requiring programmable pressure profiles, soft-start/stop sequences, and closed-loop pressure control. The valve features a 24 VDC proportional solenoid, a nominal pressure rating of 180 bar, and a compact NG10 (size 10) mounting interface, ensuring seamless integration into standardized hydraulic manifolds and power units. As a genuine Rexroth component, it guarantees exceptional repeatability, low hysteresis, and long service life in continuous industrial duty.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Pilot-Operated) |
| Model Designation | DBETX-10/180G24-25NZ4M / 0811402031 |
| Operating Pressure | Up to 180 bar (nominal pressure setting range) |
| Mounting & Connection | NG10 (Size 10) ISO 4401 standard mounting interface; subplate mounting |
| Actuation Type | Proportional solenoid, 24 VDC (G24) |
| Control Signal | Analog current or PWM (via proportional amplifier) |
| Pressure Adjustment | Infinitely variable, proportional to solenoid current |
| Hysteresis | ≤ 3% of nominal pressure (typical) |
| Response Time | Fast dynamic response, suitable for closed-loop control |
| Fluid Compatibility | Mineral oil based hydraulic fluids (HL, HLP, HLPD, HVLP) |
| Seal Material | NBR (Nitrile) standard; FKM available on request |
Engineering Features & Advantages
- Precision Performance: The proportional pressure relief valve (pilot-operated) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 180 bar, supporting stable operation across the full working range.
Typical Industrial Applications
As a genuine Rexroth component, it guarantees exceptional repeatability, low hysteresis, and long service life in continuous industrial duty.
PRODUCT IMAGES

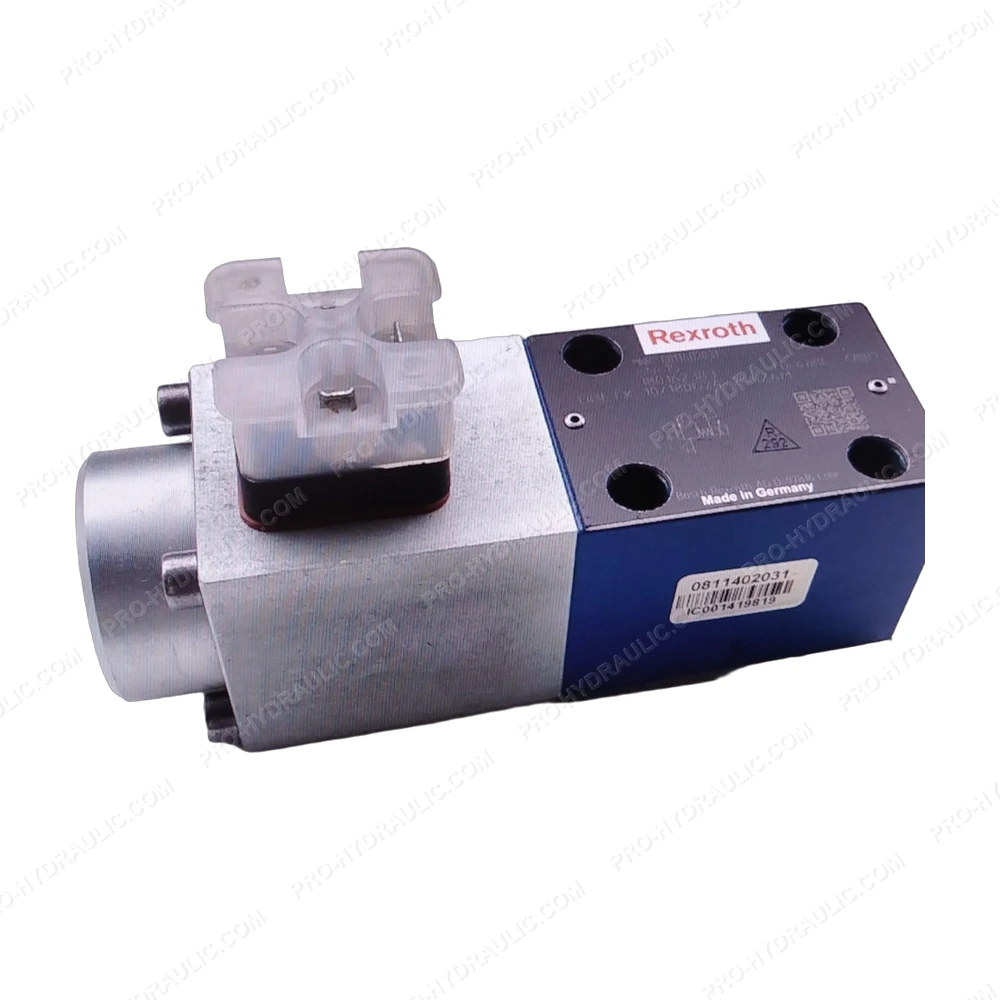

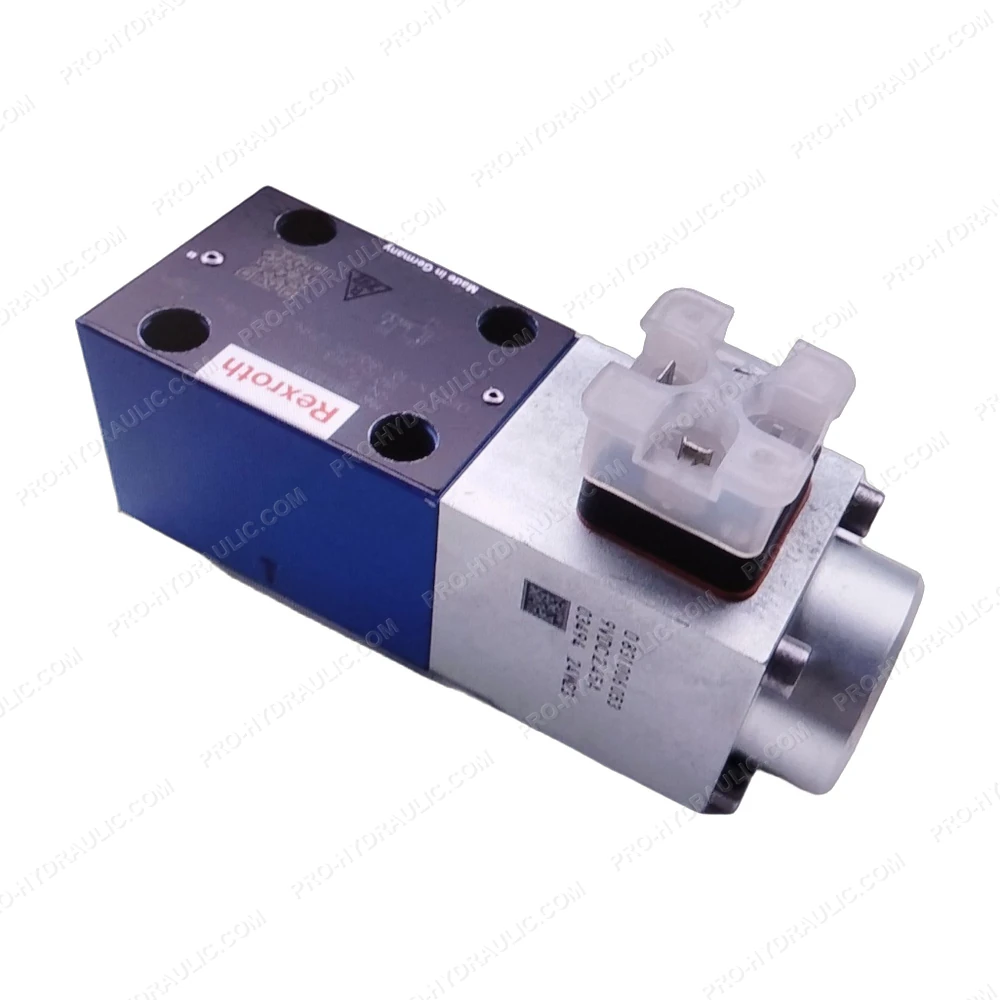

REXROTH DBETX-10/180G24-25NZ4M / 0811402031 Proportional Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth DBETX-10/180G24-25NZ4M / 0811402031 Proportional Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a piloted design with proportional solenoid, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
