Product Overview
The Rexroth DBETX-10/80G24-8NZ4M (Material Number: 0811402018) is a high-performance proportional pressure relief valve from the Bosch Rexroth DBETX series. This pilot-operated valve functions as a continuously adjustable pressure limiting device, converting an electrical current signal into a proportional hydraulic pressure setting. Unlike conventional on-off relief valves, the DBETX design enables stepless pressure control across the full adjustment range, making it indispensable in industrial hydraulic systems requiring precise force, torque, or pressure regulation. The integrated proportional solenoid (24 V DC) actuates a pilot poppet that modulates the main spool position, delivering smooth, low-hysteresis response to command signal changes. The “80” designation indicates a nominal pressure setting of 80 bar, while the “NZ4M” suffix denotes the specific solenoid and adjustment configuration for this model. This valve is engineered for direct integration into Rexroth proportional control systems and is widely used as a critical pressure control element in injection molding, press, and test rig applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Relief Valve (Pilot-Operated) |
| Model Designation | DBETX-10/80G24-8NZ4M / 0811402018 |
| Nominal Pressure Setting | 80 bar (adjustable range per DBETX-10 series) |
| Solenoid Voltage | 24 V DC proportional solenoid |
| Operating Pressure | Standard Industrial Grade (up to rated 80 bar setpoint) |
| Mounting & Connection | Standard ISO / Manufacturer Interface (subplate mounting, NG10) |
| Control Signal | Proportional current (0–800 mA typical for Rexroth proportional valves) |
| Hysteresis | ≤ 2% of nominal pressure (typical for DBETX series) |
Engineering Features & Advantages
- Precision Proportional Control: The DBETX-10/80G24-8NZ4M delivers stepless, infinitely variable pressure adjustment in direct proportion to the electrical command signal, enabling accurate force and torque control in closed-loop industrial processes.
- Low Hysteresis & High Repeatability: Advanced pilot poppet and spool geometry minimizes hysteresis and ensures consistent pressure regulation across millions of cycles, critical for high-precision injection molding and testing applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction that resists contamination and thermal drift in demanding hydraulic circuits.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original OEM Rexroth DBETX series valves, ensuring drop-in replacement without modification to manifolds or control electronics.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This valve is engineered for direct integration into Rexroth proportional control systems and is widely used as a critical pressure control element in injection molding, press, and test rig applications.
PRODUCT IMAGES

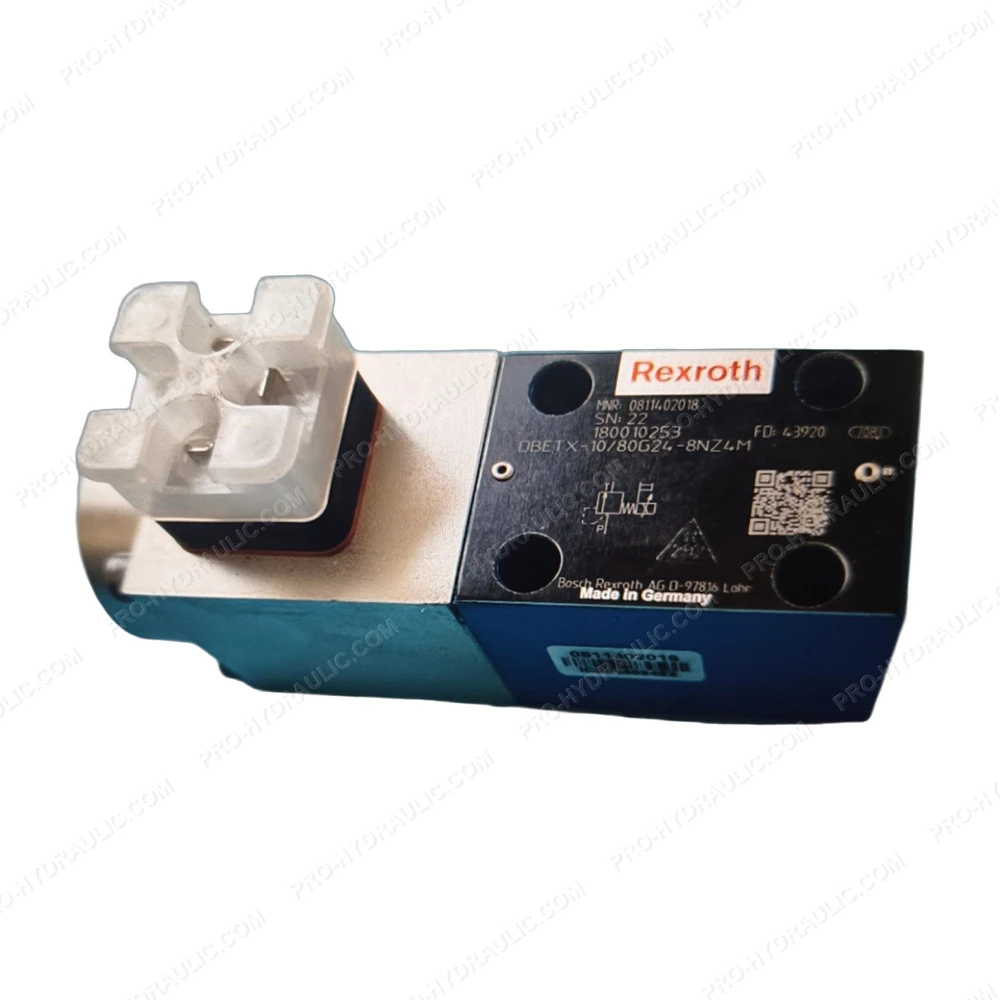

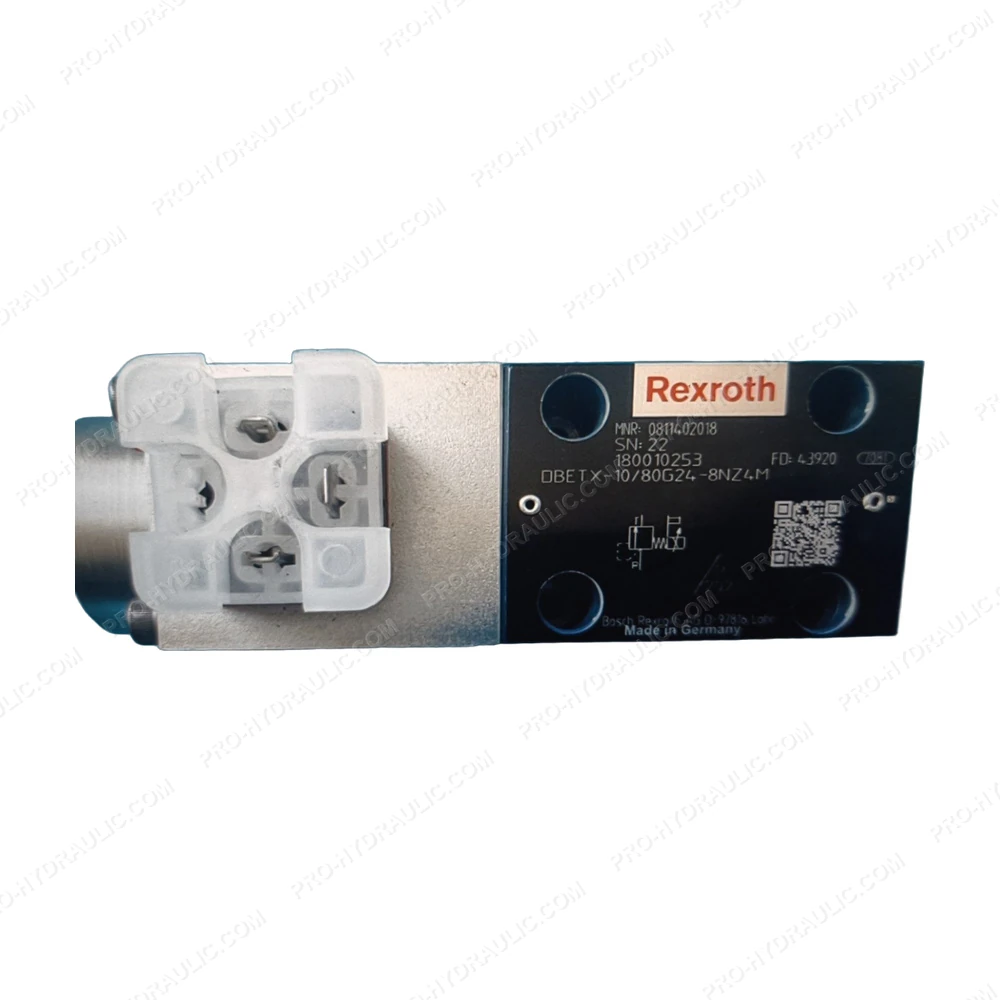

REXROTH DBETX-10/80G24-8NZ4M / 0811402018 Proportional Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBETX-10/80G24-8NZ4M / 0811402018 Proportional Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a piloted design with proportional solenoid, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
