Product Overview
The Rexroth DBW 20 A2-52/350-6EG24N9K4 is a pilot-operated, solenoid-controlled pressure relief valve designed for precise system pressure limitation and electrical unloading in industrial hydraulic circuits. Part of the renowned Rexroth DBW series, this valve combines a pilot stage with a main spool stage to deliver stable pressure control even at high flow rates. The integrated directional solenoid allows the valve to be electrically switched between pressure-relief and unloading functions, making it ideal for energy-efficient systems requiring remote or automated pressure management. With a nominal size of NG20 and a pressure rating of 350 bar, it is engineered for demanding continuous-duty applications in heavy machinery and industrial power units.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Pressure Relief Valve (Pilot-Operated) |
| Model Designation | DBW 20 A2-52/350-6EG24N9K4 |
| Nominal Size | NG20 (DIN 24340 / ISO 4401) |
| Maximum Operating Pressure | 350 bar (pilot and main stage) |
| Pressure Adjustment Range | Up to 350 bar, adjustable via pilot stage |
| Solenoid Voltage | 24 V DC (EG24 = DC solenoid, N9 = standard plug) |
| Mounting & Connection | Subplate mounting, ISO 4401-05 / NG20 interface |
| Seal Material | NBR (N9 = NBR seals, suitable for mineral oil) |
| Design Principle | Pilot-operated with main spool, solenoid unloading |
Engineering Features & Advantages
- Precision Pressure Control: The pilot-operated design ensures accurate and stable pressure limitation across the full flow range, minimizing pressure overshoot and system shock.
- Solenoid Unloading Function: The integrated 24 V DC solenoid enables electrical switching to unload the pump at low pressure, reducing energy consumption and heat generation during idle periods.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and high-quality sealing for long service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth DBW series valves, ensuring drop-in replacement without modification.
- Versatile Adjustment: Pressure setting can be easily adjusted via the pilot stage, allowing fine-tuning to match specific system requirements.
Typical Industrial Applications
This valve is widely used in hydraulic systems requiring precise pressure control and electrical unloading, including plastic injection molding machines
PRODUCT IMAGES

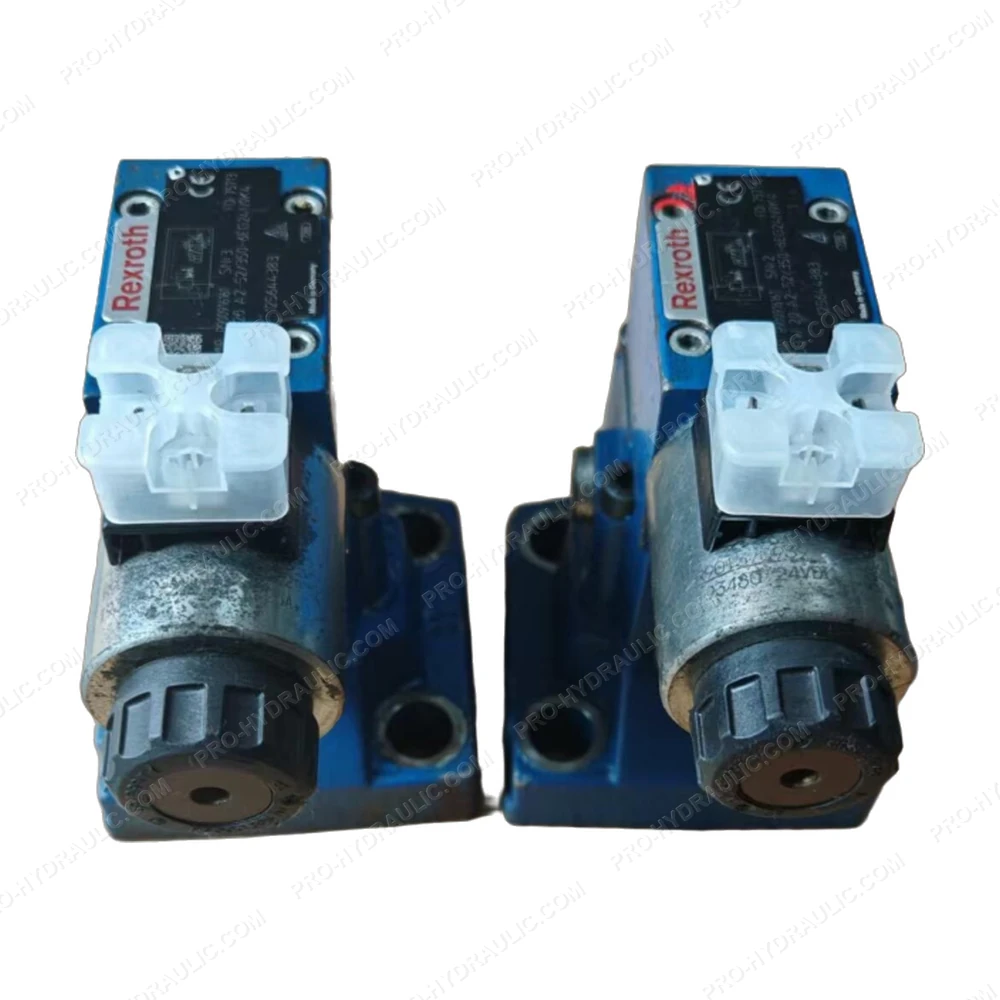

REXROTH DBW 20 A2-52/350-6EG24N9K4 Solenoid Operated Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBW 20 A2-52/350-6EG24N9K4 Solenoid Operated Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
