Product Overview
The Rexroth DBW 30 AG2-53/315P90Y6EG24N9K4 (material number R901262067) is a pilot-operated, solenoid-controlled pressure relief valve from the proven Rexroth DBW series. It functions as a two-stage pressure control valve in which a direct-acting pilot stage governs a main poppet-type spool, providing precise system pressure limitation and fast electrical unloading of the hydraulic circuit. The valve is designed for subplate mounting in accordance with ISO 6264 (size 30, NG30), and its solenoid-actuated pilot stage allows the set pressure to be switched electrically between a preset maximum and a reduced unloading pressure. This makes the DBW 30 AG2-53/315P90Y6EG24N9K4 a core safety and pressure-regulating component in high-pressure industrial hydraulic power units, presses, and test stands.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Solenoid Operated Pressure Relief Valve (Pressure Control Valve) |
| Model Designation | DBW 30 AG2-53/315P90Y6EG24N9K4 |
| Material Number | R901262067 |
| Nominal Size | NG30 (Size 30) |
| Pressure Setting Range | Up to 315 bar (315P pressure stage) |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Solenoid Voltage | 24 V DC (EG24 designation) |
| Electrical Connection | DIN EN 175301-803 (K4 designation), with rectifier/plug option |
| Mounting & Connection | Subplate mounting per ISO 6264, NG30 interface |
| Adjustment Type | Mechanical pressure adjustment with locknut (AG2) |
| Seal Material | NBR (standard mineral oil compatibility) |
Engineering Features & Advantages
- Precision Performance: Pilot-operated two-stage design delivers accurate, repeatable pressure limitation with minimal pressure override across the full 315 bar range, ensuring stable system pressure even under fluctuating flow demands.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
This makes the DBW 30 AG2-53/315P90Y6EG24N9K4 a core safety and pressure-regulating component in high-pressure industrial hydraulic power units, presses, and test stands.
PRODUCT IMAGES

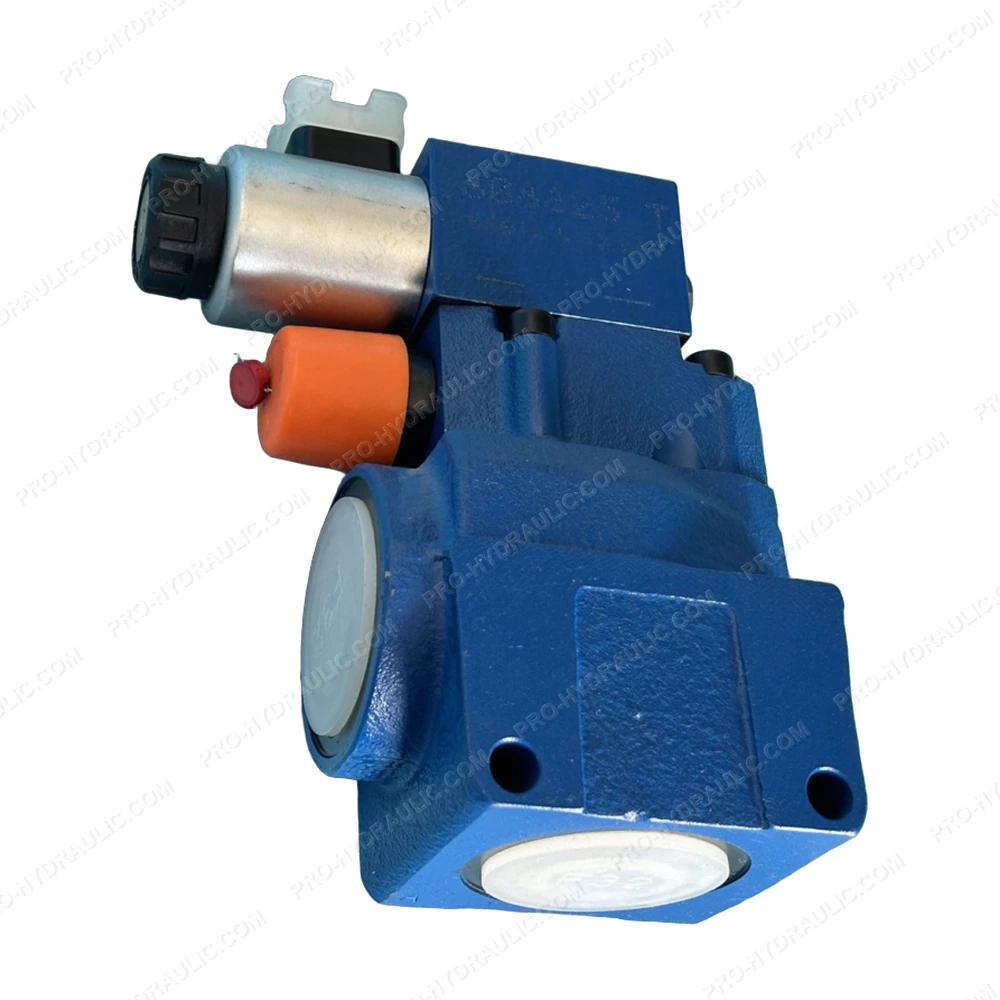

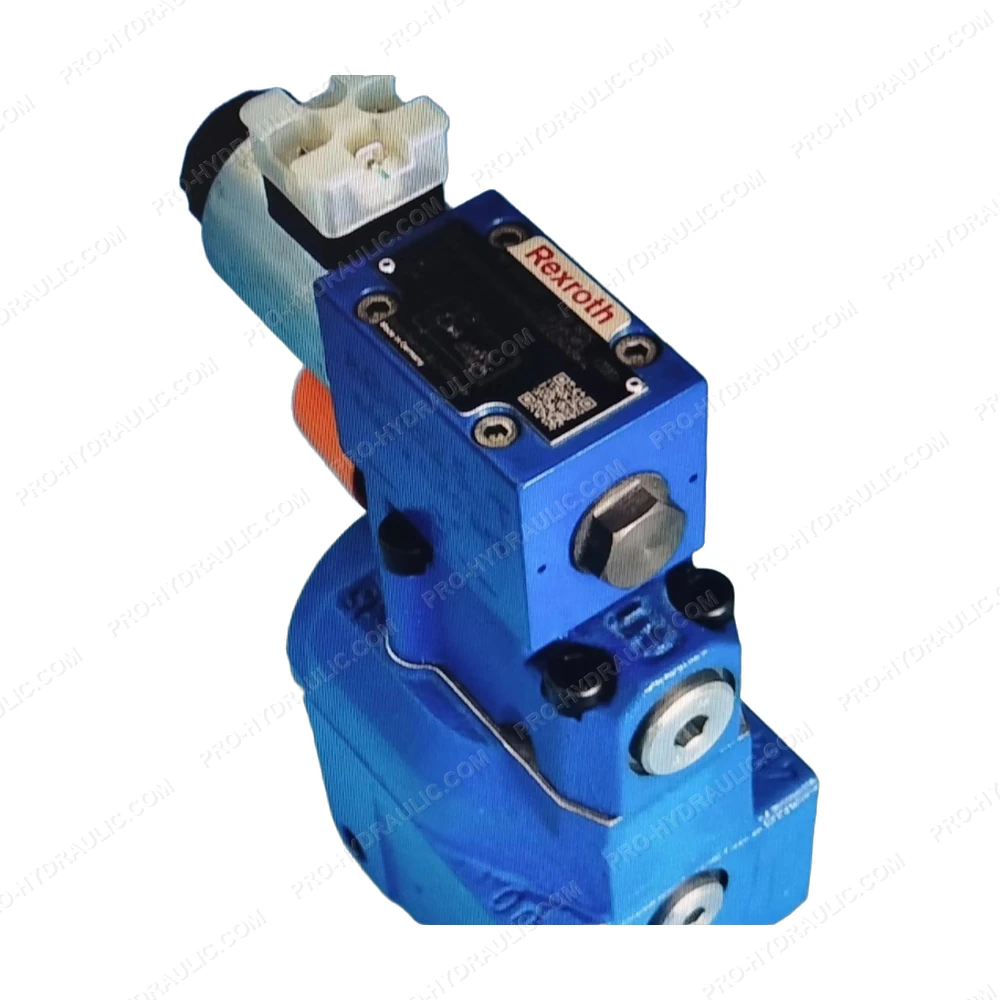

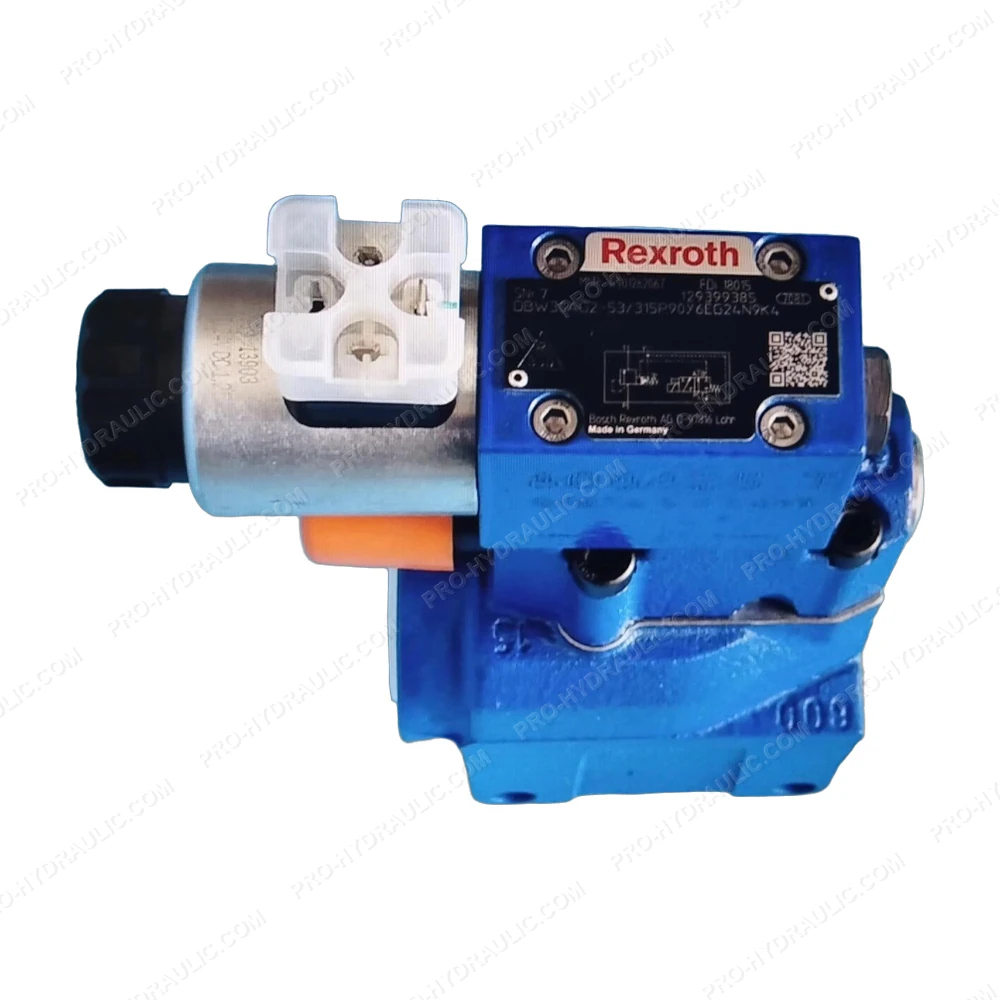

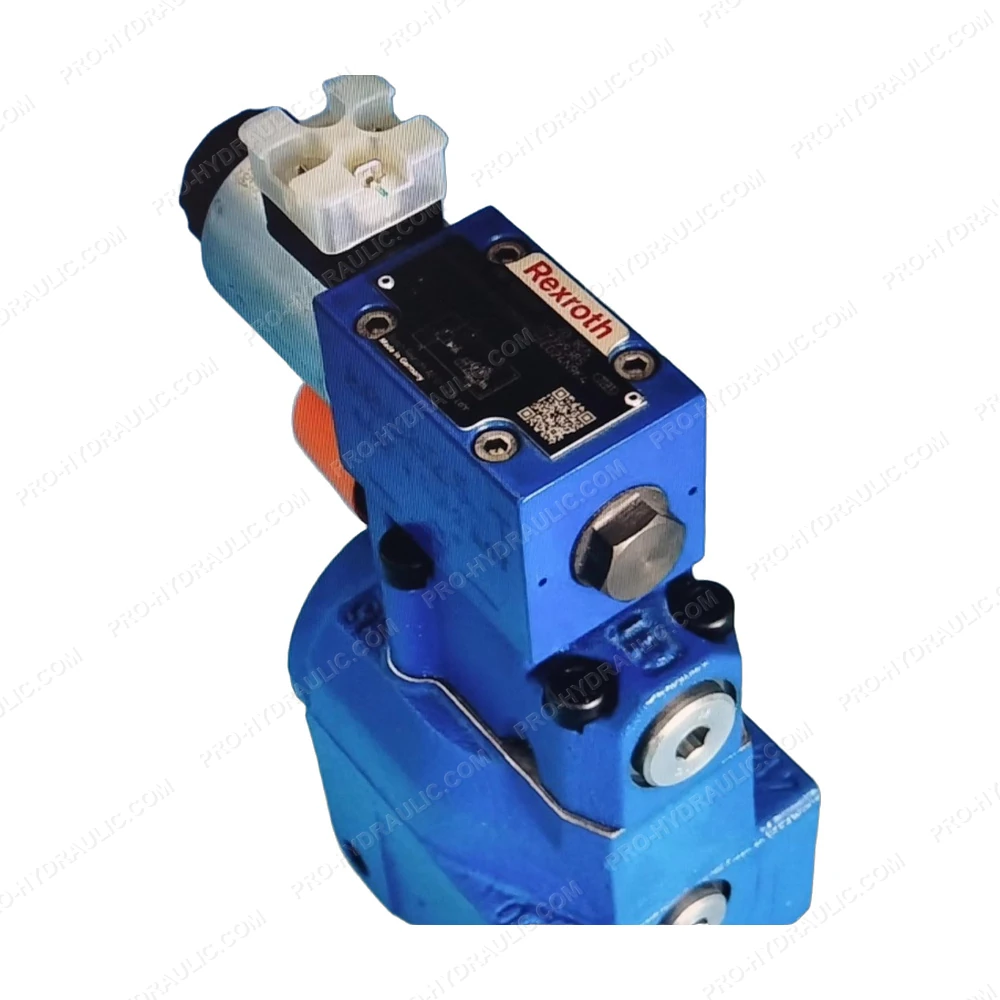

REXROTH DBW 30 AG2-53/315P90Y6EG24N9K4 / R901262067 Solenoid Operated Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBW 30 AG2-53/315P90Y6EG24N9K4 / R901262067 Solenoid Operated Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
