Product Overview
The Rexroth DBW10B1-5X/315-6EG24N9K4 (Material Number R900920863) is a pilot-operated, solenoid-controlled pressure relief valve designed for precise system pressure limitation and electrical unloading in industrial hydraulic circuits. Part of the proven Rexroth DBW series (Size 10, Component Series 5X), this valve combines a pilot-operated pressure relief cartridge with a directional solenoid pilot valve, enabling both continuous pressure regulation and rapid electrical venting of the main stage. The valve is engineered for high-pressure hydraulic power units, presses, and injection molding systems where reliable overpressure protection and controlled depressurization are critical to machine safety and process repeatability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Pressure Relief Valve (Pilot-Operated, Pressure Control Valve) |
| Model Designation | DBW10B1-5X/315-6EG24N9K4 / R900920863 |
| Nominal Size | NG10 (Size 10) per ISO 4401 / DIN 24340 |
| Pressure Adjustment Range | Up to 315 bar (315 bar pressure rating stage) |
| Solenoid Voltage | 24 V DC (EG24 designation) |
| Solenoid Type | Wet-pin AC/DC solenoid, N9 (high-performance) coil, K4 electrical connection |
| Operating Pressure | Standard Industrial Grade (Up to 315 bar rated) |
| Mounting & Connection | Subplate mounting, ISO 4401-05 / NG10 interface, 4-way porting pattern |
| Adjustment Element | B1 = Rotary knob with hexagon socket and lock nut |
| Hydraulic Fluid | Mineral oil based hydraulic fluids per DIN 51524 (HL, HLP) |
Engineering Features & Advantages
- Precision Pressure Limiting: Pilot-operated main stage delivers accurate, stable pressure regulation with minimal pressure override across the full 315 bar range, protecting downstream components from overpressure events.
- Solenoid-Controlled Unloading: The integrated directional solenoid pilot valve allows electrical switching between pressure-holding and unloading (venting) modes, enabling rapid depressurization of accumulators and actuators without manual intervention.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The valve is engineered for high-pressure hydraulic power units, presses, and injection molding systems where reliable overpressure protection and controlled depressurization are critical to machine safety and process repeatability.
PRODUCT IMAGES

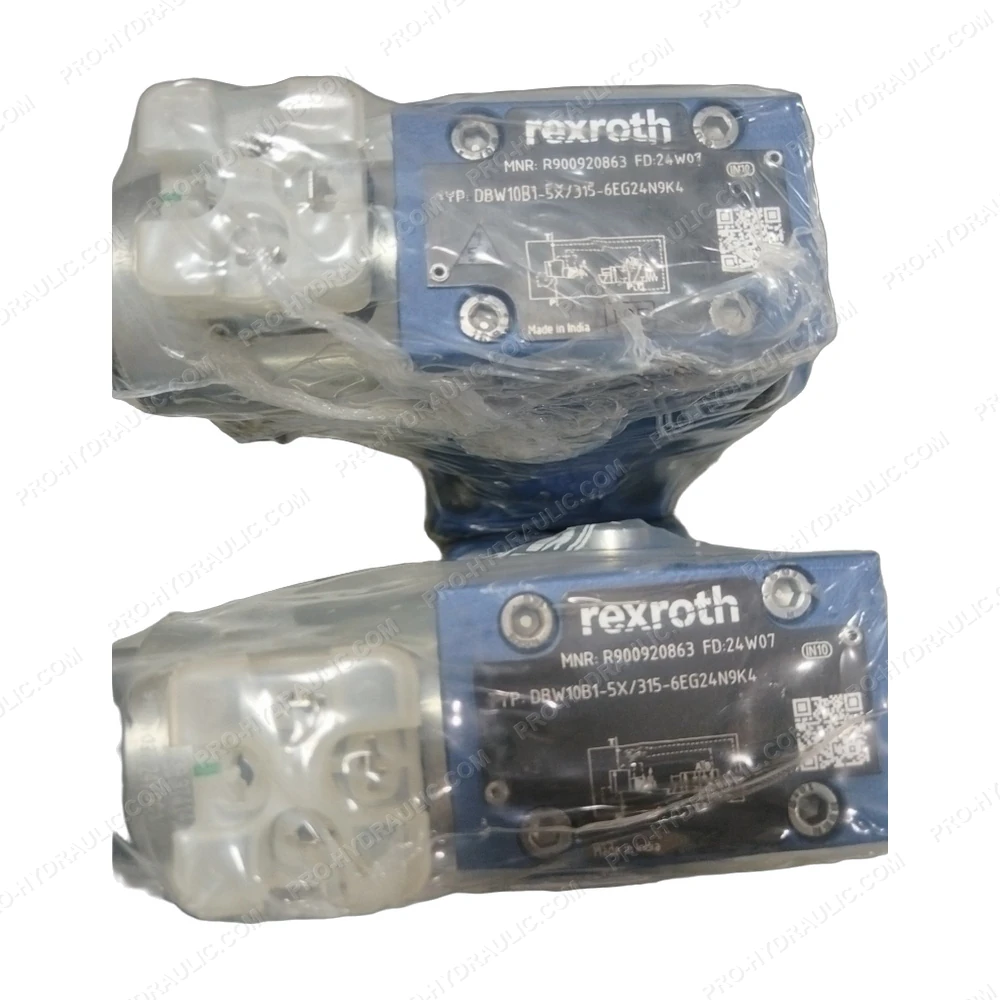

REXROTH DBW10B1-5X/315-6EG24N9K4 / R900920863 Solenoid Operated Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBW10B1-5X/315-6EG24N9K4 / R900920863 Proportional Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
