Product Overview
The Rexroth DBW10B1-LX1/315-6EG24N9K4 (material number L630700010) is a pilot-operated, solenoid-controlled pressure relief valve from the proven DBW series, designed for precise system pressure limitation and electrical unloading in industrial hydraulic power units. The valve combines a manually adjustable pilot stage with a normally closed directional solenoid (type “6E”, 24 V DC), allowing the main stage to be switched between pressure-holding and depressurized (unloading) states via an electrical signal. With a nominal size of NG10 (size 10) and a pressure rating of 315 bar, this valve is engineered for high-pressure circuits requiring reliable, repeatable pressure control and fast electrical venting of pump flow.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve — Pilot-Operated Pressure Relief Valve (Pressure Control Valve) |
| Model Designation | DBW10B1-LX1/315-6EG24N9K4 |
| Material Number | L630700010 |
| Nominal Size | NG10 (Size 10) |
| Operating Pressure | Up to 315 bar (pressure adjustment range per type code “315”) |
| Solenoid Voltage | 24 V DC (type “G24”, high-performance wet-pin solenoid) |
| Solenoid Function | Normally closed (N9), electrical unloading / venting of pilot stage |
| Adjustment Element | Manual pressure adjustment (type “B1” — rotary knob with lock) |
| Mounting & Connection | Subplate mounting, ISO 4401 / DIN 24340 size 10 interface (4-way porting pattern) |
| Electrical Connection | DIN EN 175301-803 (DIN 43650) connector, IP65 protection class |
| Seal Material | NBR (N9K4 designation — mineral oil compatible) |
| Hydraulic Fluid | Mineral oil HL/HLP per DIN 515 |
Engineering Features & Advantages
- Precision Performance: The hydraulic valve — pilot-operated pressure relief valve (pressure control valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar, supporting stable operation across the full working range.
Typical Industrial Applications
The Rexroth DBW10B1-LX1/315-6EG24N9K4 (material number L630700010) is a pilot-operated, solenoid-controlled pressure relief valve from the proven DBW series, designed for precise system pressure limitation and electrical unloading in industrial hydraulic power units.
PRODUCT IMAGES

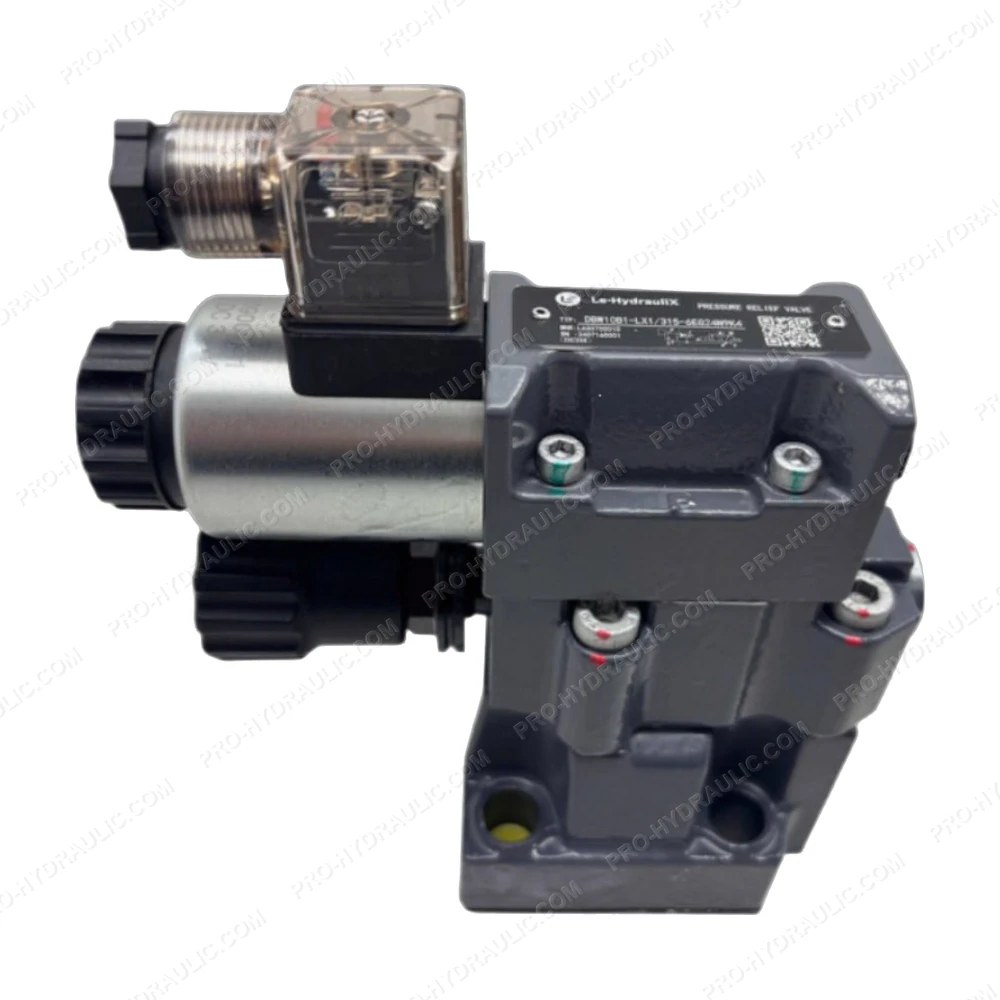

Rexroth DBW10B1-LX1/315-6EG24N9K4 / L630700010 Solenoid Operated Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBW10B1-LX1/315-6EG24N9K4 / L630700010 Proportional Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
