Product Overview
The Rexroth DBW10B2-52/315-6EG24N9K4 (Material Number R900919570) is a pilot-operated, solenoid-controlled pressure relief valve from the proven DBW series, designed for precise system pressure limitation and electrical unloading in industrial hydraulic circuits. The valve combines a pilot-operated pressure relief cartridge with a directional solenoid pilot valve, allowing it to perform two functions: continuous pressure regulation at the set value and rapid, electrically commanded depressurization of the system. The main stage is controlled by the pilot pressure differential, while the integrated solenoid pilot valve (24 V DC) directs pilot flow to load or unload the main poppet. With a nominal size of NG10 (Size 10) and a maximum pressure rating of 315 bar, this valve is engineered for high-pressure hydraulic power units, presses, and injection molding machines where reliable pressure control and fast unloading cycles are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Pressure Relief Valve (Pilot-Operated) |
| Model Designation | DBW10B2-52/315-6EG24N9K4 / R900919570 |
| Nominal Size | NG10 (Size 10) per ISO 4401 / DIN 24340 |
| Maximum Operating Pressure | 315 bar (adjustable pressure setting range) |
| Solenoid Voltage | 24 V DC (EG24 = DC solenoid, N9 = standard voltage) |
| Control Type | Pilot-operated with solenoid pilot valve for unloading |
| Mounting & Connection | Subplate mounting per ISO 4401-05 / CETOP 5 / NG10 |
| Adjustment | Adjustable pressure setting via hex socket screw with locknut |
| Seal Material | NBR (standard); FKM available for high-temperature service |
| Fluid Compatibility | Mineral oil based hydraulic fluids per DIN 51524; HLP, HLVP |
Engineering Features & Advantages
- Precision Pressure Control: The pilot-operated poppet design delivers accurate, repeatable pressure limitation with minimal hysteresis and excellent pressure override characteristics, ensuring stable system pressure even under varying flow demands.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a nominal size of NG10 (Size 10) and a maximum pressure rating of 315 bar, this valve is engineered for high-pressure hydraulic power units, presses, and injection molding machines where reliable pressure control and fast unloading cycles are essential.
PRODUCT IMAGES

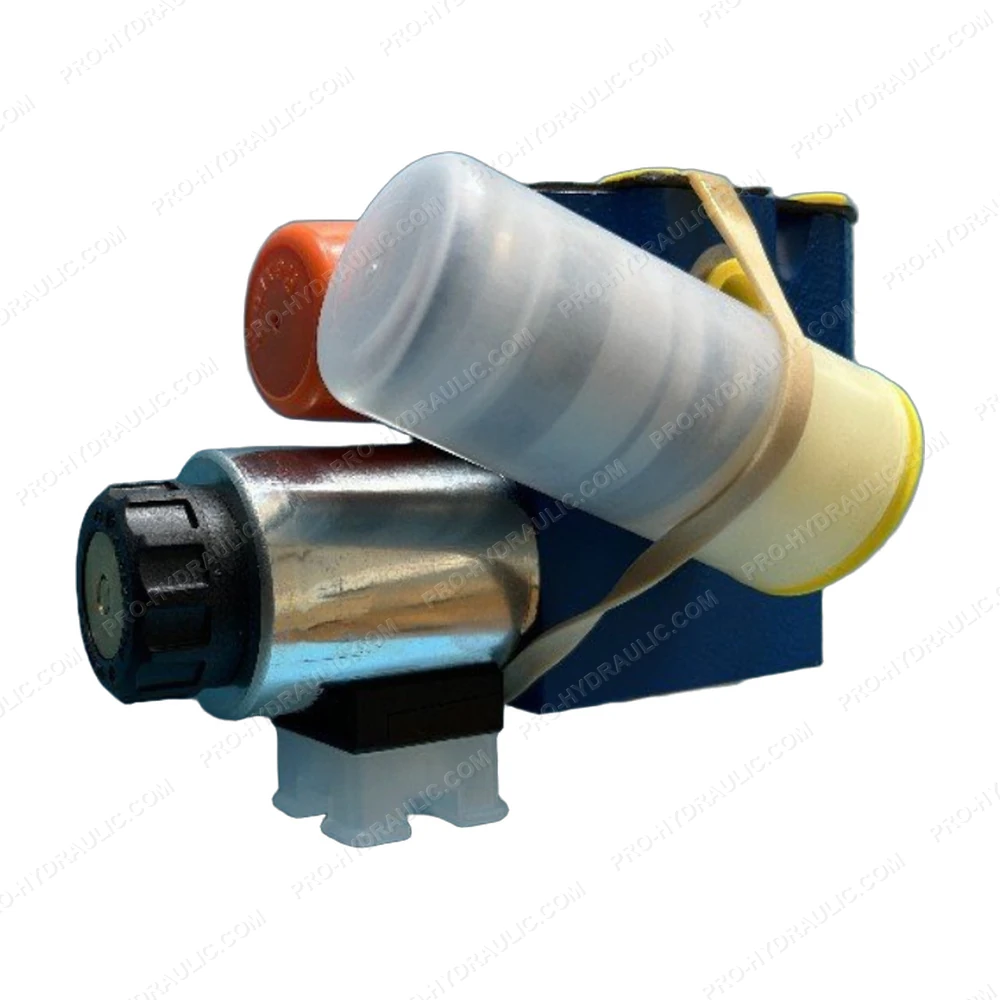

REXROTH DBW10B2-52/315-6EG24N9K4 / R900919570 Solenoid Operated Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBW10B2-52/315-6EG24N9K4 / R900919570 Proportional Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
