Product Overview
The Rexroth DBW10B2-5X/200-6EG24N9K4 (material number R900912910) is a pilot-operated, solenoid-controlled pressure relief valve from the proven DBW series, size 10, component series 5X. It combines a direct-acting pilot stage with a main spool stage to limit and electrically unload system pressure in hydraulic power units and manifold blocks. The valve is normally closed in its de-energized state; energizing the integrated wet-pin DC solenoid opens the pilot circuit, allowing the main spool to vent pump flow to tank at minimal pressure. The DBW10B2 configuration features an adjustable pressure setting range up to 200 bar, a 6 mm nozzle (damping orifice) for stable pilot response, and a nominal 24 V DC solenoid with N9 (DIN EN 175301-803, ISO 4400) plug connection and K4 manual override. As a pressure control valve, it performs no pumping function; it regulates, limits, and electrically dumps pressure within the hydraulic circuit.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Pressure Relief Valve (Pilot-Operated, Pressure Control Valve) |
| Model Designation | DBW10B2-5X/200-6EG24N9K4 / R900912910 |
| Size / Nominal Diameter | NG10 (Size 10), Component Series 5X |
| Pressure Setting Range | Up to 200 bar (adjustable via set screw) |
| Operating Pressure | Standard Industrial Grade (Up to rated 200 bar) |
| Solenoid Voltage | 24 V DC (EG24), wet-pin AC/DC solenoid |
| Electrical Connection | N9 – DIN EN 175301-803 (ISO 4400) 3-pole plug |
| Manual Override | K4 – concealed manual emergency actuation |
| Pilot Damping Orifice | 6 mm nozzle for stable pilot stage response |
| Mounting & Connection | Subplate mounting, ISO 4401 / DIN 24340 size 10 interface |
Engineering Features & Advantages
- Precision Performance: Pilot-operated spool design delivers accurate, repeatable pressure limitation with low hysteresis and minimal pressure overshoot during electrical unloading.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
This solenoid operated pressure relief valve (pilot-operated, pressure control valve) is widely used in industrial hydraulic power units, machine tools, presses, and general automation systems where reliable, precise performance is required.
PRODUCT IMAGES

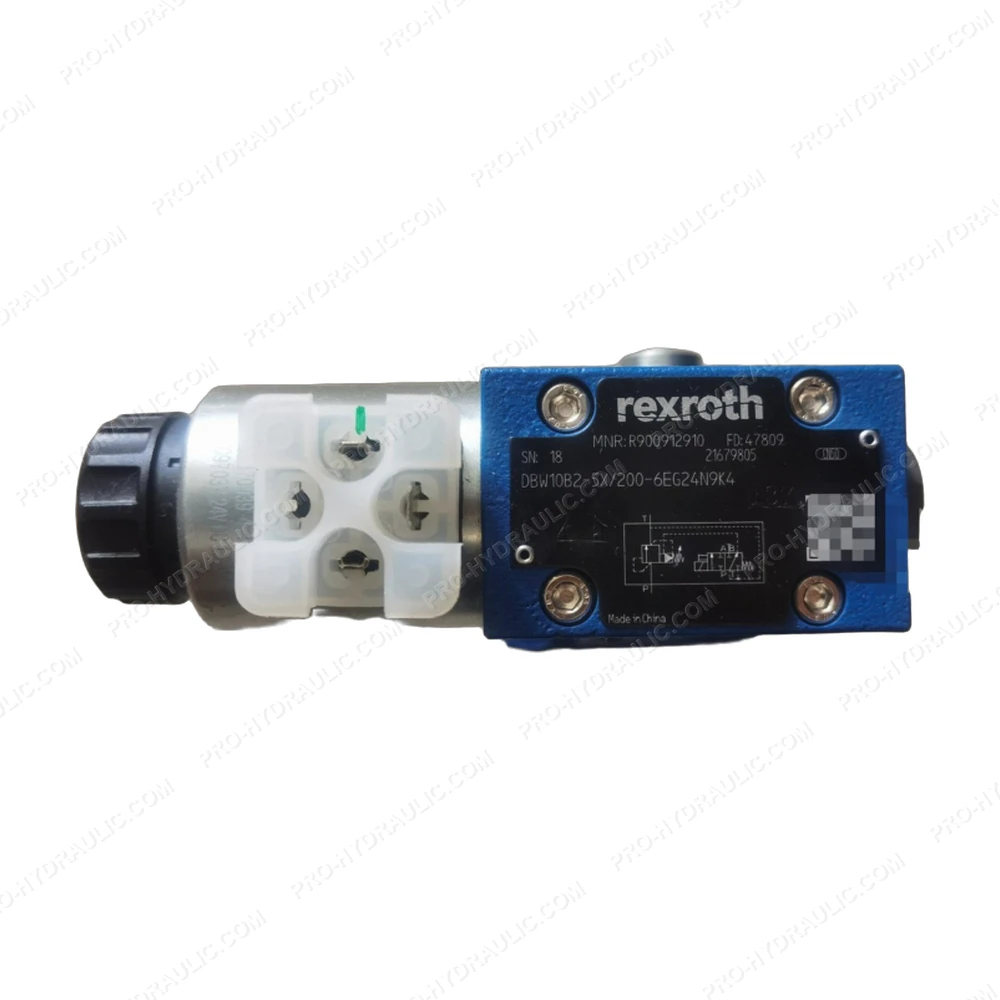

Rexroth DBW10B2-5X/200-6EG24N9K4 / R900912910 Solenoid Operated Pressure Relief Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBW10B2-5X/200-6EG24N9K4 / R900912910 Proportional Pressure Relief Valve. This Germany-made 24 VDC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
