Product Overview
The Rexroth DBW30B2-5X/315-6EG24N9K4 (Material Number R900922311) is a pilot-operated, solenoid-controlled pressure relief valve from the renowned Rexroth DBW series. This valve is designed to limit and electrically unload system pressure in hydraulic circuits, providing precise pressure control and safe operation. It combines a pilot-operated pressure relief valve with a directional spool valve, allowing for solenoid-actuated unloading of the main stage. The DBW30B2-5X/315-6EG24N9K4 is widely used in industrial hydraulic systems where reliable pressure limitation and electrical venting are required, such as in presses, injection molding machines, and test rigs. With a nominal size of 30 (NG30) and a pressure rating of 315 bar, it ensures robust performance and long service life even under demanding conditions.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Hydraulic Valve – Pressure Control Valve (Pilot-Operated Solenoid Relief Valve) |
| Model Designation | DBW30B2-5X/315-6EG24N9K4 |
| Material Number | R900922311 |
| Nominal Size | NG30 (DIN 24340) |
| Maximum Operating Pressure | 315 bar (adjustable) |
| Pressure Adjustment Range | Up to 315 bar (standard pressure range) |
| Solenoid Voltage | 24 V DC (EG24) |
| Solenoid Type | Wet-pin AC/DC solenoid, high switching performance |
| Mounting Pattern | Subplate mounting, ISO 6264 (NG30) |
| Connection Type | Threaded ports per ISO 228/1 (G1 1/4) |
| Seal Material | NBR (Nitrile Rubber) – standard for mineral oil-based fluids |
| Operating Temperature Range | -20 °C to +80 °C (depending on fluid) |
Engineering Features & Advantages
- Precision Performance: The hydraulic valve – pressure control valve (pilot-operated solenoid relief valve) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings of 315 bar (adjustable), supporting stable operation across the full working range.
Typical Industrial Applications
The DBW30B2-5X/315-6EG24N9K4 is widely used in industrial hydraulic systems where reliable pressure limitation and electrical venting are required, such as in presses, injection molding machines, and test rigs.
PRODUCT IMAGES

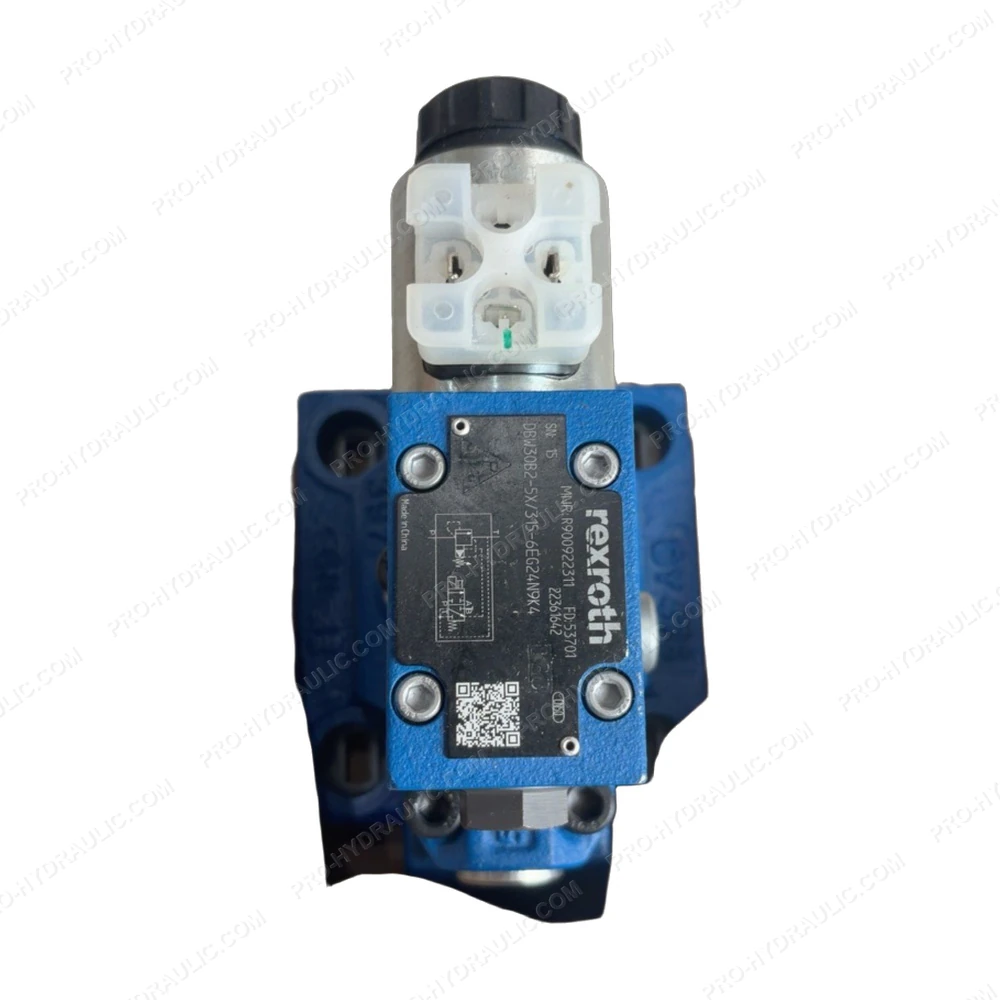

REXROTH DBW30B2-5X/315-6EG24N9K4 / R900922311 Solenoid Operated Pressure Relief Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH DBW30B2-5X/315-6EG24N9K4 / R900922311 Solenoid Operated Pressure Relief Valve. This Germany-made 24V DC hydraulic component features a pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
